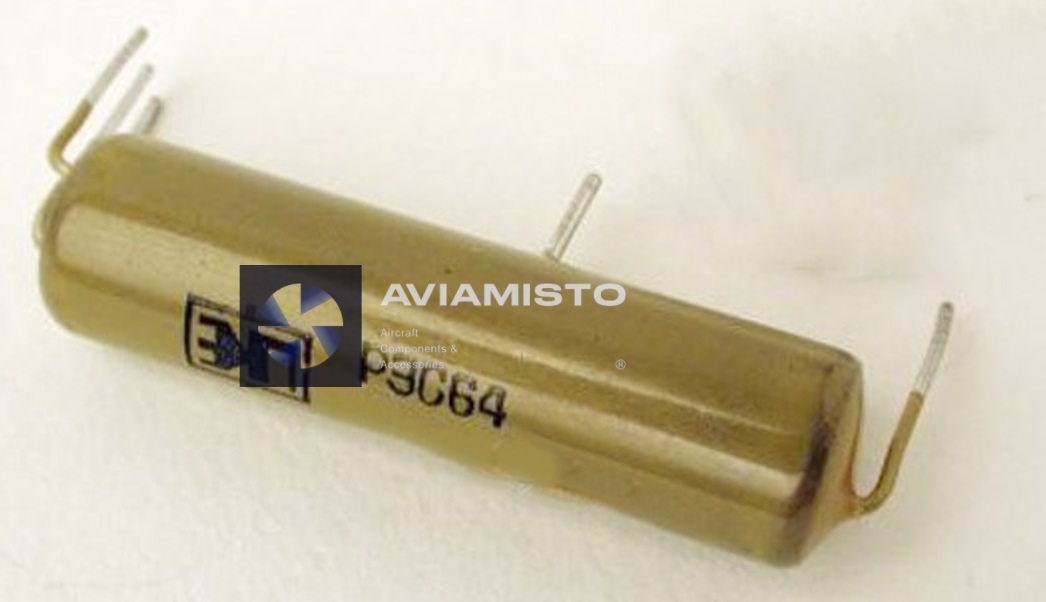

RES64B RS4.569.727-01
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay RES64B RS4.569.727-01 is a reed switch, two-position, single-stable, with one closing contact, designed for switching DC and AC electrical circuits with a frequency of up to 10,000 Hz.
Technical details
1. Winding supply current – constant;
2. Winding resistance 18-22 ohms;
3. Operate current 164 mA;
4. Release current 9mA;
5. Working voltage 5.4-6.5V;
6. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (the winding is de-energized) 500 MΩ;
– at maximum temperature (after holding the windings under operating voltage) 10 MΩ;
– in conditions of high humidity 5 MΩ;
7. Test alternating voltage between current-carrying elements, between current-carrying elements and the case:
– in normal climatic conditions 350 V;
– in conditions of high humidity 200 V;
– at reduced atmospheric pressure 180 V;
8. The time of continuous or total exposure of the windings to current is 100 hours;
9. The bounce time of contacts during operation and release is not more than 0.3 ms;
10. Resistance of electrical contact is not more than 0.2 Ohm;
11. Relay weight no more than 6 g.
