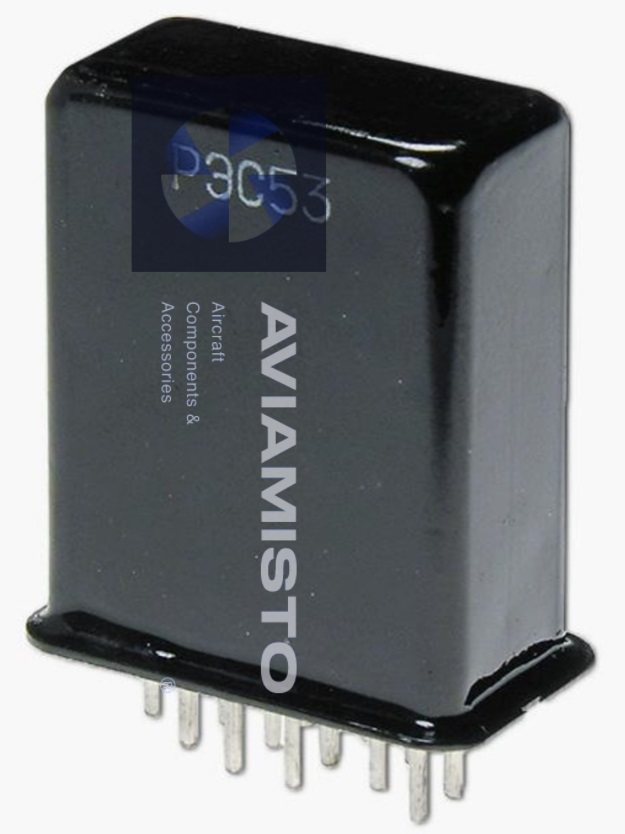

RES53 RF4.500.410-08
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay RES53 RF4.500.410-08 is sealed, two-position, single-stable, with four changeover contacts, powered by direct current. Designed for switching DC and AC circuits with a frequency of 50 to 1100 Hz.
Technical details
1. Winding supply current – constant;
2. Winding resistance 18-22 ohms;
3. Operate current 164 mA;
4. Release current 9mA;
5. Working voltage 5.4-6.5V;
6. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (the winding is de-energized) 200 MΩ;
– at maximum temperature (after holding the windings under operating voltage) 50 MΩ;
– in conditions of high humidity 10 MΩ;
7. Test alternating voltage between current-carrying elements, between current-carrying elements and the case:
– in normal climatic conditions 500 V;
– in conditions of high humidity 300 V;
– at reduced atmospheric pressure 170 V;
8. The time of continuous or total exposure of the windings to current is 100 hours;
9. Contact bounce time during actuation and release no more than 5 ms;
10. The weight of the relay is not more than 21 g.
