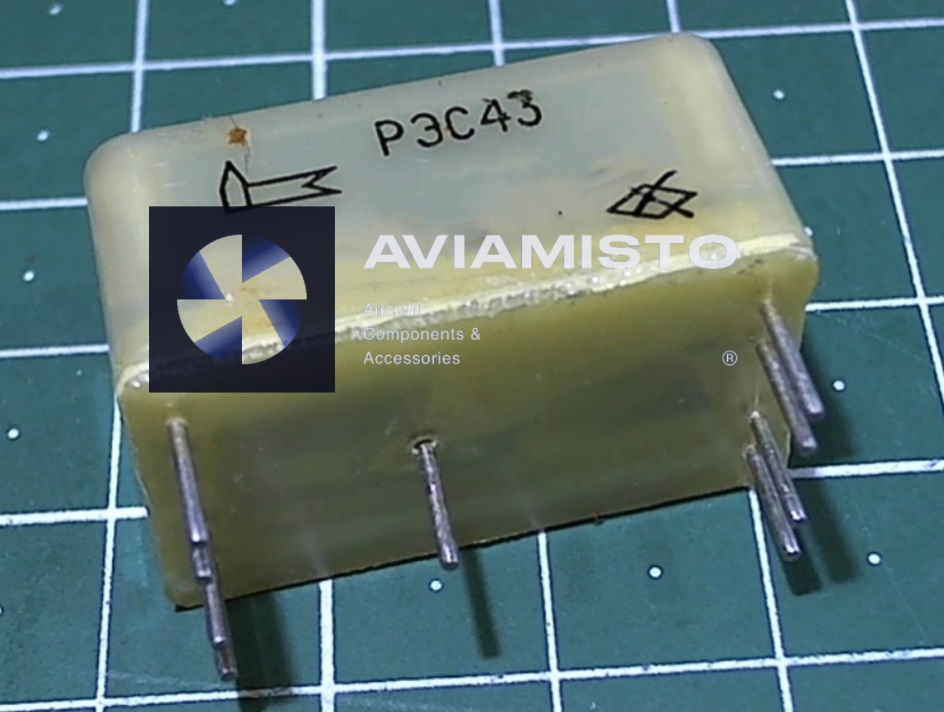

RES43 RS4.569.204
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relays RES43 RS4.569.204 are reed switches, two-position, single-stable, designed for switching electrical circuits of direct and alternating current with a frequency of up to 10 kHz.
Technical details
1. Linear acceleration: up to 980 m/s2.
2. Mechanical impact, single action with acceleration: 1470 (9) m/s2 (impacts).
3. Mechanical impact, multiple action with acceleration: 735 (4000) m/s2 (impacts).
4. Relative humidity at +35°C: up to 98%.
5. Atmospheric pressure: from 1.3×10-4 to 2.13×105 Pa.
Ambient operating temperature: -60 to +85 °C.
6. Relay weight: 15 g.
7. Minimum service life: 12 years.
