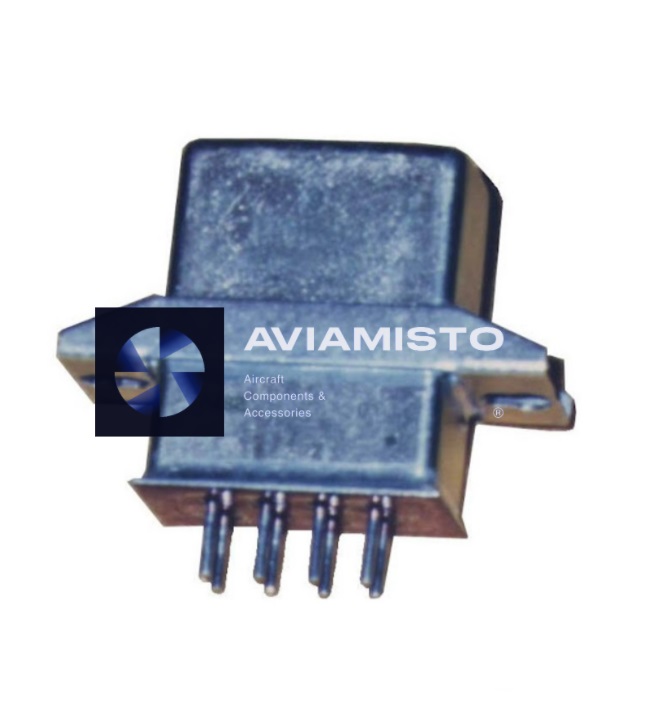

REK84 RVIM.647611.010-01
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay REK84 RVIM.647611.010-01 electromagnetic low-frequency non-polarized single-stable, DC-controlled, with two changeover contacts. Are intended for switching of electric chains of direct and alternating current.
Technical details
1. Dielectric strength of insulation between current-carrying circuits and case: 500 V.
2. Vibration loads:
— frequency range 3000 Hz.
– acceleration 100 (10) (g).
3. Linear acceleration: 500 (50) m/s2 (g).
4. Mechanical impact, single action with acceleration: 1500 (9) m/s2 (impacts).
5. Relative humidity at +35°C: up to 98%.
6. Atmospheric pressure: from 1.33×10-4 to 3.04×105 Pa.
7. Operating ambient temperature: -60 to +100 °C.
8. Relay weight, no more than: 52.0 g.
9. Minimum service life: 20 years.
