REK37 RF4.500.477-12.01
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description

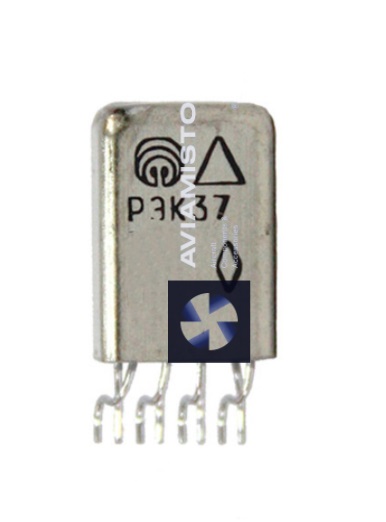

Relay REK37 RF4.500.477-12.01 electromagnetic sealed DC relay with two changeover contacts. The relay is intended for switching electric circuits of direct and alternating current.
Technical details
1. Electrical strength of insulation between current-carrying elements: 300 V.
2. Dielectric strength of insulation between current-carrying elements and case: 300 V.
3. Vibration loads:
— frequency range 3000 Hz.
— acceleration 200 (20) m/s2 (g).
4. Relative humidity at +35°C: up to 98%.
5. Atmospheric pressure: from 1.33×10-6 to 3.05×105 Pa.
6. Operating ambient temperature: -60 to +85°C.
7. Relay weight: 3.5g.
8. Minimum service life: 12 years.
