REK23 RF4.500.472-10.01
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description

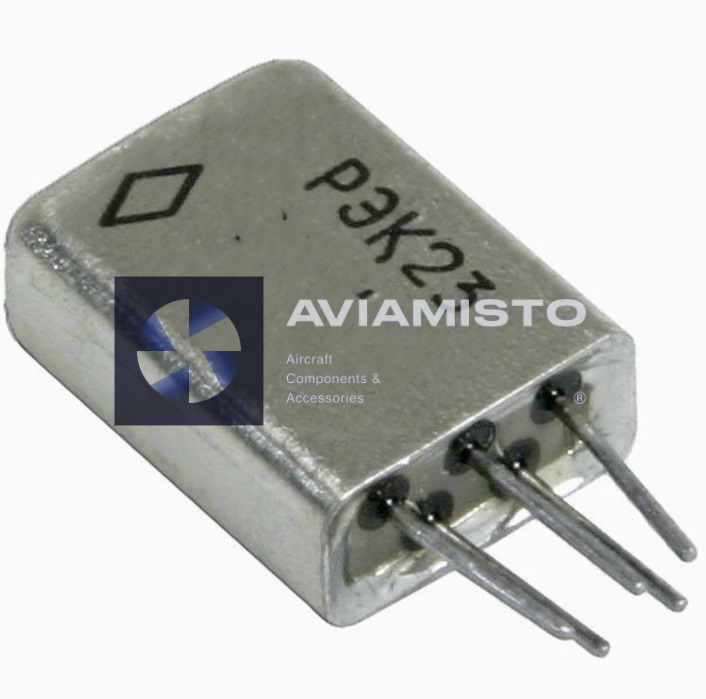

Relay REK23 RF4.500.472-10.01 hermetic, two-position, single-stable, with one changeover contact, designed for switching DC and AC electrical circuits.
Technical details
1. The supply current of the winding is constant.
2. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (the winding is de-energized) – 200 MΩ.
– at maximum temperature (after holding the winding under operating voltage) – 20 MΩ.
– in conditions of high humidity:
– between contacts, between contacts and case – 70 MΩ.
– between the winding and the housing, between the winding and contacts – 10 MΩ.
3. The relay operation time is not more than 3 ms.
4. Release time not less than 2 ms.
5. The weight of the relay is not more than 2.5 g.
