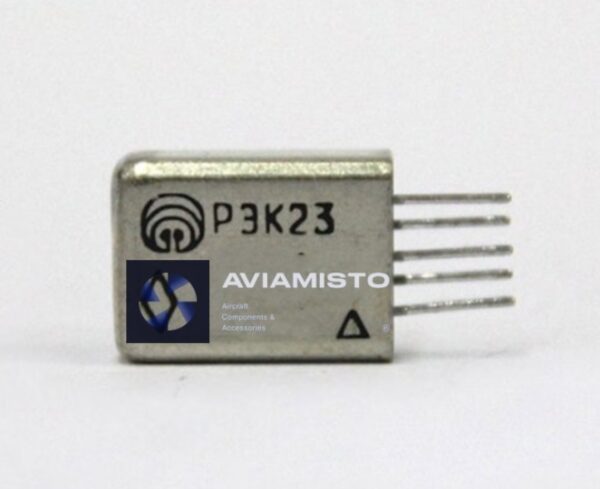

REK23 RF4.500.472-05.02
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay REK23 RF4.500.472-05.02 hermetic, two-position, single-stable, with one changeover contact, designed for switching DC and AC electrical circuits.
Technical details
1. Linear acceleration 1000 (100) m/s2 (g).
2. Mechanical impact, single action with an acceleration of 1500 (9) m/s2 (impacts).
3. Mechanical impact, multiple action with an acceleration of 750 (4000) m/s2 (impacts).
4. Relative humidity at +35°C: up to 98%.
5. Atmospheric pressure: from 1.33×10-6 to 3.05×105 Pa.
6. Operating ambient temperature: -60 to +85 °C.
7. Relay Weight: 2.5g.
8. Minimum service life: 12 years.
