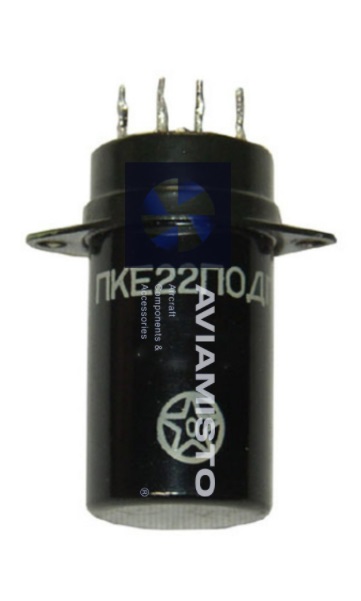

PKE22PODG
MEDIUM POWER ELECTROMAGNETIC RELAYS
Description
Relay electromagnetic switching neutral PKE22PODG is designed to work in the electrical systems of aircraft equipment operated in any climatic conditions.
Technical details
1. Rated voltage of the switched circuit DC 27 V.
2. Rated control circuit voltage DC 18V.
3. The current of the switched circuit at t circuit is less than or equal to 0.015 s 2 A.
4. The current consumed by the relay winding in the on state at rated voltage, not more than 0.11 A.
5. Relay actuation voltage in the heated state under normal conditions, no more than 18 V.
6. Release voltage of the relay in the heated state under normal conditions, no more than 6.5.
7. Design – sealed.
8. Overall dimensions 34×22.2×48.6 mm.
