2VG-15K-2S
switch
Description

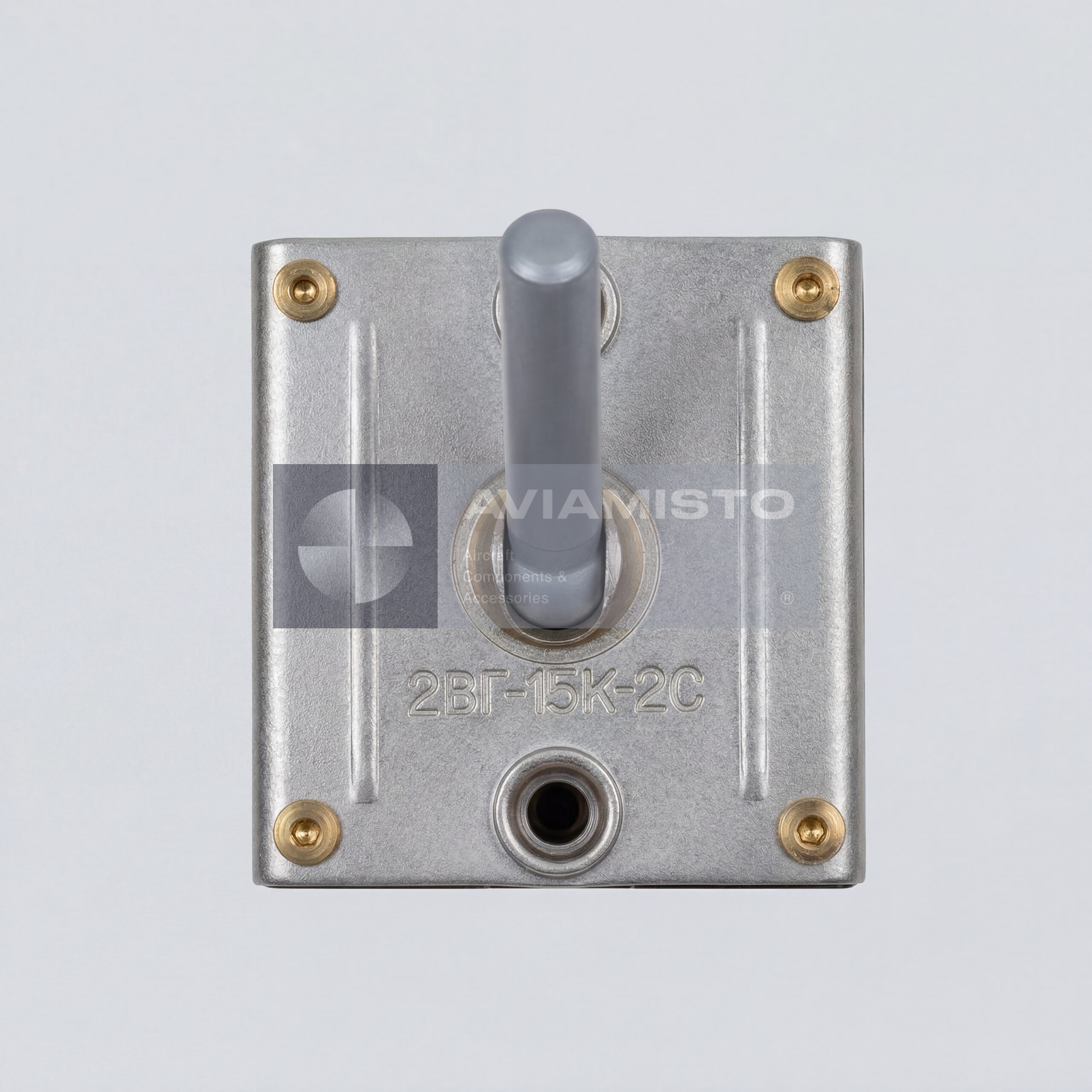

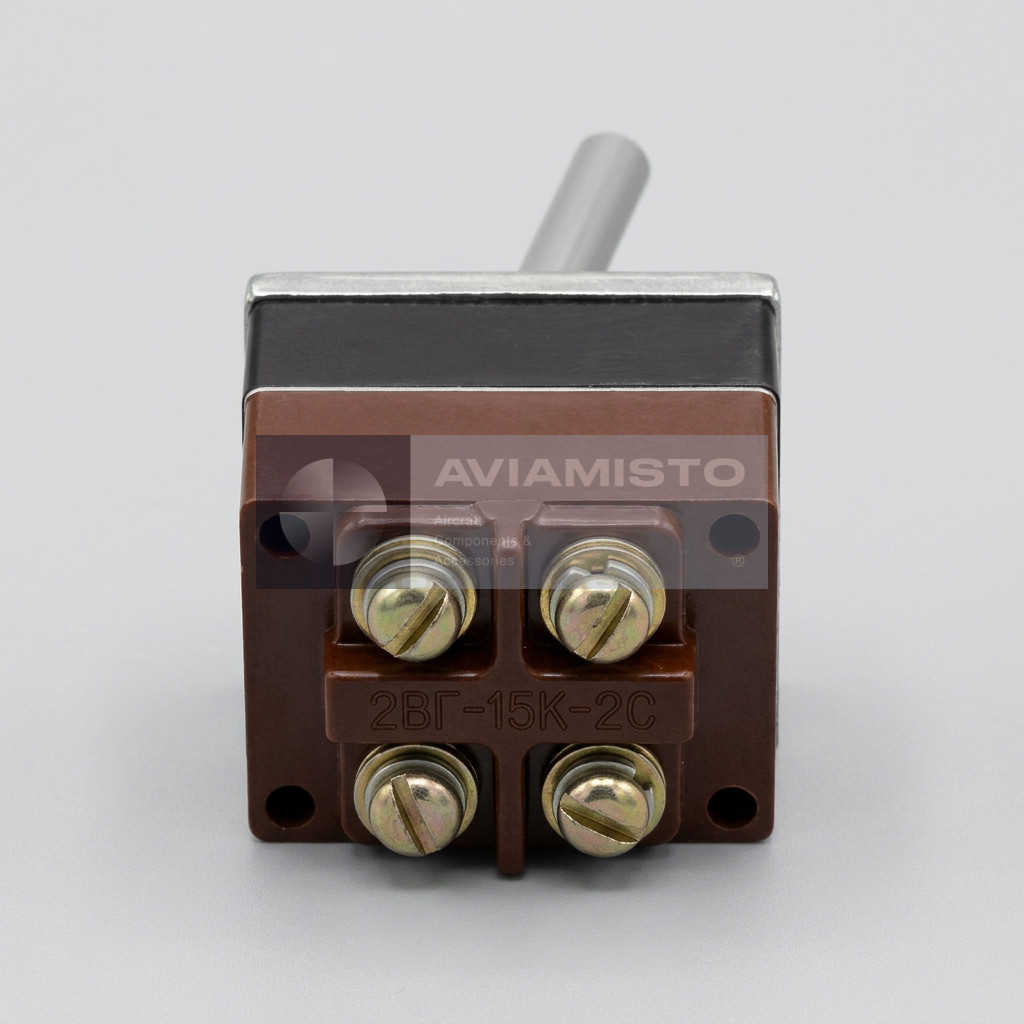

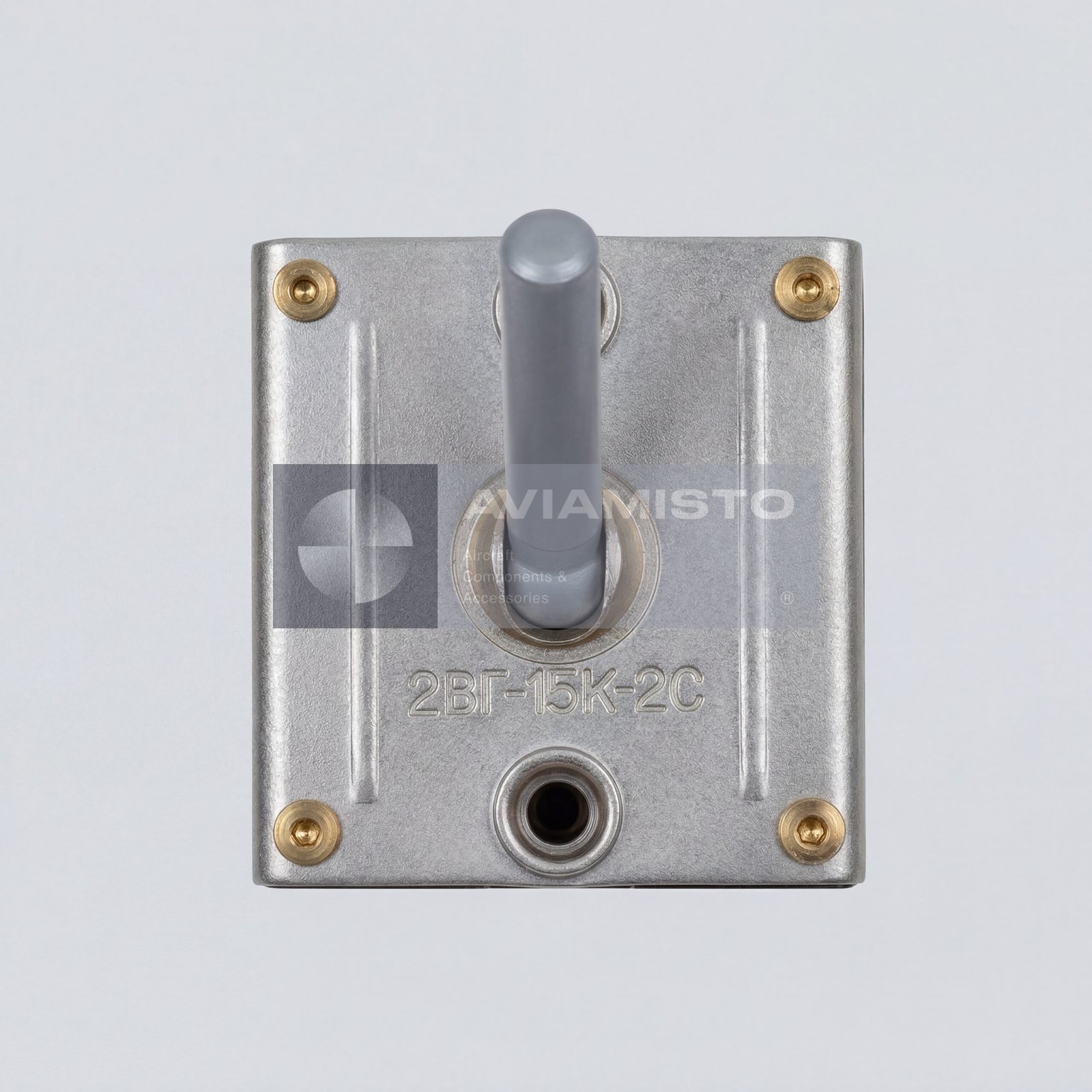

2VG-15K-2S Aircraft Hermetic Switch
The 2VG-15K-2S is a two-pole hermetically sealed aircraft switch designed for switching DC electrical circuits in aviation equipment. The switch is intended for operation in onboard radio and avionics systems where reliable switching of low-voltage electrical circuits is required.
Full descriptionCollapse description
2VG-15K-2S Switch in Aircraft Electrical Systems
The 2VG-15K-2S switch is used to control electrical circuits in aircraft onboard systems operating at voltages up to 30 V DC. It allows switching of both resistive and inductive loads and is commonly installed on aircraft control panels as a control or selector switch.
2VG-15K-2S Switch Design and Features
The 2VG-15K-2S is a hermetically sealed instantaneous-action switch designed for operation in harsh aviation environments. Switches marked with the “K” index are intended for installation in cockpits with red lighting and feature an extended handle without a luminous indicator window. The sealed design provides protection against dust, moisture, vibration, and pressure changes.
2VG-15K-2S Aircraft Applications
The 2VG-15K-2S switch is used in aircraft radio-technical and avionics equipment installed on helicopters and airplanes. It is designed for reliable operation in control panels and electrical systems where stable switching performance is required under vibration and temperature fluctuations.
Alternative designations: 2VG-15K-2S, 2ВГ-15К-2С — refer to the same product type.
Technical details
- Product Type
- Aircraft hermetically sealed switch
- Function
- Switching of DC electrical circuits in onboard systems
- Number of Poles
- 2
- Rated Voltage
- 27 V DC (maximum 30 V)
- Switching Current (Resistive Load)
- 0.1–15 A
All specificationsCollapse specifications
- Switching Current (Inductive Load)
- 0.1–7 A
- Voltage Drop at Terminals
- Not more than 180 mV
- Operating Principle
- Instantaneous switching action
- Environmental Protection
- Dust- and moisture-resistant hermetic design
- Relative Humidity
- Up to 98% at +40 °C
- Operating Temperature Range
- −60 °C to +60 °C
- Guaranteed Switching Cycles
- 25,000 operations
- Guaranteed Service Life
- 8 years
- Weight
- Not more than 70 g (for 2VG-15K-2S)
- Technical Specification
- TU 7Sh0.360.000
