2PPG-15K-2S
Switch
Description

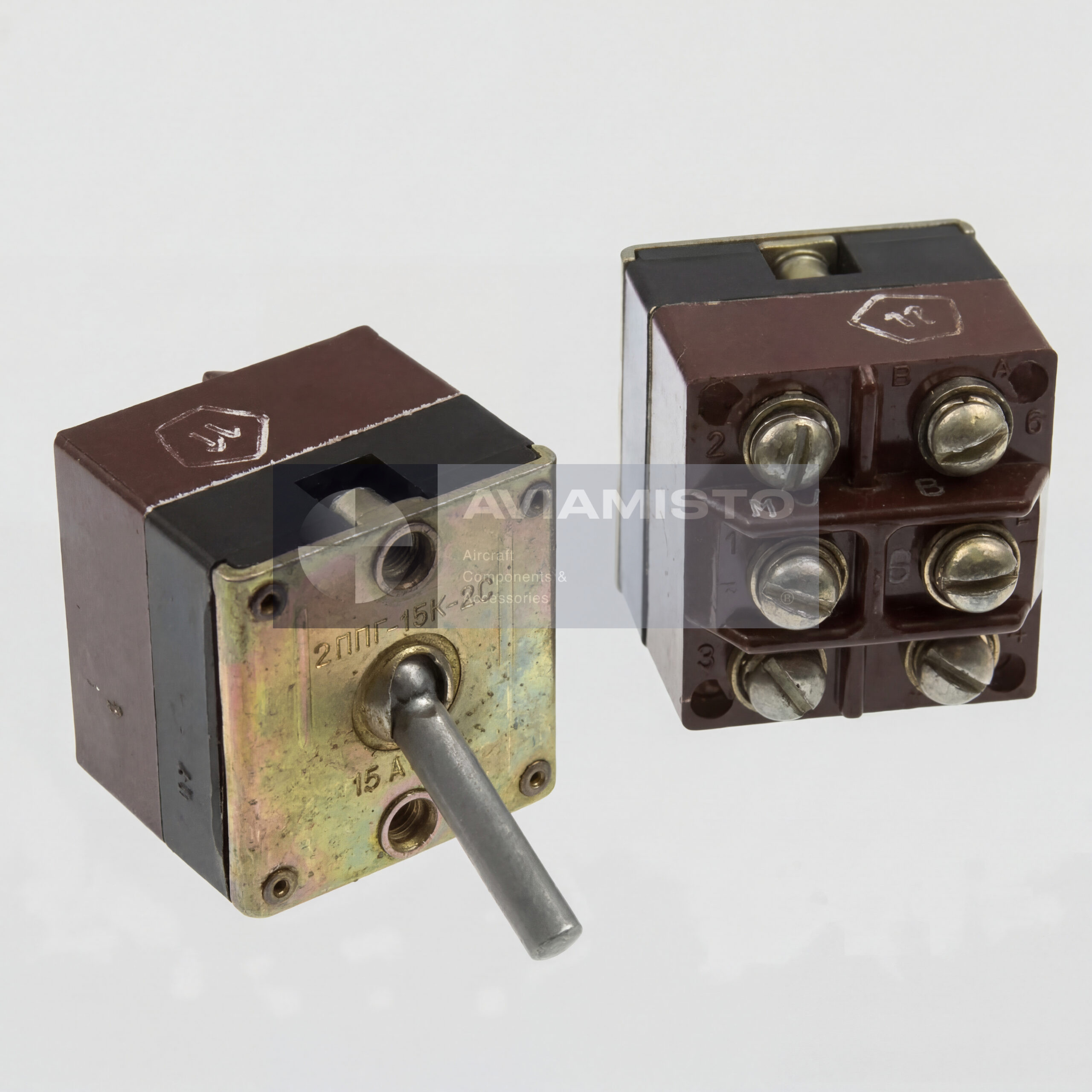

2PPG-15K-2S Aircraft Hermetic Toggle Switch
The 2PPG-15K-2S is a two-pole hermetically sealed changeover switch designed for switching DC electrical circuits in aviation equipment. The switch is used in onboard electrical and radio-technical systems where reliable switching of low-voltage circuits is required.
Full descriptionCollapse description
2PPG-15K-2S Switch in Aircraft Electrical Systems
The 2PPG-15K-2S switch operates in DC electrical circuits with nominal voltage of 27 V and maximum voltage up to 30 V. It is capable of switching both resistive and inductive loads and is commonly used in aircraft cockpit panels and avionics systems.
2PPG-15K-2S Switch Design and Features
The 2PPG-15K-2S is a hermetically sealed two-pole toggle switch designed to operate in demanding aviation environments. Switches with the “K” index are intended for installation in cockpits with red lighting and differ from standard versions by an extended handle without a luminous indicator window.
2PPG-15K-2S Aircraft Applications
The 2PPG-15K-2S switch is widely used in aircraft electrical systems and onboard radio equipment installed on helicopters and airplanes. The sealed construction protects the internal mechanism from dust, moisture, vibration, and temperature fluctuations typical for aviation environments.
Alternative designations: 2PPG-15K-2S, 2PPG-15-2S, 2ППГ-15К-2С — refer to the same product type.
Technical details
- Product Type
- Aircraft hermetically sealed toggle switch
- Function
- Switching of DC electrical circuits
- Number of Poles
- 2
- Switch Type
- Changeover toggle switch
- Rated Voltage
- 27 V DC (maximum 30 V)
All specificationsCollapse specifications
- Switching Current (Resistive Load)
- 0.1–15 A
- Switching Current (Inductive Load)
- 0.1–7 A
- Voltage Drop at Terminals
- Not more than 180 mV
- Electrical Endurance
- 25,000 switching cycles
- Operating Temperature Range
- −60 °C to +60 °C
- Environmental Protection
- Hermetically sealed dust- and moisture-resistant design
- Weight
- Not more than 75 g
