NP34M-2T
hydraulic pump
Description

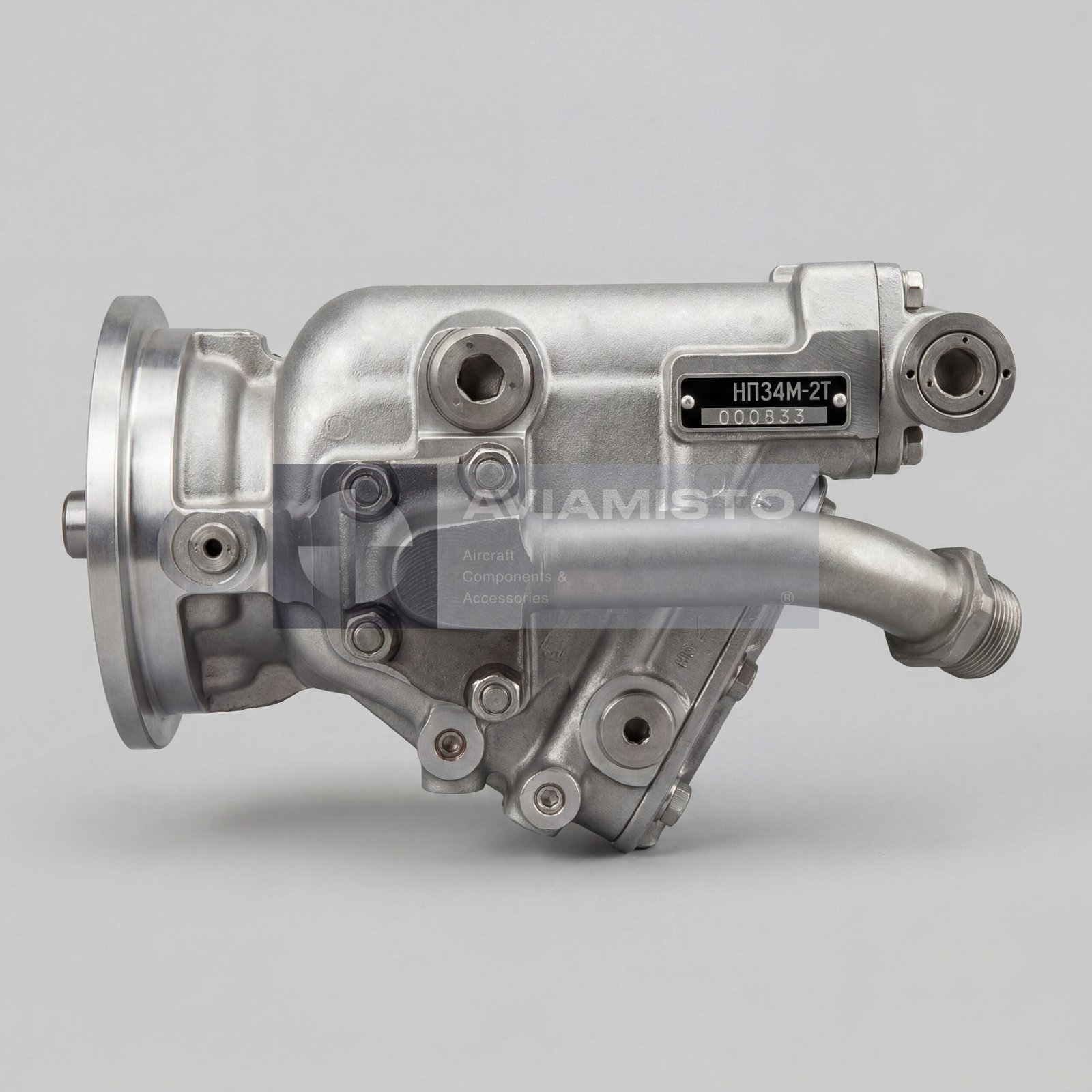

NP34M-2T System Overview
The NP34M-2T is an axial piston variable displacement hydraulic pump designed for operation in aircraft and helicopter hydraulic systems, as well as in ground test equipment. The unit functions as a pressure source within hydraulic power systems.
Full descriptionCollapse description
NP34M-2T Hydraulic Function
The pump converts mechanical energy from the drive shaft into hydraulic energy, generating flow under pressure and automatically regulating output depending on system demand. It ensures stable pressure control and efficient operation of hydraulic circuits.
NP34M-2T Application
The unit is used in aviation hydraulic systems and specialized ground installations, including aircraft and helicopter platforms where controlled hydraulic supply is required for operation of actuators and control systems.
NP34M-2T System Integration
The pump is installed via a flange connection to the engine accessory gearbox or drive system and operates in conjunction with onboard hydraulic systems. It is equipped with an internal regulator for automatic control of flow and pressure. The product is also known under alternative designations NP34M-2T and НП34М-2Т.
Technical details
- Product Type
- Axial piston variable displacement hydraulic pump
- Function
- Generation and automatic regulation of hydraulic flow and pressure
- Application / Where Used
- Aircraft, helicopter hydraulic systems and ground test equipment
- System / Installation Area
- Onboard hydraulic system / test installations
- Working Fluid
- Aviation hydraulic oil (AMG-10 type or equivalent)
All specificationsCollapse specifications
- Nominal Pressure
- 210 kgf/cm²
- Flow Rate (Nominal)
- ~32 L/min
- Shaft Speed (Nominal)
- 4000 rpm
- Shaft Speed (Maximum)
- 4200 rpm
- Shaft Speed (Minimum)
- 1500 rpm
- Rotation Direction
- Left-hand (from drive side)
- Operating Temperature Range (Fluid)
- −60 to +120 °C
- Control Type
- Variable displacement with automatic pressure regulation
- Drive Type
- Flange-mounted to engine or accessory gearbox
- Service Life
- ~3000 h
- Time Between Overhaul
- ~850 h
- Mass
- ~7.5 kg
- Technical Documentation
- Product passport and operational documentation
