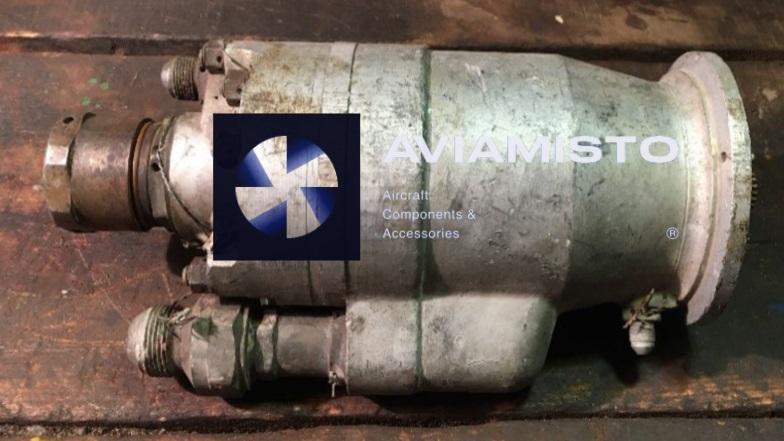

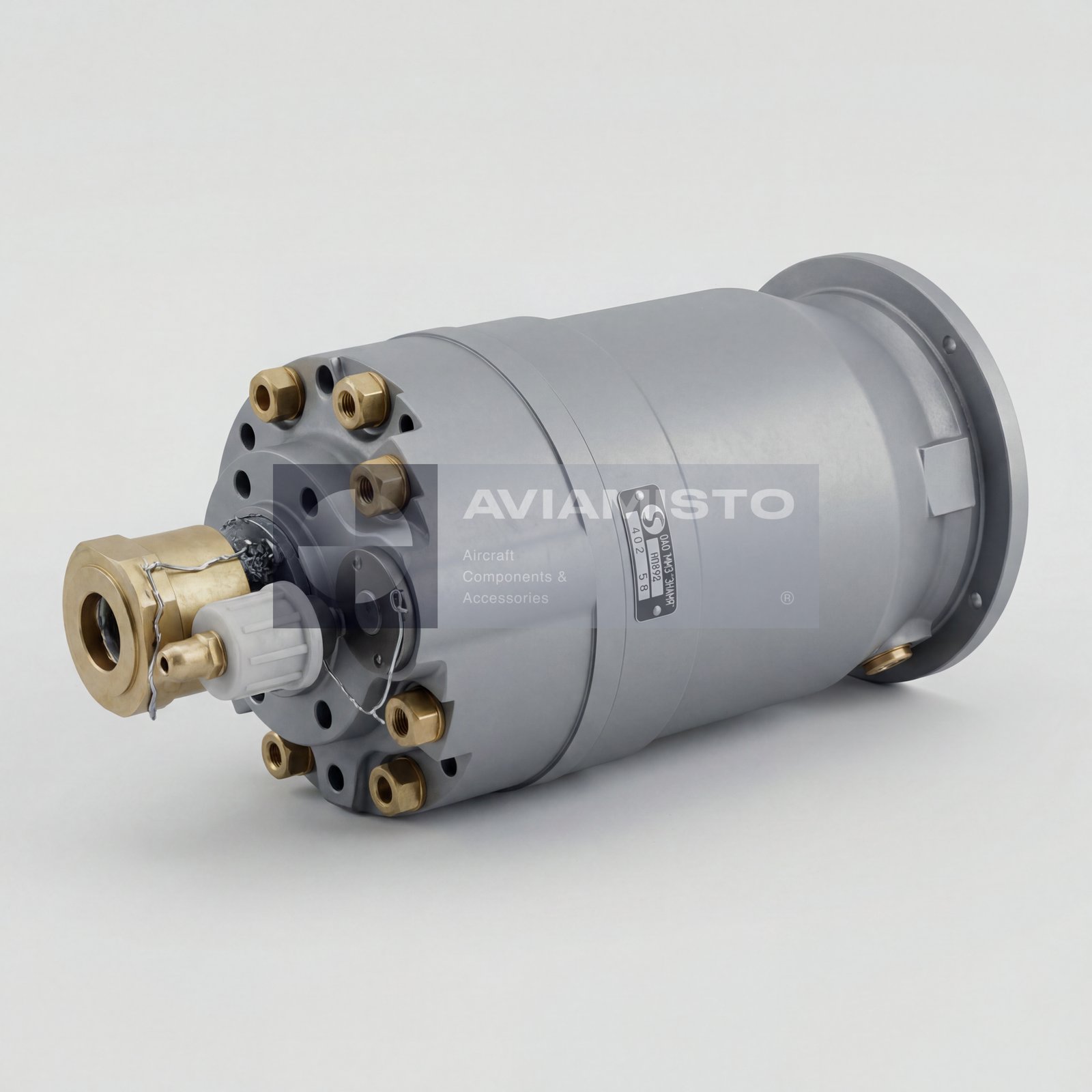

NP-89D / NP89D

NP-89D in aircraft hydraulic systems

The NP-89D is an aircraft high-pressure plunger hydraulic pump used as a main pressure source in onboard hydraulic systems. It supplies working fluid under pressure to hydraulic consumers and helps maintain the required pressure level during operation. The pump is designed for aircraft systems where pressure demand changes depending on the operating mode, position of actuators and hydraulic load. In service documentation and procurement requests, the unit may also appear as NP89D, NP-89D-3 or НП-89Д.

Hydraulic pressure generation by the NP-89D

The main task of the NP-89D is to generate hydraulic pressure and deliver working fluid to the aircraft hydraulic network. It supplies fluid to high-pressure lines feeding actuators, control mechanisms and other hydraulic consumers. The pump works as part of the aircraft hydraulic architecture rather than as a separate auxiliary unit. On platforms such as Il-76, pumps of this type are used in main hydraulic systems that support landing gear operation, wheel braking, wing mechanization and other power-consuming hydraulic functions.

Automatic regulation of the NP-89D pump

The NP-89D has regulated delivery. Its output changes depending on system demand and pressure level. When hydraulic consumers require flow, the pump supplies the needed volume. When system pressure reaches the set operating range, pump delivery is reduced to prevent unnecessary loading, heating and excess circulation. This automatic regulation is important for aircraft hydraulic systems because it allows pressure to remain stable while reducing stress on the pump and connected hydraulic equipment.

Valve-slot distribution in the NP-89D

The NP-89D is described as a high-pressure plunger pump with valve-slot distribution of the working fluid. This design belongs to the group of precision hydraulic pumps used in aviation systems, where reliable pressure generation and controlled delivery are required in a compact unit. Since the pump works at high pressure and high rotational speed, fluid cleanliness, inlet pressure and correct installation are critical. Contaminated oil, low suction pressure or air in the inlet line can quickly affect pump performance and service life.

NP-89D drive from aircraft engine or accessory gearbox

The NP-89D is mechanically driven from the aircraft engine or accessory gearbox. On Il-76 family aircraft, pumps of this type are associated with installation on the rear accessory gearbox of D-30KP engines, with one pump installed per engine depending on aircraft configuration. The drive connection must match the pump version and gearbox installation. Before mounting, the shaft, spline condition, flange face, sealing surfaces and hydraulic ports should be checked carefully to avoid leakage, cavitation or mechanical damage.

Working fluid and operating conditions of NP-89D

The NP-89D operates with aviation hydraulic oil, typically AMG-10 type fluid according to the aircraft hydraulic system requirements. For this type of high-pressure pump, the condition of the fluid is as important as the pump itself. Incorrect fluid, contamination, poor filtration, low inlet pressure or excessive system leakage may cause unstable pressure, noise, overheating or reduced delivery. During troubleshooting, technicians should check the pump together with the suction line, filters, hydraulic tank, consumers, relief valves and drain line.

Aircraft application of NP-89D

The NP-89D is used on Soviet and Russian-designed transport and passenger aircraft, including Il-76 family aircraft and Tu-154 variants, depending on configuration. Il-76 applications include Il-76T, Il-76TD, Il-76MD, Il-78 and modernized Il-76MD-90A / Il-476 configurations where applicable. On Tu-154B and Tu-154M aircraft, pumps of this type are associated with main hydraulic systems. A related modification, NP-89M, is mentioned for Tu-134 applications. Exact applicability should always be confirmed by the aircraft parts catalog and hydraulic system documentation.

Supply and inspection of NP-89D

For procurement or replacement, the full designation NP-89D should be specified, including modification if required. The pump may be supplied new, from storage, repaired, overhauled or tested serviceable depending on availability. Before installation, it should be checked for shaft condition, flange and port integrity, housing damage, corrosion, signs of leakage, cleanliness, preservation state and documentation. Bench testing is recommended for this type of pump, since visual inspection does not confirm pressure regulation, delivery, leakage level or stable operation under load.

Product Type: High-pressure plunger hydraulic pump with valve-slot distribution
Designation: NP-89D
Alternative Designations: NP89D, NP-89D-3, НП-89Д
Function: Generation and automatic regulation of hydraulic pressure and flow
Application / Where Used: Aircraft hydraulic systems
System / Installation Area: Main onboard hydraulic system
Operating Role: Primary pressure source for hydraulic consumers
Compatible Aircraft / Equipment: Il-76, Il-76T, Il-76TD, Il-76MD, Il-78, Il-76MD-90A / Il-476, Tu-154B, Tu-154M and similar aircraft platforms depending on configuration
Related Modification: NP-89M for Tu-134 applications depending on documentation
Working Fluid: Aviation hydraulic oil, AMG-10 type
Nominal Pressure: 210 kgf/cm² / 21 MPa
Minimum Flow Rate: Not less than 55 L/min
Flow Regulation: Automatic variable delivery depending on system demand
Shaft Speed, Nominal: 4000 rpm
Shaft Speed, Maximum: Up to 4200 rpm
Inlet Pressure: 1.5 to 3.5 kgf/cm²
Operating Temperature Range: −60 to +100 °C; up to +125 °C in some references depending on execution and system documentation
Control Type: Variable displacement with automatic pressure regulation
Distribution Type: Valve-slot distribution
Drive Type: Mechanical drive from aircraft engine or accessory gearbox
Typical Engine / Gearbox Association: D-30KP rear accessory gearbox on Il-76 family aircraft depending on configuration
Typical Hydraulic Consumers: Landing gear actuators, braking systems, wing mechanization and other hydraulic consumers depending on aircraft layout
Mass: Approximately 11.5–13.5 kg depending on execution and documentation source
Technical Documentation: Product passport and operational documentation as applicable
