SMNK 6-80-2 (Z, S, Zh)
Superminiature indicator lamp
Description
Purpose
SMNK 6-80-2 (Z, S, Zh) is an incandescent lamp intended for compact indication and local illumination in aircraft and electronic instruments. Its red SMNK, green SMNZ, blue SMNS and yellow SMNZh versions provides the required colored signal without an external filter. The exact designation matters because adjacent SM and SMK versions may use different bases, dimensions and electrical ratings.
Full descriptionCollapse description
Electrical rating
The nominal supply is 6 V; the stated rating is 80 mA. The published service-life value is 10,000 h. Luminous flux 0.2 lm for the red version. These are identification values for the specified version, not a basis for replacing another lamp that merely looks similar.
Construction
The lamp combines a tungsten filament, a colored glass envelope and a Flexible wire leads. Its dimensional description is: 3.2 mm diameter; 32 mm total length. The colored coating or colored glass is part of the optical function. Chips, deep scratches, discoloration, loose internal parts or damaged contacts are reasons to reject the lamp before installation.
Selection and installation
Before ordering, compare the full designation, nominal voltage, electrical rating, base and available installation space with the aircraft equipment documentation. Fit the lamp only with the circuit isolated. Do not force the base into an incompatible holder, and keep the glass clean. Similar-looking clear, mirrored and colored aircraft lamps are not automatically interchangeable.
Ordering
Order SMNK 6-80-2 (Z, S, Zh) by its complete designation. If it is being selected for an installed instrument or luminaire, provide the equipment designation or maintenance reference so the interface can be checked. Related products are listed in Aircraft Lamps. The operating principle is described in the incandescent lamp reference.
Technical details
- Product type
- Superminiature indicator lamp
- Designation
- SMNK 6-80-2 (Z, S, Zh)
- Nominal voltage
- 6 V
- Electrical rating
- 80 mA
- Base
- Flexible wire leads
All specificationsCollapse specifications
- Dimensions
- 3.2 mm diameter; 32 mm total length
- Rated life
- 10,000 h
- Optical characteristic
- Luminous flux 0.2 lm for the red version
- Envelope

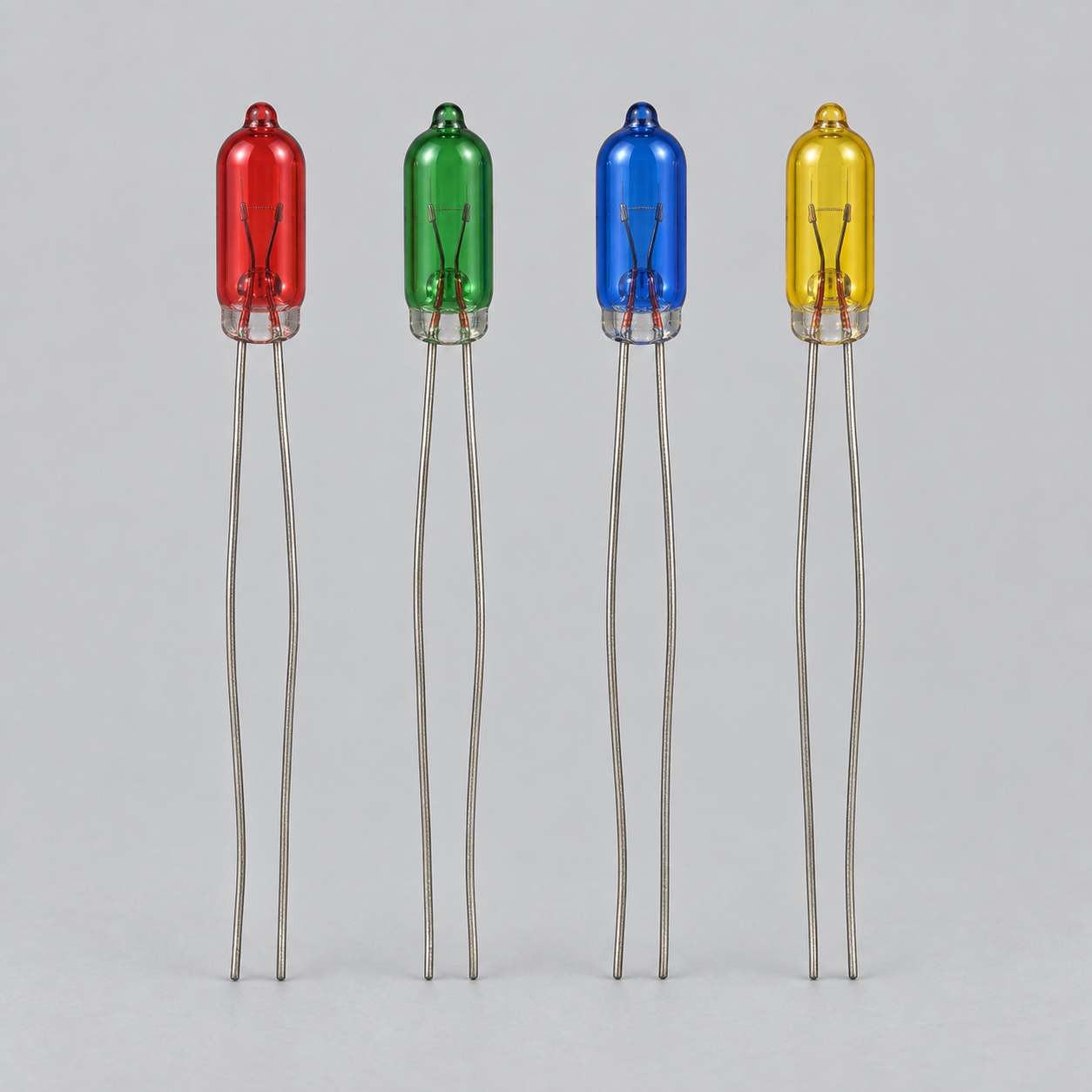

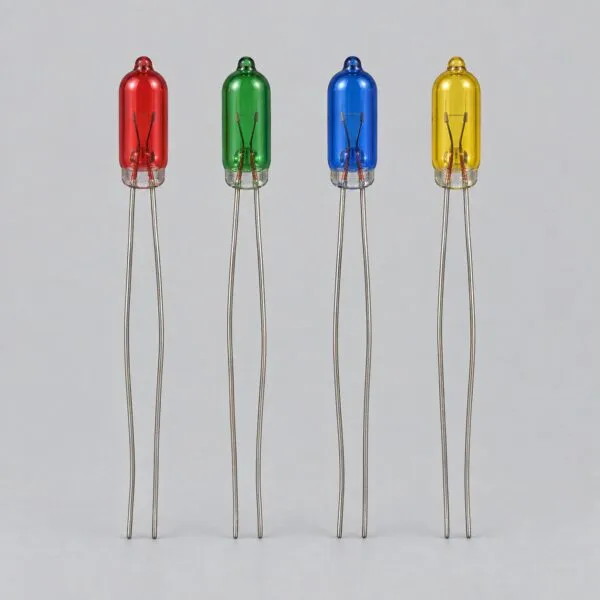

- red SMNK, green SMNZ, blue SMNS and yellow SMNZh versions
- Light source
- Tungsten filament
- Application
- compact indication and local illumination in aircraft and electronic instruments
- Operating position
- Any, subject to equipment documentation
- Selection
- By complete designation, voltage, rating, base and dimensions
- Installation
- With the electrical circuit isolated
