SMN 8-60-1

Which parameters define its operation?

At 60 mA, this version gives more light than low-current signal lamps while remaining physically small. Its 500-hour reference life is intended for defined operating cycles rather than permanent panel illumination. The electrical rating should be considered together with light output and operating duty. Overvoltage raises filament temperature and will normally shorten service life.

How is the lamp constructed and installed?

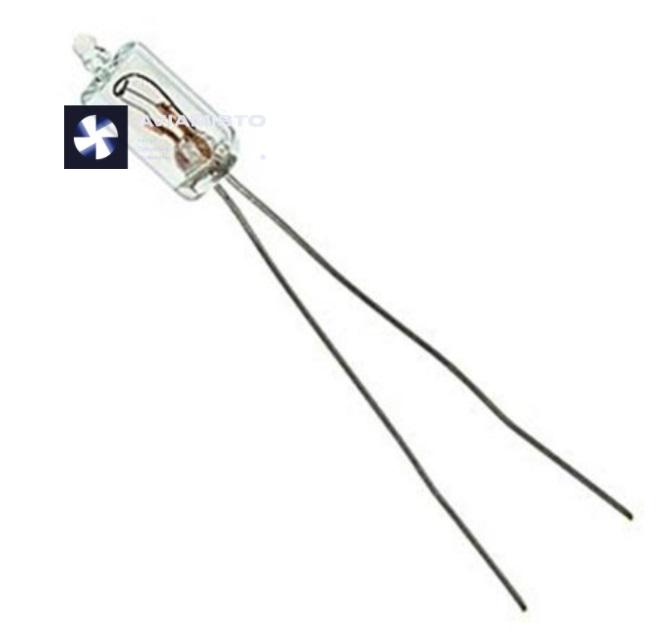

The glass envelope is about 10 mm long, and the full assembly with leads reaches approximately 94 mm. Long leads allow the light source to be positioned away from the connection point and formed for a particular instrument assembly. Before installation, compare bulb diameter, overall clearance and the exact connection method. The lamp must not be forced into an unsuitable holder, loaded through the glass envelope or fitted by changing the original mounting arrangement.

Where is this execution used?

Lamps in this group are used for local indication and illumination inside compact instruments, annunciators and illuminated controls. Installation in a particular aircraft, helicopter, panel or instrument must be confirmed by the applicable parts list or equipment documentation. The SMN or MN family name alone does not establish aircraft applicability.

How should the correct lamp be selected?

Confirm the 8 V supply, 60 mA current, light output and lead length before ordering. The suffix -1 is part of the model designation and should not be omitted when comparing the lamp with the equipment documentation. Related products on the card help compare nearby executions in the same narrow subgroup; they do not establish automatic interchangeability. An enquiry should include the marking of the removed lamp, circuit voltage, holder or lead type and the required quantity.
