SMN 6-150

Which parameters define its operation?

The lamp has been used as a small light source in photometric and laboratory instruments. Its 200-hour reference life is shorter than that of lower-current signal versions, which reflects the different operating purpose: useful light output is prioritised over long unattended service. The electrical rating should be considered together with light output and operating duty. Overvoltage raises filament temperature and will normally shorten service life.

How is the lamp constructed and installed?

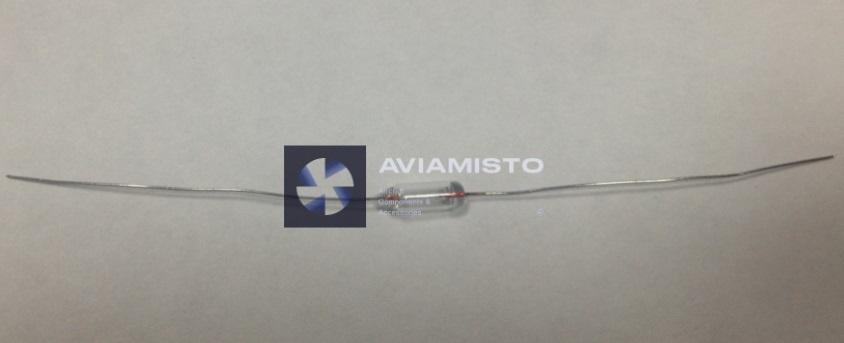

A 3.2 mm bulb is connected through long flexible leads; the overall length is about 92 mm. The leads make it possible to position the lamp accurately in an optical assembly, but they do not define interchangeability with other 6 V lamps. Before installation, compare bulb diameter, overall clearance and the exact connection method. The lamp must not be forced into an unsuitable holder, loaded through the glass envelope or fitted by changing the original mounting arrangement.

Where is this execution used?

Lamps in this group are used for local indication and illumination inside compact instruments, annunciators and illuminated controls. Installation in a particular aircraft, helicopter, panel or instrument must be confirmed by the applicable parts list or equipment documentation. The SMN or MN family name alone does not establish aircraft applicability.

How should the correct lamp be selected?

Use the complete designation SMN 6-150 when ordering. Check the rated current, luminous flux, lead length and the required filament position. Replacement with a lower-current SMN lamp can noticeably reduce instrument illumination or disturb an optical measurement. Related products on the card help compare nearby executions in the same narrow subgroup; they do not establish automatic interchangeability. An enquiry should include the marking of the removed lamp, circuit voltage, holder or lead type and the required quantity.
