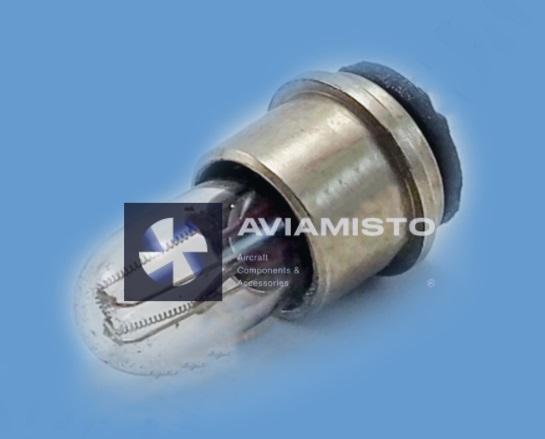

SMN 27-40

Which parameters define its operation?

The 27 V rating is typical of onboard and industrial low-voltage equipment, but the designation alone does not prove installation in a particular aircraft or instrument. Suitability must be established from the parts list or electrical diagram of the unit being serviced. The electrical rating should be considered together with light output and operating duty. Overvoltage raises filament temperature and will normally shorten service life.

How is the lamp constructed and installed?

Dimensions, base style, luminous flux and service life for this designation require confirmation from the passport or the supplied batch. These values are deliberately left out of the fixed specifications so that a visually similar SMN lamp is not selected by mistake. Before installation, compare bulb diameter, overall clearance and the exact connection method. The lamp must not be forced into an unsuitable holder, loaded through the glass envelope or fitted by changing the original mounting arrangement.

Where is this execution used?

Lamps in this group are used for local indication and illumination inside compact instruments, annunciators and illuminated controls. Installation in a particular aircraft, helicopter, panel or instrument must be confirmed by the applicable parts list or equipment documentation. The SMN or MN family name alone does not establish aircraft applicability.

How should the correct lamp be selected?

Order only by the full SMN 27-40 marking and compare the actual lamp with the equipment documentation. Before installation, confirm the mechanical connection, overall dimensions and required light output. Ask for a photo or passport when these details are critical. Related products on the card help compare nearby executions in the same narrow subgroup; they do not establish automatic interchangeability. An enquiry should include the marking of the removed lamp, circuit voltage, holder or lead type and the required quantity.
