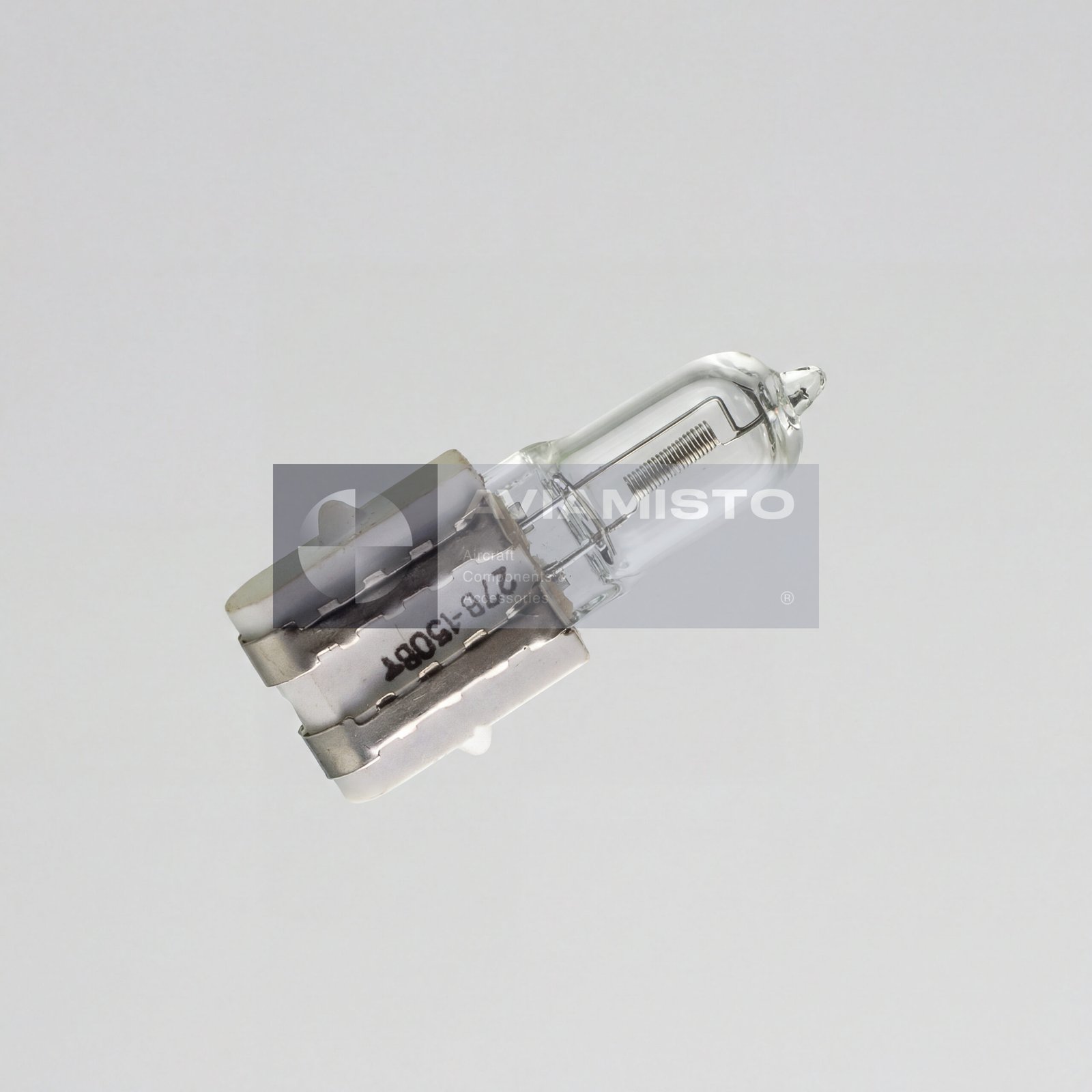

KGSM 27-150
Quartz-halogen lamp
Description
Purpose
KGSM 27-150 is a compact quartz-halogen incandescent lamp for APRF-2 landing/taxi lights, AFOE-3 logo lights and MSL-4 beacons. Its small quartz envelope and concentrated filament provide a high light output from a limited optical volume. Select it by the complete designation because lamps with similar capsules may differ in voltage, power, base and filament position.
Full descriptionCollapse description
Electrical and optical rating
The nominal rating is 27 V and 150 W. The published optical characteristic is 3300 lm; service life: By equipment documentation. These values identify the specified version. Actual performance in a fitting also depends on supply quality, contact condition, reflector alignment and the duty cycle defined by the equipment manufacturer.
Construction
The lamp uses a clear quartz envelope, tungsten filament and Special aircraft base. Its dimensional description is high-output quartz aircraft capsule. Quartz-halogen lamps operate at a high envelope temperature. Fingerprints, chips, cracks, clouding, loose internal parts or damaged contacts are unacceptable. Handle the capsule with clean gloves or a lint-free tissue.
Selection and installation
Before ordering, compare the complete designation, voltage, power, base, contact arrangement and filament position with the equipment manual. Install only with the circuit isolated and the lamp cool. Do not force the base into an incompatible holder. After installation, remove contamination from the quartz surface and confirm secure retention.
Ordering
Order KGSM 27-150 by its full designation and state the equipment in which it will be installed. This allows the base and optical position to be checked before supply. Related products are listed in Aircraft Lamps. General operating principles are described in the halogen lamp reference.
Technical details
- Product type
- Quartz-halogen incandescent lamp
- Designation
- KGSM 27-150
- Nominal voltage
- 27 V
- Nominal power
- 150 W
- Optical characteristic
- 3300 lm
All specificationsCollapse specifications
- Service life
- By equipment documentation
- Base
- Special aircraft base
- Dimensions
- high-output quartz aircraft capsule
- Envelope
- Clear quartz
- Filament
- Tungsten, concentrated light source
- Application
- APRF-2 landing/taxi lights, AFOE-3 logo lights and MSL-4 beacons
- Handling
- Do not touch quartz with bare fingers
- Installation
- With circuit isolated and lamp cool
- Selection
- By designation, voltage, power, base and filament position
