KGMN 6.3-15
Quartz-halogen lamp
Description
Purpose
KGMN 6.3-15 is a compact quartz-halogen incandescent lamp for photometers KFK-2/KFK-2MP and compatible optical equipment. Its small quartz envelope and concentrated filament provide a high light output from a limited optical volume. Select it by the complete designation because lamps with similar capsules may differ in voltage, power, base and filament position.
Full descriptionCollapse description
Electrical and optical rating
The nominal rating is 6.3 V and 15 W. The published optical characteristic is 210 lm; service life: 280 h. These values identify the specified version. Actual performance in a fitting also depends on supply quality, contact condition, reflector alignment and the duty cycle defined by the equipment manufacturer.
Construction

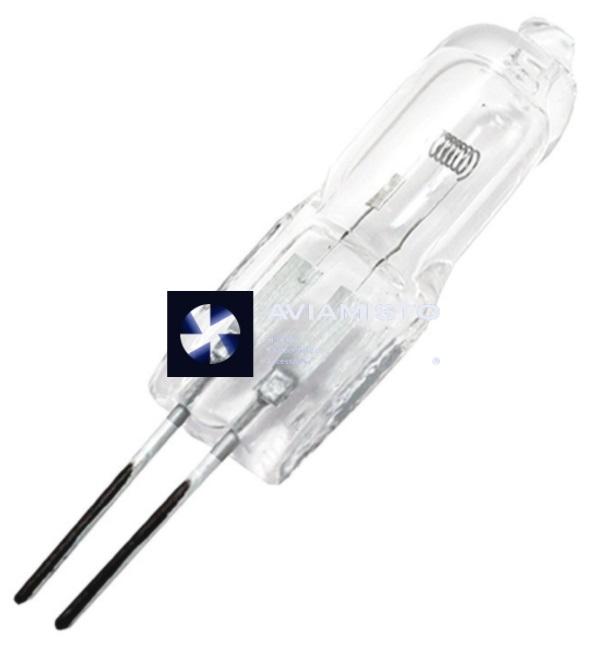

The lamp uses a clear quartz envelope, tungsten filament and G2.2 bi-pin. Its dimensional description is 30 × 6.5 mm. Quartz-halogen lamps operate at a high envelope temperature. Fingerprints, chips, cracks, clouding, loose internal parts or damaged contacts are unacceptable. Handle the capsule with clean gloves or a lint-free tissue.
Selection and installation
Before ordering, compare the complete designation, voltage, power, base, contact arrangement and filament position with the equipment manual. Install only with the circuit isolated and the lamp cool. Do not force the base into an incompatible holder. After installation, remove contamination from the quartz surface and confirm secure retention.
Ordering
Order KGMN 6.3-15 by its full designation and state the equipment in which it will be installed. This allows the base and optical position to be checked before supply. Related products are listed in Aircraft Lamps. General operating principles are described in the halogen lamp reference.
Technical details
- Product type
- Quartz-halogen incandescent lamp
- Designation
- KGMN 6.3-15
- Nominal voltage
- 6.3 V
- Nominal power
- 15 W
- Optical characteristic
- 210 lm
All specificationsCollapse specifications
- Service life
- 280 h
- Base
- G2.2 bi-pin
- Dimensions
- 30 × 6.5 mm
- Envelope
- Clear quartz
- Filament
- Tungsten, concentrated light source
- Application
- photometers KFK-2/KFK-2MP and compatible optical equipment
- Handling
- Do not touch quartz with bare fingers
- Installation
- With circuit isolated and lamp cool
- Selection
- By designation, voltage, power, base and filament position
