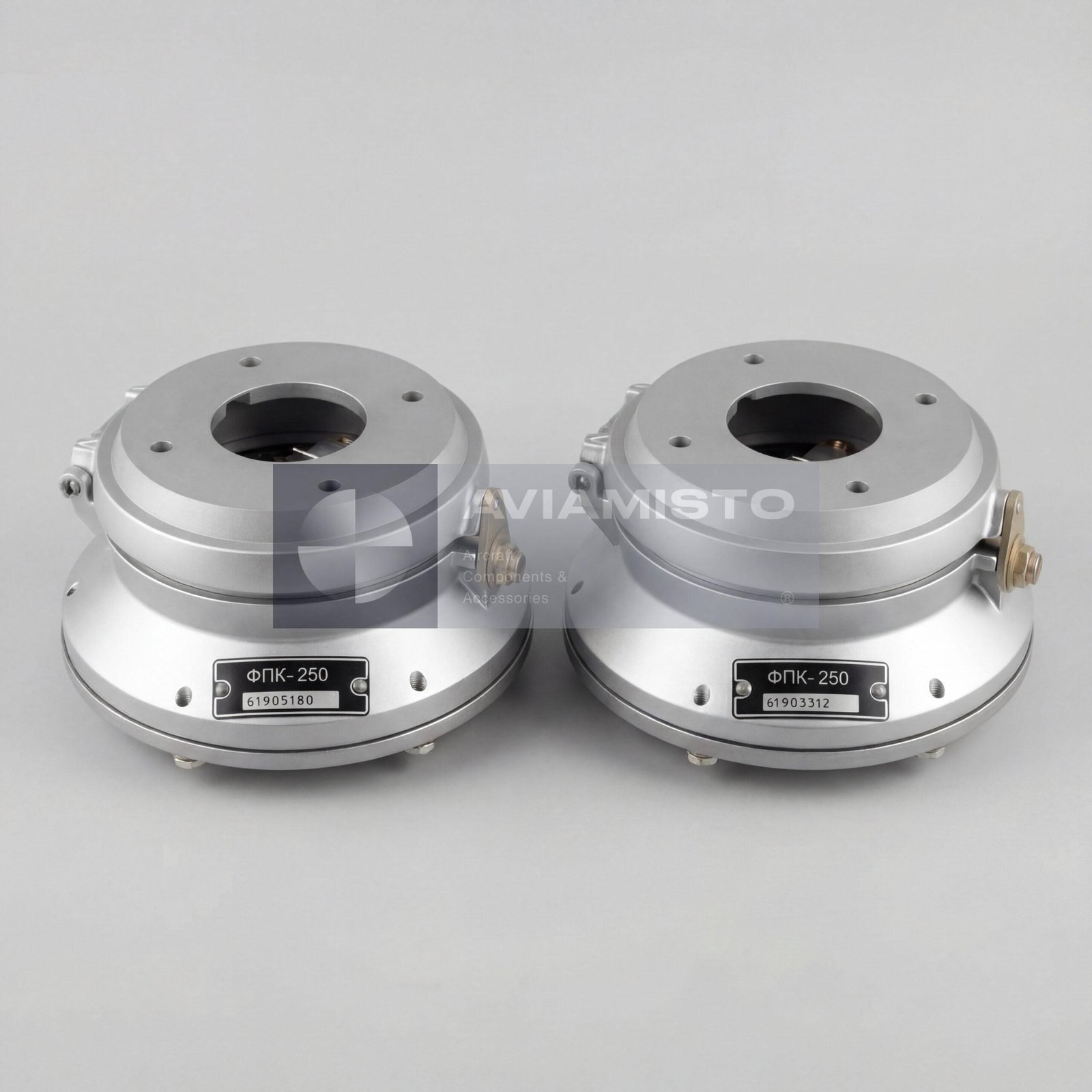

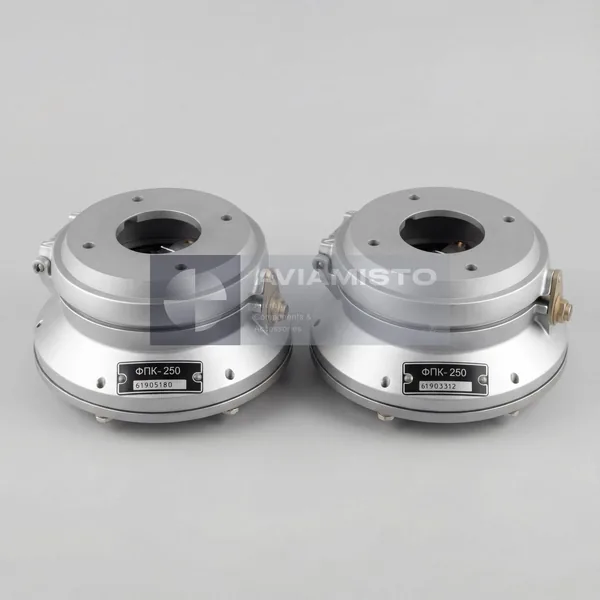

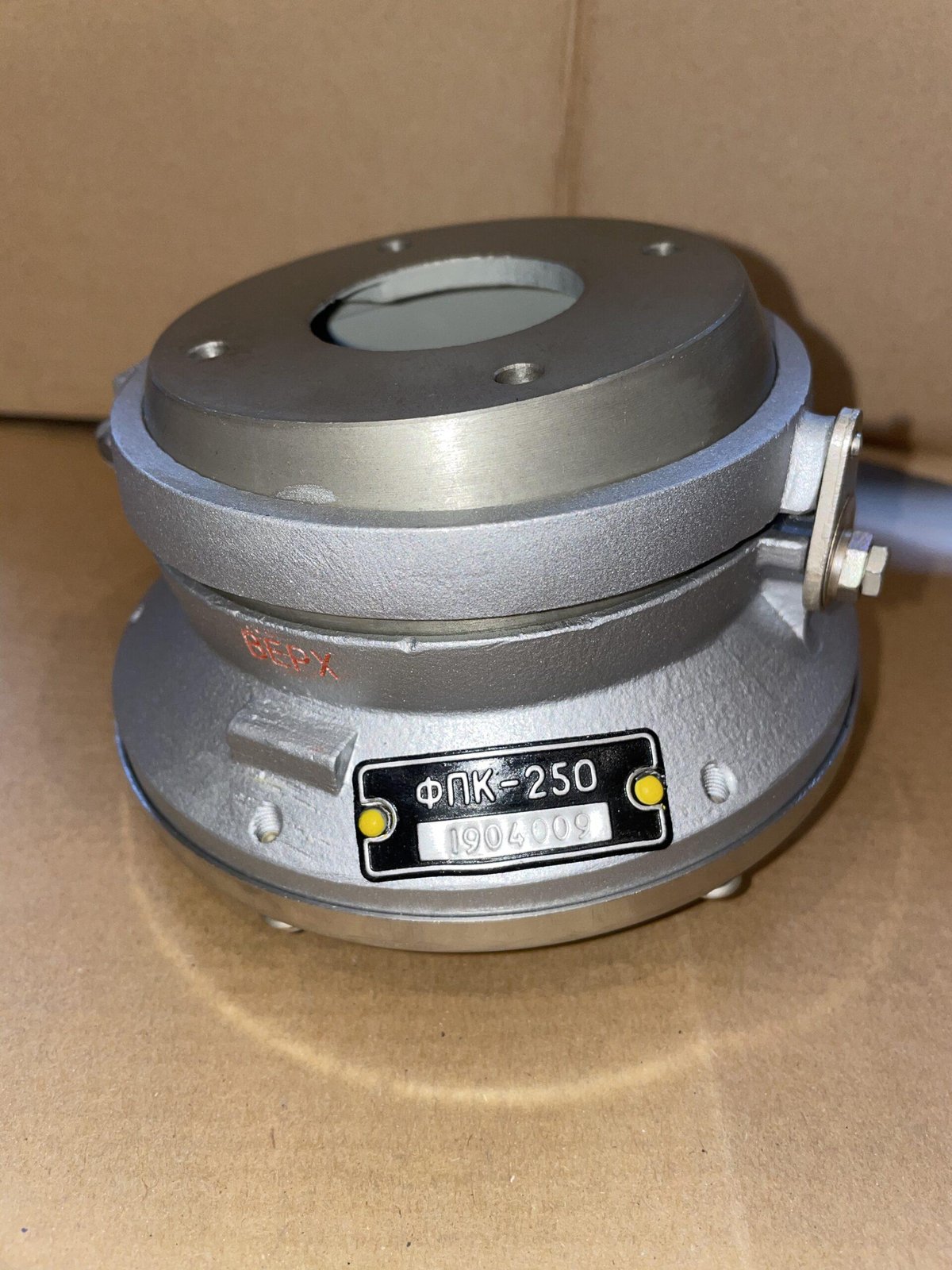

FPK-250

Aircraft installation

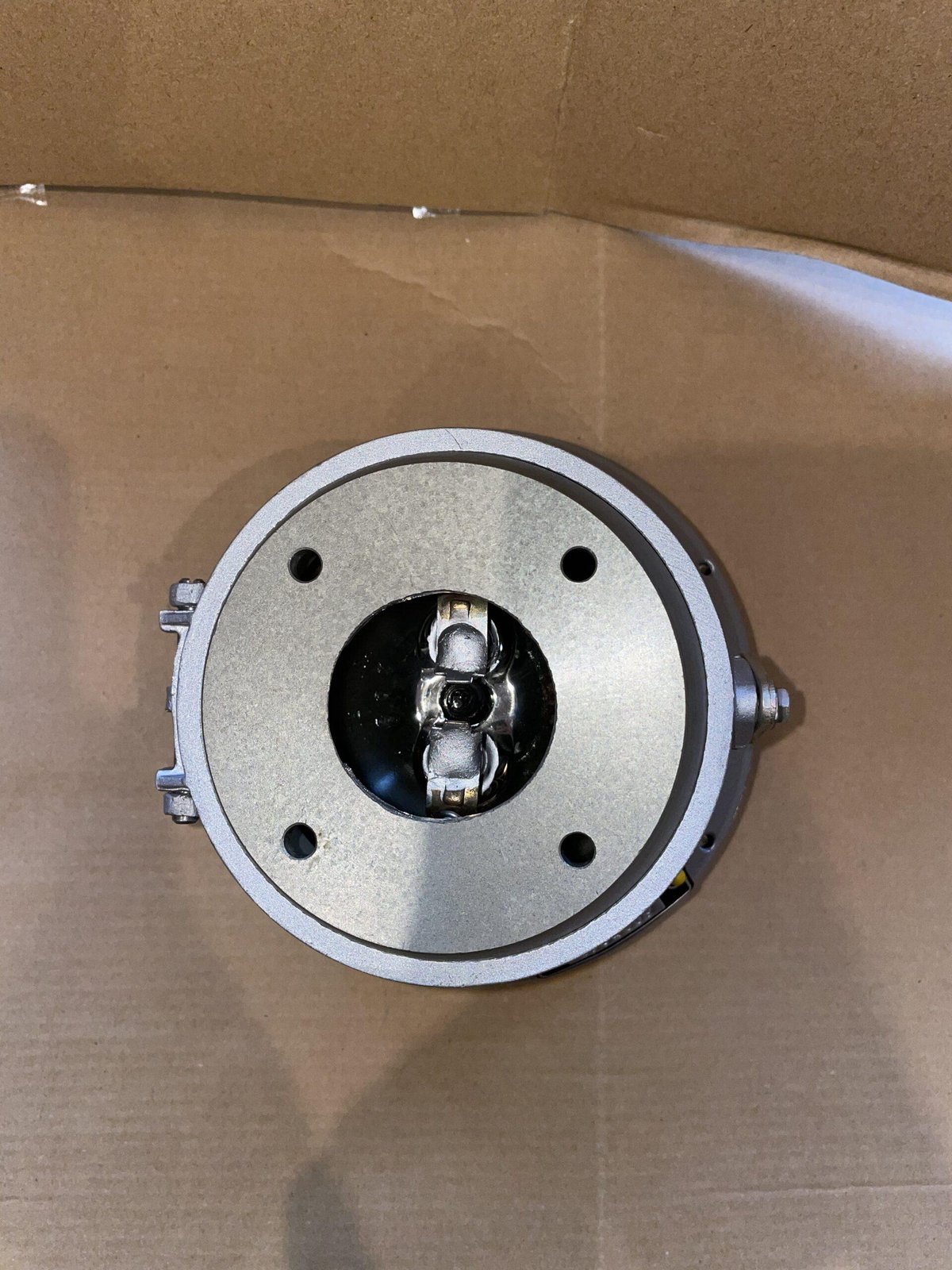

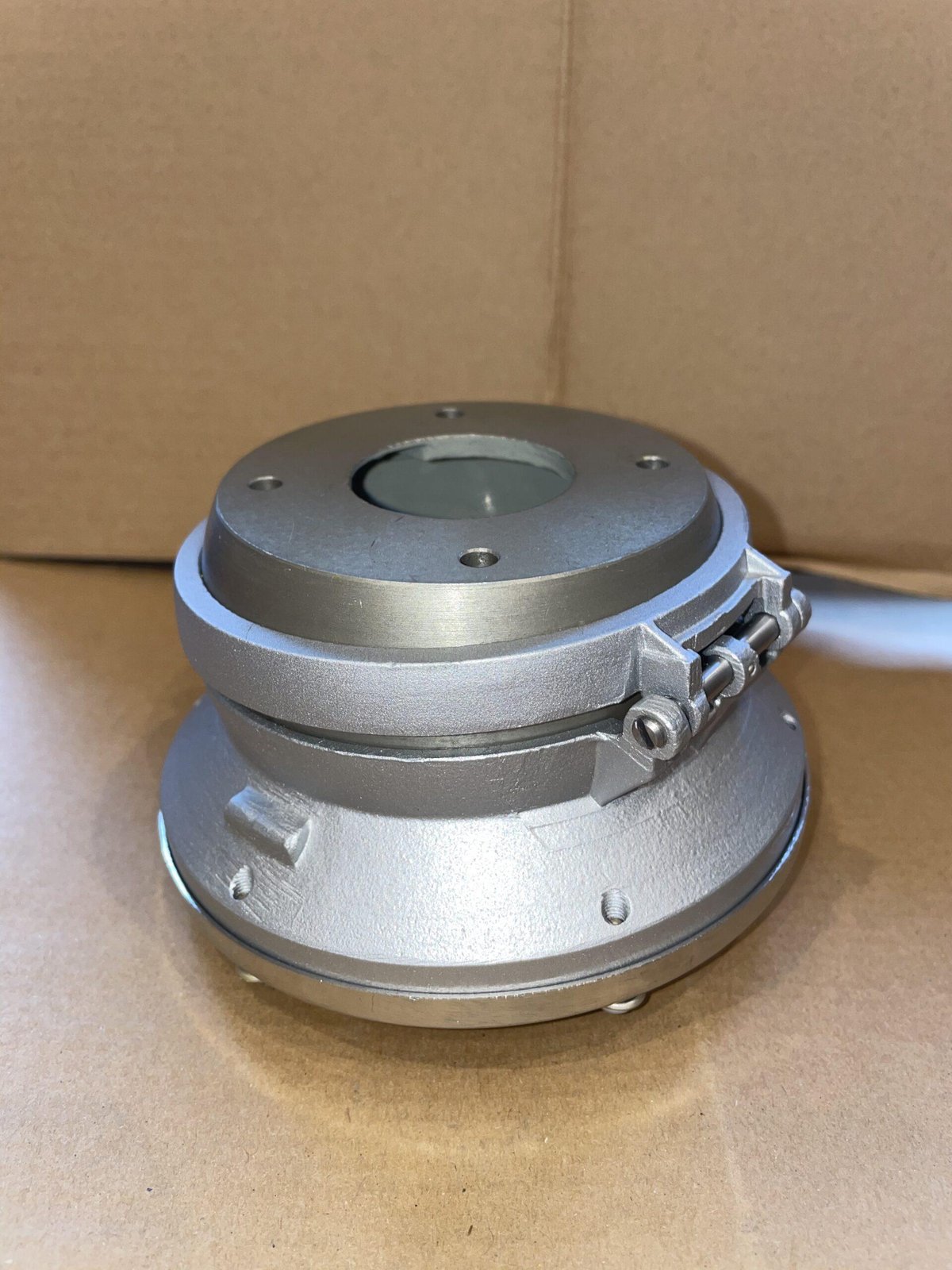

The light forms part of the external lighting system and is aimed at the surface to be inspected. Its adjustable construction permits movement in two perpendicular planes. Documentation for the An-24 family identifies FPK-250 lights for illuminating the wing leading edge and an engine air-intake area.

Light source

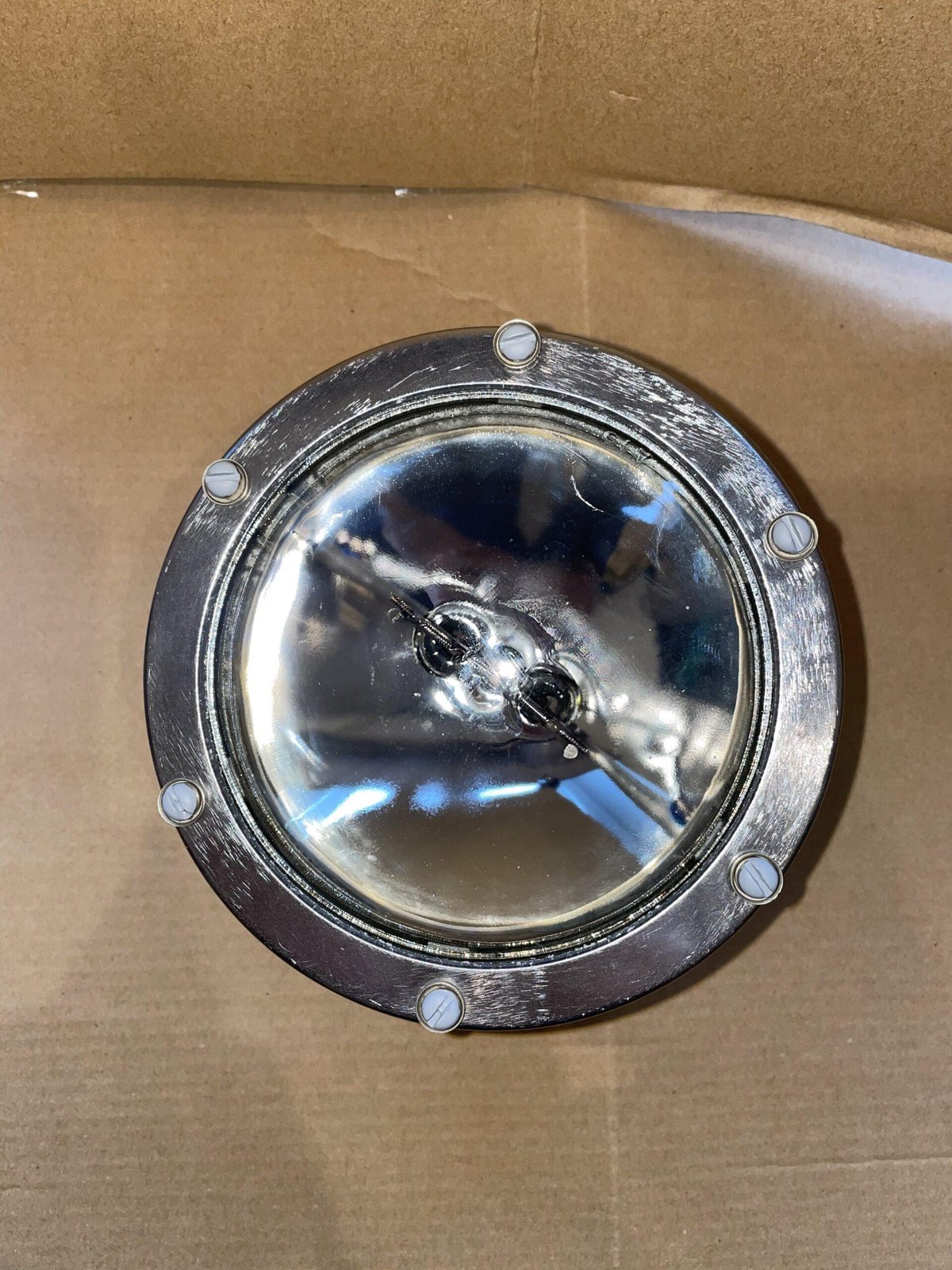

Technical documentation identifies the LFSM 27-250-1 lamp-light for the FPK-250 assembly. Selection should therefore include a check of the installed light source, reflector condition and electrical connection. FPK-250 designates the complete light assembly, not only the lamp fitted inside it.

Selection and installation

Before ordering, compare the nameplate, mounting points, adjustment direction and electrical configuration with the installed unit. The installation position and quantity depend on the aircraft type and modification; application should be confirmed using the parts catalogue and maintenance documentation.

Light assembly versus lamp-light

FPK-250 and LFSM 27-250-1 are not two designations for the same product. The FPK-250 is the installed lighting assembly with housing, mounting and adjustment mechanism, whereas the LFSM 27-250-1 is the replaceable light source fitted inside it. An enquiry should state whether the complete assembly, the lamp-light alone or both items are required.

After installation, the beam is aimed at the inspection area defined by the aircraft documentation without creating distracting reflections from glazing or airframe surfaces. Optical condition and correct alignment directly affect the crew’s ability to identify ice on the illuminated surface.

Related lamp-light

The documented source for the FPK-250 is the LFSM 27-250-1 (LFL 27-250-1). The link supports source selection and does not imply that the lamp is included with the assembly. General context is available in the Wikipedia article on aircraft lighting.

Supply

Aviamisto supplies the FPK-250 on a pre-order basis. State the quantity, aircraft type, lamp-light requirement and required documents in the enquiry. Price, condition, completeness and lead time are confirmed separately.
