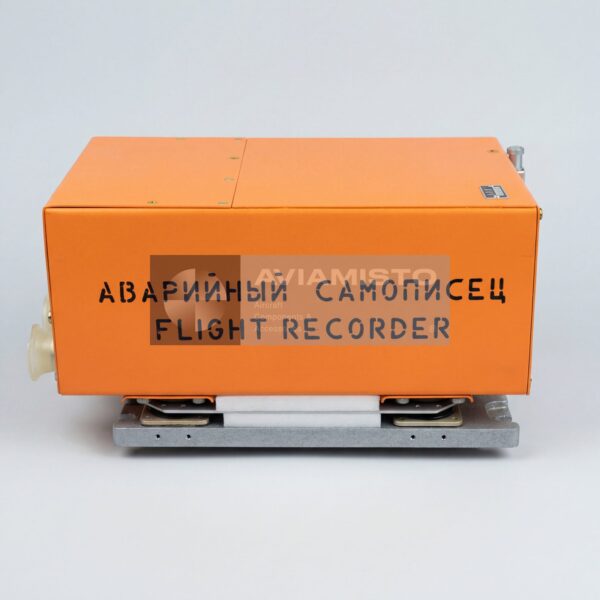

ZBN-1-3 Series 2

ZBN-1-3 Series 2 in aircraft flight data recording systems

The ZBN-1-3 Series 2 is a protected onboard flight data recorder designed for recording and preservation of parametric flight information. It is used in aircraft and helicopter flight data recording systems where operating parameters must be stored during flight and preserved after an aviation incident. The recorder belongs to the magnetic-tape generation of flight data recorders and was used before solid-state protected recorders became standard in newer systems.

Flight parameter recording by ZBN-1-3 Series 2

The main function of the ZBN-1-3 Series 2 is to accumulate and store flight parameter data received from the onboard recording system. This information may include flight parameters, engine operation data, equipment status and discrete system commands depending on the aircraft system configuration. The recorder does not collect all signals directly from aircraft sensors by itself. It receives prepared data from the associated acquisition and recording equipment, then records it on the magnetic tape medium.

Protected data preservation in ZBN-1-3 Series 2

The ZBN-1-3 Series 2 is built as a protected recorder, so its role is not only to write data, but also to help preserve it under severe conditions. In accident or incident investigation, the value of the unit depends on whether the recorded information can survive impact, fire and other damaging factors. The protected housing and internal recording assembly are therefore critical parts of the design. During maintenance, the recorder should be checked not only as an electrical unit, but also as a protected storage device.

Magnetic tape recording medium in ZBN-1-3 Series 2

The ZBN-1-3 Series 2 uses magnetic tape as the recording medium. The recorder includes the removable magnetic tape unit MLP-23-3, which serves as the parametric tape recording assembly. This is an important point for supply and repair: the recorder and the removable tape unit should be treated as related but separate items when checking completeness. Tape condition, drive condition, mechanical transport, contamination and storage history can all affect whether flight data is recorded and later readable.

ZBN-1-3 Series 2 in aircraft and helicopter systems

The recorder is installed on fixed-wing aircraft and helicopters equipped with compatible onboard flight data recording systems. It is associated with aircraft such as Tu-134, Tu-154, Il-76, An-74, Mi-8 and Ka-32, as well as other platforms depending on configuration. In these systems, the ZBN-1-3 Series 2 works together with data acquisition units, control panels, aircraft sensors and wiring. Exact applicability must be confirmed by the aircraft equipment list and recording system documentation.

Replacement of ZBN-1-3 Series 2 by Series 3

According to supplied reference data, the ZBN-1-3 Series 2 can be replaced by the ZBN-1-3 Series 3 without modification of aircraft wiring. This is useful for maintenance and modernization planning, but the replacement still needs to be checked against the aircraft documentation, system version and required recorder configuration. The series of the recorder, connector compatibility, installation hardware and recording system approval should be confirmed before shipment or installation.

Supply and inspection of ZBN-1-3 Series 2

For procurement or replacement, the full designation ZBN-1-3 Series 2 should be specified. It is also important to confirm whether the requirement is for the complete protected recorder, the MLP-23-3 removable tape unit, or both items together. Before installation, the recorder should be inspected for housing condition, connector integrity, markings, sealing, mounting compatibility, tape unit condition and available documentation. For aircraft use, product passport and operational documentation should be supplied where available.

Product Type: Protected onboard flight data recorder
Designation: ZBN-1-3 Series 2
Alternative Designation: ЗБН-1-3 серия 2
Function: Recording and preservation of flight parameter data
Application / Where Used: Aircraft and helicopter flight data recording systems
System / Installation Area: Onboard flight data recorder system
Recording Medium: Magnetic tape
Part of System / Included in Set: Magnetic tape unit MLP-23-3
Removable Recording Unit: MLP-23-3 parametric magnetic tape unit
Compatible Aircraft / Equipment: Tu-134, Tu-154, Il-76, An-74, Mi-8, Ka-32 and other aircraft depending on configuration
Interchangeability / Replaceability: Replaceable by ZBN-1-3 Series 3 without aircraft wiring modification according to supplied reference data
System Role: Protected storage and recording unit for parametric flight information
Recorder Type: Magnetic-tape-based protected onboard recorder
Scope of Supply: ZBN-1-3 Series 2 recorder; MLP-23-3 magnetic tape unit
Inspection / Testing: Housing inspection, connector check, sealing check, magnetic tape unit inspection, recording function check and compatibility verification
Condition: As applicable
Technical Documentation: Product passport and operational documentation
