PU-25

PU-25 in onboard flight data recording systems

The PU-25 is an aircraft control panel used as part of onboard flight data recording systems installed on helicopters. It provides manual input, control and indication functions for the recorder system. In the BUR-1-2Zh architecture, the PU-25 acts as the crew-facing interface for service and identification data required during operation. It does not record flight parameters by itself, but supports correct operation of the recording system.

Manual input function of PU-25

The main function of the PU-25 is manual entry of service and identification information needed by the onboard recorder. This may include operational data required for correct flight data handling, depending on the system configuration. The panel allows the crew or maintenance personnel to interact with the recorder before or during operation. Correct input matters because service data may be linked with the recorded flight archive and later used during decoding or post-flight analysis.

PU-25 control and indication role

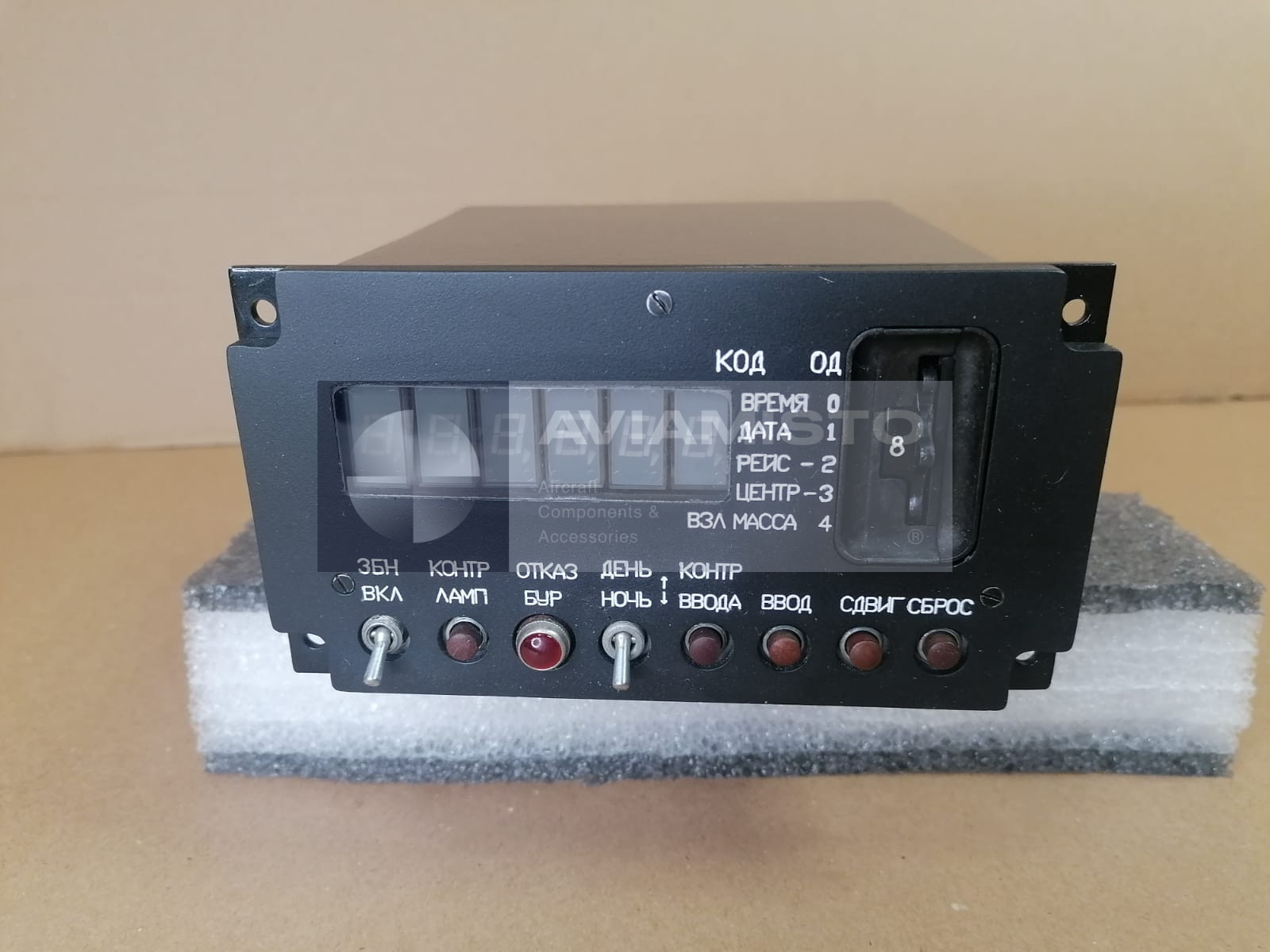

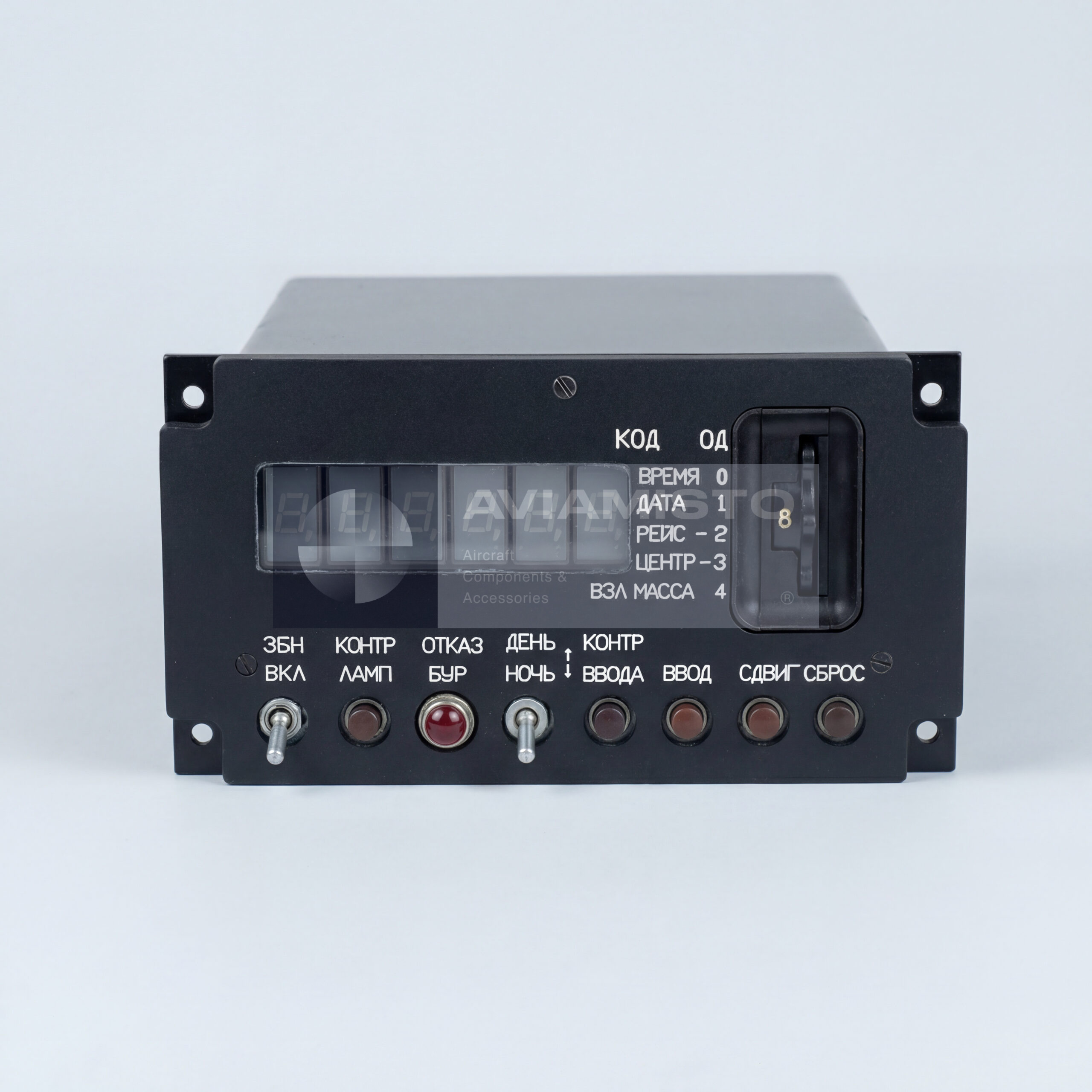

The PU-25 provides control of recording-related processes and visual indication of system status. Through the panel, the crew can monitor whether the recording equipment is ready and whether the system is operating as required. This makes the PU-25 an important operational interface, even though the actual collection and storage of data are performed by other units of the recorder system. If the indication is incorrect, the fault may be in the panel, wiring, power supply or connected BUR equipment.

PU-25 in the BUR-1-2Zh system

The PU-25 is included in the BUR-1-2Zh onboard flight data recorder system. In a typical system, it works together with units such as the BSPI-4-2 data acquisition unit, protected onboard recorder ZBN-1-1 and mounting frame RA-37K. The BSPI collects and processes signals, the protected recorder stores data, and the PU-25 provides control and indication for the system. This separation is important when ordering spare parts: the PU-25 is one unit of the system, not the complete recorder set.

Helicopter application of PU-25

The PU-25 is installed on helicopters equipped with BUR-1-2Zh flight data recording systems. It is used as the standard interface element between the crew and the onboard recorder. The exact installation point depends on the helicopter cockpit layout, recorder configuration and wiring diagram. Before replacement, the panel version, connector arrangement, voltage supply and compatibility with the installed BUR-1-2Zh system should be checked against the aircraft documentation.

Electrical supply and readiness of PU-25

The panel operates from the aircraft DC power system and may also use secondary ±15 V supply lines depending on the system arrangement. Time to readiness is short, which allows the panel to become available quickly after system power-up. For troubleshooting, it is not enough to check the panel only by external condition. Supply voltage, secondary sources, connector contacts, indication elements and command output to the recorder system should all be verified.

Supply and inspection of PU-25

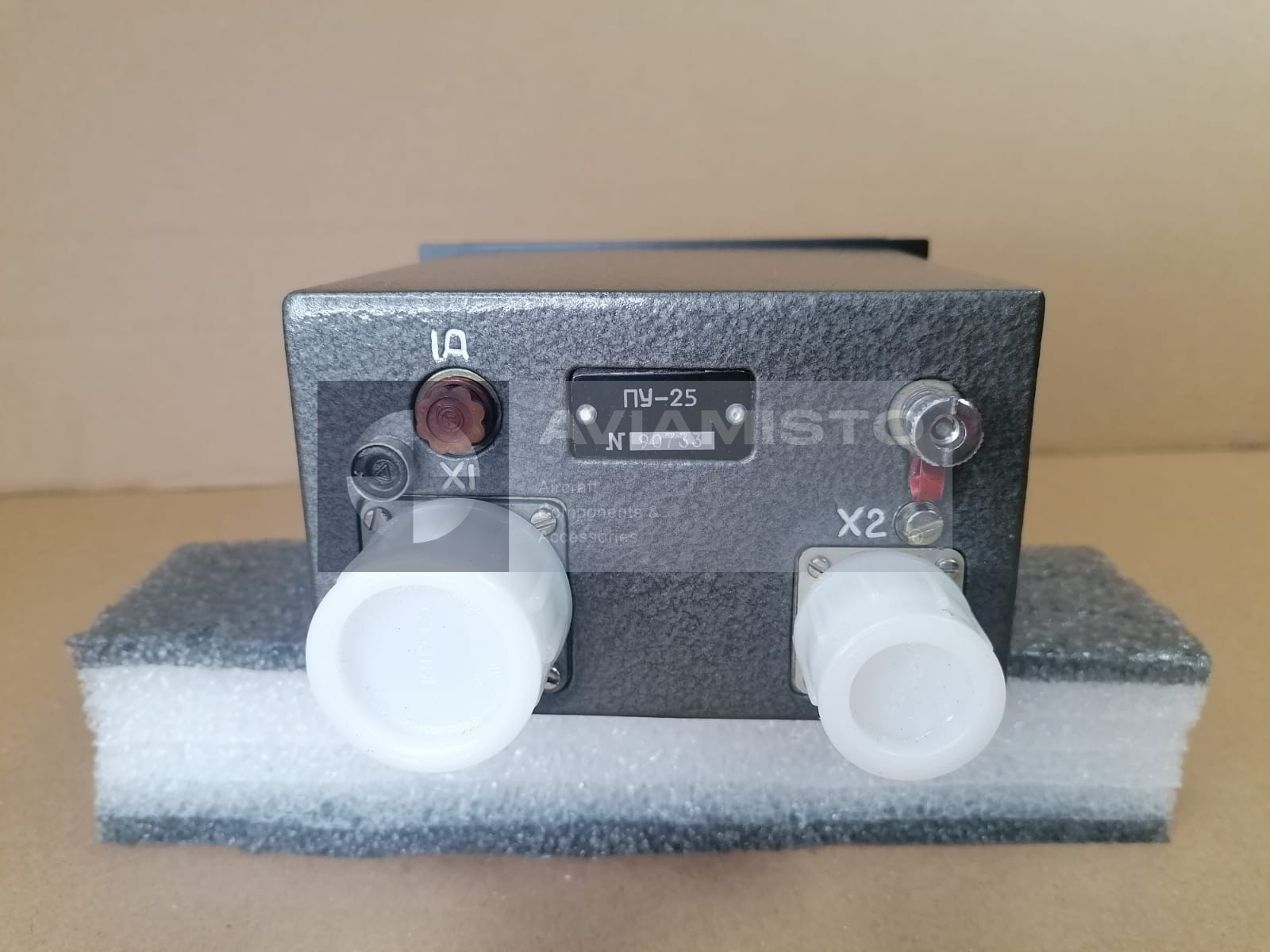

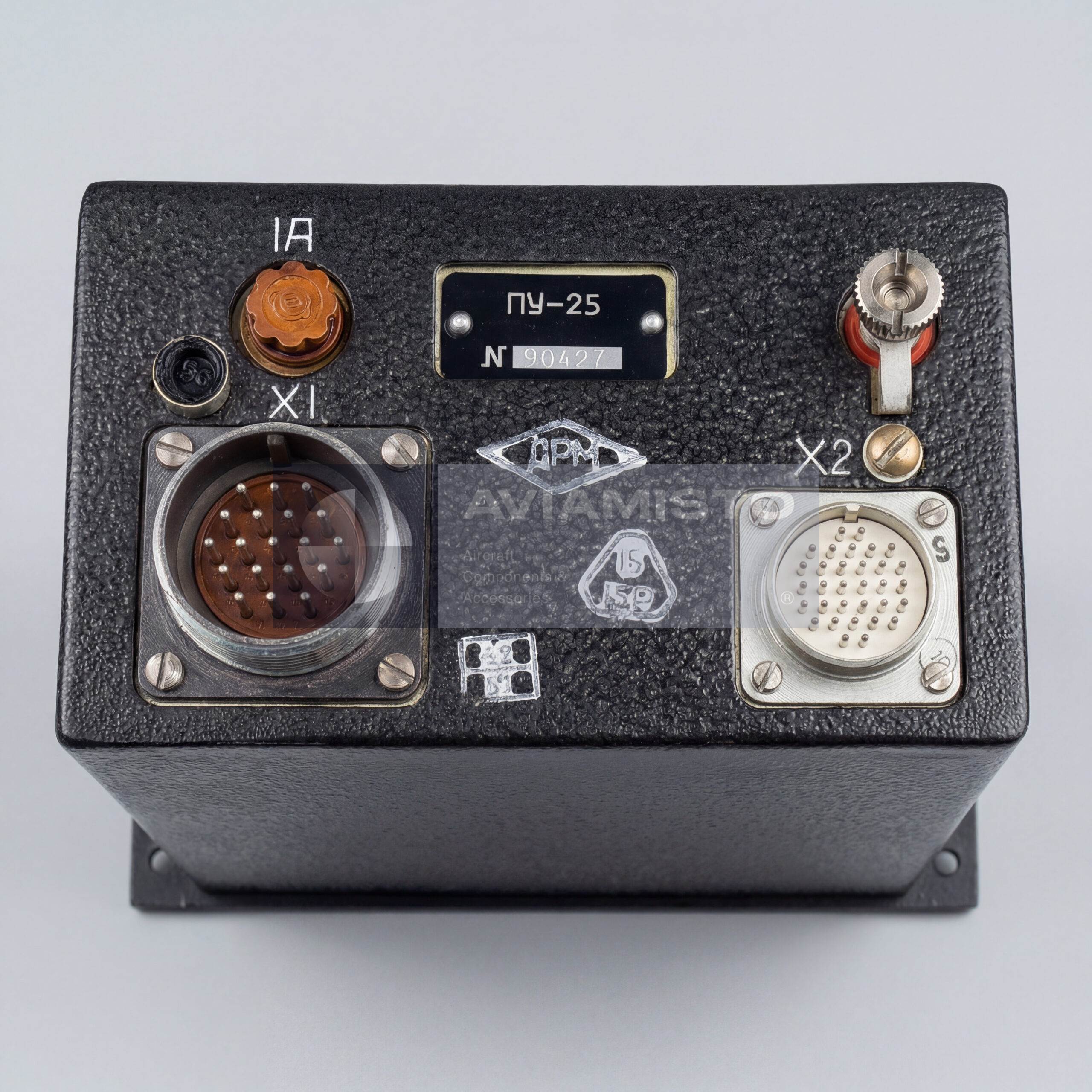

For procurement or replacement, the full designation PU-25 / ПУ-25 should be specified. It is also useful to confirm the helicopter type, recorder system version, condition and documentation requirements before shipment. Before installation, the unit should be checked for housing condition, front-panel controls, indication elements, connector integrity, power consumption, readiness time and compatibility with the BUR-1-2Zh system. Product passport and manufacturer documentation should be confirmed where available.

Product Type: Aircraft control panel
Designation: PU-25
Alternative Designation: ПУ-25
Function: Manual input, control and indication of service and identification data
Application / Where Used: Onboard flight data recording systems
System / Installation Area: BUR-1-2Zh onboard flight data recorder system
Part of System / Included in Set: BUR-1-2Zh
System Role: Crew interface panel for recorder control, indication and service data input
Compatible Aircraft / Equipment: Helicopters equipped with BUR-1-2Zh flight data recording systems
Operating Voltage: 18 to 33 V DC
Secondary Supply: ±15 V from secondary sources depending on system configuration
Power Consumption: Not more than 12 W
Time to Readiness: Not more than 1 min

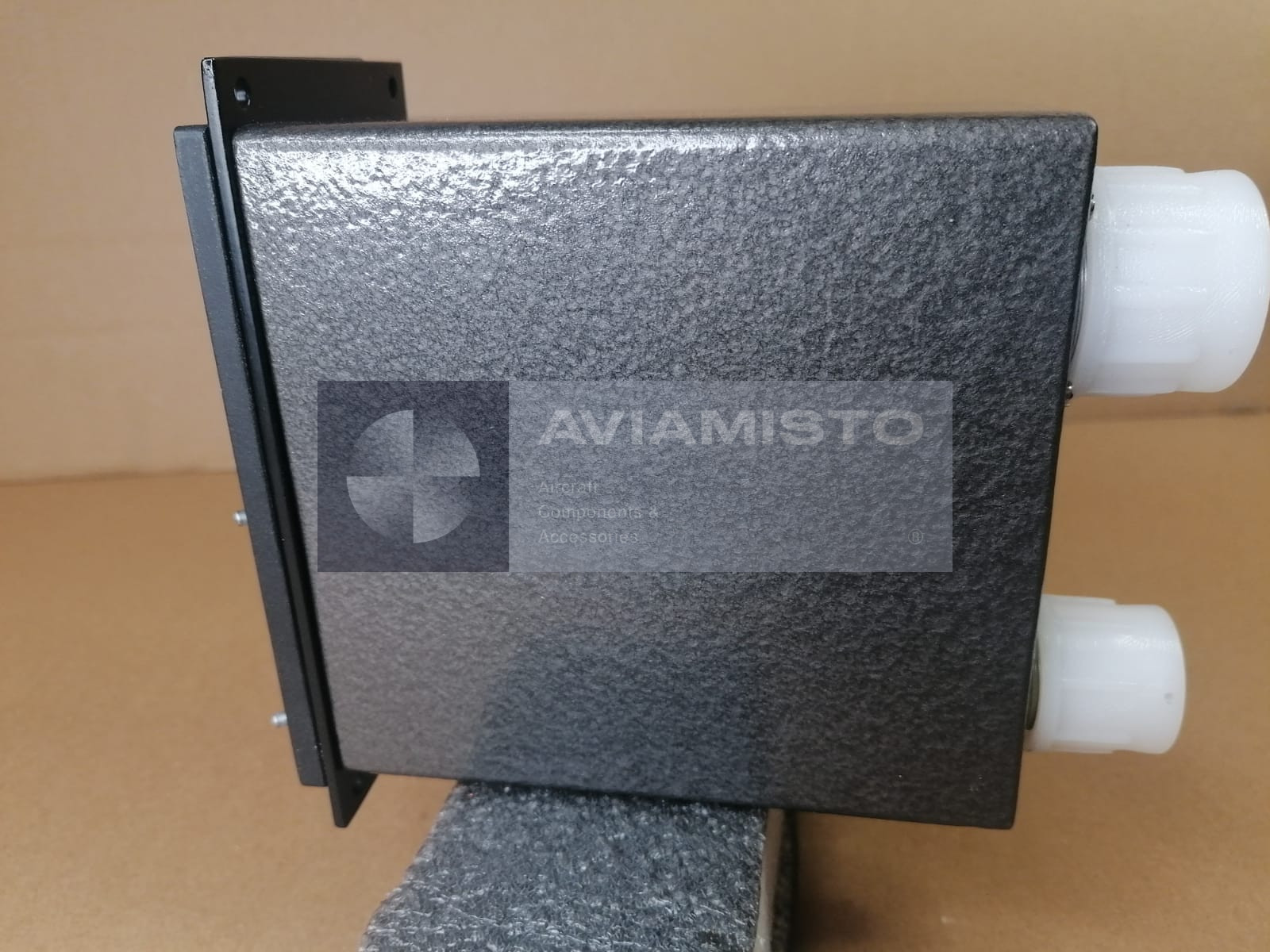

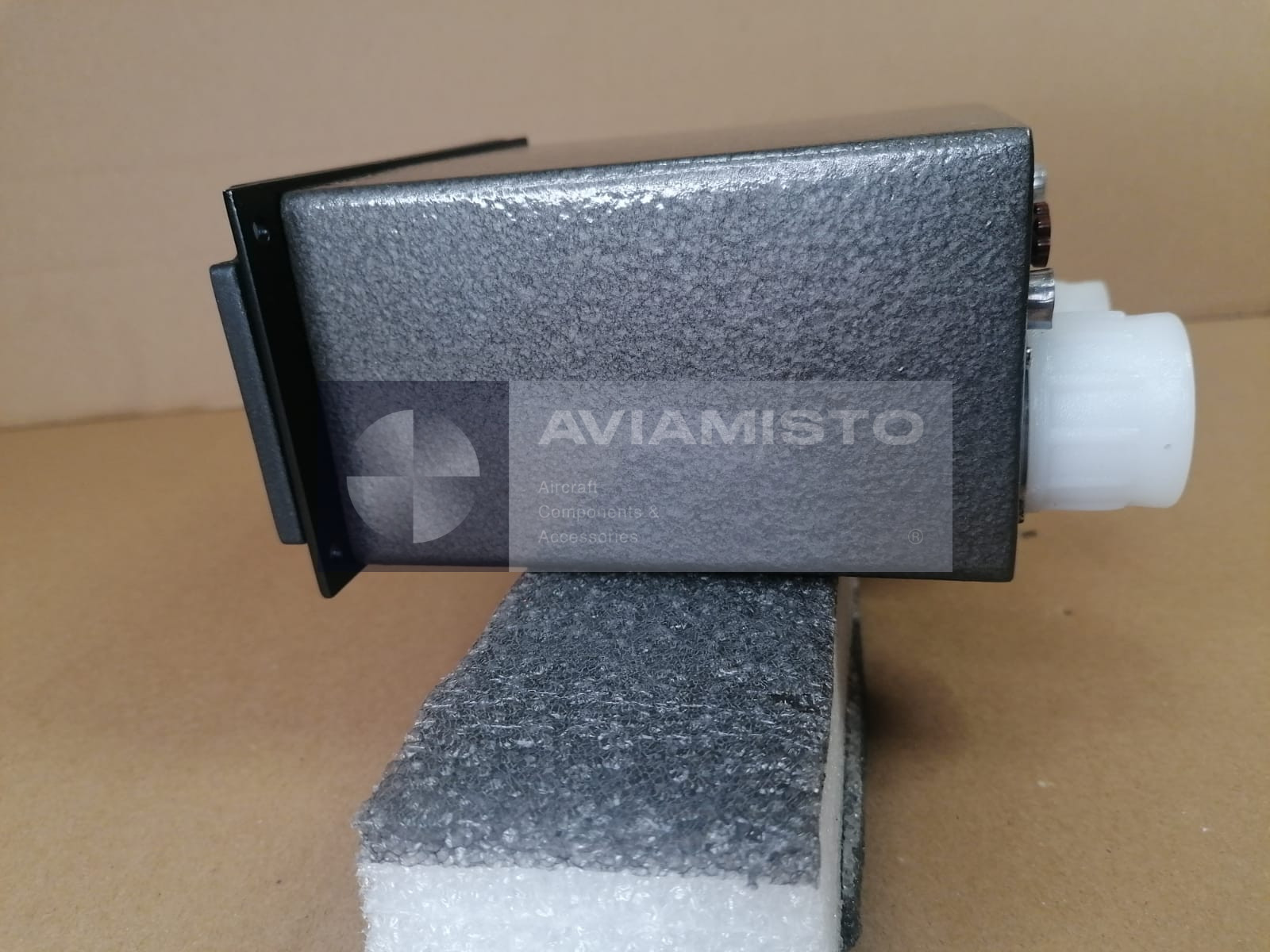

Dimensions: 146 × 80 × 153 mm
Weight: 1.35 ±0.05 kg
Inspection / Testing: Power supply check, indication check, control input check, connector inspection, housing inspection and compatibility verification with recorder system
Condition: As applicable
Technical Documentation: Product passport and manufacturer documentation
