3025 (A-034-4-22)
Power supply board
Description

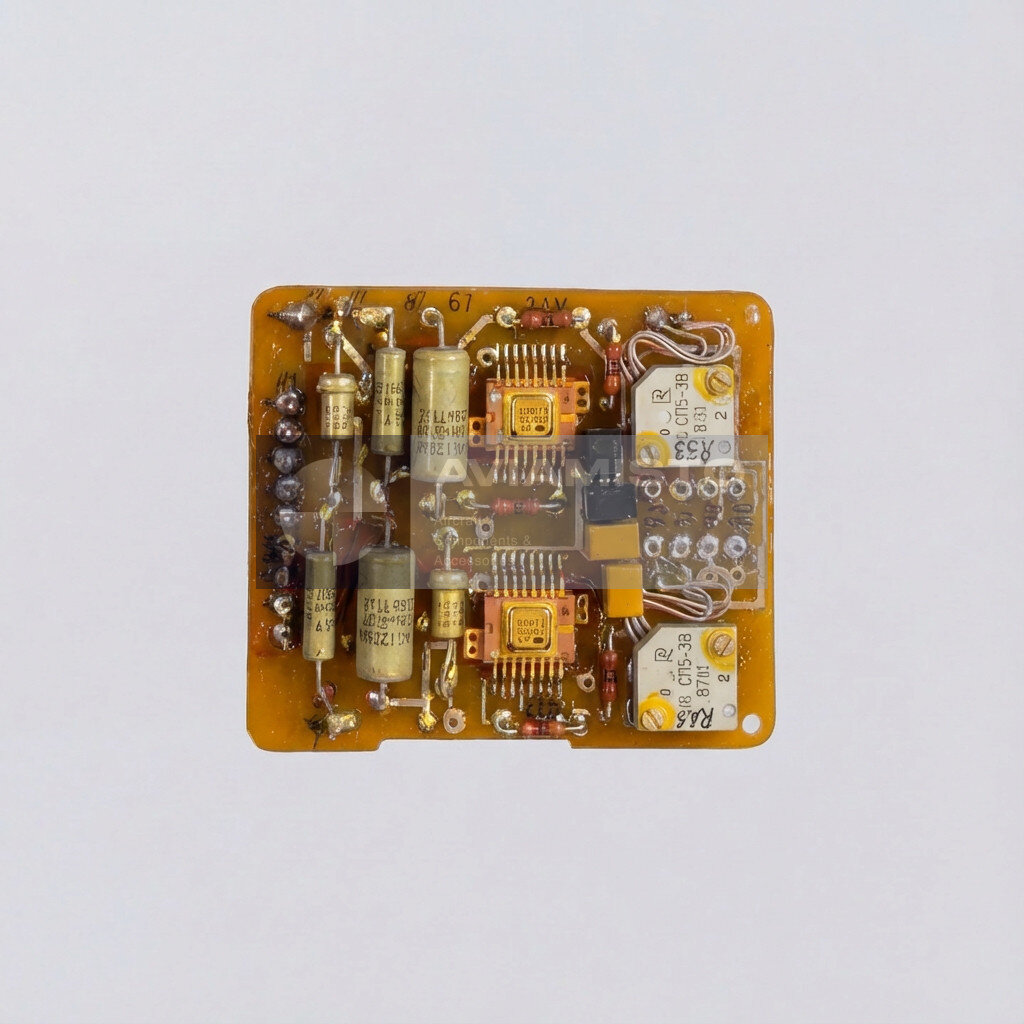

3025 power supply board for A-034-4-22
Power supply board 3025 is an electronic power unit designed for operation as part of airborne indicator equipment. The board is used in indicator units A-034-4-16, A-034-4-22, and A-034-4-11 and is included in the equipment set of the A-037 radio altimeter.
Full descriptionCollapse description
Power generation and voltage distribution
The 3025 board is intended to generate, stabilize, and distribute supply voltages required for the operation of electronic modules within the indicator. It provides electrical power to functional circuits of the indicator under specified operating conditions and operates in conjunction with other boards and assemblies of the indicator unit.

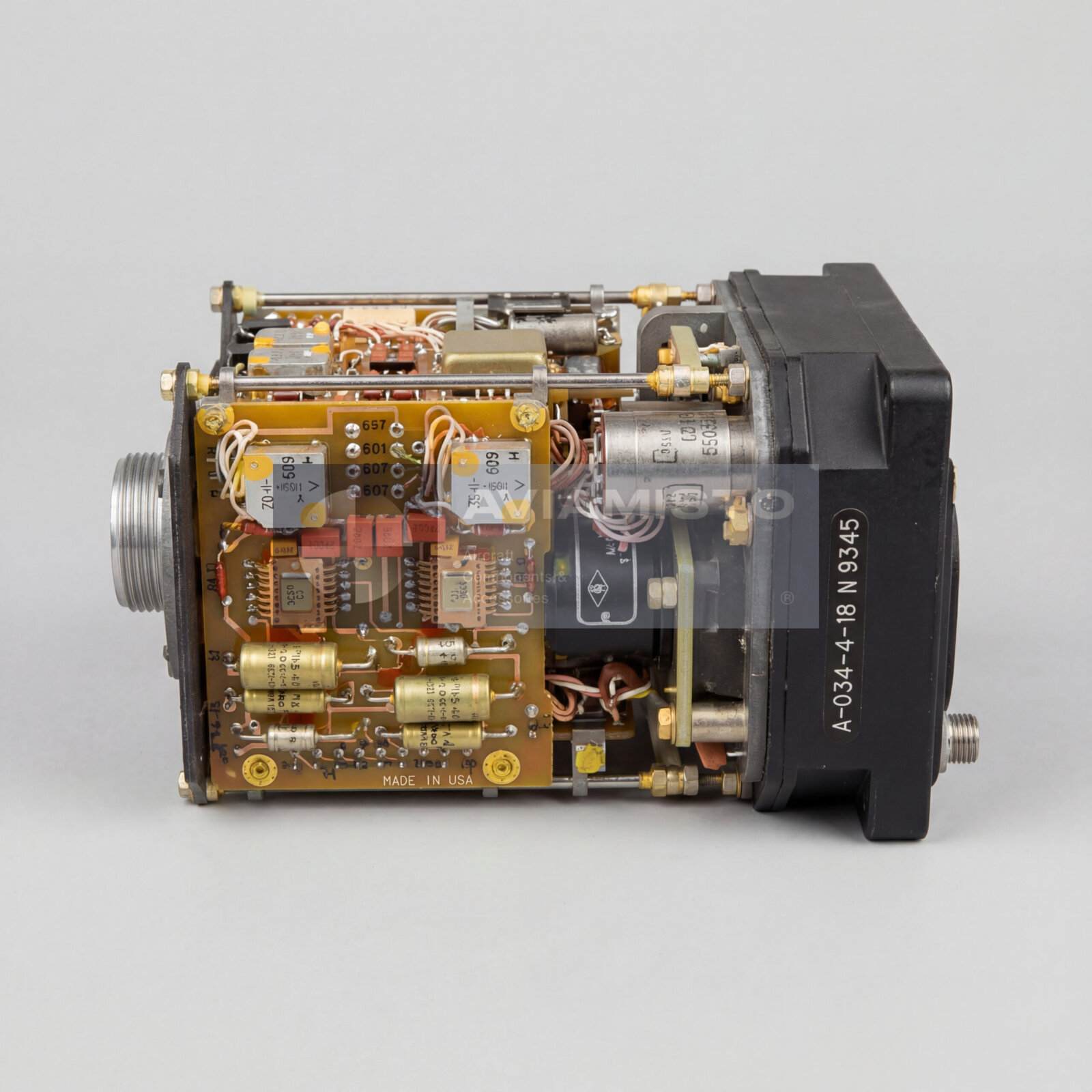

Operation inside A-034 indicator units
The power supply board 3025 is not a standalone device and is designed exclusively for operation as part of indicator units A-034-4-16, A-034-4-22, and A-034-4-11 included in the A-037 radio altimeter system. Electrical operating modes, parameters, and characteristics of the board are defined at the system level and are regulated by the technical documentation of the indicator and the radio altimeter.
Technical data and service-life context
According to the product passport, the section “Basic Technical Data” for the power supply board 3025 is not specified. Reliability parameters, service life, and storage life of the board correspond to those of the A-037 radio altimeter and its component units.
Installation and documentation requirements
Operation of the power supply board 3025 is permitted only in accordance with the applicable technical documentation of the indicator units and the radio altimeter system.
Technical details
- Product Name
- Power Supply Board
- Part Number
- 3025
- Product Type
- Electronic power supply board
- Function
- Generation and distribution of supply voltages
- Application
- A-037 Radio Altimeter equipment set
All specificationsCollapse specifications
- Installed In Indicators
- A-034-4-16, A-034-4-22, A-034-4-11
- Basic Technical Data
- Not specified
- Operation Mode
- Installed inside indicator units
- Service Life
- Corresponds to A-037 radio altimeter
- Storage Life
- Corresponds to A-037 radio altimeter
- Warranty Operating Time
- 2000 hours
- Warranty Storage Period
- 2 years
- Documentation
- Product passport VRO.015.000 ET
- Related category
- Flight Director & Course Control System
