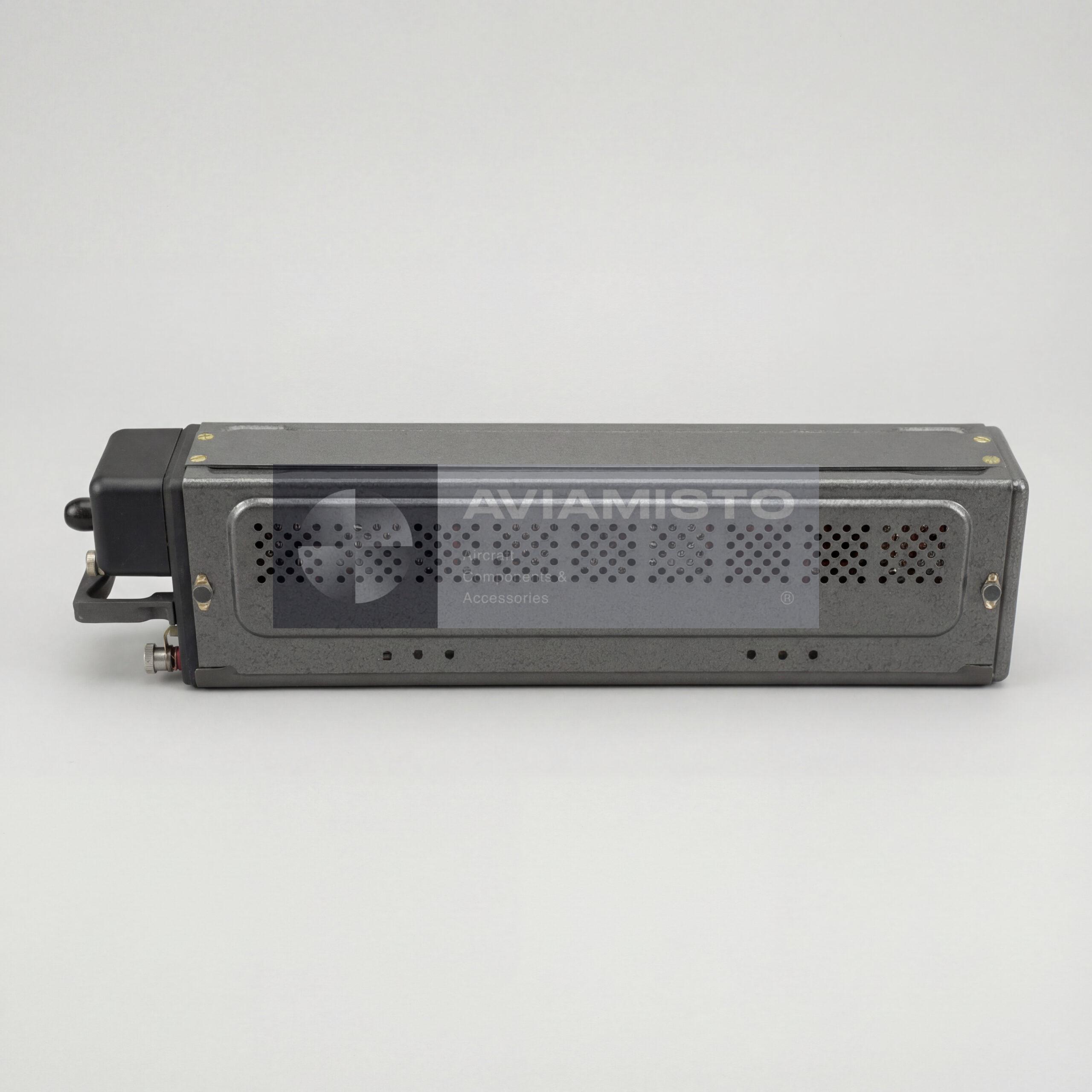

PE-11M

Signal processing in the PE-11M unit

The converter tracks the signal coming from the icing sensor and reacts to changes linked with ice formation. When the sensor frequency goes outside the normal non-icing range and reaches the command generation zone, the PE-11M forms the required outputs. These outputs can be used by cockpit warning circuits, anti-icing logic, and monitoring equipment. The converter also handles command timing, so the aircraft does not receive random short pulses every time the sensor signal fluctuates for a moment.

PE-11M with the DSL-40T icing sensor

The PE-11M works directly with the DSL-40T membrane-type ice detector sensor. The sensor reacts to ice on its membrane, and the converter evaluates the electrical signal from that sensor. The PE-11M also supplies power to the sensor circuits, including the heating circuit needed for restoring the sensor after ice detection. If the converter or heater control is faulty, the sensor may be physically serviceable but the system will still not work correctly. For maintenance, both units have to be checked together, not separately by appearance only.

Commands generated by the PE-11M

The PE-11M generates command signals used by the aircraft systems after icing is detected. Depending on the aircraft wiring and installed equipment, these commands may be connected with anti-icing system operation, warning indication, heating logic, or recording of icing conditions. The unit has defined command durations and cancellation timing, which helps the system behave consistently after the icing signal appears or disappears. This is important in real flight, where icing may not be steady: ice can build up, break away, melt, and form again in short cycles.

Installation of the PE-11M on the RM-5 frame

The PE-11M is mounted inside the aircraft on the RM-5 frame. This installation keeps the converter protected from direct airflow, moisture, and external contamination, while still allowing it to stay connected to the external sensor. The mounting frame also makes replacement and inspection more convenient. During service, attention is normally paid to connector condition, mounting security, wiring, signs of overheating, and correct connection with the DSL-40T sensor. A problem at the frame or connector can cause the same symptoms as a faulty converter.

Aircraft use and replacement of PE-11M

The PE-11M is used on aircraft fitted with SO-121VM icing detection equipment, including An-38, An-74, Il-96-300, Ka-32 and Mi-26, depending on the installed system. It is part of the aircraft icing detection and anti-icing control chain, not a general-purpose electronic module. When ordering or replacing it, the full designation PE-11M / ПЭ-11М should be checked against the aircraft parts catalog and SO-121VM documentation. It is also necessary to clarify whether the requirement is for the converter only, or for a set with DSL-40T and RM-5.

Related system equipment: SO-121VM ver. A, DSL-40T, RM-5, 8AT-7420. These positions are grouped by system function and installation context, not as interchangeable replacements.
