BKP-3-2-210

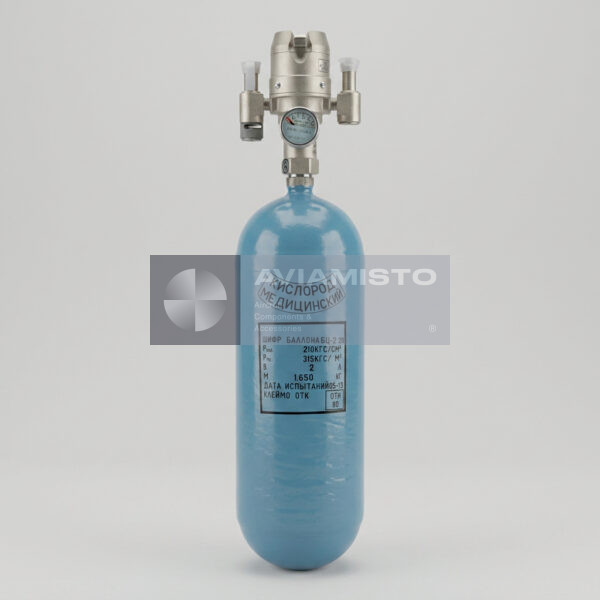

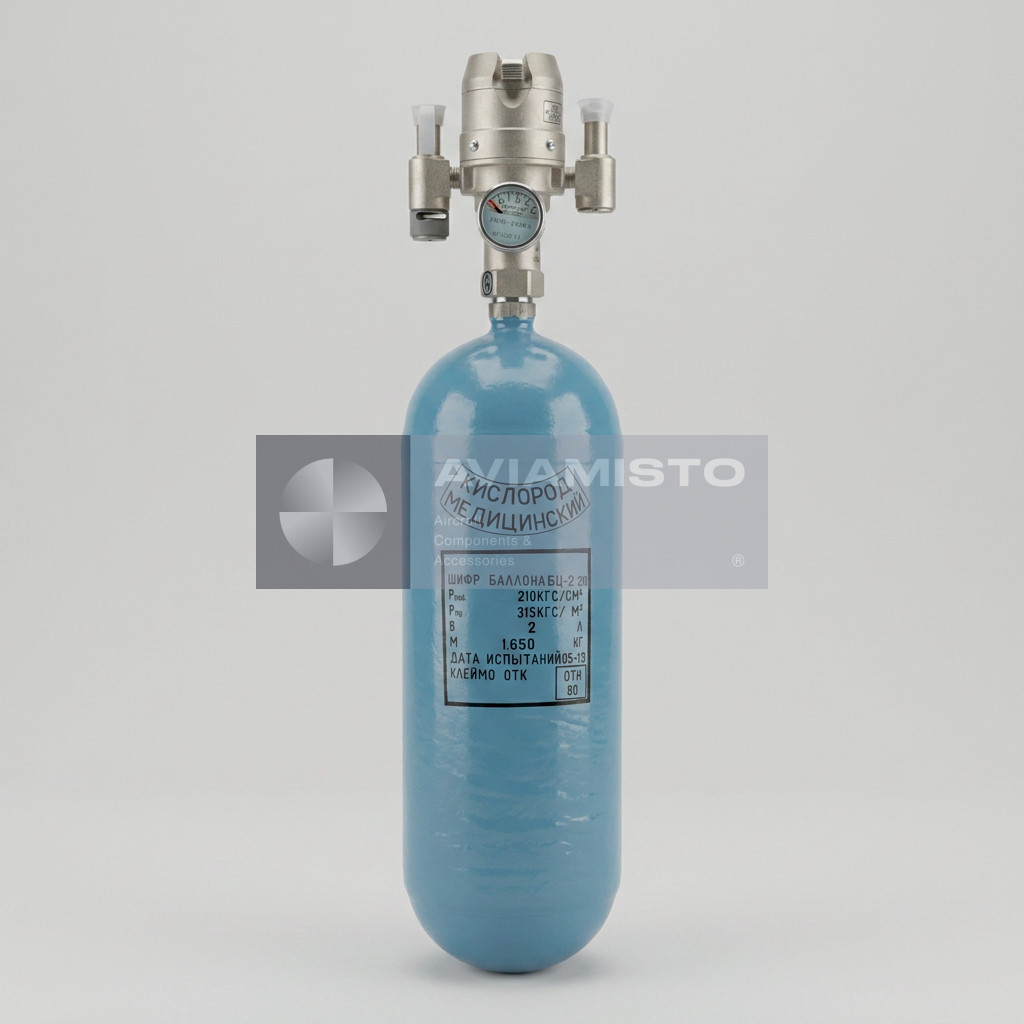

BKP-3-2-210 oxygen supply unit for aircraft use

The BKP-3-2-210 is a portable aircraft oxygen supply unit used as part of onboard emergency and life-support equipment. It provides an independent oxygen source for crew members or passengers when the standard fixed oxygen system is not suitable for the task. In aircraft operation, such a unit is useful when a crew member must move through the cabin, inspect an area with smoke or fumes, or assist a passenger who requires oxygen support during flight. The block is compact enough for onboard handling, but still carries a larger oxygen reserve than the two-liter BKP version.

Crew movement and emergency use of BKP-3-2-210

The main practical use of the BKP-3-2-210 is oxygen supply during movement inside the aircraft. If smoke, toxic odor, or decompression-related procedures require a crew member to leave the cockpit or assigned position, the block gives a portable breathing source. It can also be used when oxygen must be delivered directly to a passenger for emergency or therapeutic reasons. This makes the unit relevant not only as rescue equipment, but also as part of routine onboard readiness where the crew must have a separate oxygen source available outside fixed connection points.

BKP-3-2-210 cylinder and pressure-reducing equipment

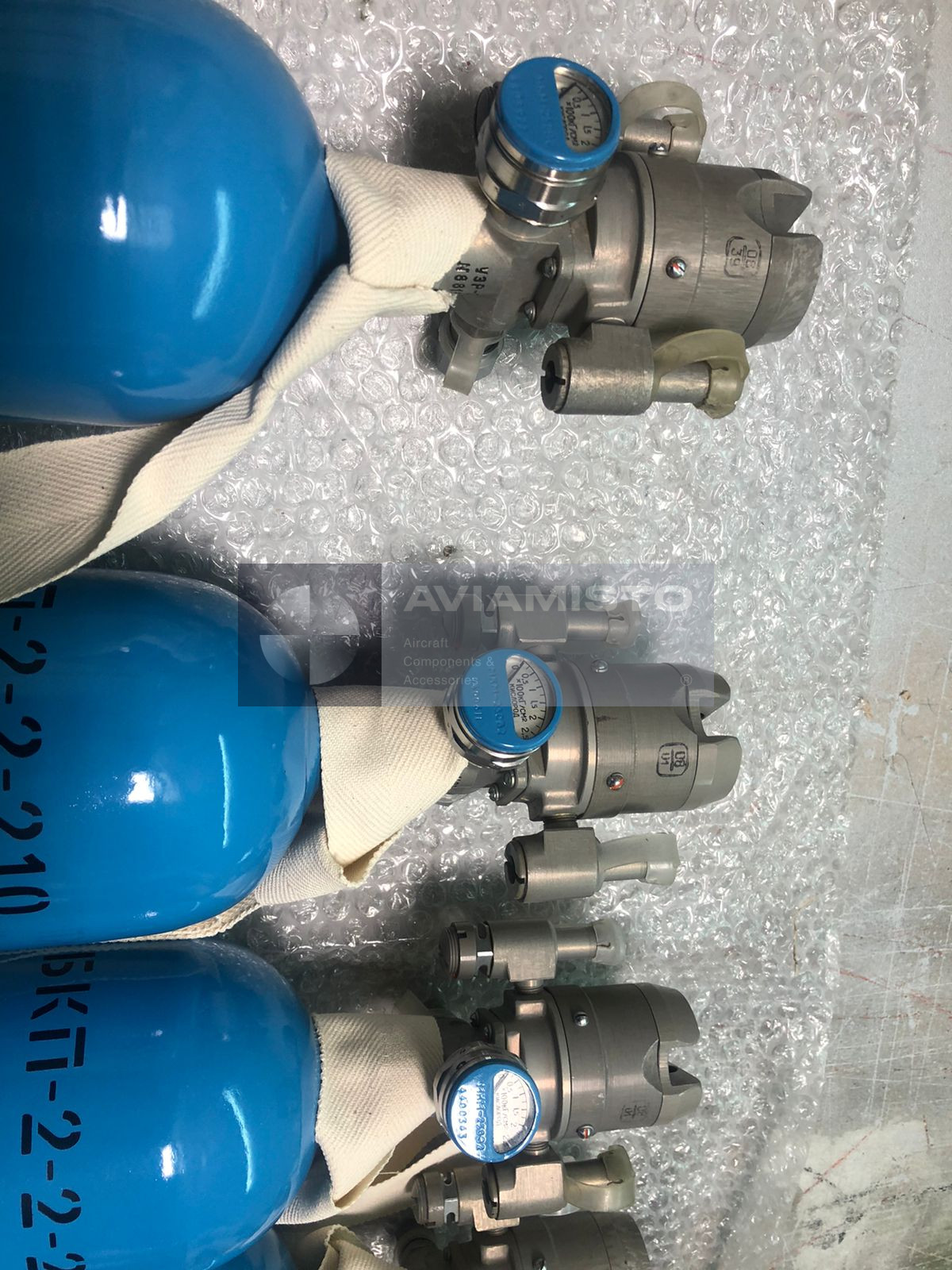

The BKP-3-2-210 is built around a high-pressure oxygen cylinder and a shut-off / pressure-reducing assembly. The cylinder stores the oxygen charge, while the reducer lowers the pressure to the level required for mask connection. The assembly normally includes shut-off and regulation elements, pressure control, and outlet fittings for oxygen masks. In this design, the cylinder itself is only one part of the unit. The serviceability of the reducer, valve group, fittings, seals, and pressure indication is just as important as the remaining oxygen pressure inside the bottle.

Oxygen delivery through the BKP-3-2-210 block

During use, oxygen leaves the cylinder and passes through the pressure-reducing section before reaching the mask outlet. The user does not receive full cylinder pressure; the block reduces it to a controlled outlet pressure suitable for breathing equipment. The unit is designed to provide sufficient oxygen flow both at normal cylinder pressure and as the charge decreases toward the lower operating range. For aircraft use, this matters because the block must remain useful during the required operating period and should not lose delivery capability too early as pressure drops.

Two-channel connection on BKP-3-2-210

The BKP-3-2-210 has two outlet channels for connecting oxygen masks, depending on the aircraft configuration and approved equipment list. This allows the block to be used more flexibly than a single-outlet unit. In practice, the supplied set must be clarified before procurement, because the oxygen block and masks are often treated as separate supply items. Masks such as KM-114 or DKM-1 may be used where approved by the aircraft documentation. For installation or onboard use, the exact mask type, hose connection, and operating procedure must be checked against the aircraft manual.

Construction and handling of BKP-3-2-210

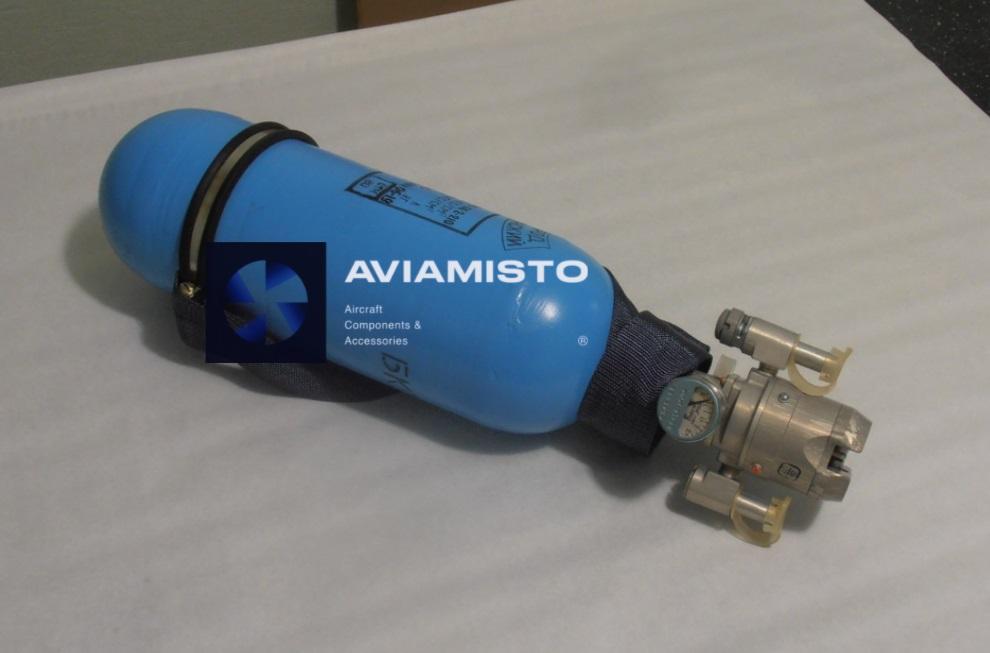

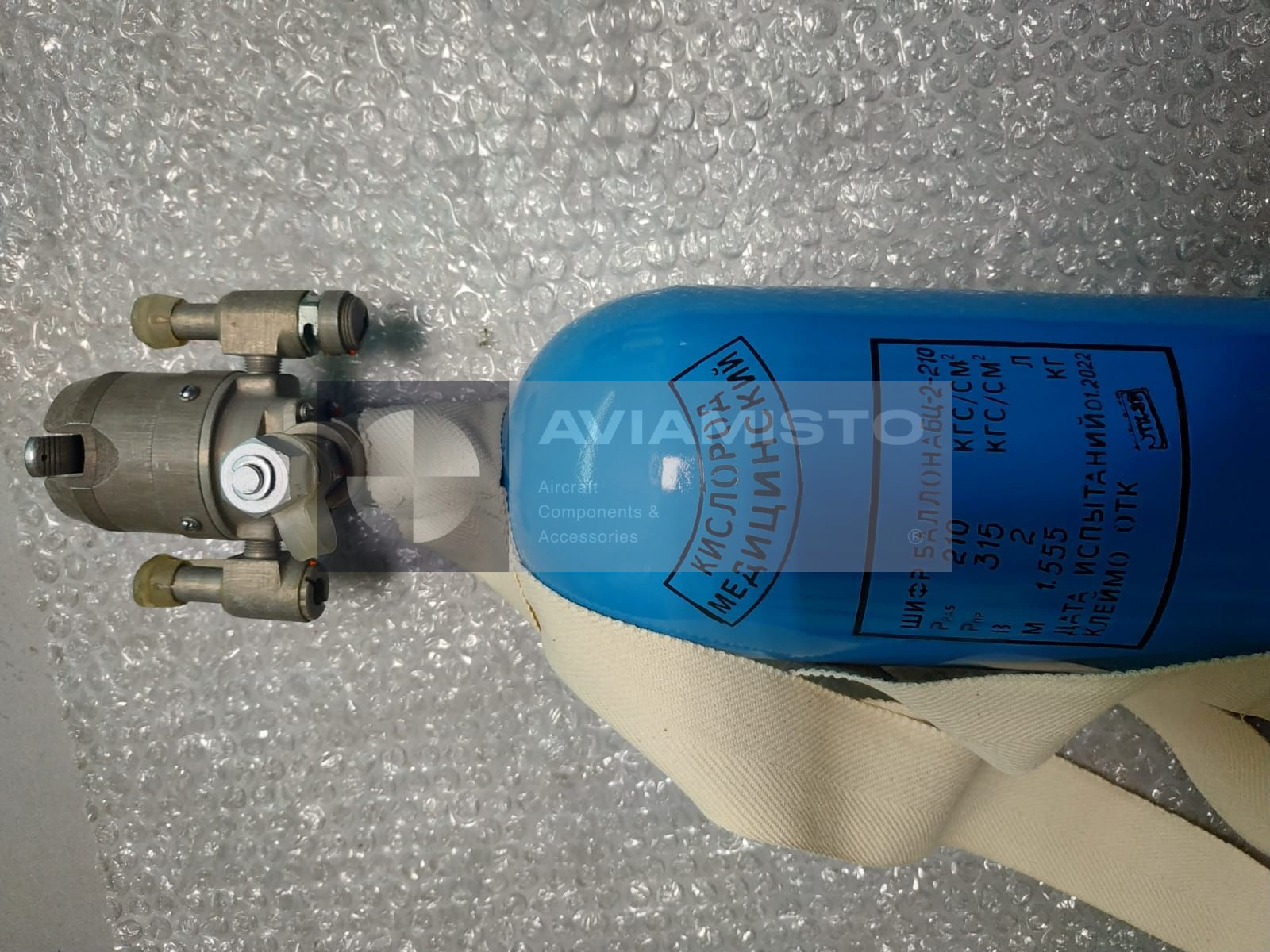

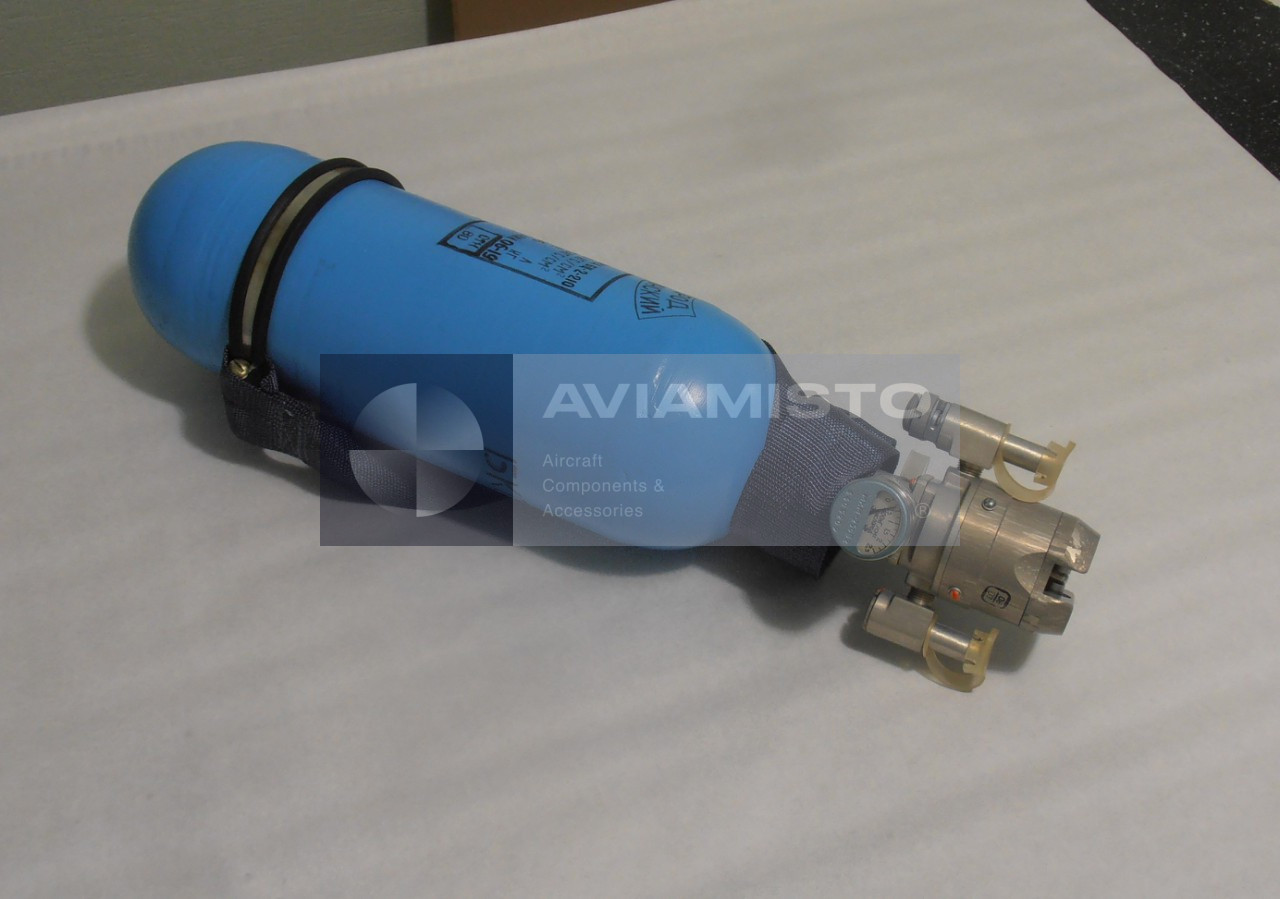

The unit is usually arranged as a compact oxygen module based on a cylindrical high-pressure bottle, commonly associated with the BTs-3-210 type. For onboard handling and protection, the block may be placed in a dedicated fabric cover or carrying case. This protects the cylinder and fittings from minor mechanical damage during storage and use in the cabin. At the same time, the cover does not replace inspection. Before use, the pressure gauge, valve, reducer, mask outlets, threads, seals, and external condition of the cylinder must be checked.

Ordering and documentation for BKP-3-2-210

When ordering the BKP-3-2-210, it is important to specify the required condition and completeness: block only, block with cover, block with masks, charged or uncharged, with current inspection, from storage, or after service. Oxygen equipment should not be selected only by general appearance or cylinder volume. The designation, working pressure, reducer version, outlet configuration, service status, oxygen cleanliness, and documentation must match the aircraft requirement. For aviation supply, passport, inspection records, overhaul or storage documents, and remaining service life are normally checked before acceptance.

Product Type: Portable aircraft oxygen supply unit
Designation: BKP-3-2-210
Function: Portable oxygen supply for crew movement, passenger assistance, emergency breathing support, or therapeutic use
Application / Where Used: Emergency, rescue, service, and life-support equipment of civil and special aviation aircraft
System / Installation Area: Aircraft portable oxygen equipment
Cylinder Type: BTs-3-210 high-pressure oxygen cylinder, depending on configuration
Cylinder Capacity: 3 L
Working Gas: Medical or aviation oxygen
Working Pressure: 1.0–21.0 MPa / 10–210 kgf/cm²
Outlet Pressure: 0.435 MPa / 4.35 kgf/cm²
High-Pressure Delivery Rate: Not less than 150 L/min at inlet pressure from 2 to 18.6 MPa
Low-Pressure Delivery Rate: Not less than 120 L/min at inlet pressure from 1 to 2 MPa
Number of Outlet Channels: 2 independent mask connection fittings
Compatible Masks: KM-114, DKM-1 and other approved oxygen masks depending on aircraft documentation
Main Components: Oxygen cylinder, shut-off / regulating valve, pressure reducer, mask outlet fittings
Typical Protection / Handling: Fabric carrying or protective cover, depending on supply configuration
Operating Temperature Range: +15 to +35 °C in standard cabin operating conditions
Charged Unit Weight: Approximately 3.2–3.6 kg, depending on configuration and accessories
Supply Condition: As applicable; charged or uncharged condition to be specified separately
Completeness of Supply: Block only or with masks / cover / accessories depending on order
Technical Documentation: Product passport, inspection documents, operating documentation, and aircraft equipment documentation as applicable
