BKP-2-2-210

BKP-2-2-210 portable oxygen supply unit

The BKP-2-2-210 is a portable aircraft oxygen supply unit used for breathing support in civil aircraft oxygen systems. It is intended for situations where crew members need an independent oxygen source outside their normal workstation, for example while moving through a smoke-filled cabin or assisting passengers. The unit may also be used for emergency or therapeutic oxygen supply, depending on the aircraft procedure and the connected oxygen mask. Its compact cylinder-and-reducer layout allows the block to be handled as a separate portable item rather than as a fixed aircraft oxygen installation.

Crew and passenger use of BKP-2-2-210

In aircraft operation, the BKP-2-2-210 gives the crew a mobile oxygen source for short-term tasks away from the cockpit. This can be important during smoke, fumes, cabin depressurization-related procedures, or when assistance must be provided in the passenger cabin. The unit is also suitable for connecting oxygen masks used for crew or passenger support, provided the mask type is approved for the particular aircraft system. On aircraft such as Tu-154M and L-410, portable oxygen blocks of this class are normally treated as onboard emergency and service equipment.

BKP-2-2-210 cylinder and reducer assembly

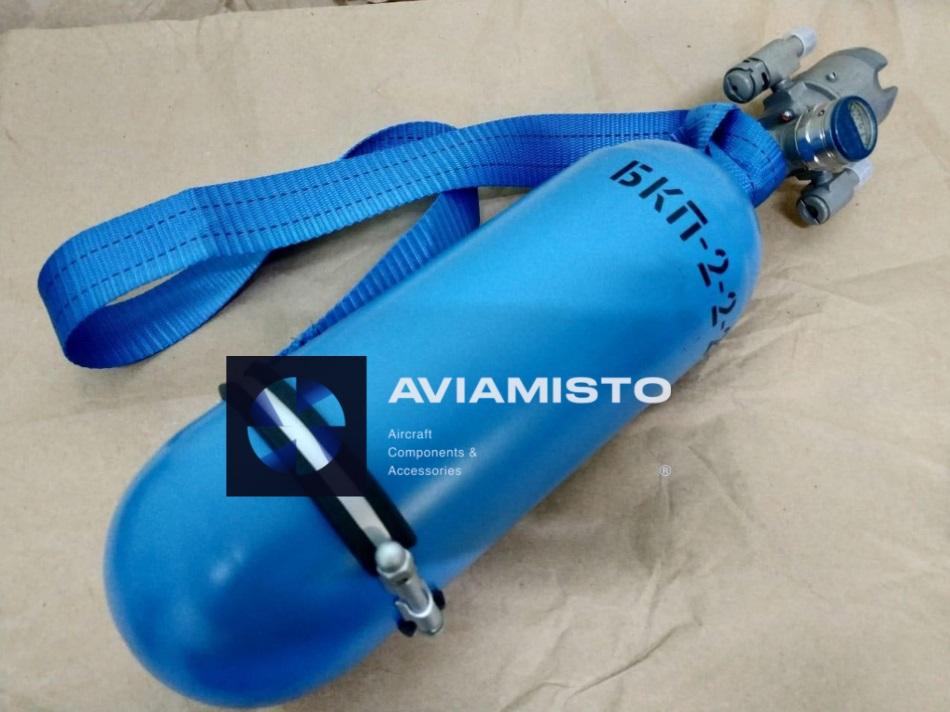

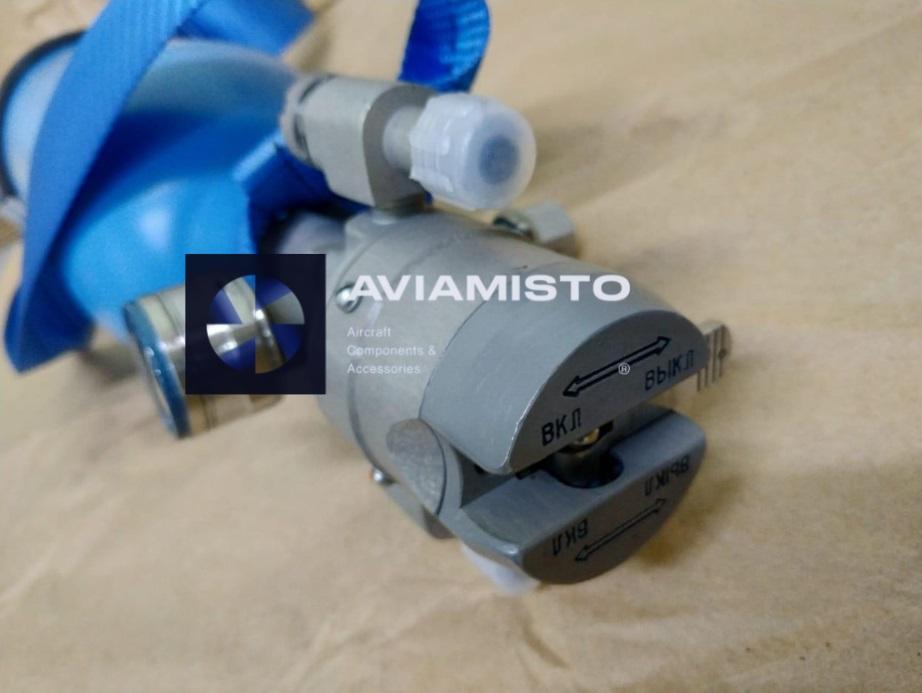

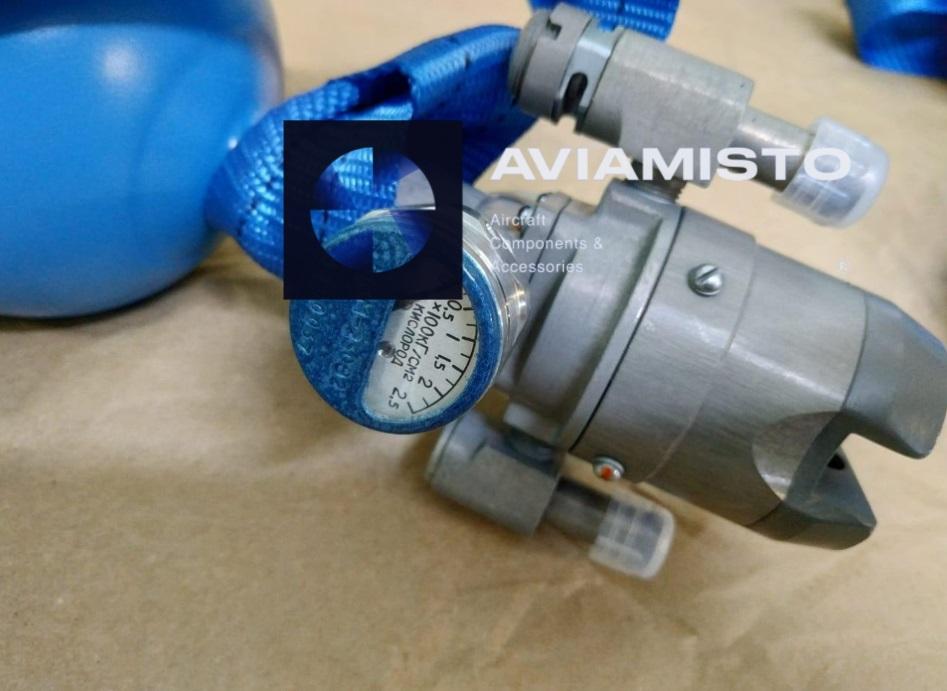

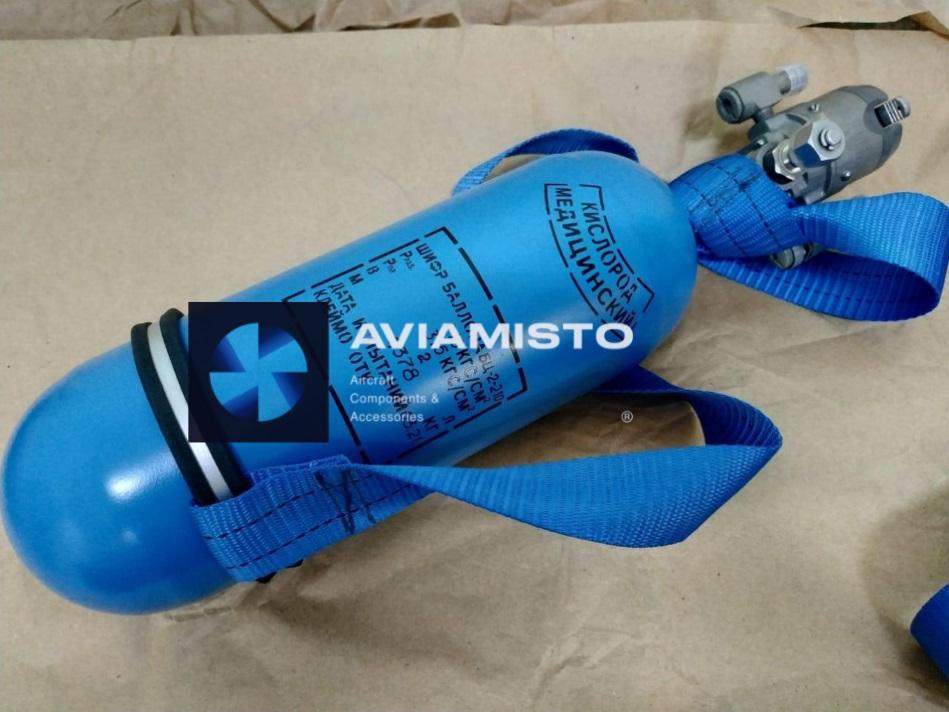

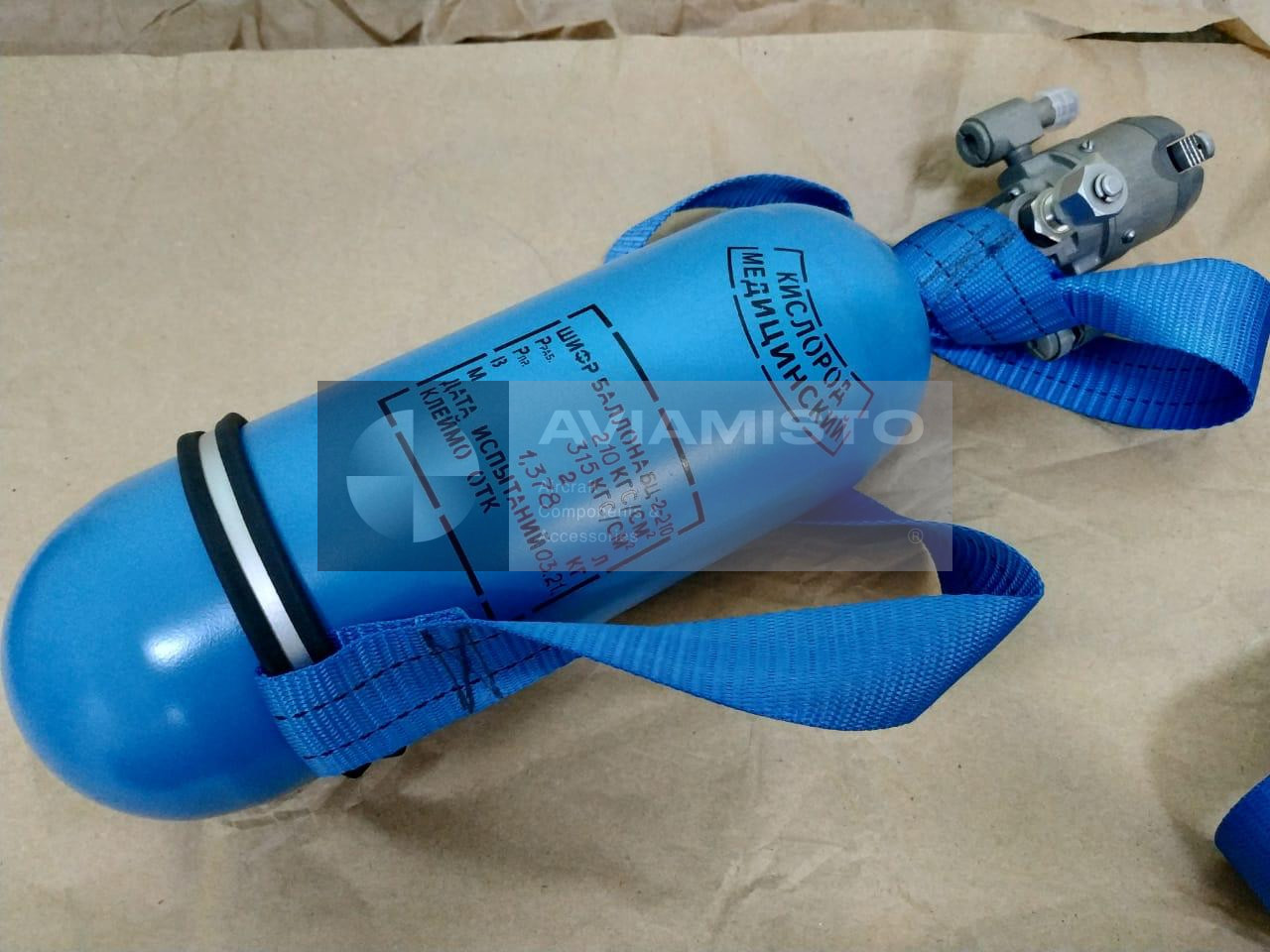

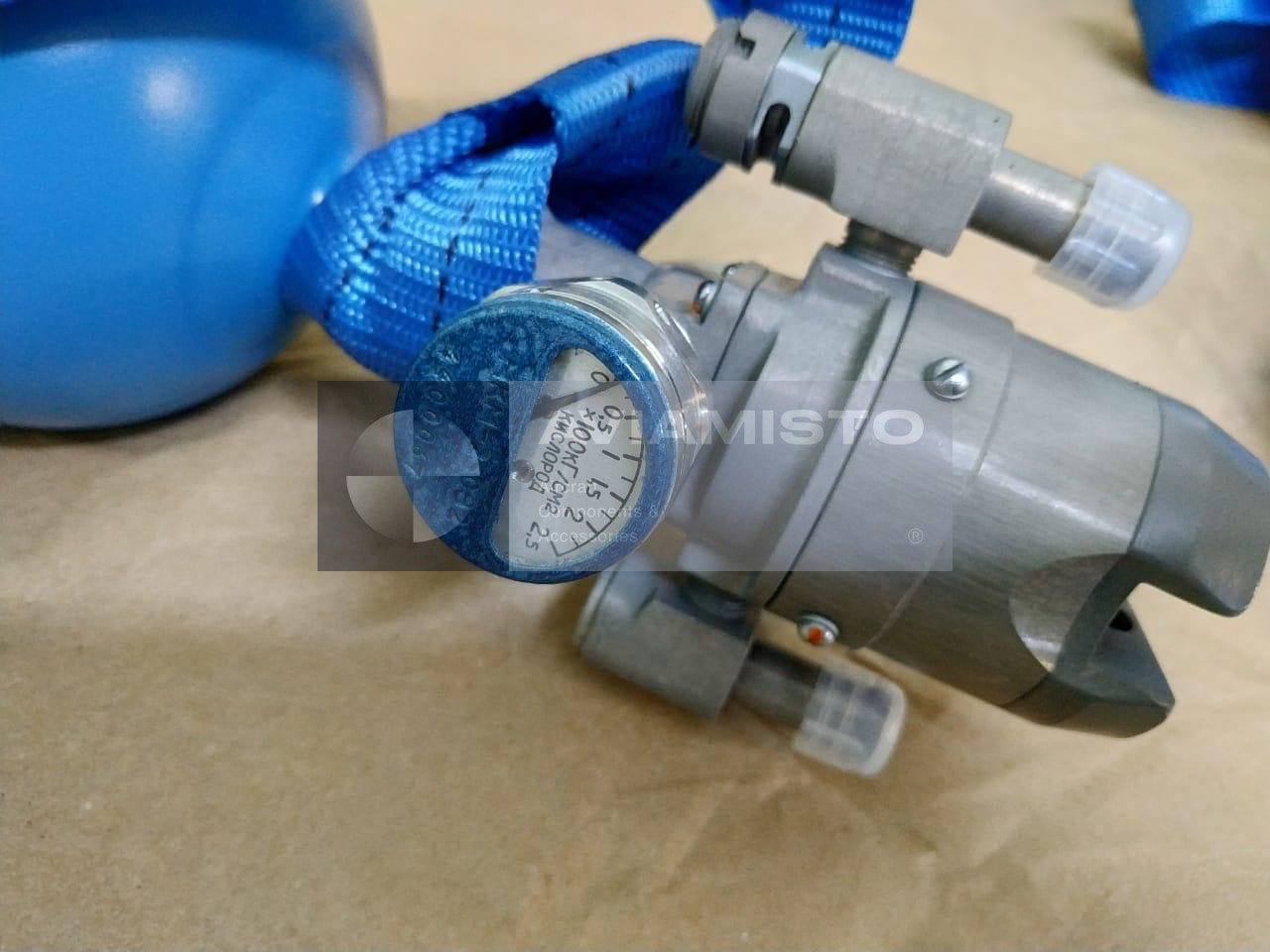

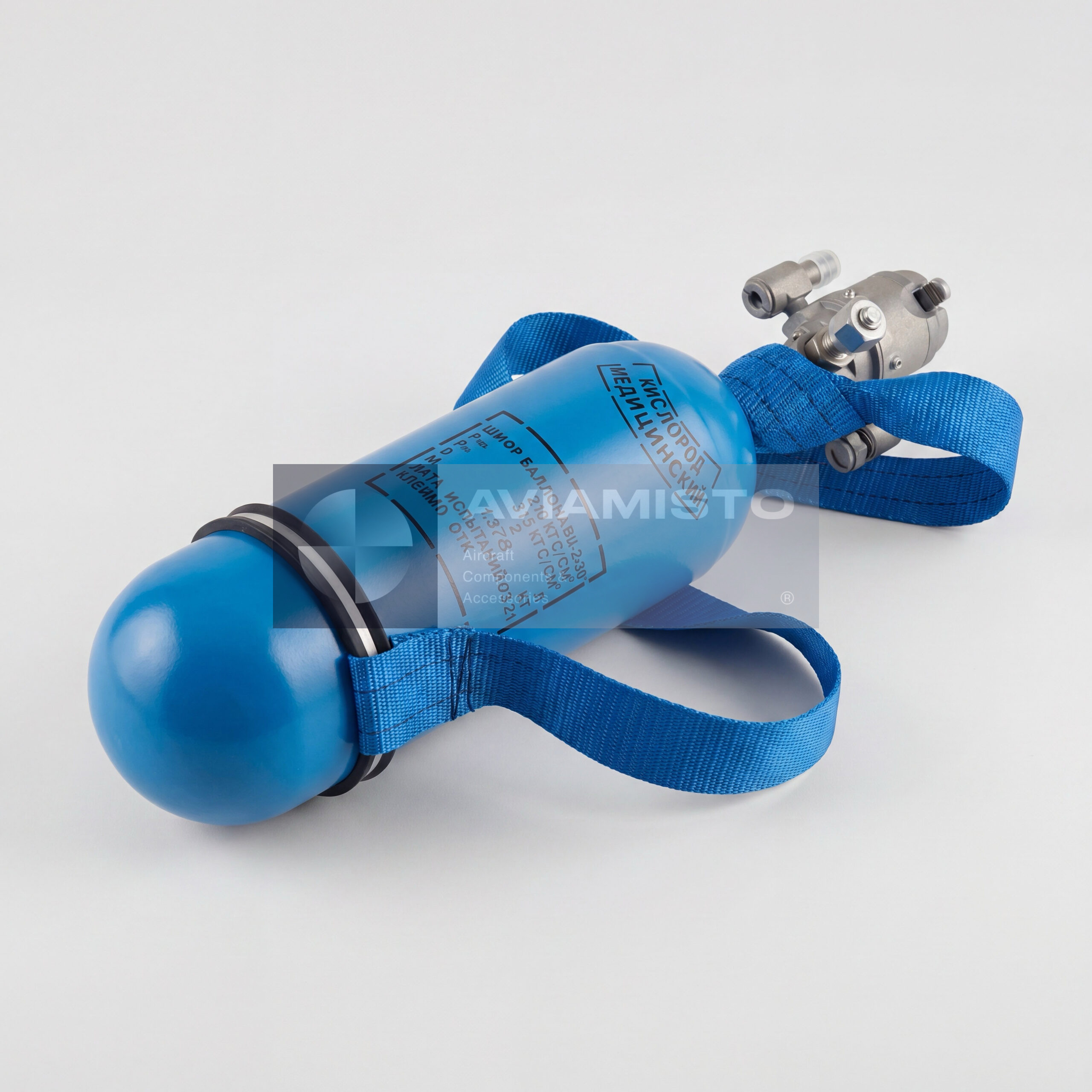

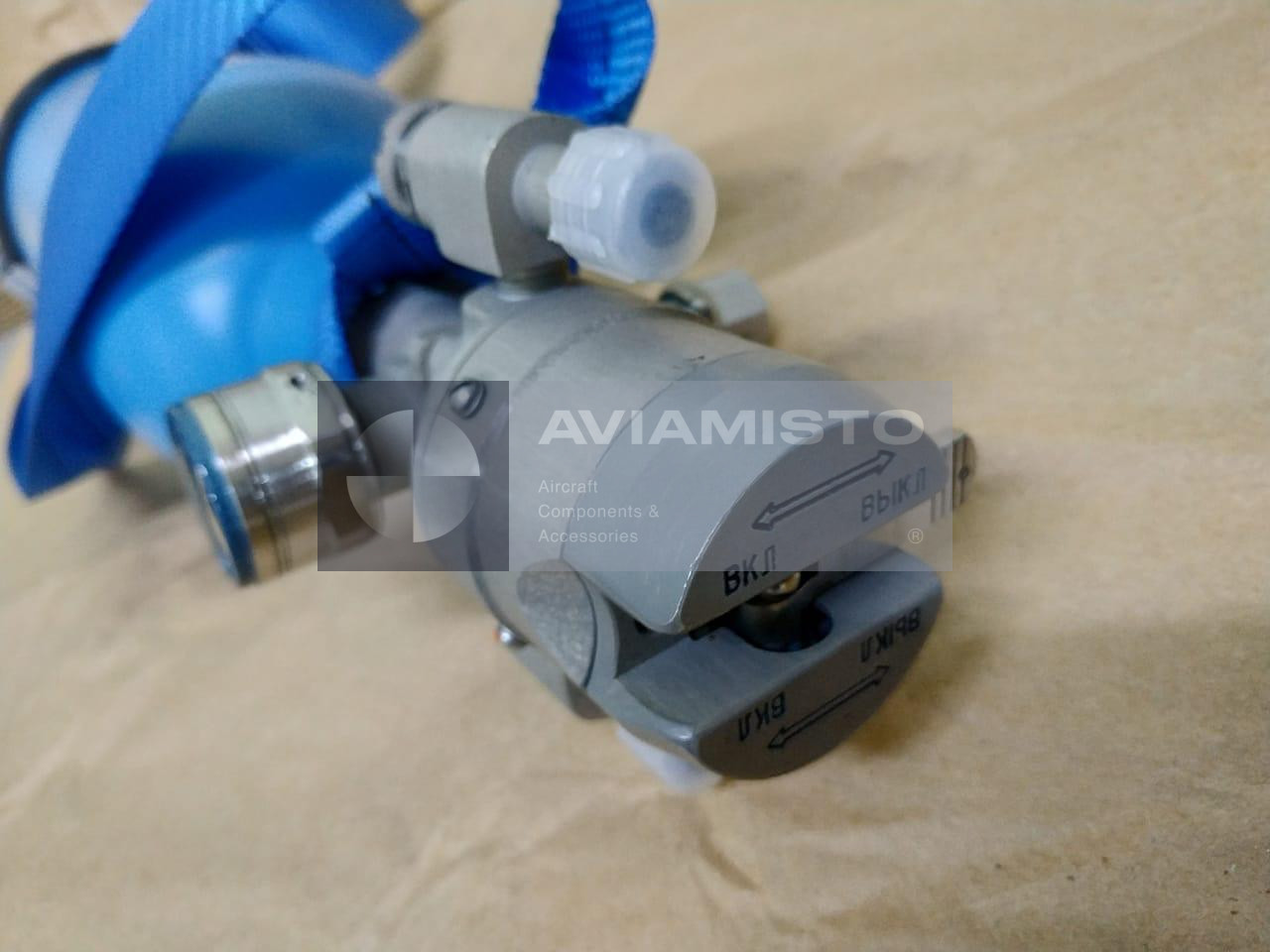

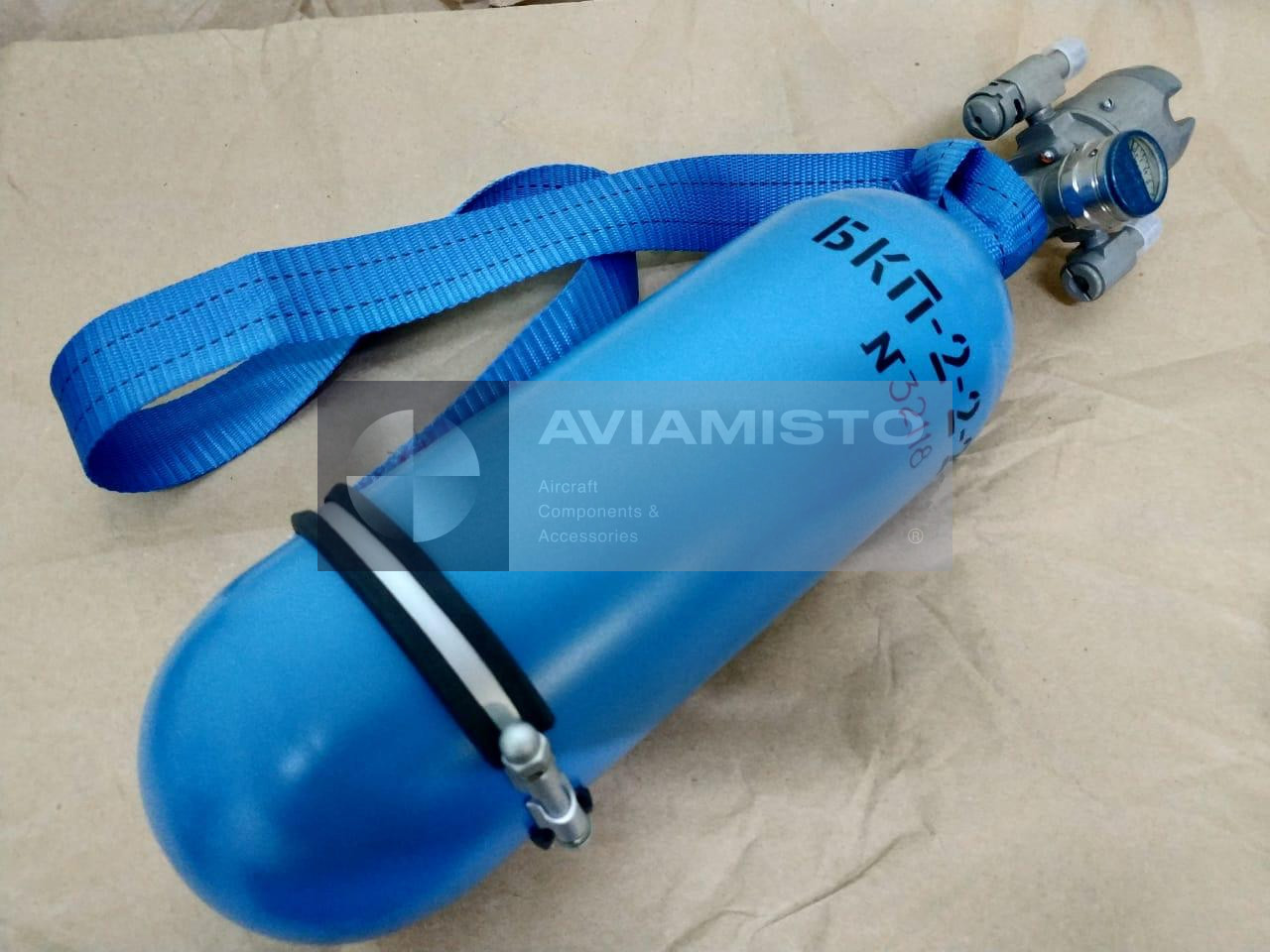

The unit consists of a small oxygen cylinder and a shut-off / pressure-reducing assembly. The reducer section brings cylinder pressure down to the required outlet pressure for connected oxygen equipment. The assembly also includes a pressure gauge for checking cylinder pressure, a filling connection with a check valve, a safety valve, and outlet fittings for mask connection. This layout lets maintenance personnel check the charge state, refill the cylinder through the specified port, and connect the block to approved mask equipment without changing the basic unit design.

Oxygen delivery through the BKP-2-2-210 block

The BKP-2-2-210 is designed to deliver oxygen at a stable outlet pressure and with sufficient flow for breathing equipment. According to the passport data, the unit maintains its specified delivery performance over the stated cylinder pressure range. This is important because the block must continue to provide usable oxygen flow as cylinder pressure decreases during operation. The pressure-reducing system prevents full cylinder pressure from being supplied directly to the mask line, while the outlet fittings allow connection to compatible masks or oxygen breathing devices.

Aircraft masks used with BKP-2-2-210

The BKP-2-2-210 can be used with aircraft oxygen masks such as KM-114, MKP-1T and DKM-1, depending on aircraft documentation and the required operating configuration. Since the unit has outlet fittings for mask connection, the actual set used on board should be checked against the aircraft equipment list and maintenance manual. For supply purposes, it is important to clarify whether the requirement is only for the oxygen block itself or for a complete set including masks, hoses, operating instructions, and aircraft-specific accessories.

Operating conditions and storage of BKP-2-2-210

The BKP-2-2-210 is built as aircraft oxygen equipment and is specified for controlled service conditions, including temperature effects, vibration, humidity exposure, and aircraft load factors. Passport data also define service life, overhaul intervals, storage conditions, and warranty-related information. These details matter because oxygen equipment cannot be judged only by external appearance. Before installation or onboard use, the block should be checked for cylinder condition, pressure gauge condition, reducer serviceability, filling port condition, leakage, documentation status, and remaining life limits.

Identification and supply of BKP-2-2-210

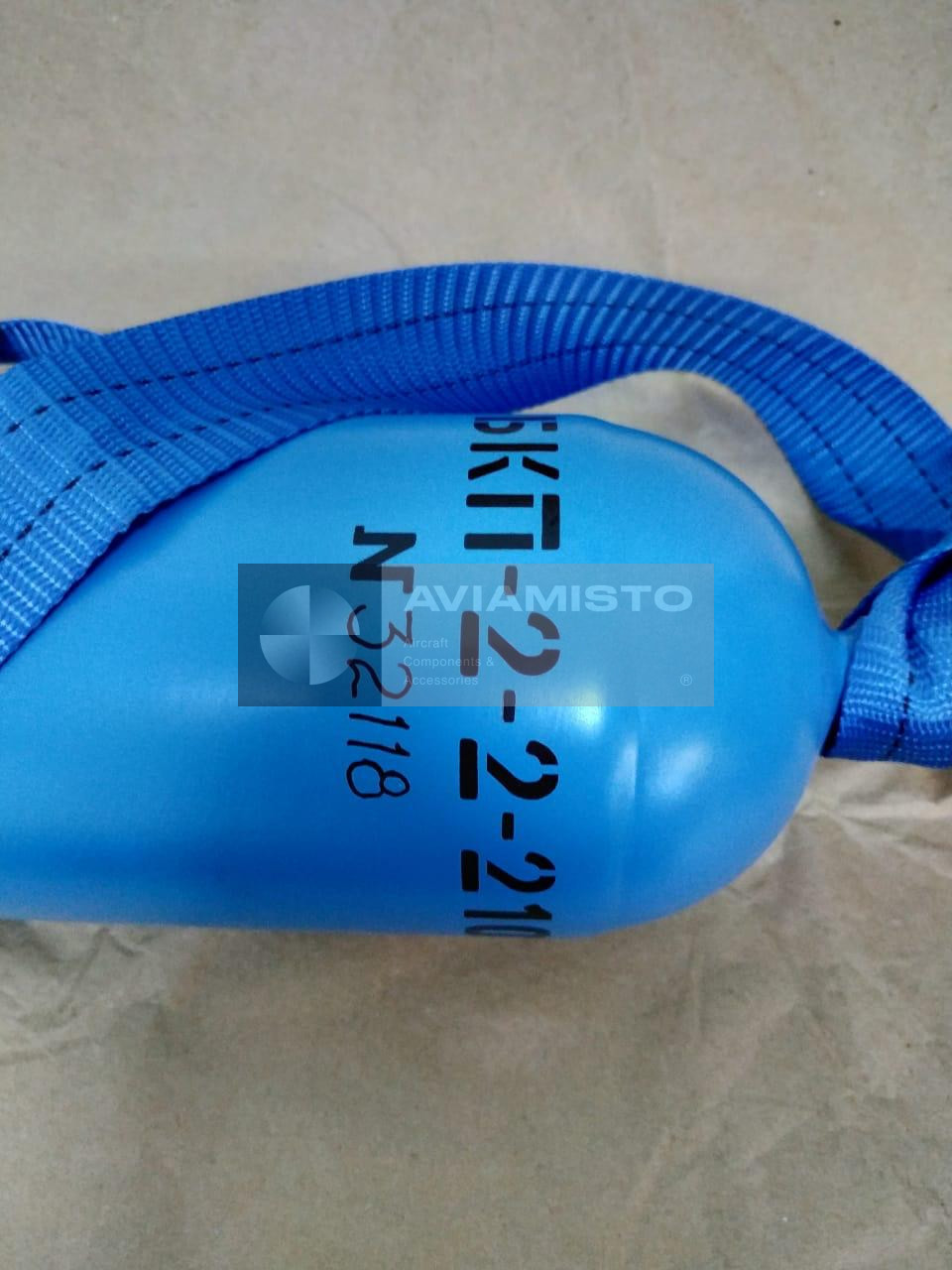

For procurement or replacement, the full designation BKP-2-2-210 should be stated together with the required condition and documentation. The passport identifies the unit as an oxygen supply block and includes its individual serial number, acceptance records, technical data, completeness information, resource, storage and preservation notes. Depending on stock, the unit may be supplied as new production, from storage, or after inspection / overhaul. For aircraft use, the supplier should confirm passport availability, pressure test or service status, oxygen cleanliness requirements, and compatibility with the target aircraft.

Product Type: Portable aircraft oxygen supply unit
Designation: BKP-2-2-210
Drawing / Technical Specification Reference: TK-7859-800 TU / TK-7859-800 PS
Function: Portable oxygen supply for crew movement, passenger assistance, emergency breathing support, or therapeutic use depending on aircraft procedure
Application / Where Used: Civil aircraft oxygen equipment
Compatible Aircraft / Equipment: Tu-154M, L-410 and other aircraft depending on equipment list
Main Components: Oxygen cylinder; shut-off and pressure-reducing assembly
Reducer Assembly Includes: Pressure gauge, filling port with check valve, pressure reducer, safety valve, outlet fittings for mask connection
Compatible Masks: KM-114, MKP-1T, DKM-1 depending on aircraft documentation
Cylinder Capacity: 2 ±0.04 L
Oxygen Pressure in Cylinder: 1–21 MPa / 10–210 kgf/cm²
Outlet Oxygen Pressure Without Flow: Not more than 0.7 MPa at cylinder pressure from 2.5 to 18.6 MPa
Delivery Rate: Not less than 150 L/min at inlet pressure from 2 to 18.6 MPa and outlet pressure 0.435 MPa
Outlet Pressure Reference: 0.435 MPa / 4.35 kgf/cm²
Operating Temperature Interval: +15 to +45 °C according to passport data
After Maximum Temperature Exposure: +70 °C
After Minimum Temperature Exposure: −55 °C
Relative Humidity Exposure: Up to 100% at +40 °C for 10 days
Vibration Resistance: 5–2000 Hz, amplitude up to 1.25 mm, acceleration up to 5 g
Linear Load Resistance: Along three mutually perpendicular axes, acceleration up to 6 g
Mass: Not more than 2.25 kg
Completeness of Supply: Not provided as a set unless specified separately
Precious / Non-Ferrous Materials: Not provided in the product materials list
Service Life Before First Overhaul: 6000 flight hours or 5 years, including up to 2 years of storage in tropical climate conditions
Time Between Overhauls: 6000 flight hours or 5 years, including up to 1 year of storage in tropical climate conditions
Assigned Service Life: 12000 flight hours or 10 years, including up to 2 years of storage in tropical climate conditions
Technical Documentation: Product passport and operating documentation; BKP-2-2-210 technical operation manual may be supplied by separate order
