GSR-ST-12/40
Starter-Generator
Description

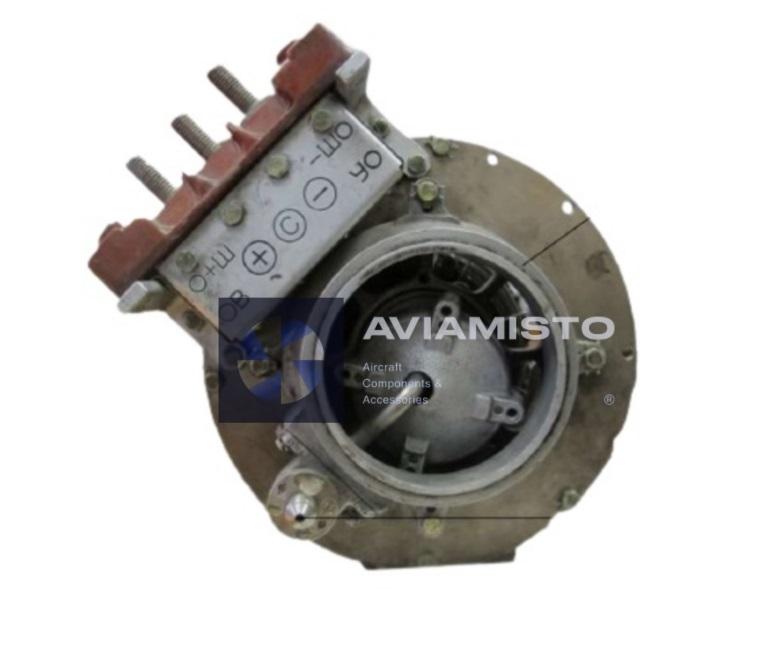

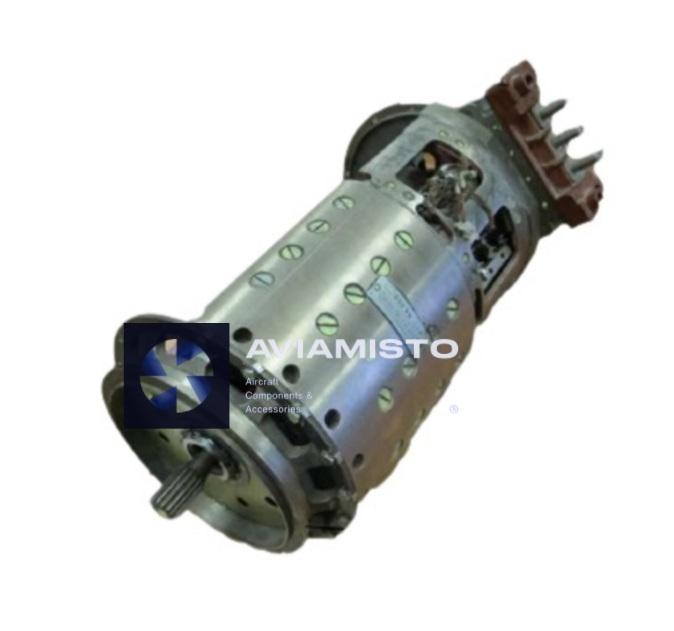

GSR-ST-12/40 starter-generator
GSR-ST-12/40 is a combined DC machine intended to crank an aircraft engine and, after start, operate as a generator for the onboard network. Manufacturer reference data describe this two-mode purpose and list a service-life limit of 20 years or 1,500 motor-hours. The approved aircraft installation determines whether both modes are used.
Full descriptionCollapse description
Documented MiG-29 electrical-system role
A technical study of the MiG-29 electrical system identifies GSR-ST-12/40 as the main 28 V DC source with two 15SCS-45B batteries as reserve sources. In that documented installation the machine operates only in generator mode and the starter function is not used. This aircraft-specific arrangement must not be generalized to every GSR-ST-12/40 application.
Electrical and speed ratings
Published ratings are 12 kW, 28.5 V DC, 400 A and 4,000–9,000 rpm. The excitation-current range is 1.9–15 A, ambient-temperature range is −60 to +60 °C and maximum listed mass is 32 kg. These figures describe the electrical machine; the complete starting circuit and generator protection remain installation-specific.
Brush data and maintenance limits
New brushes are listed as 8 × 20 × 31 mm. The critical brush height is 17 mm; existing service data also record 20 mm as the minimum at a 100-hour maintenance check. Brush movement, spring pressure, commutator condition, bearings, terminals, insulation and cooling paths require inspection under the approved procedure. The limits are not a substitute for a release-to-service decision.
Selection and ordering
Order by the full GSR-ST-12/40 designation and confirm the exact execution, aircraft, engine, drive, rotation, mounting and control equipment. Closely named variants, including GSR-ST-12/40A, may differ. Related products are shown in Generators & Starter-Generators; the four cross-sells support catalogue navigation and do not certify interchangeability.
Technical details
- Product Type
- Combined DC starter-generator
- Part Number
- GSR-ST-12/40
- Original Cyrillic Designation
- ГСР-СТ-12/40
- Operating Modes
- Starter mode and generator mode where enabled by the aircraft installation
- Generator Function
- Supply of the aircraft DC network after engine start
All specificationsCollapse specifications
- Starter Function
- Engine cranking in installations designed to use this mode
- Nominal Power
- 12 kW
- Nominal Voltage
- 28.5 V DC
- Nominal Current
- 400 A
- Operating Speed
- 4,000–9,000 rpm
- Excitation Current
- 1.9–15 A
- Ambient Temperature
- −60 to +60 °C
- Maximum Published Mass
- 32 kg
- Brush Size When New
- 8 × 20 × 31 mm
- 100-Hour Brush Check Limit
- 20 mm in the retained service data
- Critical Brush Height
- 17 mm
- Documented Aircraft Context
- MiG-29 electrical system
- MiG-29 Operating Mode
- Generator mode only in the reviewed installation
- MiG-29 Reserve Sources
- Two 15SCS-45B batteries
- Published Service-Life Limit
- 20 years or 1,500 motor-hours
- Rotation and Drive
- Confirm from the exact execution and engine installation manual
- Control and Protection
- Confirm from the aircraft starting and DC-power wiring diagrams
- Interchangeability
- Not automatically established with GSR-ST-12/40A or other variants
- Compatibility Check
- Verify execution, operating modes, aircraft, engine, drive, rotation, mounting and terminals
