GSR-3000M Series 4
DC Generator
Description

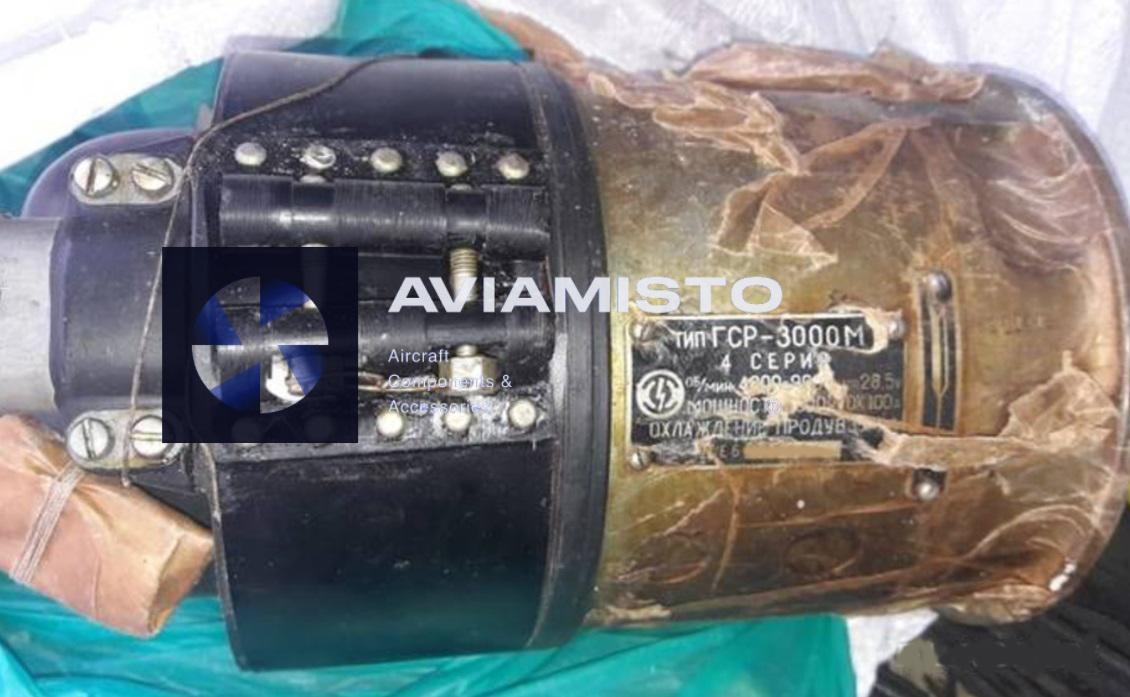

GSR-3000M Series 4 DC generator
GSR-3000M Series 4 is a 3 kW shunt-wound DC generator intended to feed an aircraft 28.5 V electrical system. The M-14P maintenance manual describes it as a four-pole machine with four interpoles, a semi-enclosed housing, flange mounting and a flexible-shaft drive. It is designed for left-hand rotation when viewed from the drive side.
Full descriptionCollapse description
Documented M-14P and Yak-18T installation
The generator is covered directly by the M-14P engine maintenance documentation. Training material for the Yak-18T Series 36 identifies GSR-3000M Series 4 as the main 28.5 V DC source installed on the engine. Effectivity for another M-14 installation should still be checked against that aircraft parts catalogue.
Electrical and operating data
Published specifications give 28.5 V DC, 3 kW at 30 V, a 100 A load current and a 4,000–9,000 rpm speed range. The documented ambient-temperature range is −60 to +50 °C. Reference tables list dimensions of 137 × 248 mm and mass of 11.6 kg; the offered unit and mounting envelope should be checked before installation.
Construction and service points
The armature uses a wave winding and commutator. Four brush holders carry two brushes each, for eight brushes in the documented construction. A terminal panel is mounted on the end shield and a pipe supplies cooling air. The semi-enclosed machine is not internally protected against liquid ingress, so the aircraft installation must provide the required protection and airflow.
Identification and compatibility
Confirm the complete Series 4 nameplate, left rotation, flexible shaft, flange, terminals and cooling connection. GSN-3000M Series 2 and other 3 kW products are separate executions despite similar ratings. Related positions are listed under Generators & Starter-Generators; selection must follow the aircraft, engine and generator manuals.
Technical details
- Product Type
- Shunt-wound aircraft DC generator
- Part Number
- GSR-3000M Series 4
- Original Cyrillic Designation
- ГСР-3000М серия 4
- Series
- 4
- Electrical Output
- Direct current
All specificationsCollapse specifications
- Machine Construction
- Four-pole shunt generator with four interpoles
- Housing
- Semi-enclosed electric machine
- Mounting
- Flange-type
- Drive
- Flexible shaft
- Rotation
- Left-hand when viewed from the drive side
- Nominal Voltage
- 28.5 V DC
- Rated Power
- 3 kW at 30 V
- Load Current
- 100 A
- Operating Speed
- 4,000–9,000 rpm
- Ambient Temperature
- −60 to +50 °C
- Published Dimensions
- 137 × 248 mm
- Published Mass
- 11.6 kg
- Armature Winding
- Wave winding connected to a commutator
- Brush Holders
- 4
- Brushes
- 2 per holder; 8 total in the documented construction
- Cooling Connection
- Cooling-air pipe on the end shield
- Liquid Protection
- Aircraft installation must prevent liquid ingress
- Documented Engine
- M-14P
- Documented Aircraft Context
- Yak-18T Series 36
- Compatibility Check
- Verify series, left rotation, flexible drive, flange, terminals, cooling and installation envelope
