GSN-3000Zh Series 2
DC Generator
Description

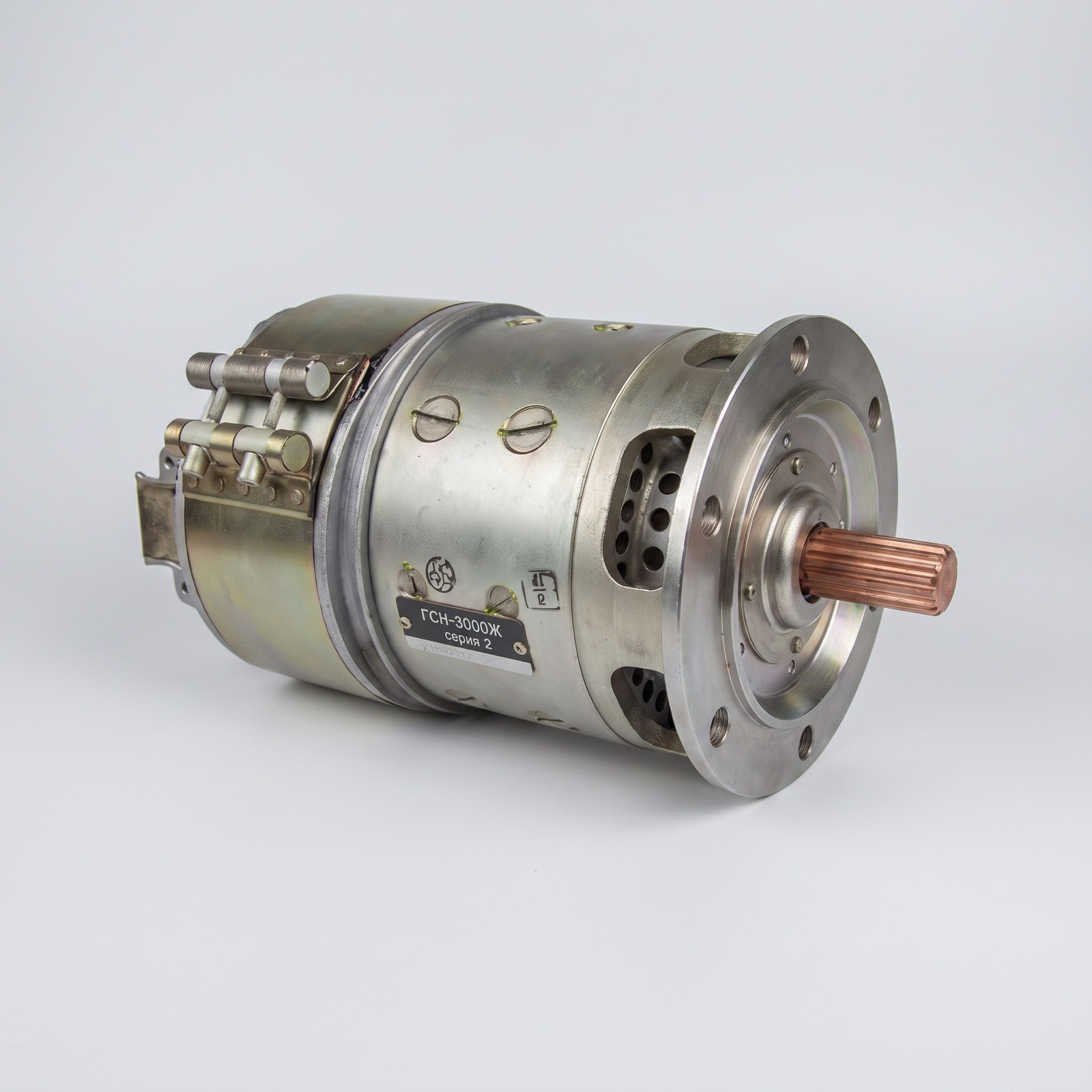

GSN-3000Zh Series 2 generator
GSN-3000Zh Series 2 is a documented execution within the GSN-3000 low-speed DC generator family. Technical-manual listings name the M and Zh second-series executions separately, so the Zh suffix is a real product-identity element rather than a spelling variant. The card therefore retains the exact designation and does not present GSN-3000M aircraft application as proof for GSN-3000Zh.
Full descriptionCollapse description
Electrical family and intended function
Published family references describe GSN-3000 generators as 3 kW units for supplying aircraft DC equipment and charging the battery. The common family ratings are 28.5 V, 100 A and a 3,800–6,500 rpm speed range. Because the open sources reviewed do not fully define which of these values changed with the Zh Series 2 execution, the individual passport remains controlling for installation.
Execution-specific identification
The letter suffix and series may identify differences in shaft, rotation, mounting, cooling or electrical configuration. A spare-parts reference associates the second-series GSN-3000M and GSN-3000Zh with brush-holder assembly 555.010, but this alone does not establish complete interchangeability. The nameplate, technical specification and illustrated parts catalogue must agree with the required unit.
Inspection and system matching
Inspect the housing, mounting flange, drive end, bearings, collector, brushes, terminals, insulation and cooling passages before bench testing. The voltage regulator, network relay, filter and battery channel must be selected from the wiring documentation of the actual aircraft installation. Do not assign an aircraft type merely from a photograph or from the GSN-3000 family name.
Ordering GSN-3000Zh Series 2
Request the unit using the complete GSN-3000Zh Series 2 designation and provide a nameplate image or parts-catalogue reference. Confirm rotation, drive, regulator, protection and cooling before release for installation. More DC machines are listed under Generators & Starter-Generators. The general operating principle is described in the neutral electric generator reference.
Technical details
- Product Type
- Low-speed aircraft DC generator
- Part Number
- GSN-3000Zh Series 2
- Original Cyrillic Designation
- ГСН-3000Ж серия 2
- Series
- 2
- Family
- GSN-3000
All specificationsCollapse specifications
- Primary Function
- Supplying aircraft DC equipment and charging the battery
- Published Family Power
- 3,000 W; verify the Zh Series 2 passport
- Published Family Voltage
- 28.5 V DC; verify the Zh Series 2 passport
- Published Family Current
- 100 A; verify the Zh Series 2 passport
- Published Family Speed Range
- 3,800–6,500 rpm; verify the Zh Series 2 passport
- Referenced Brush-Holder Assembly
- 555.010 in a second-series spare-parts listing
- Rotation
- Confirm from the GSN-3000Zh Series 2 nameplate and passport
- Drive Interface
- Confirm from the exact aircraft parts catalogue
- Cooling
- Confirm for the exact Zh Series 2 installation
- Associated Regulation and Protection
- Determine from the actual aircraft wiring documentation
- Aircraft Effectivity
- Not assigned without an exact GSN-3000Zh Series 2 source
- Interchangeability
- Not established with GSN-3000M or another family execution
