GSN-3000M Series 2
DC Generator
Description

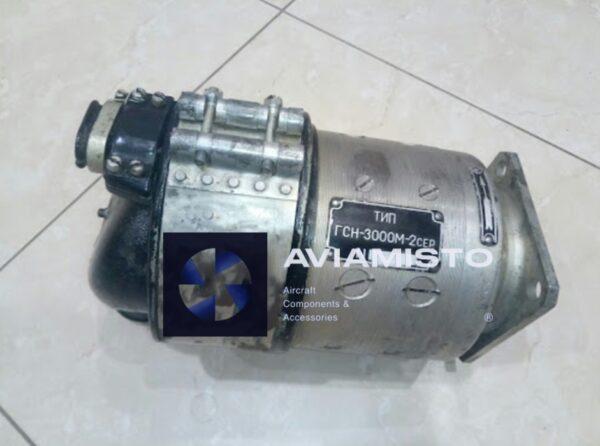

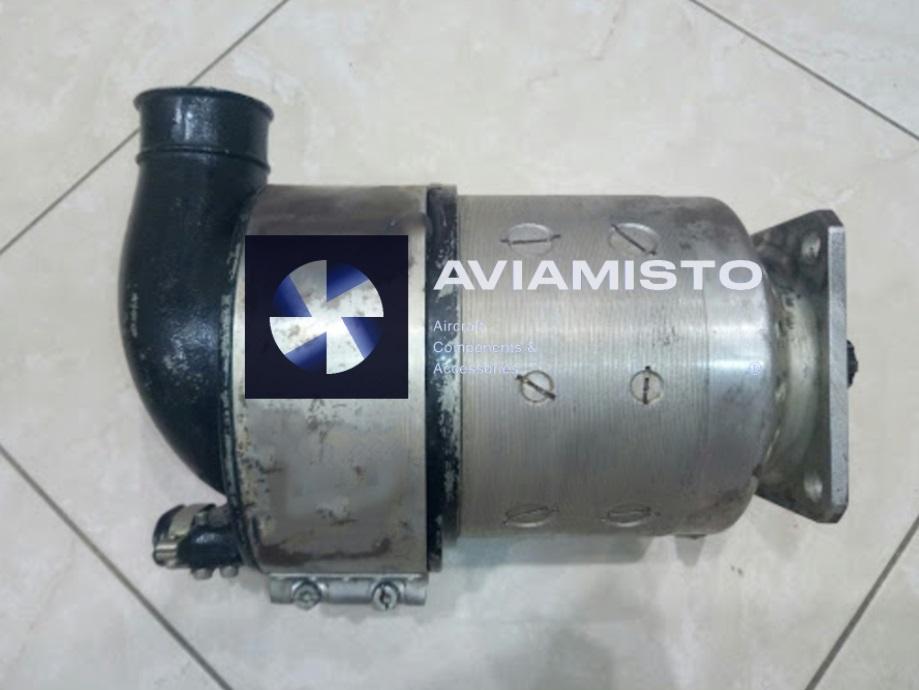

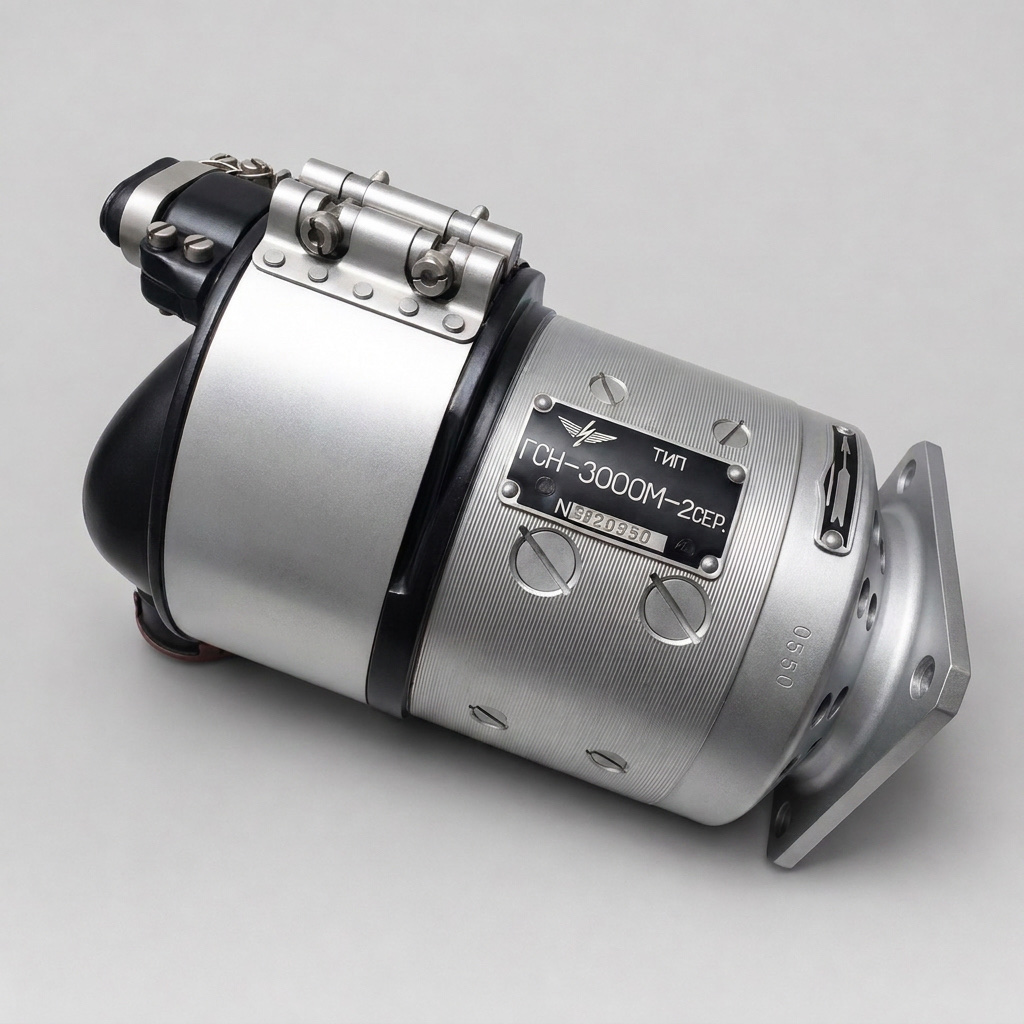

GSN-3000M Series 2 DC generator
GSN-3000M Series 2 is a 3 kW low-speed aircraft DC generator. It supplies electrical and radio equipment and charges the battery during engine operation. The machine is described as a four-pole shunt generator with four interpoles, an electric-steel housing and forced ram-air cooling.
Full descriptionCollapse description
Documented An-2 installation
Technical training material documents GSN-3000M on the Antonov An-2 with the ASh-62IR engine. The reviewed installation uses an R-25AM voltage regulator, DMR-400D minimum-differential relay, TS-9M-2 stabilizing transformer, SF-3000R interference-suppression filter and 12-A-30 battery. These units form an electrical channel; each has its own function and part number.
Nominal and short-time ratings
Nominal output is 28.5 V DC, 100 A and 3,000 W over a published 3,800–6,500 rpm generator-speed range. A short-time rating of 150 A and 4,500 W is recorded for not more than two minutes under the specified conditions. The right-hand rotation and approximately 2.17:1 engine-to-armature drive ratio apply to the documented An-2 installation and must be confirmed for the offered unit.
Construction, cooling and inspection
Forced airflow cools the generator during operation. Published reference data give a mass of approximately 12.3 kg and four EG-40A brushes. Incoming inspection should include the drive, bearings, collector, brushes, terminals, insulation, cooling passages and nameplate. Bench testing must use an approved procedure and the correct regulator and protection equipment.
Identification and compatibility
Order by the full GSN-3000M Series 2 marking and confirm the aircraft, engine, drive, rotation and electrical channel. A GSN-3000Zh or another 3 kW generator is not a substitute solely because voltage and power match. Related positions can be found in Generators & Starter-Generators; the four related products shown on this page are navigation aids, not interchangeability declarations.
Technical details
- Product Type
- Low-speed brushed aircraft DC generator
- Part Number
- GSN-3000M Series 2
- Original Cyrillic Designation
- ГСН-3000М серия 2
- Series
- 2
- Machine Construction
- Four-pole shunt generator with four interpoles
All specificationsCollapse specifications
- Housing Material
- Electric steel in the documented construction
- Nominal Voltage
- 28.5 V DC
- Nominal Current
- 100 A
- Nominal Power
- 3,000 W
- Operating Speed
- 3,800–6,500 rpm
- Short-Time Current
- 150 A for not more than 2 minutes under the documented conditions
- Short-Time Power
- 4,500 W for not more than 2 minutes under the documented conditions
- Rotation
- Right-hand in the documented An-2 installation
- Cooling
- Forced ram-air cooling
- Brush Grade
- EG-40A in published reference data
- Number of Brushes
- 4
- Mass
- Approximately 12.3 kg
- Documented Engine Context
- ASh-62IR
- Documented Aircraft Context
- Antonov An-2
- Engine-to-Armature Drive Ratio
- Approximately 2.17:1 in the documented An-2 installation
- Voltage Regulator
- R-25AM
- Network Relay
- DMR-400D minimum-differential relay
- Stabilizing Transformer
- TS-9M-2
- Interference Filter
- SF-3000R
- Associated Battery
- 12-A-30 in the documented An-2 system
