GSK-1500M
DC Generator
Description

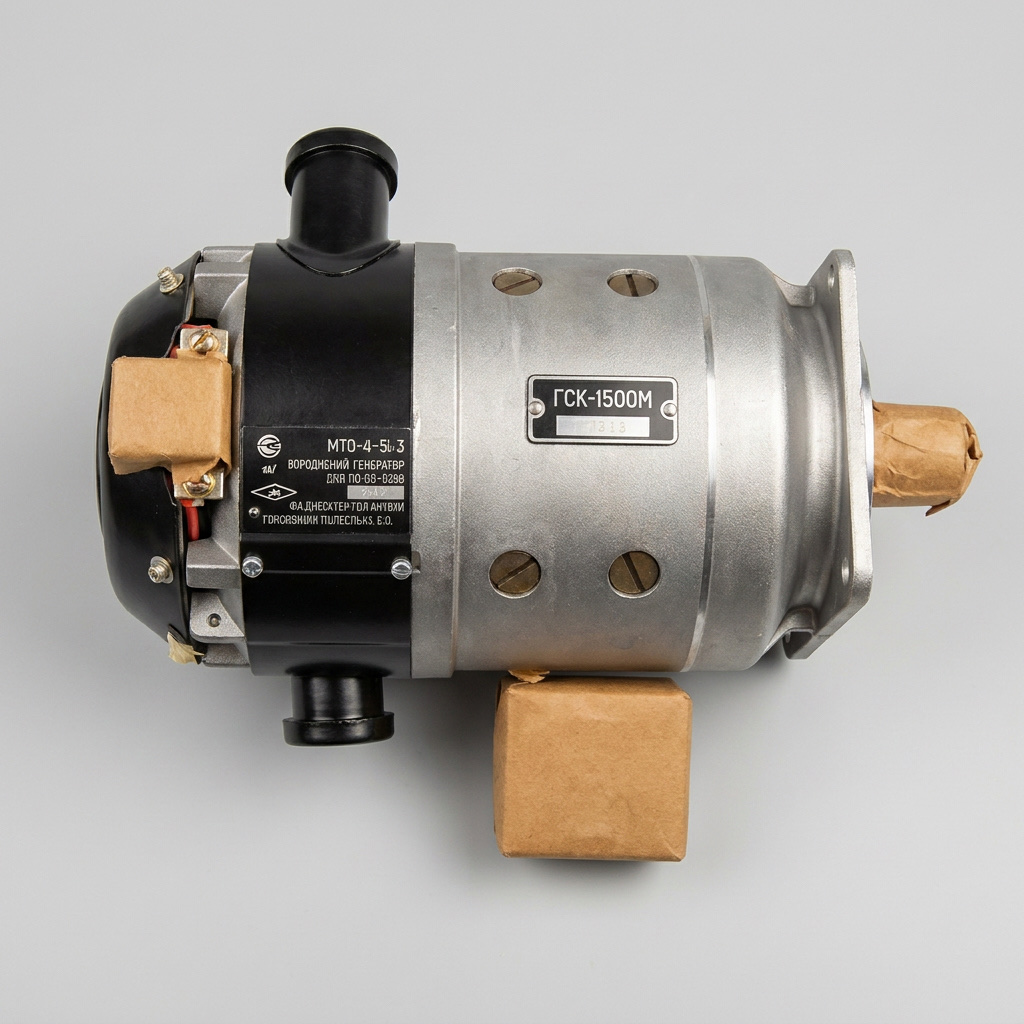

GSK-1500M DC generator
GSK-1500M is a 1.5 kW direct-current aircraft generator intended to supply a 27 V onboard network and charge the aircraft battery. Published operating material identifies the M execution as a left-rotation unit with a flexible drive shaft. This corrects the former catalogue wording “Right Rotation,” which belongs to a different execution and must not be used when ordering GSK-1500M.
Full descriptionCollapse description
Documented AI-14RA and Wilga application
The generator is documented with the AI-14RA radial engine used on the PZL-104 Wilga. In that installation it operates with an RK-1500R voltage regulator and an SF-1500R interference-suppression filter. Other AI-14 installations are reported in service literature, but the offered unit must still be checked against the aircraft parts catalogue, engine drive and nameplate.
Electrical and mechanical ratings
The recorded nominal voltage is 27.5 V. Rated current is 54 A with forced cooling and 36 A without forced airflow, over a 3,800–5,900 rpm operating-speed range. Continuous duty is permitted under the documented cooling conditions. Required cooling airflow is at least 30 g/s, while recorded shaft torque in motor operation is 1.62–2.52 N·m.
Construction, cooling and installation checks
GSK-1500M is a brushed DC machine using four MGS-8 brushes. Published dimensions are 297 × 136 × 130 mm and mass is not more than 12.6 kg. Selection must confirm the flexible drive shaft, left rotation viewed from the drive end, mounting geometry, electrical terminals and cooling-air connection. A visually similar GSK-1500V or GSK-1500Zh is not automatically interchangeable.
Identification and ordering
Use the complete GSK-1500M marking and compare the unit passport, shaft, rotation arrow and connector layout before installation. Bench checks must follow approved aircraft and engine documentation. Related products are listed under Generators & Starter-Generators, including the GSK-1500V Series 2 and GSN-3000M Series 2; catalogue links are for navigation and do not imply interchangeability.
Technical details
- Product Type
- Brushed aircraft DC generator
- Part Number
- GSK-1500M
- Original Cyrillic Designation
- ГСК-1500М
- Rated Power
- 1.5 kW
- Nominal Voltage
- 27.5 V DC
All specificationsCollapse specifications
- Rated Current with Forced Airflow
- 54 A
- Rated Current without Forced Airflow
- 36 A
- Operating Speed
- 3,800–5,900 rpm
- Duty
- Continuous under the documented cooling conditions
- Minimum Cooling-Air Flow
- 30 g/s
- Motor-Mode Shaft Torque
- 1.62–2.52 N·m
- Rotation
- Left-hand when viewed from the drive end for the M execution
- Drive
- Flexible shaft for the documented M execution
- Brush Grade
- MGS-8
- Number of Brushes
- 4
- Dimensions
- 297 × 136 × 130 mm
- Mass
- Not more than 12.6 kg
- Associated Voltage Regulator
- RK-1500R in the documented installation
- Associated Filter
- SF-1500R in the documented installation
- Documented Engine Context
- AI-14RA
- Documented Aircraft Context
- PZL-104 Wilga; confirm exact aircraft modification
- Compatibility Check
- Verify nameplate, rotation, flexible drive, mounting, terminals and cooling connection
