LUN 1205.31-8

LUN 1205.31-8 electromechanical attitude gyro indicator LUN 1205.31-8

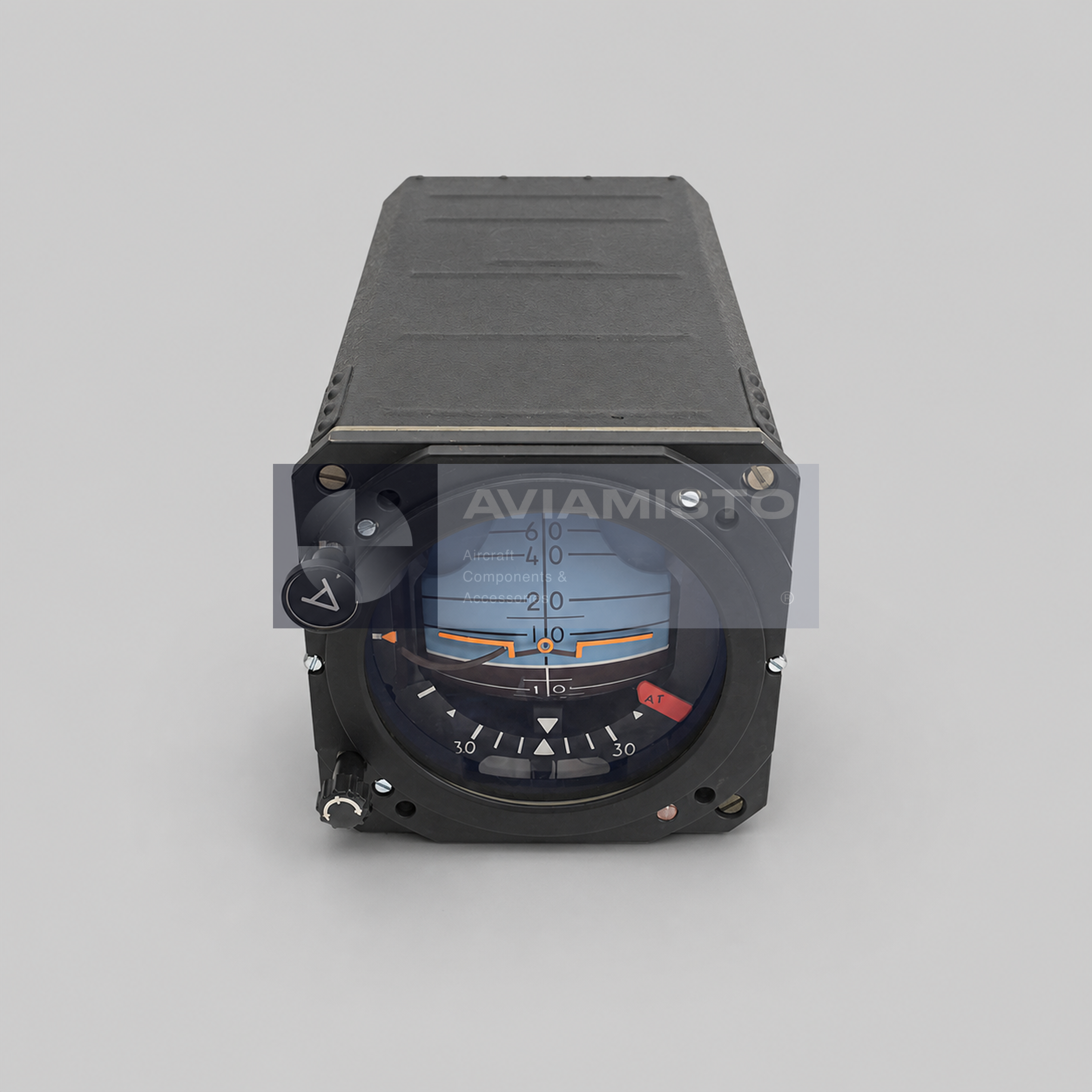

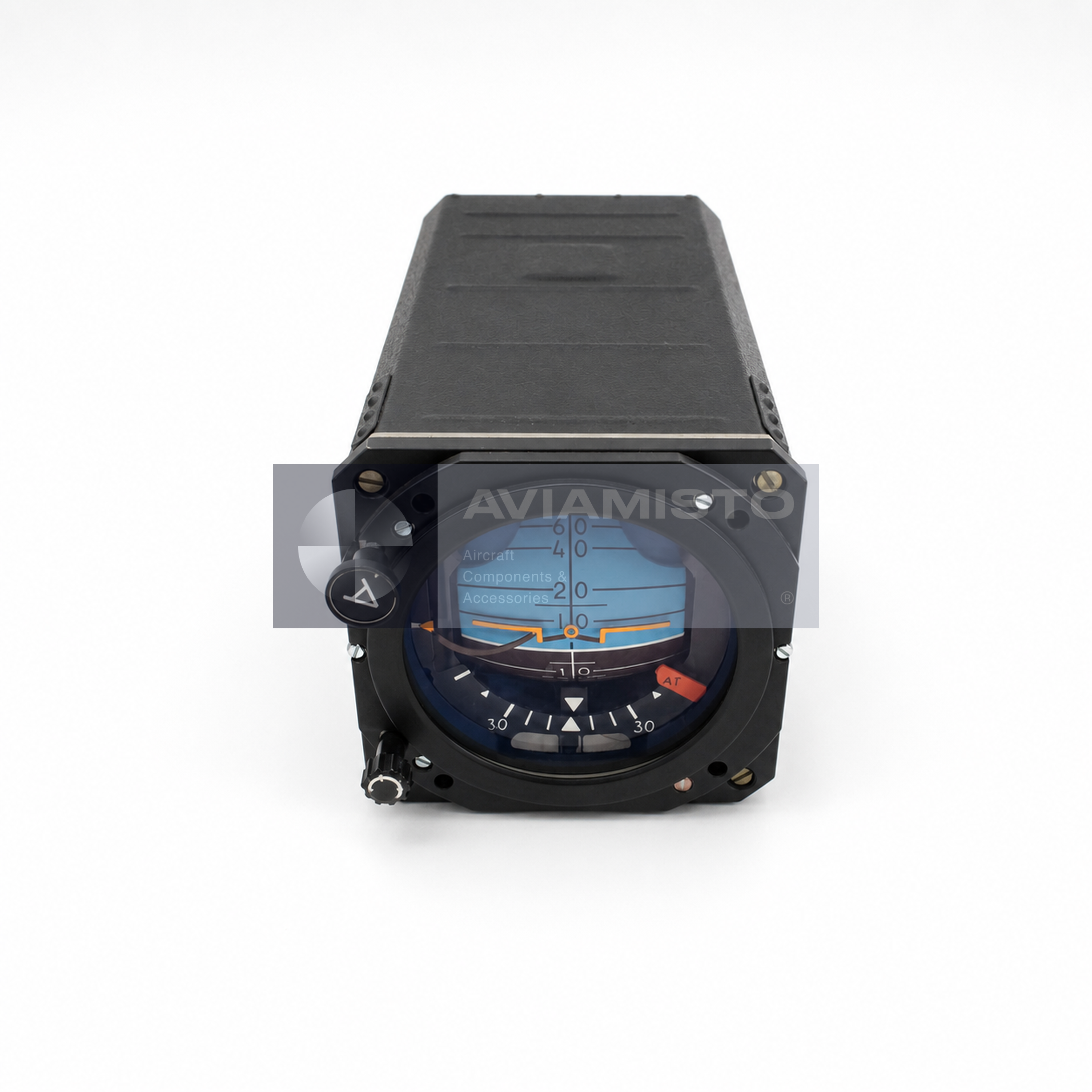

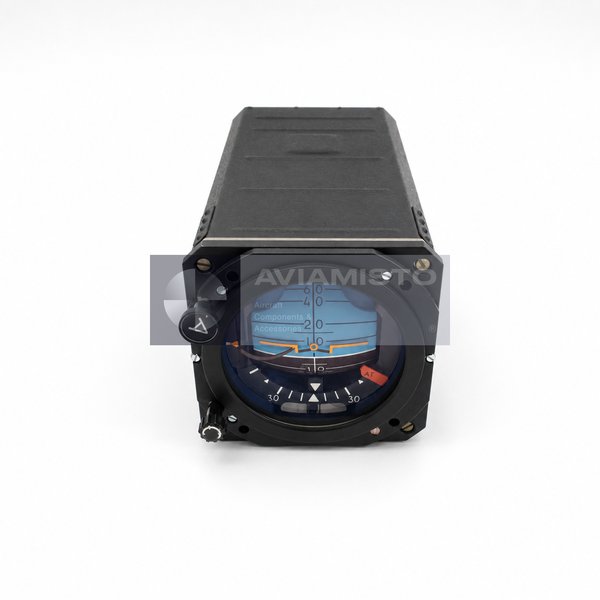

LUN 1205.31-8 is the exact Part Number for this LUN LUN 1205.31-8 electromechanical attitude gyro indicator. The unit provides the flight crew with a visual reference for aircraft attitude in a compatible instrument installation. This card is tied to the photographed configuration and complete suffix, rather than serving as a generic listing for every LUN 1205.31-8 version or a visually similar member of the same family.

The source record uses the exact designation LUN 1205.31-8 and offers the unit in serviceable condition with EASA Form 1. No serial number is specified in the source inventory. Exact supply, current, accuracy, environmental, dimensional and mass values were not confirmed in reliable open documentation for this precise suffix. The identification information is important because voltage, lighting, software, hardware options, certification and connector configuration can differ across related versions. The complete Part Number and the approved technical record must be checked together before purchase or installation.

Operational role and system function

The source listing identifies LUN 1205.31-8 as an attitude gyro and states that it is mostly installed on the L-410 UVP-E. The instrument presents aircraft attitude on its front display, but its exact power, wiring, warning and system relationships depend on the approved aircraft installation and must be checked against the applicable L-410 documentation. In service, the unit depends on the integrity of its associated sensors, antennas, transceivers, control panels, displays, data buses, wiring, power and grounding. A reported fault at the unit can therefore originate elsewhere in the connected chain, and troubleshooting should follow the approved aircraft and equipment procedures.

The practical role of LUN 1205.31-8 is to perform its defined function while exchanging required signals with compatible equipment. It cannot replace missing system components and should not be evaluated as an isolated consumer device. Controls or connectors visible in photographs do not prove that every possible function is enabled in a particular aircraft installation.

Installation and connected equipment

Installation requires the approved instrument-panel mounting, aircraft power and protection, connector and wiring arrangement, grounding and any associated warning or monitoring circuits defined by the aircraft documentation. Visual similarity to another LUN attitude indicator does not establish interchangeability, and the complete suffix must be verified. A rack, backplate, connector kit, antenna, wiring, cooling hardware or other accessories are not assumed to be included unless they are expressly listed in the quotation. Similar panel dimensions or family names do not prove electrical or approval compatibility.

Before installation, technicians should compare LUN 1205.31-8 with the removed unit, aircraft equipment list, wiring diagrams, installation manual and modification records. Panel space, mounting depth, connector keying, pin allocation, circuit protection, lighting, ventilation, data format and configuration settings all require confirmation. Any substitution must be supported by approved data.

Configuration checks for LUN 1205.31-8

The suffix in LUN 1205.31-8 is part of the product identity. Software level, modification status, database requirements, embedded options, voltage and certification can affect compatibility even when two units look alike. These checks are especially important in aircraft that have accumulated supplemental approvals, avionics upgrades or wiring changes over time.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. Functional testing should use the approved bench procedure for the exact model and suffix. Installation and return to service remain the responsibility of appropriately authorized personnel.

Serviceable condition, ordering and support

This LUN 1205.31-8 LUN 1205.31-8 is offered in Serviceable condition from partner stock with a six-month warranty. Partner stock should be reconfirmed at quotation because allocation can change. The available serial number, current test status and release documentation for the specific unit are confirmed before order acceptance.

For an inquiry, specify Part Number LUN 1205.31-8, model LUN 1205.31-8, required quantity, destination and documentation requirements. Including the aircraft type and removed-unit Part Number helps prevent configuration errors. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products shown there are related catalog positions, not interchangeable replacements unless approved technical data explicitly says so.

Product Type: Electromechanical attitude gyro indicator

Designation: LUN 1205.31-8

Manufacturer: LUN

Model: LUN 1205.31-8

Function: Visual aircraft-attitude indication in a compatible flight-instrument installation

Application Reference: Mostly installed on L-410 UVP-E according to the source listing

Installation Area: Cockpit instrument panel in an approved aircraft configuration

Serial Number: Not specified in the source inventory; confirm the serial allocated for supply

Unconfirmed Specifications: Exact voltage, current, accuracy, operating temperature, dimensions, weight and connector pinout were not confirmed in reliable open documentation for this exact suffix

Condition: Serviceable

Warranty: 6 Months

Installation Note: Confirm the exact Part Number, suffix, software or modification status, rack, connectors, wiring and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
