LUN 1106-8

Operational role and system function

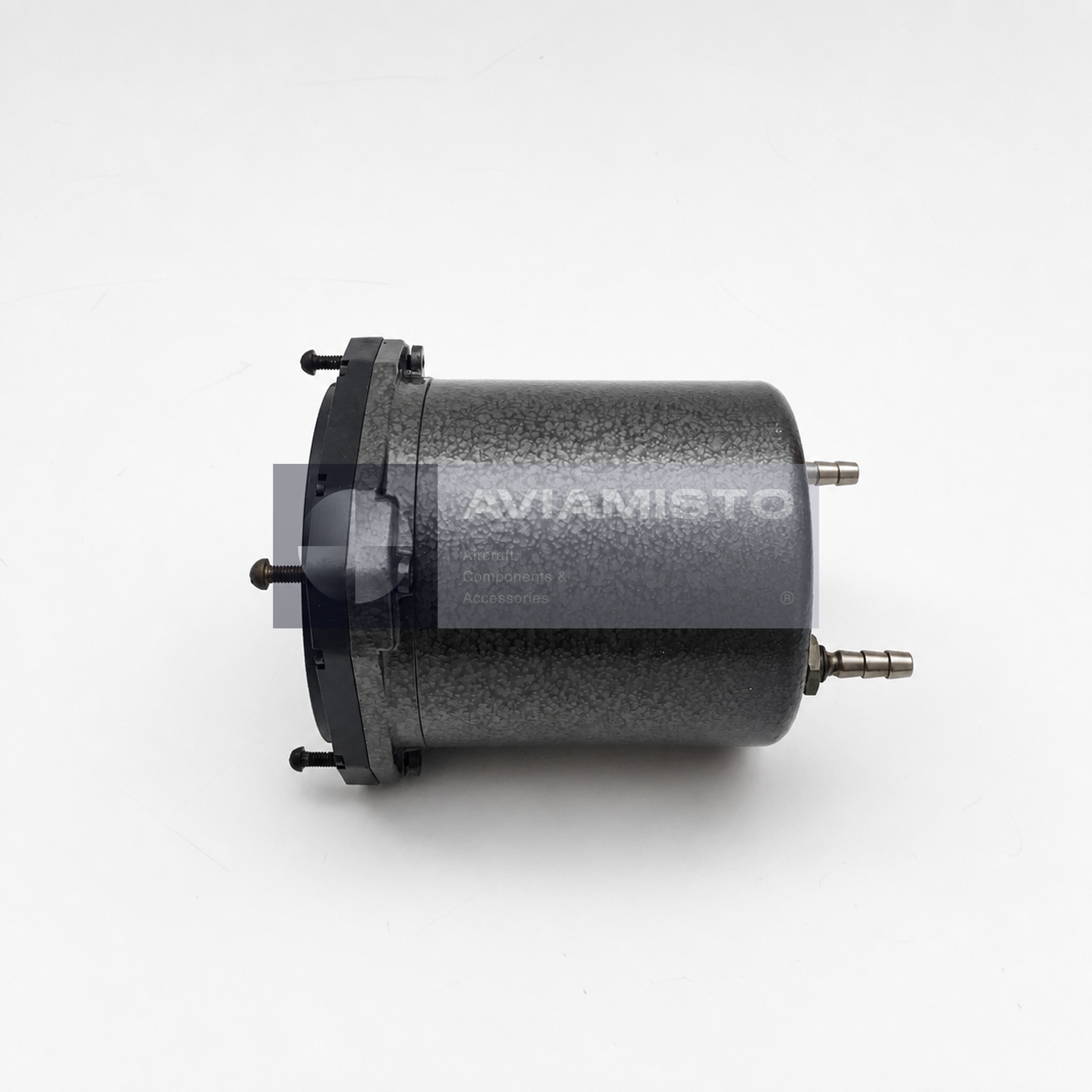

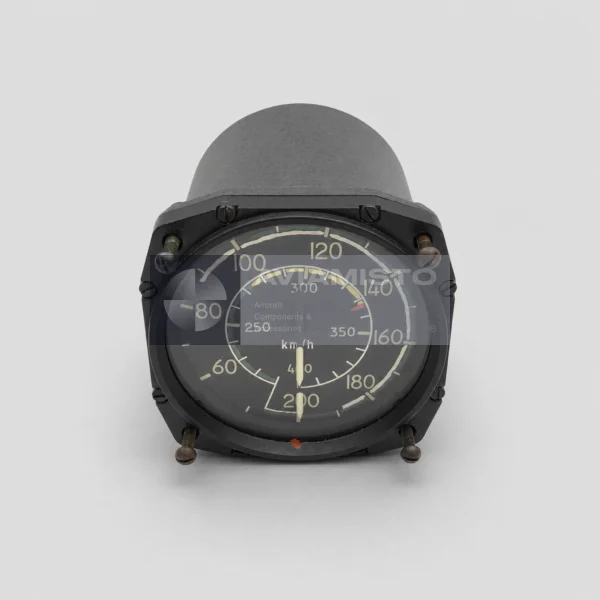

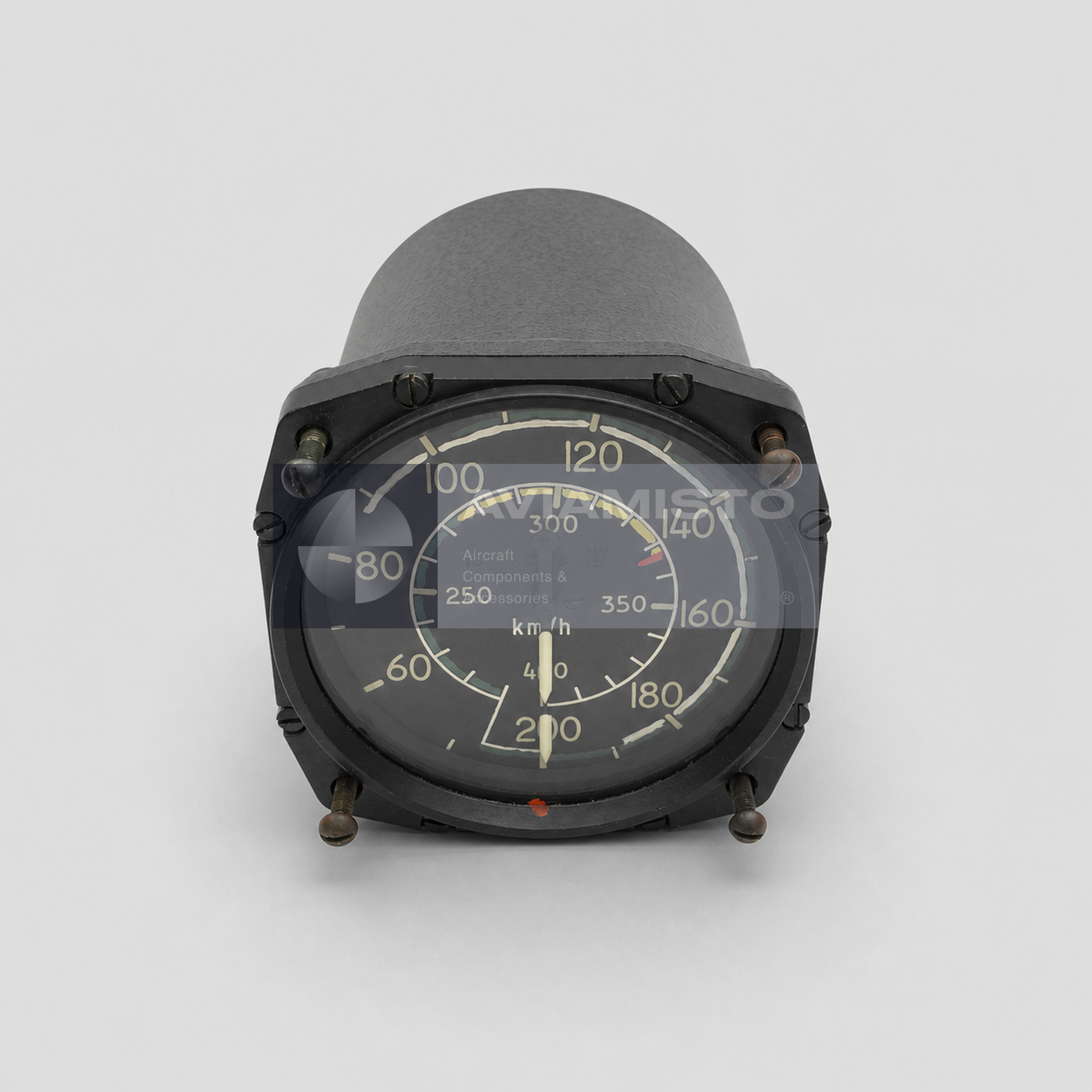

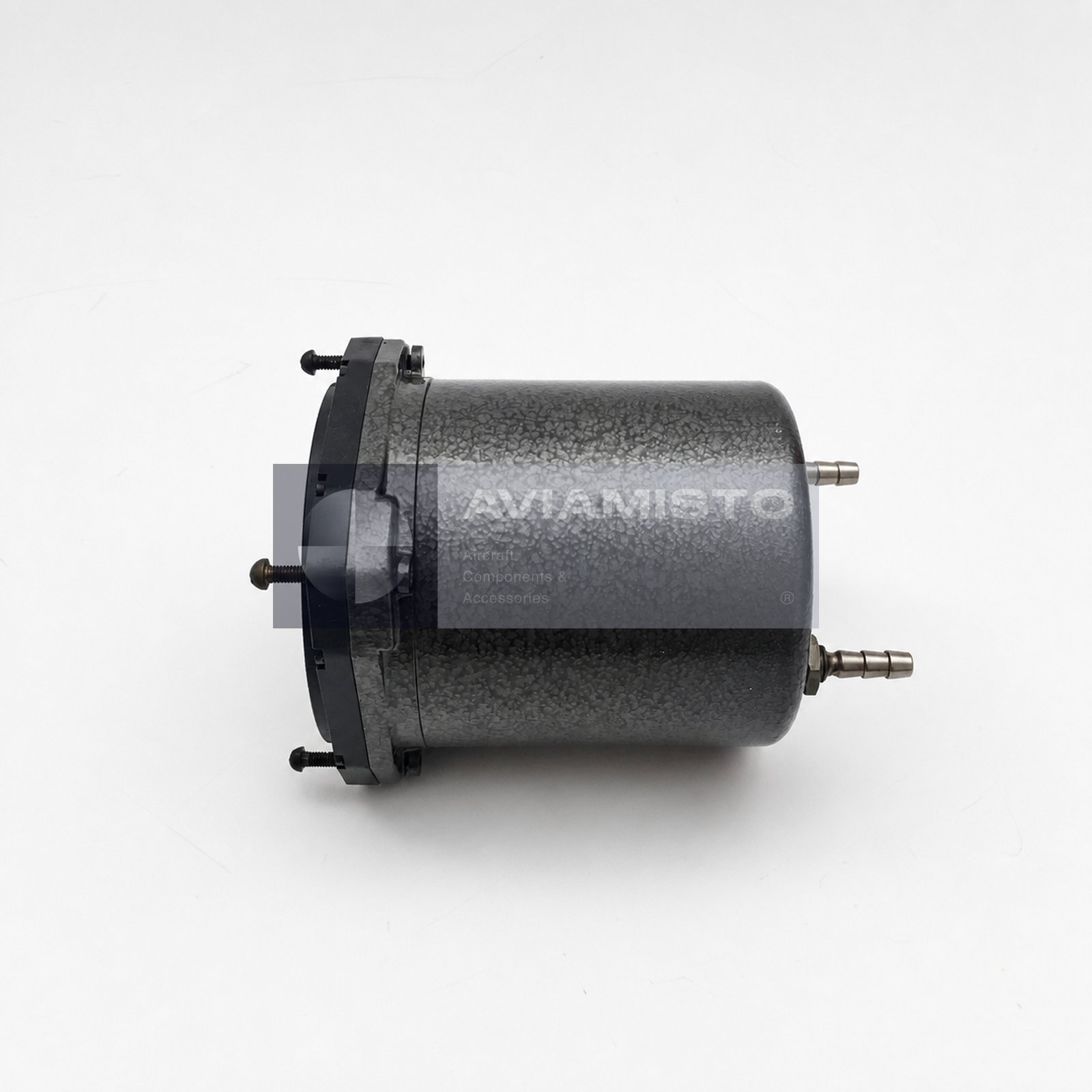

The source listing identifies LUN 1106-8 as a speedmeter with a 0–400 km/h range. It is a cockpit indication instrument whose accuracy and operation depend on the approved pressure connections, instrument installation and aircraft pitot-static system. The source does not identify a specific aircraft type for this exact suffix. In service, the unit depends on the integrity of its associated sensors, antennas, transceivers, control panels, displays, data buses, wiring, power and grounding. A reported fault at the unit can therefore originate elsewhere in the connected chain, and troubleshooting should follow the approved aircraft and equipment procedures.

The practical role of LUN 1106-8 is to perform its defined function while exchanging required signals with compatible equipment. It cannot replace missing system components and should not be evaluated as an isolated consumer device. Controls or connectors visible in photographs do not prove that every possible function is enabled in a particular aircraft installation.

Installation and connected equipment

The instrument must be connected and tested according to the aircraft and manufacturer documentation, including the applicable pressure line, panel mounting and any lighting or electrical connections present in the exact configuration. The pitot-static system and all pressure connections must be leak-checked under approved maintenance procedures. A rack, backplate, connector kit, antenna, wiring, cooling hardware or other accessories are not assumed to be included unless they are expressly listed in the quotation. Similar panel dimensions or family names do not prove electrical or approval compatibility.

Before installation, technicians should compare LUN 1106-8 with the removed unit, aircraft equipment list, wiring diagrams, installation manual and modification records. Panel space, mounting depth, connector keying, pin allocation, circuit protection, lighting, ventilation, data format and configuration settings all require confirmation. Any substitution must be supported by approved data.

Configuration checks for LUN 1106-8

The suffix in LUN 1106-8 is part of the product identity. Software level, modification status, database requirements, embedded options, voltage and certification can affect compatibility even when two units look alike. These checks are especially important in aircraft that have accumulated supplemental approvals, avionics upgrades or wiring changes over time.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. Functional testing should use the approved bench procedure for the exact model and suffix. Installation and return to service remain the responsibility of appropriately authorized personnel.

Serviceable condition, ordering and support

This LUN 1106-8 LUN 1106-8 is offered in Serviceable condition from partner stock with a six-month warranty. Partner stock should be reconfirmed at quotation because allocation can change. The available serial number, current test status and release documentation for the specific unit are confirmed before order acceptance.

For an inquiry, specify Part Number LUN 1106-8, model LUN 1106-8, required quantity, destination and documentation requirements. Including the aircraft type and removed-unit Part Number helps prevent configuration errors. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products shown there are related catalog positions, not interchangeable replacements unless approved technical data explicitly says so.
