89000002-120

Communication, navigation and glideslope functions

The KX 200 supports communication and navigation frequency selection from the front panel. Separate COM and NAV controls allow the crew to tune and manage active or standby information, while dedicated recent-frequency, monitor and identification functions support routine cockpit operation. Published product information also identifies glideslope capability in the complete configuration. Available presentation and audio behavior depend on the connected antennas, indicator or integrated display, and aircraft audio system.

The high-resolution color LCD improves readability compared with older segmented displays, and the product catalog identifies storage for 50 channel presets. The radio is intended to be pilot-friendly, but operating procedures must still follow the aircraft flight manual supplement and current KX 200 instructions. Frequency availability, channel spacing and regional operating requirements should be verified for the aircraft and its intended area of operation.

Voltage adapters and legacy installation replacement

The KX 200 radio itself is identified as a 28-volt unit in current service information. BendixKing offers dedicated retrofit adapters for 28-volt and 14-volt aircraft installations under separate Part Numbers. Published product information describes the KX 200 as a direct replacement option for compatible KX 155 and KX 165 installations and for other radios using the same tray and connector concept. That statement does not remove the need for an approved installation review.

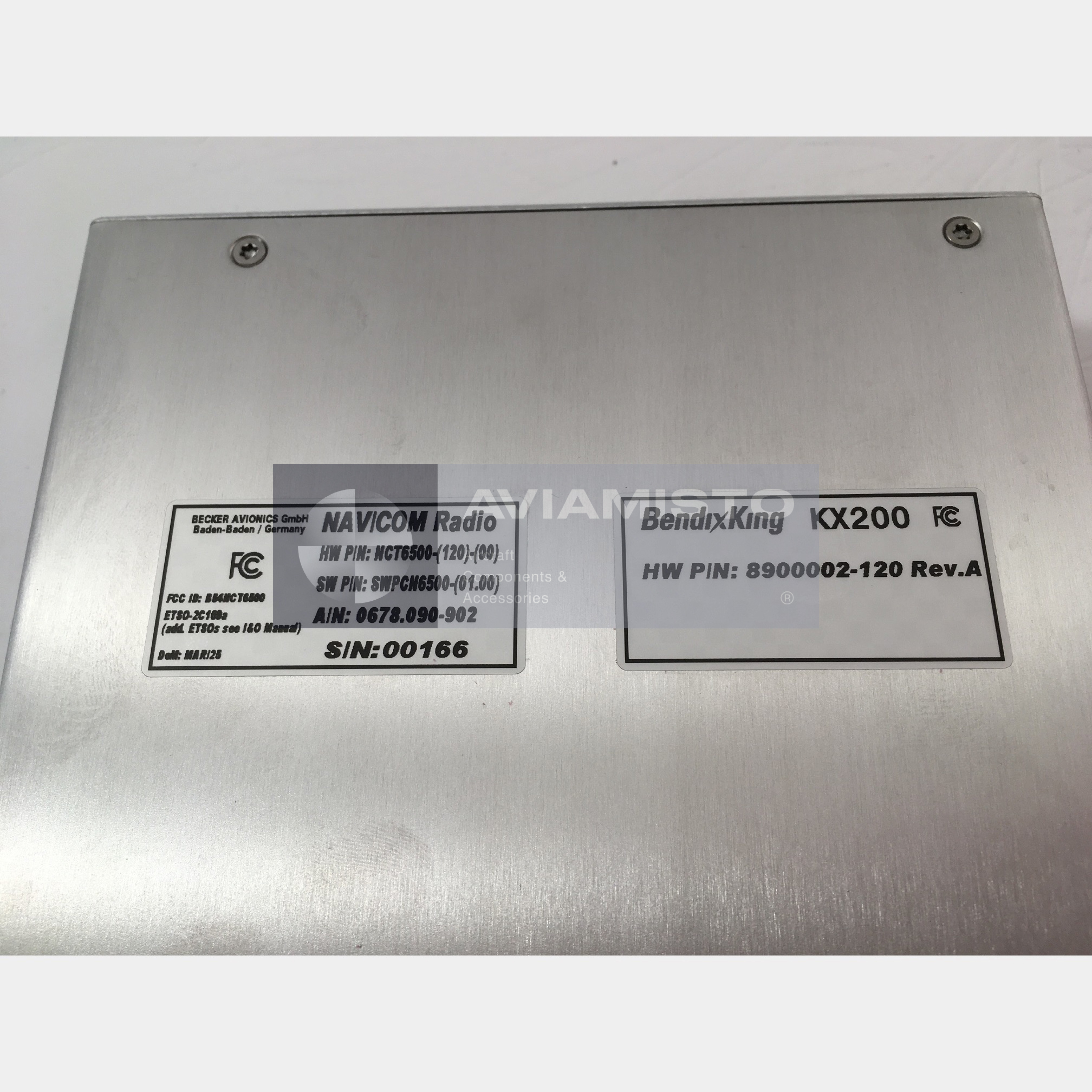

Before ordering, confirm whether the aircraft requires the 14-volt or 28-volt adapter, whether the existing tray and connector are eligible, and whether glideslope and external indication wiring are present. The photographed label shows KX 200 and HW P/N 89000002-120 Rev. A. A second Becker avionics label identifies the underlying NAV/COM radio hardware and software references. These labels should remain with the unit and be compared with release documents.

Installation, interfaces and inspection

The authentic rear photograph shows separate GS, NAV and COM antenna connections together with multi-pin COM and NAV interfaces and grounding provisions. Each connector must be inspected for damage, contamination and proper engagement. Coaxial cable condition, antenna matching, audio wiring and navigation-indicator interfaces can materially affect performance, so troubleshooting should not stop at the radio faceplate.

Receiving inspection should verify Part Number 89000002-120, model KX 200, revision, serial number, supplied adapter, tray or installation kit, documentation and condition. Bench testing should confirm power-up, display integrity, transmit and receive performance, navigation receiver sensitivity, glideslope operation, control functions, preset memory and interface outputs under approved procedures. Any aircraft installation requires the current BendixKing manual and authorized return-to-service approval.

New supply and ordering information

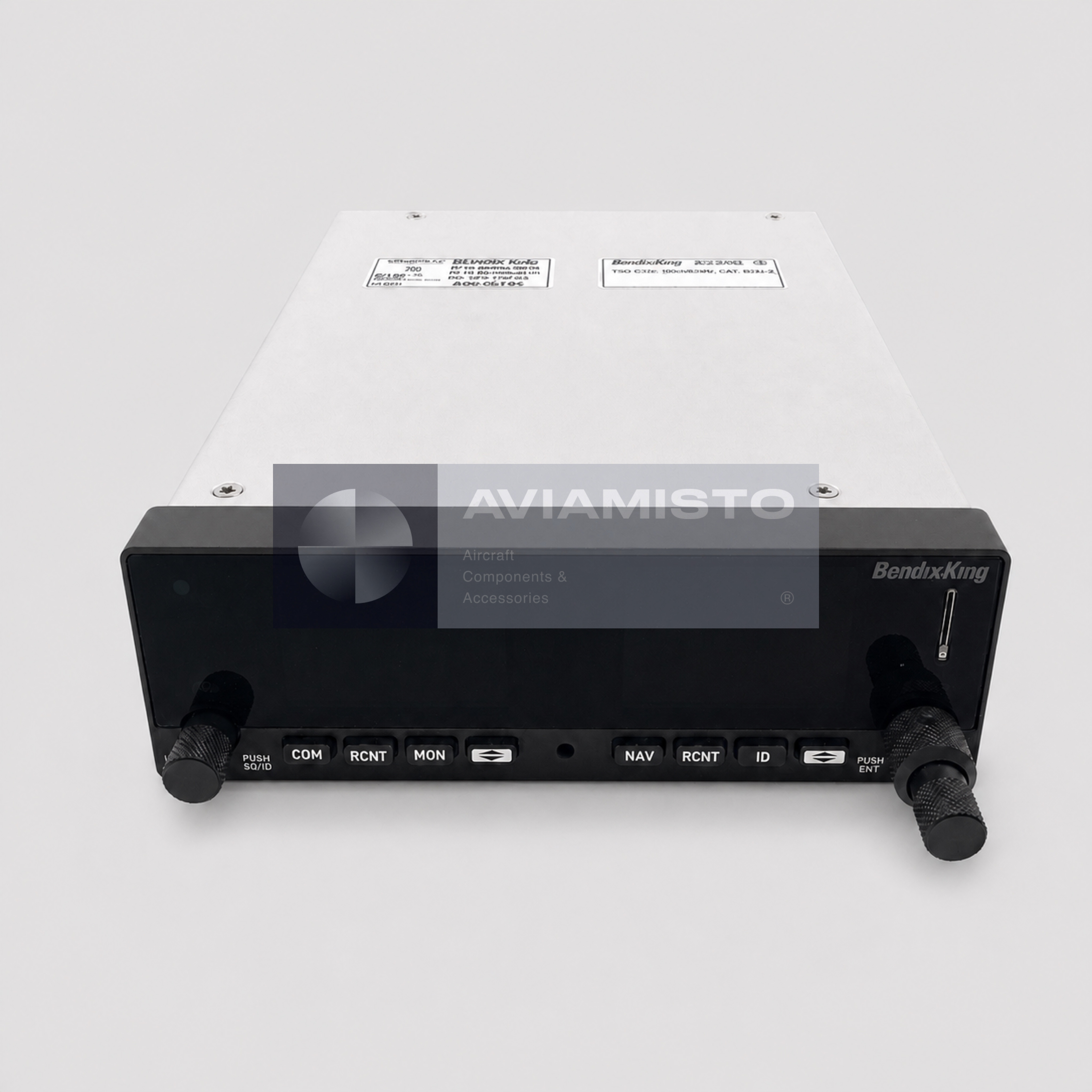

This 89000002-120 KX 200 is offered in New / Unused condition from partner stock with a six-month warranty. The studio image presents the clean front panel without the reseller sticker, while the gallery image preserves the authentic exact hardware label, serial number, revision and manufacturing markings. The photographed serial number identifies the reference unit and should be confirmed if a serial-specific purchase is required.

For an inquiry, specify Part Number 89000002-120, model KX 200, aircraft type, existing radio model, aircraft bus voltage, required adapter, glideslope requirement, installation-kit needs, documentation and quantity. Related radios, controls and navigation equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Retrofit compatibility must be verified from approved aircraft and BendixKing installation data.
