Operational role and system function

The KFS 586A is the pilot interface for the associated ADF receiver. The display, channel selector, mode control and volume control allow the crew to manage the connected receiver, but the panel does not receive or process the antenna signal independently of the KDF 806 and the rest of the approved ADF installation. In service, the unit depends on the integrity of its associated sensors, antennas, transceivers, control panels, displays, data buses, wiring, power and grounding. A reported fault at the unit can therefore originate elsewhere in the connected chain, and troubleshooting should follow the approved aircraft and equipment procedures.

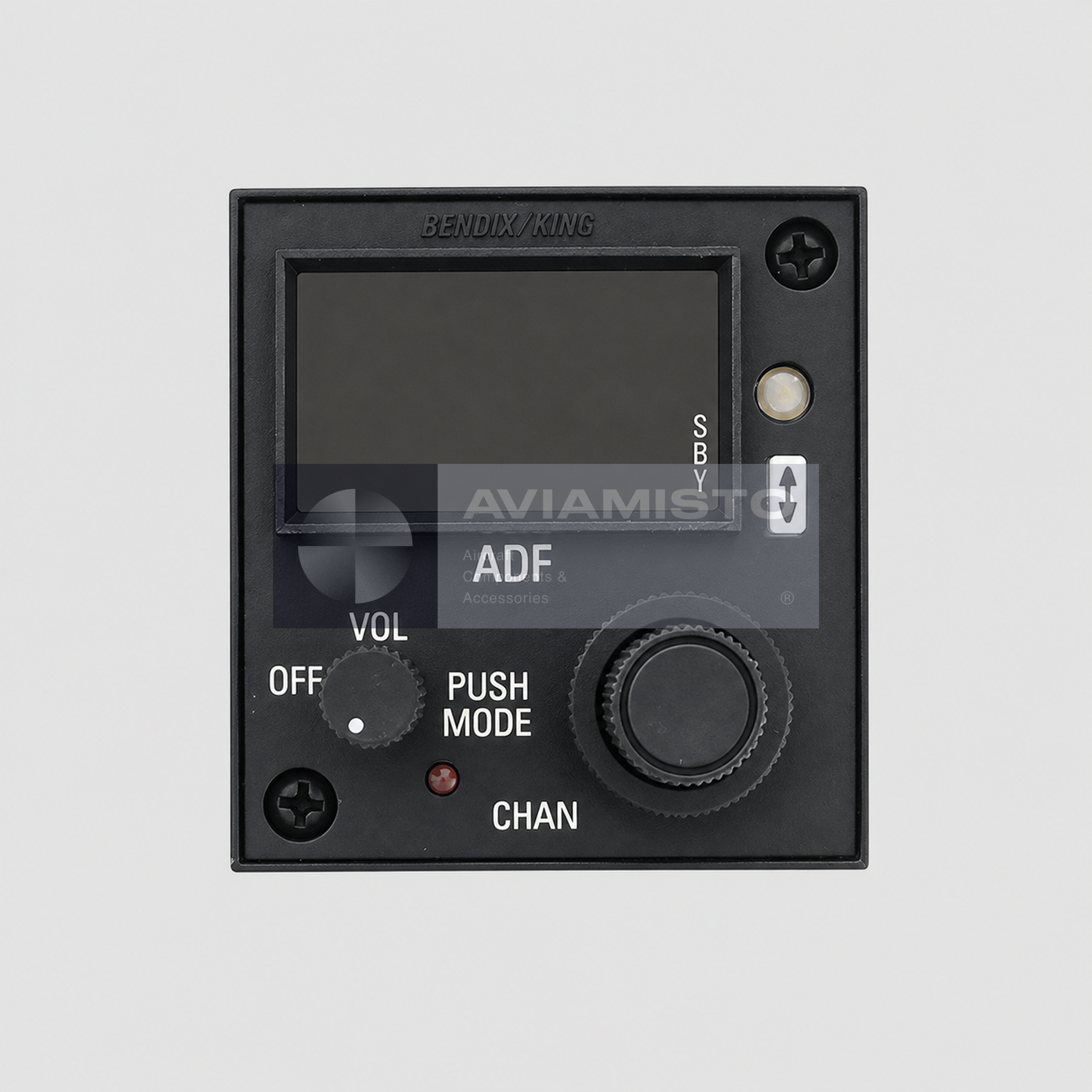

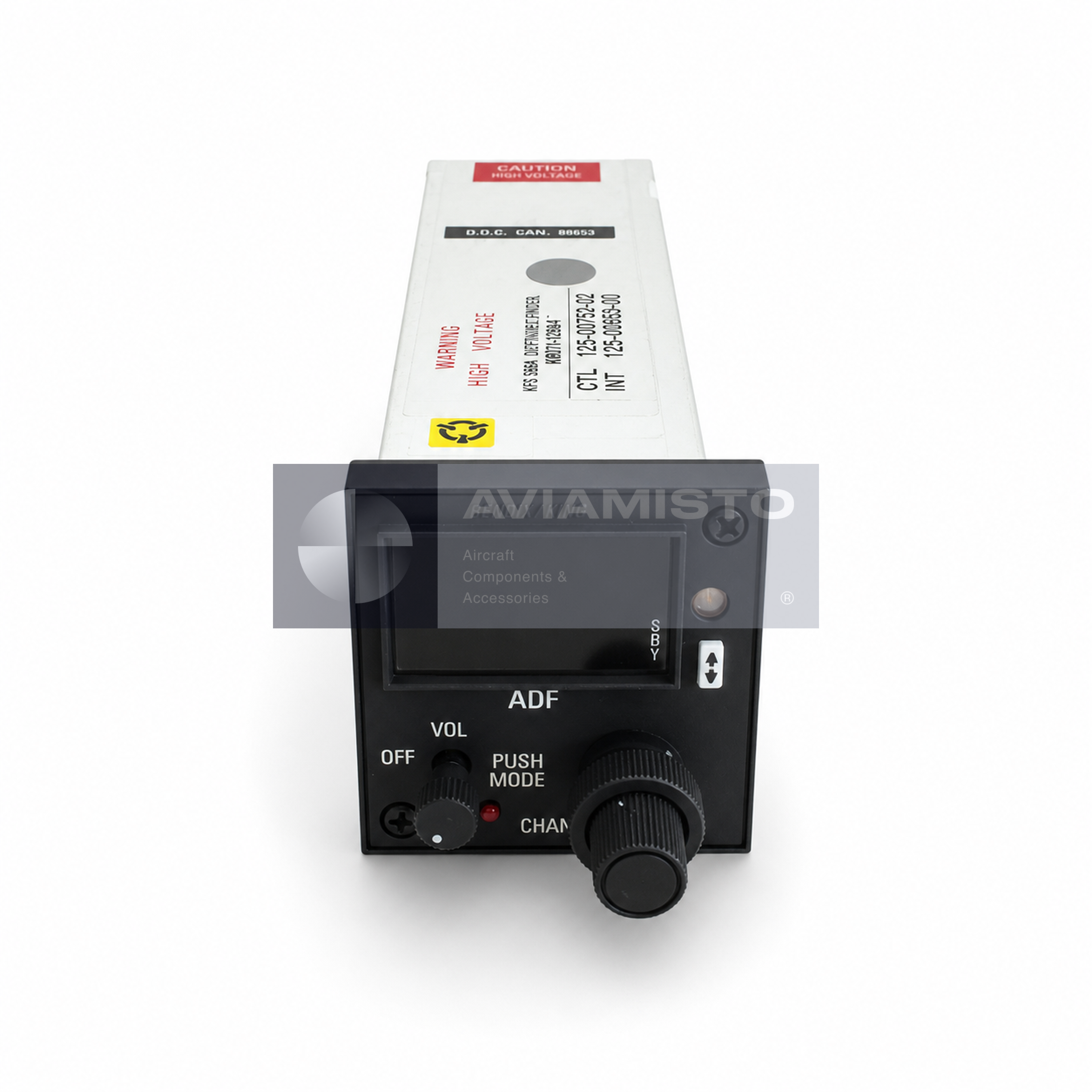

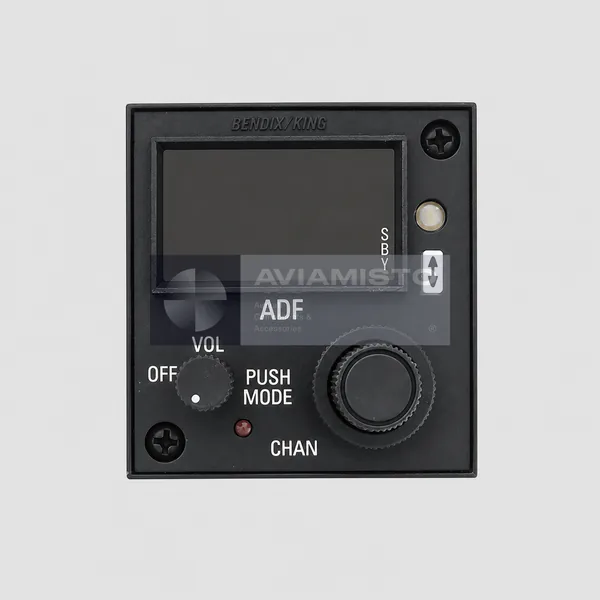

The practical role of KFS 586A is to perform its defined function while exchanging required signals with compatible equipment. It cannot replace missing system components and should not be evaluated as an isolated consumer device. Controls or connectors visible in photographs do not prove that every possible function is enabled in a particular aircraft installation.

Installation and connected equipment

A complete ADF system requires the compatible KDF 806 receiver, approved antenna system, aircraft power and lighting, audio connections, indicator or display interfaces where applicable, and interconnecting wiring. The KFS 586A should only be installed with the correct rack, connector and pin assignment defined by approved BendixKing data. A rack, backplate, connector kit, antenna, wiring, cooling hardware or other accessories are not assumed to be included unless they are expressly listed in the quotation. Similar panel dimensions or family names do not prove electrical or approval compatibility.

Before installation, technicians should compare 071-1284-04 with the removed unit, aircraft equipment list, wiring diagrams, installation manual and modification records. Panel space, mounting depth, connector keying, pin allocation, circuit protection, lighting, ventilation, data format and configuration settings all require confirmation. Any substitution must be supported by approved data.

Configuration checks for 071-1284-04

The suffix in 071-1284-04 is part of the product identity. Software level, modification status, database requirements, embedded options, voltage and certification can affect compatibility even when two units look alike. These checks are especially important in aircraft that have accumulated supplemental approvals, avionics upgrades or wiring changes over time.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. Functional testing should use the approved bench procedure for the exact model and suffix. Installation and return to service remain the responsibility of appropriately authorized personnel.

New condition, ordering and support

This 071-1284-04 KFS 586A is offered in New condition from partner stock with a six-month warranty. Partner stock should be reconfirmed at quotation because allocation can change. The available serial number, current test status and release documentation for the specific unit are confirmed before order acceptance.

For an inquiry, specify Part Number 071-1284-04, model KFS 586A, required quantity, destination and documentation requirements. Including the aircraft type and removed-unit Part Number helps prevent configuration errors. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Products shown there are related catalog positions, not interchangeable replacements unless approved technical data explicitly says so.
