071-1227-01 is the exact Part Number of this BendixKing KDA 689 KDME/ARINC serial adapter. The unit is intended to interface compatible distance-measuring equipment data with an ARINC serial installation. It is a remote avionics adapter in a ribbed metal housing and does not contain a cockpit display, frequency selector or complete DME transmitter-receiver.

The original plate identifies the model as KDA 689 and describes it as a KDME/ARINC serial adapter. The -01 suffix must be retained throughout ordering and receiving inspection because KDA 689 versions 071-1227-00 and 071-1227-01 are separately identified configurations. A matching model name alone is not enough to establish interchangeability or approved installation eligibility.

DME and ARINC interface function

In a compatible installation, distance information originates in the approved DME equipment and is routed through the KDA 689 interface to the aircraft system that accepts the defined ARINC serial data. The adapter provides the electrical and data-format bridge required by that installation. It does not independently measure slant range and cannot replace the DME antenna, interrogator-transceiver, indicator or EFIS display.

A practical signal path is compatible KDME source → KDA 689 serial adapter → approved ARINC data consumer. The exact upstream DME unit, downstream display or processor, bus characteristics and connector pin assignments must be taken from the aircraft wiring diagram and the applicable KDA 689 technical data. Open sources reviewed for this card did not confirm a universal list of compatible receivers or displays. During troubleshooting, technicians should verify source data, bus continuity and the receiving equipment separately before condemning or replacing the adapter.

Electrical data from the identification plate

The authentic identification plate on the photographed unit states a nominal 27.5 VDC supply and a current value of 0.45 A. It also gives a weight of 1.4 lb, approximately 0.64 kg, and identifies TSO C66b and RTCA/DO-160B references. These values are taken directly from the exact 071-1227-01 unit rather than transferred from the similar -00 configuration.

Power wiring, grounding, shielding and circuit protection must follow the approved installation diagram. The 27.5 VDC value describes the adapter supply and should not be confused with lighting voltage or DME transmitter power. Bench testing should include supply-current checks, input and output interface verification, serial-data integrity and inspection for connector damage or evidence of unauthorised modifications.

Remote installation and configuration control

The KDA 689 is designed for remote mounting in the aircraft avionics installation. Its metal enclosure provides mounting flanges and a compact package for placement away from the crew controls. Exact dimensions, orientation, cooling requirements, mounting-hole locations and connector pin assignments were not reliably confirmed in the reviewed open sources and must be taken from the current installation drawing.

Before replacement, compare the full 071-1227-01 designation, serial number, modification marks, electrical rating, connector arrangement and mounting geometry with the installed equipment and purchase order. Do not assume that KDA 688, KDA 692, KDA 697, KDA 699 or another similarly named adapter performs the same conversion. Related adapters serve different equipment paths and are not interchangeable by family resemblance.

Serviceable supply and ordering information

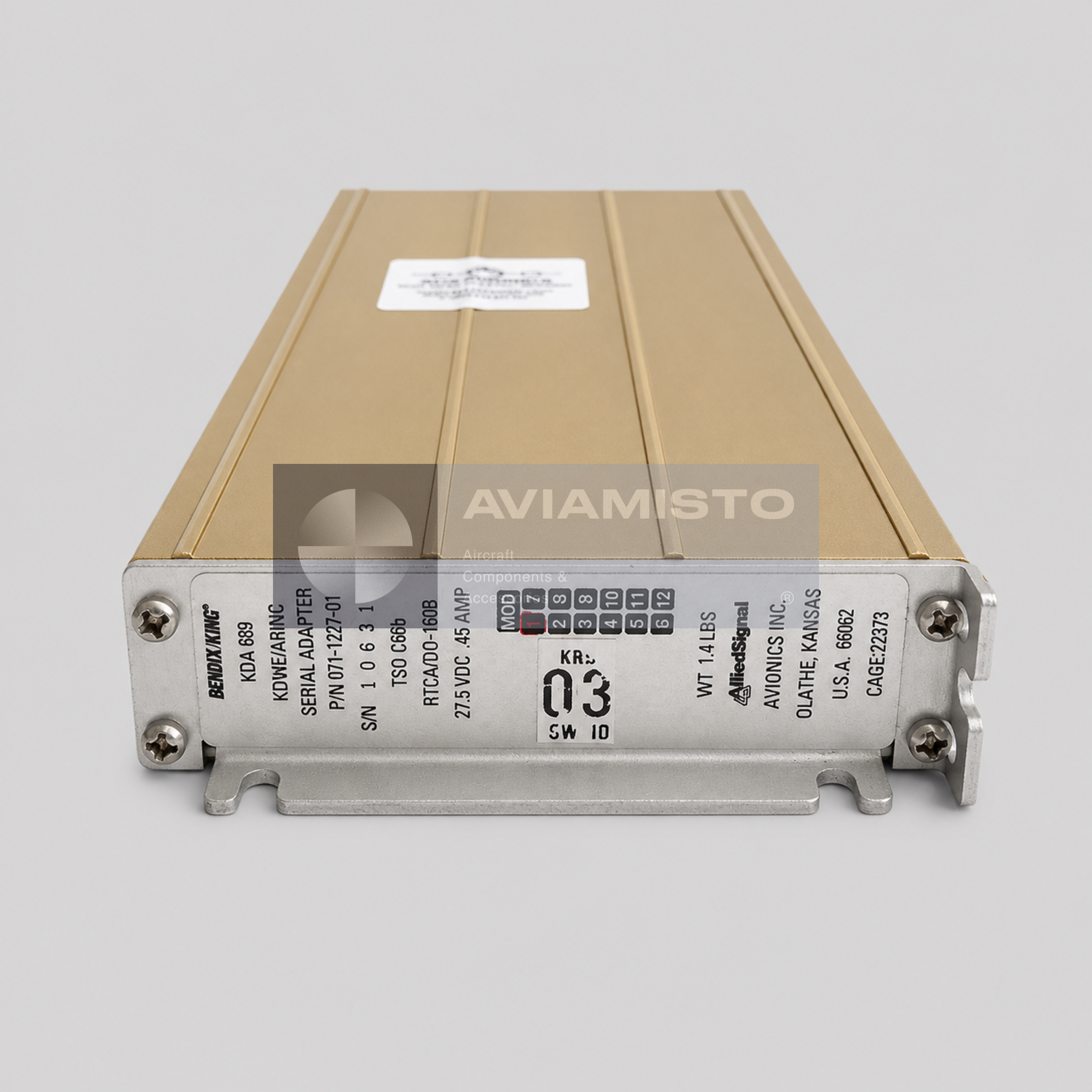

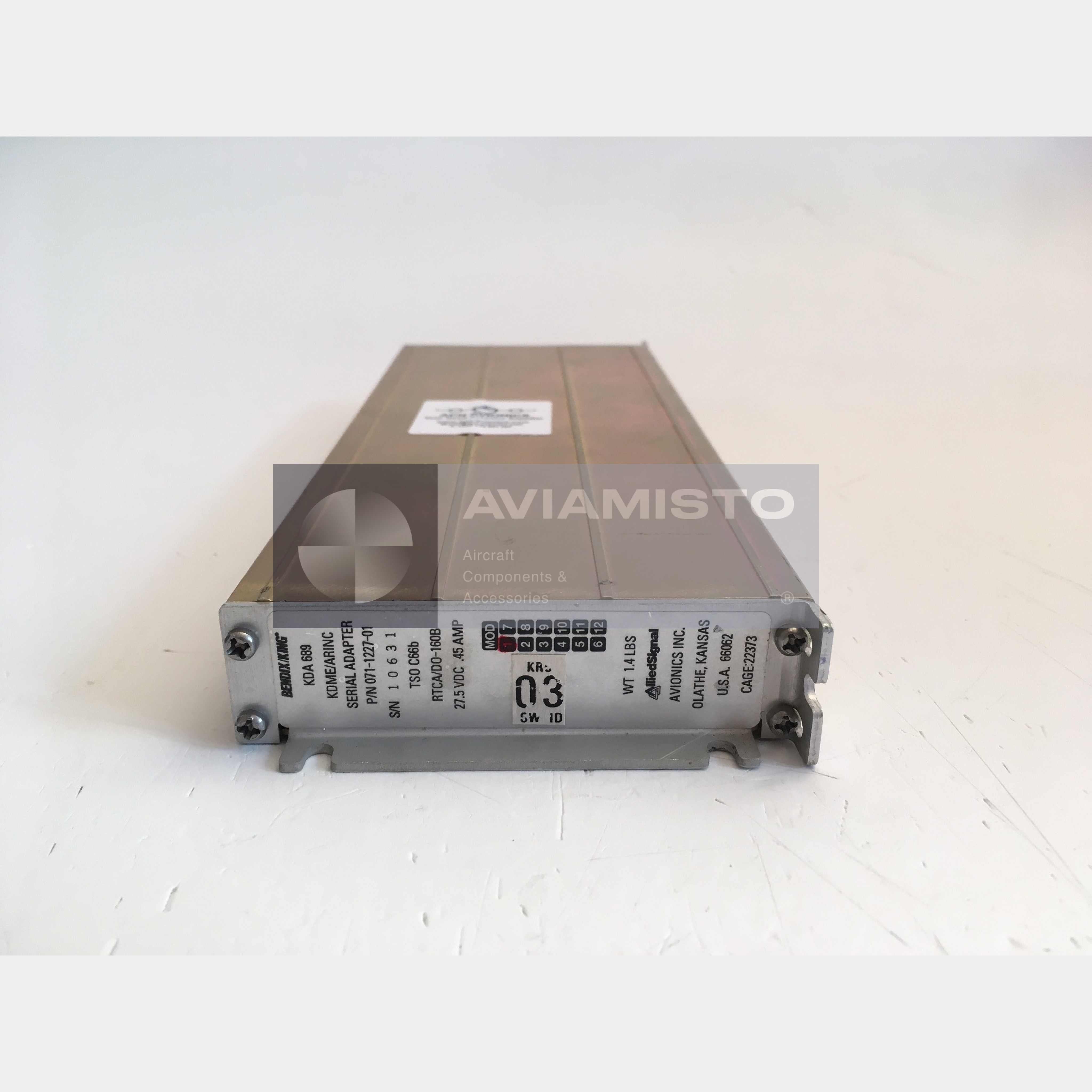

This 071-1227-01 KDA 689 is offered in Serviceable condition from partner stock with a six-month warranty. The main image shows the exact identification end of the adapter, and the authentic gallery image preserves the original plate, serial number, certification references and mounting features. The quoted supply will identify the allocated serial number and available release documentation.

For an inquiry, specify Part Number 071-1227-01, model KDA 689, aircraft type, installed DME and ARINC equipment, connector and modification requirements, required documentation and quantity. Related DME, navigation and interface equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. The mating connector, wiring, mounting hardware and associated avionics are included only when expressly stated in the quotation.

Product Type: KDME / ARINC serial adapter

Manufacturer: BendixKing / Honeywell

Model: KDA 689

Designation: 071-1227-01

Alternative Designations: KDA689; KDA-689; 071122701; Bendix/King KDA 689

Main Function: Interface compatible DME data with an approved ARINC serial installation

Installation Type: Remote-mounted avionics adapter

Typical Signal Chain: Compatible KDME source → KDA 689 → approved ARINC data consumer

DC Power Supply: 27.5 VDC according to the exact identification plate

Current Consumption: 0.45 A according to the exact identification plate

Weight: 1.4 lb / approximately 0.64 kg according to the exact identification plate

Qualification References: TSO C66b and RTCA/DO-160B according to the exact identification plate

Housing: Ribbed metal remote-mount enclosure with mounting flanges

Associated Equipment: Compatible DME source, ARINC data consumer, aircraft wiring and mounting hardware

Exact Dimensions: Refer to the applicable KDA 689 installation drawing

Connector and Pin Assignment: Verify through approved KDA 689 and aircraft wiring data

Aircraft Applicability: Confirm from the aircraft equipment list and approved installation data

Interchangeability: The -00 and -01 configurations must not be treated as interchangeable without approved data

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Mating connector, mounting hardware and associated avionics only when expressly included

Technical Documentation: Applicable KDA 689 installation, maintenance and aircraft wiring data
