BendixKing CP 466A radar panel 071-01438-0702

071-01438-0702 is the exact Part Number of this BendixKing CP 466A EFIS and weather-radar control panel. It provides the crew with dedicated controls for radar operating state, weather presentation, ground mapping, gain, antenna tilt, stabilisation and supported vertical-profile or track functions. The compact panel is intended to work with compatible electronic flight instrument and radar equipment rather than as a stand-alone radar sensor.

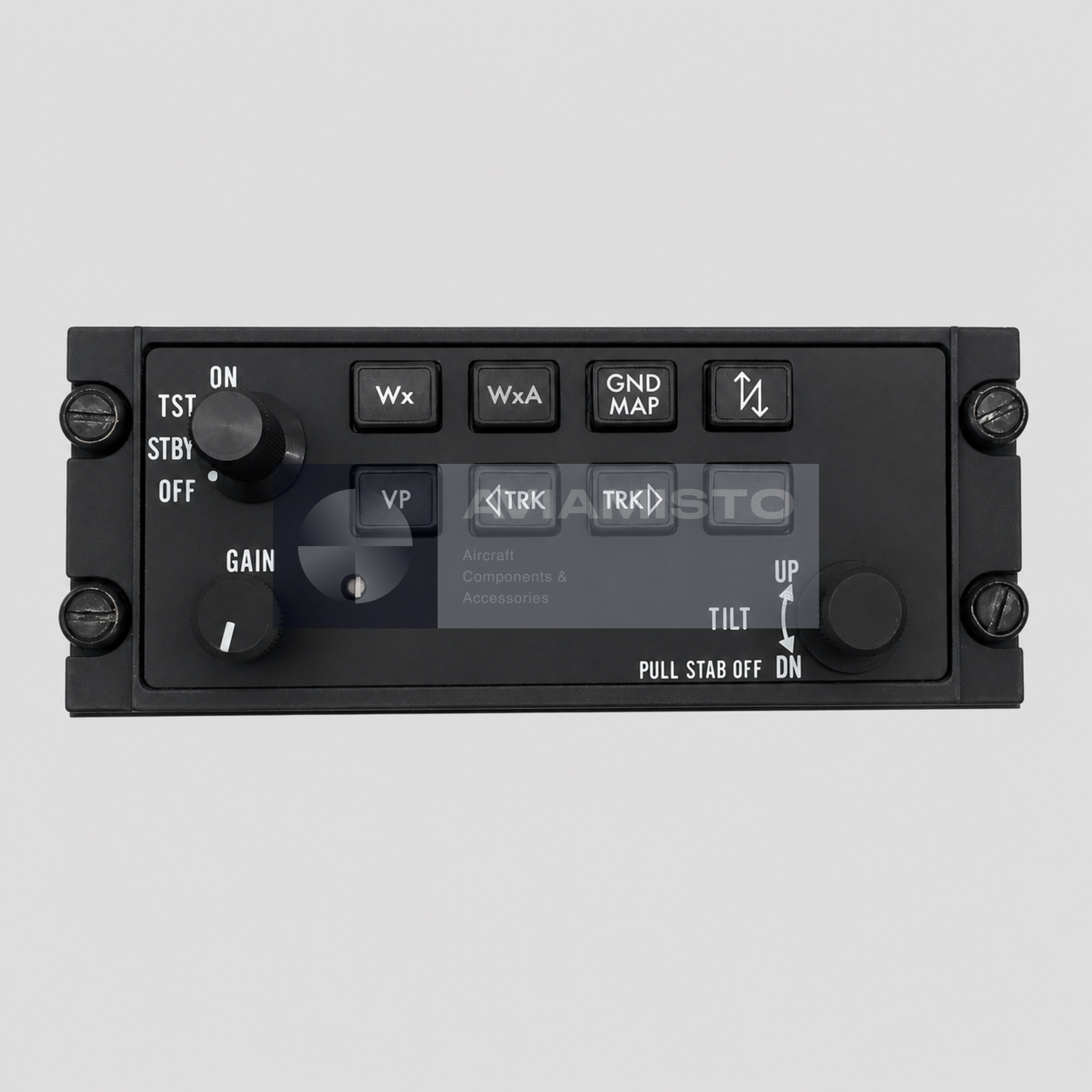

The photographed -0702 configuration has a black faceplate and the full set of controls visible on the front panel. CP 466A variants use the same family name but can differ by faceplate colour and installed options. The complete suffix must be matched during replacement because a similar CP 466A front panel is not automatic proof of electrical or installation interchangeability.

Radar mode and operating-state controls

The OFF / STBY / TST / ON selector establishes the commanded radar operating state. OFF removes the radar operating command, STBY prepares the system without normal transmission, TST supports the approved self-test presentation, and ON enables radar operation through the connected system. Actual transmitter behaviour and safety precautions depend on the associated antenna, receiver/transmitter and installation logic.

The Wx key selects weather display, while WxA provides the supported weather-alert presentation. GND MAP selects ground-mapping mode. These controls send commands to the connected radar and EFIS arrangement; the panel does not generate the radar picture itself. Mode annunciation appears on the compatible display, so correct operation depends on system wiring, symbol generator configuration and radar equipment status.

Gain, tilt and vertical-profile functions

The GAIN control adjusts receiver gain where manual gain is supported. The TILT control commands antenna elevation up or down, allowing the crew to position the radar beam relative to the aircraft flight path. Pulling the tilt control disables antenna stabilisation where that function is installed and approved. These controls must be used according to the applicable radar pilot guide because incorrect tilt or gain can hide relevant weather returns.

The front panel also includes a VP key and left/right TRK controls associated with vertical-profile radar installations. A lightning-symbol key is present for the supported lightning-detection interface. The existence of a key does not by itself confirm that the connected aircraft system has the corresponding sensor or option enabled. System configuration and display software determine which commands are active.

EFS 40/50 and radar-system integration

Bendix/King EFS 40/50 documentation identifies the CP 466A as a radar control panel used when compatible RDS 81, RDS 82, RDS 82VP, RDS 84 or RDS 84VP weather radar is interfaced to the electronic flight instrument system and a combined radar control/display is not installed. A typical command path is CP 466A → EFIS and radar interfaces → radar antenna/receiver/transmitter, with the processed weather presentation shown on the compatible electronic display.

The CP 466A is related to the radar sensor, display and symbol-generator equipment in that installation, but it is not interchangeable with them. CP 466B is documented for different radar configurations, and CP 467 serves other EFIS control functions. Before replacement, confirm the exact radar model, EFS software configuration, connector pinning, faceplate, lighting, modification status and aircraft wiring.

Identification, serviceability and ordering

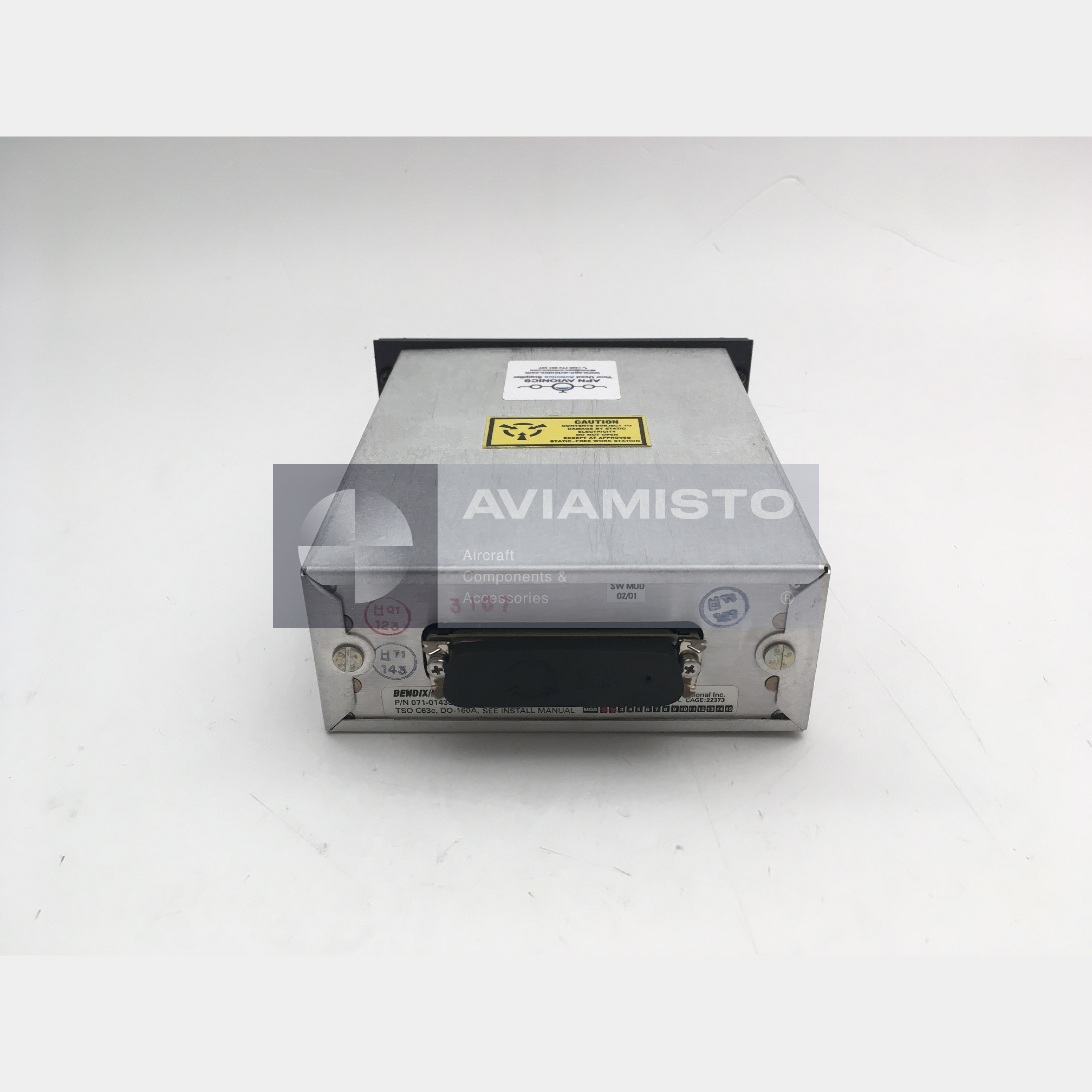

The authentic rear photograph shows the chassis, rear connector and the original identification area for Part Number 071-01438-0702. Receiving inspection should compare the exact Part Number, model, serial number, modification marks, faceplate controls, rear connector and housing with the purchase order. Bench testing should confirm every selector and pushbutton, lighting, discrete or bus outputs and the required system interfaces using approved CP 466A/B maintenance data.

This 071-01438-0702 CP 466A is offered in Serviceable condition from partner stock with a six-month warranty. The quotation will identify the allocated serial number, release documentation, test status and included accessories. Mounting hardware, mating connector, wiring and associated radar or EFIS equipment are included only when expressly listed.

For an inquiry, specify Part Number 071-01438-0702, model CP 466A, radar and EFIS configuration, aircraft supply and lighting requirements, required documentation and quantity. Related radar, EFIS and control equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Final installation eligibility and interchangeability must be established from approved aircraft and system documentation.

Product Type: EFIS / weather-radar control panel

Manufacturer: BendixKing / Honeywell

Model: CP 466A

Designation: 071-01438-0702

Alternative Designations: CP466A; CP-466A; 071014380702; Bendix/King CP 466A

Main Function: Crew control of compatible EFIS weather-radar functions

System: Compatible Bendix/King EFS 40/50 electronic flight instrument and weather-radar installations

Documented Radar Interfaces: RDS 81, RDS 82, RDS 82VP, RDS 84 and RDS 84VP, subject to approved configuration

Operating Selector: OFF / STBY / TST / ON

Display Modes: Wx, WxA and GND MAP

Additional Functions: Lightning interface, vertical profile and track selection where installed

Manual Controls: Gain and antenna tilt

Stabilisation Control: Pull-to-disable antenna stabilisation where supported

Faceplate: Black configuration shown on the exact unit

Rear Interface: Multi-pin aircraft-system connector

Typical Signal Chain: CP 466A commands → EFIS/radar interfaces → radar antenna/receiver/transmitter → compatible electronic display

Associated Equipment: Compatible EFIS display, symbol generator, radar antenna/receiver/transmitter and aircraft wiring

TSO Reference: TSO C63c family reference documented for CP 466A configurations

Aircraft Applicability: Confirm from the aircraft equipment list and approved installation data

Interchangeability: Full suffix, options, faceplate, lighting, connector and system configuration must match

Condition: Serviceable

Warranty: 6 Months

Technical Documentation: Bendix/King CP 466A/B Maintenance Manual 006-05231 series and EFS 40/50 system data
