069-1024-38 BendixKing KX 155 NAV/COM

069-1024-38 is the exact Part Number for this BendixKing KX 155 panel-mounted VHF communication transceiver and VOR/localizer navigation receiver. The unit combines an aircraft COM radio with a NAV receiver, active and standby frequency displays, transfer keys and front controls. This exact suffix is listed for 14 V operation, 25 kHz channel spacing, extended 136 MHz communication-band coverage and an internal isolation amplifier.

The -38 configuration does not include a glideslope receiver. That distinction is critical because other KX 155 or KX 165 versions may support glideslope or use different voltage, spacing and frequency coverage. A shared bezel and model family do not prove interchangeability. The full suffix, rack, connector, indicator interface and aircraft approval must be matched.

Communication and navigation functions

The COM section allows the crew to prepare a standby frequency and transfer it to active use. Published configuration data identify 25 kHz spacing with 760 communication channels and coverage extended through the 136 MHz band. The transmitter output is commonly specified at 10 W nominal for this family. Squelch, volume, microphone keying, audio routing and sidetone depend on the aircraft audio installation.

The NAV section tunes VOR and localizer signals and sends bearing, deviation, TO/FROM and flag information to a compatible indicator. Published indicator examples include KI 203 and KI 208 in suitable installations. Because 069-1024-38 has no glideslope receiver, vertical approach guidance requires other approved equipment; it must not be inferred from the presence of a NAV display.

The internal isolation amplifier supports specified navigation output distribution. It is an interface feature, not an authority to connect an unlimited number of indicators or flight-control inputs. The approved wiring diagram defines loading, flag logic and any autopilot connection.

Antennas, audio panel and indicator interfaces

A typical communication path is VHF COM antenna → KX 155 receiver, followed by received audio to the aircraft audio panel and crew headset. For transmission, microphone and push-to-talk inputs pass through the audio system to the KX 155 transmitter and antenna. The navigation path is VOR/localizer antenna or approved splitter → KX 155 NAV receiver → compatible KI 203, KI 208 or approved indicator.

Antennas, diplexers, audio panels, indicators, racks and connectors are related installation components and are not included unless listed in the quotation. They are not interchangeable with the transceiver. Poor communication range can result from antenna, coaxial cable, bonding, microphone or audio-panel problems. Erratic NAV guidance may originate in the antenna path, indicator, wiring or ground-station geometry.

System testing should include receiver sensitivity, transmitter power and frequency, modulation, squelch, display and transfer operation, VOR bearing, localizer deviation, flags, lighting and all approved outputs. A functional display alone does not establish radio-frequency performance.

Exact configuration and installation checks

This 14 V configuration must be installed with the correct aircraft supply, circuit protection, rack and connector. The panel width, cooling clearance and harness support should follow the current KX 155 installation data. Receiving inspection should confirm Part Number 069-1024-38, model KX 155, serial number, displays, knobs, transfer keys, faceplate, connector and modification status.

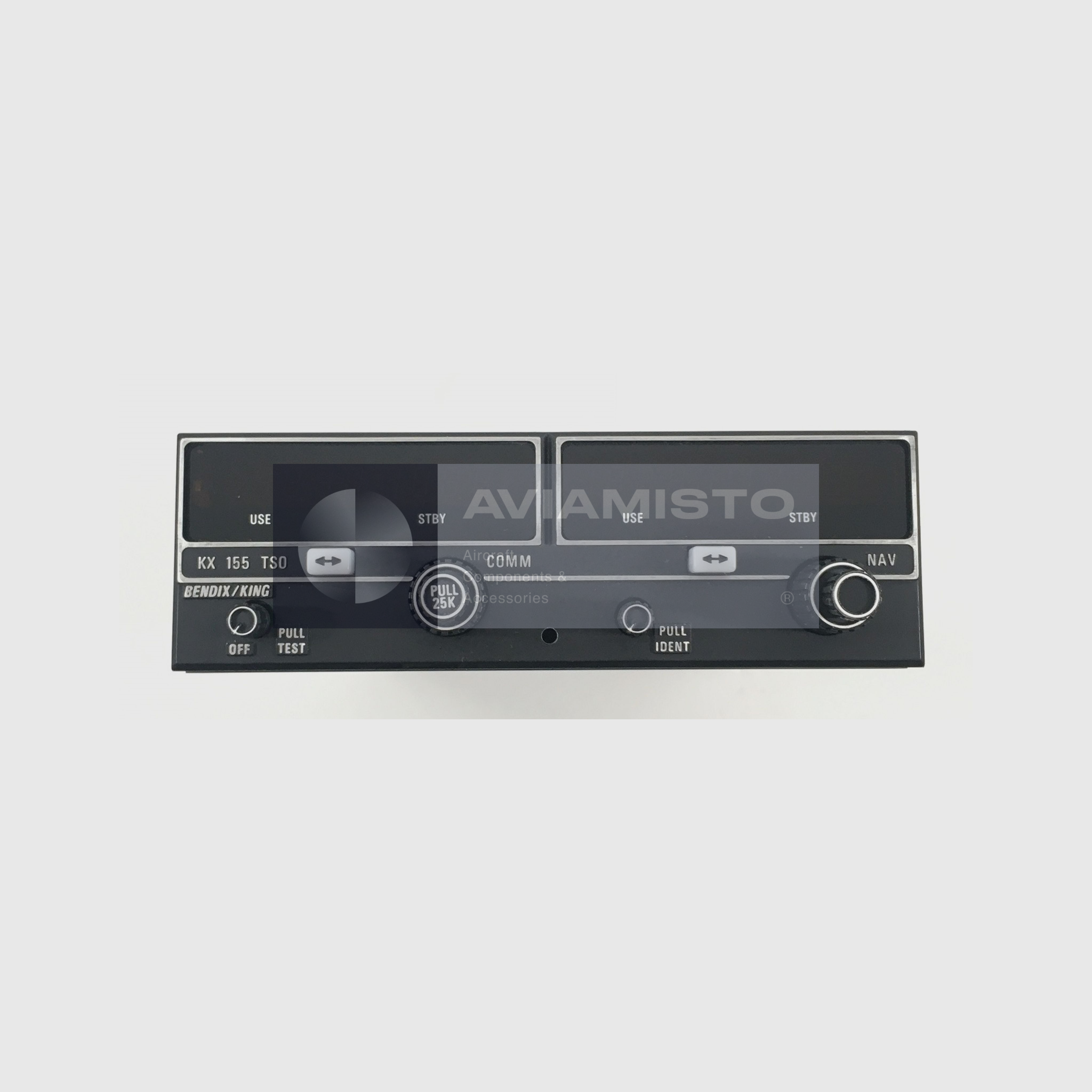

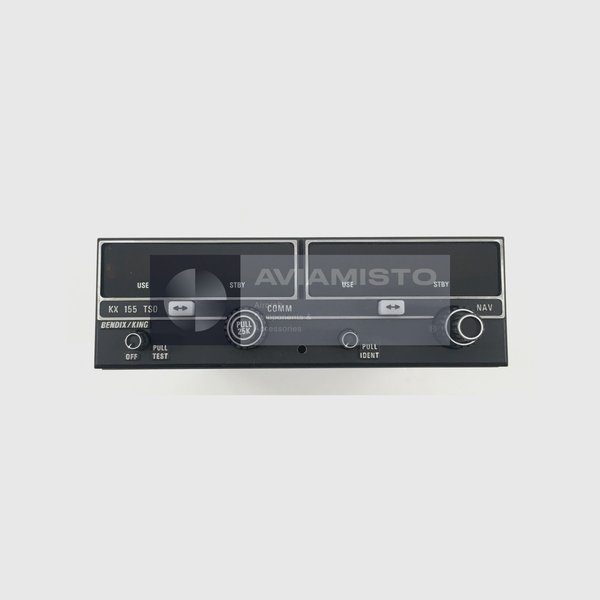

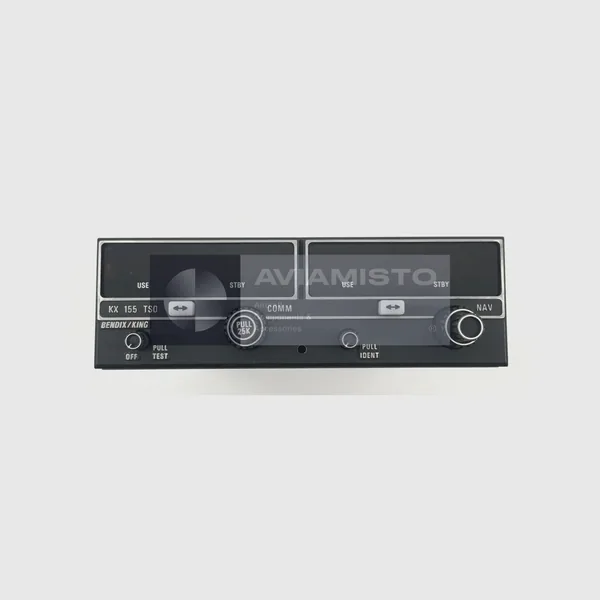

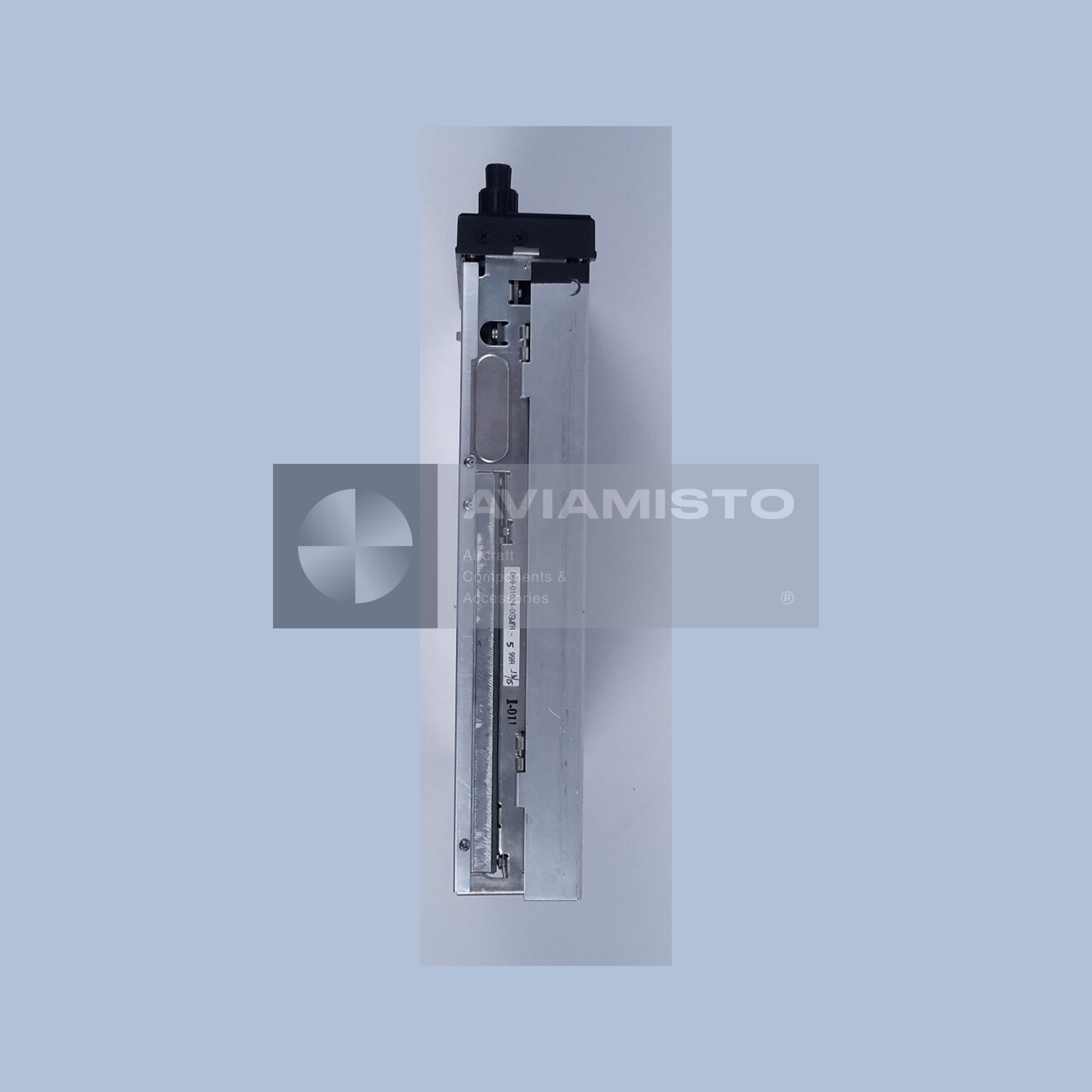

The main image shows the correct KX 155 front-panel family configuration. The gallery identification view preserves an exact label photograph for 069-1024-38 and should be used to confirm the defining suffix. Serial numbers shown in catalog photography are reference information and do not identify the allocated stock item unless the quotation confirms the same serial.

Potential replacements from the KX 155 or KX 165 family may require changes to voltage, rack, wiring, indicator, glideslope interface or approval basis. No direct substitute is claimed without documented eligibility.

Repairable partner-stock supply and ordering

This 069-1024-38 KX 155 is offered in Repairable condition from partner stock with a six-month warranty. Repairable means the unit requires approved evaluation and maintenance before return to service and must not be treated as installation-ready. Repair scope, serial number, completeness, traceability, tag and release documentation are confirmed before order acceptance.

For an inquiry, specify Part Number 069-1024-38, model KX 155, aircraft type, 14 V supply, 25 kHz spacing, required 136 MHz COM coverage, indicator, rack, connector, documentation and quantity. Related radios, indicators and audio equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Related products are not represented as interchangeable replacements.

Product Type: VHF NAV/COM transceiver

Manufacturer: BendixKing / Honeywell

Model: KX 155

Designation: 069-1024-38

Alternative Designations: 069102438; KX155; KX-155; Bendix/King KX 155

Communication Function: VHF voice transmit and receive with active / standby frequency selection

Navigation Function: VOR and localizer reception and indicator outputs

Glideslope Receiver: Not included in exact -38 configuration

DC Power Configuration: 14 V

Channel Spacing: 25 kHz

Communication Channels: 760

Communication Band: Extended through 136 MHz according to exact configuration data

Nominal Transmitter Power: 10 W

Isolation Amplifier: Included

Associated Indicators: KI 203 / KI 208 in compatible approved installations

Typical COM Signal Chain: COM antenna ↔ KX 155 ↔ aircraft audio panel and crew controls

Typical NAV Signal Chain: VOR/LOC antenna → KX 155 → compatible course-deviation indicator

Controls: Active / standby displays, transfer keys, frequency tuning, volume, squelch/test and ident functions

Installation: Panel-mounted with approved rack, connector, cooling and circuit protection

Photograph Identification: Gallery label view documents exact Part Number 069-1024-38

Interchangeability: Verify suffix, voltage, spacing, COM band, glideslope, rack, wiring and aircraft approval

Condition: Repairable

Warranty: 6 Months

Technical Documentation: Applicable BendixKing KX 155 installation, operation and maintenance data
