069-01034-0102

069-01034-0102 BendixKing KLN 94 GPS navigator

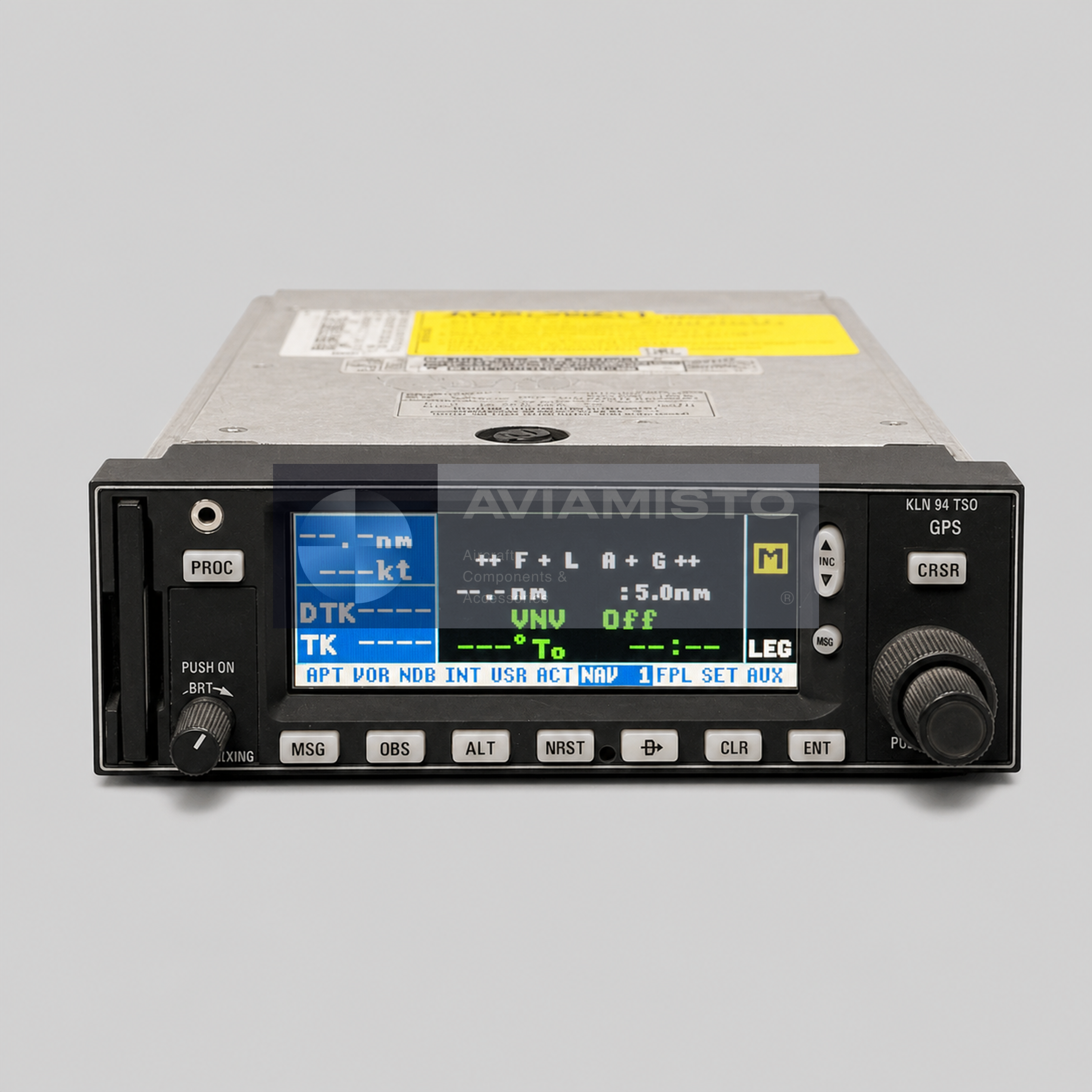

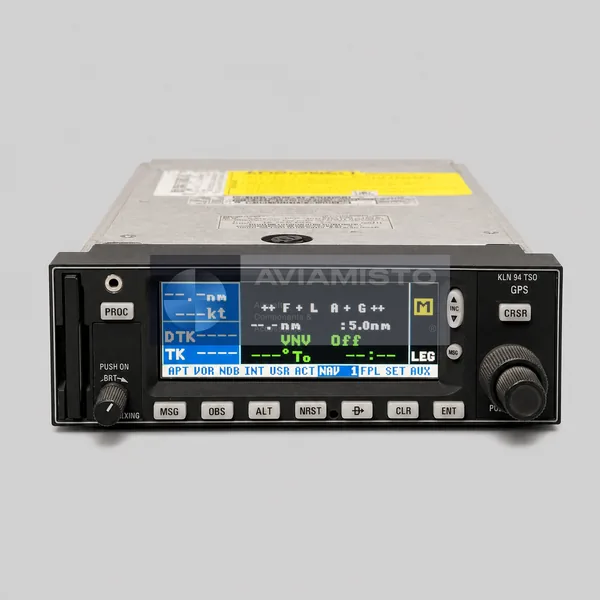

069-01034-0102 is the exact Part Number for this BendixKing KLN 94 panel-mounted GPS navigation unit. The receiver provides position, ground speed, track, distance, bearing, flight-plan and approach-related guidance when installed with an approved antenna, indicator and aircraft interfaces. The colour display and front controls give the crew direct access to navigation pages, waypoint information and stored flight plans.

The complete -0102 suffix identifies the KLN 94 version with 14/28 V lamp configuration, black bezel and DC roll-steering output. Published version data distinguishes it from 069-01034-0101, which does not provide the documented DC roll-steering output. That difference can affect an autopilot or flight-director interface, so a common KLN 94 model name is not sufficient for replacement.

Navigation, flight-plan and guidance functions

The KLN 94 calculates aircraft position from GPS satellite signals and combines that position with its approved navigation database. The display can present active waypoint, desired track, bearing, distance, estimated time, ground speed and cross-track information. Flight plans are entered and reviewed from the front panel, and the unit can provide course guidance to a compatible CDI or HSI.

Published operating approvals include VFR and IFR en-route or terminal use when the complete installation, database and operational requirements are satisfied. BRNAV capability is documented for approved configurations. Approach use depends on the installed equipment, current data, annunciation, integrity monitoring and aircraft approval; the catalog listing does not confer operational approval by itself.

The -0102 DC roll-steering output can provide turn anticipation and steering commands to a compatible flight-control system. This output is installation-specific and should not be connected or enabled by assumption. The autopilot model, interface converter, wiring, software and approval basis must be confirmed.

Antenna, indicator and autopilot relationship

A typical signal chain is KA 91 or KA 92 GPS antenna → KLN 94 receiver and navigation processor → compatible KI 208A, KI 209A or other approved deviation indicator, with optional guidance sent to a compatible autopilot interface. Published antenna references include KA 91 Part Number 071-01545-0200 and KA 92 Part Number 071-01553-0200. Installation kit 050-03321-0000 is also documented for suitable configurations.

These antennas, indicators, annunciators, racks and connectors are related components, not included automatically and not interchangeable with the navigator. Antenna location, coaxial loss, bonding, power supply, indicator scaling and external flag logic all influence system performance. A GPS-position fault can result from antenna, coax, interference, database or aircraft-interface problems rather than the receiver alone.

Installed testing should verify satellite acquisition, position, database validity, flight-plan operation, CDI scaling, annunciation, message handling, lamp dimming, external outputs and any approved roll-steering interface. Bench and aircraft procedures must follow the correct KLN 94 revision.

Installation, identification and applicability

The unit operates in compatible 14 or 28 V aircraft installations with the lamp arrangement specified by the exact suffix. The panel opening, rack, mating connector, cooling, circuit protection and bonding must follow the approved drawing. Receiving inspection should confirm 069-01034-0102, model KLN 94, black bezel, display, keys, knobs, rear connector, serial number and modification markings.

A Bell 206L-4 equipment list documents a KLN 94 installation with KA 92 antenna and KI 208A indicator and gives an installed-system weight reference of approximately 3.6 lb for the listed GPS equipment group. This is a documented application example, not universal approval for every Bell 206 or another aircraft. The intended aircraft equipment list and modification data remain controlling.

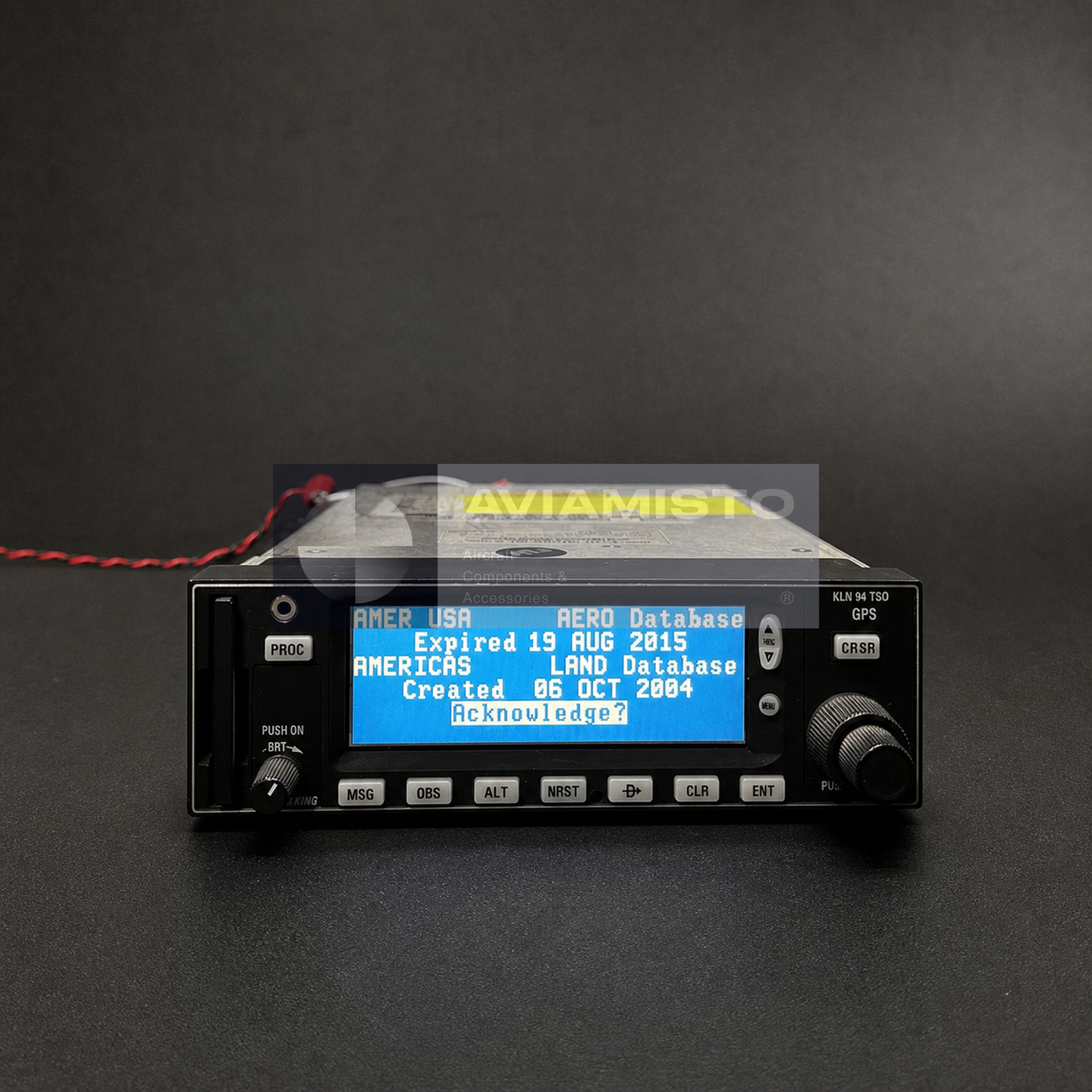

Database currency and geographic coverage must be agreed before dispatch. A visually operational display in a photograph does not establish receiver sensitivity, database validity, output configuration or current airworthiness release.

Serviceable partner-stock supply and ordering

This 069-01034-0102 KLN 94 is offered in Serviceable condition from partner stock with a six-month warranty. Exact serial number, software, database cycle, region, release authority, tag date, rack, connector, antenna and documentation are confirmed for the allocated unit before order acceptance. Serviceable condition does not replace aircraft-specific installation and operational approval.

For an inquiry, specify Part Number 069-01034-0102, model KLN 94, aircraft type, supply voltage, required database region, indicator, antenna, DC roll-steering interface, documentation and quantity. Related GPS, indicator and flight-control products are listed in the Garmin / BendixKing / Honeywell / Collins category. Related components are not presented as direct replacements.

Product Type: Panel-mounted GPS navigation unit

Manufacturer: BendixKing / Honeywell

Model: KLN 94

Designation: 069-01034-0102

Alternative Designations: 069010340102; 069-1034-0102; KLN94; KLN-94

Primary Functions: GPS position, flight-plan, waypoint, track, bearing, distance and course guidance

Exact Bezel Configuration: Black

Exact Lamp Configuration: 14/28 V

Exact-Suffix Output: DC roll-steering output

Published Operational References: VFR, IFR en-route / terminal and BRNAV in approved configurations

Associated Antenna Option 1: KA 91, P/N 071-01545-0200

Associated Antenna Option 2: KA 92, P/N 071-01553-0200

Installation Kit Reference: 050-03321-0000 for compatible installations

Associated Indicators: Compatible KI 208A / KI 209A or other approved CDI / HSI

Typical Signal Chain: GPS antenna → KLN 94 → approved indicator and optional flight-control interface

Documented Aircraft Example: Bell 206L-4 equipment configuration with KA 92 and KI 208A

Documented System Weight Example: Approximately 3.6 lb for the listed KLN 94 / KA 92 / KI 208A equipment group

Database Requirement: Current approved database and geographic coverage as required by operation

Related Version 069-01034-0101: KLN 94 version without the documented DC roll-steering output

Installation Requirements: Approved rack, connector, antenna coax, circuit protection, bonding and annunciation

Interchangeability: Verify exact suffix, lamps, roll steering, software, database, rack and aircraft approval

Condition: Serviceable

Warranty: 6 Months

Technical Documentation: Applicable BendixKing KLN 94 pilot, installation and maintenance data
