BendixKing KX 155A transceiver 069-01032-0101

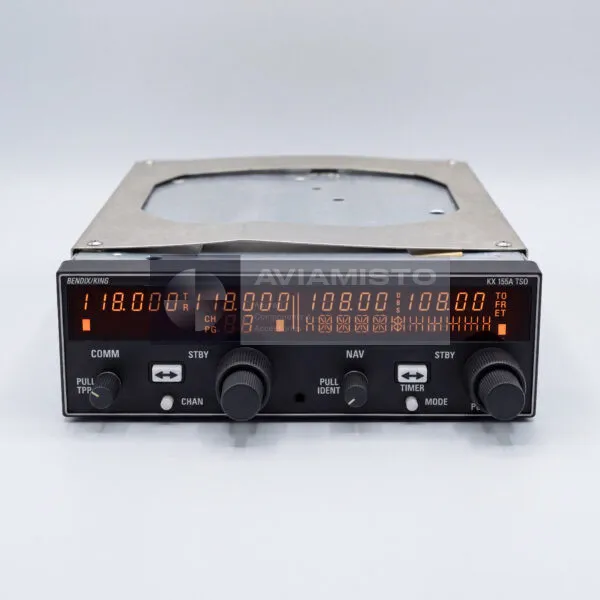

069-01032-0101 is the exact Part Number of this BendixKing KX 155A panel-mounted VHF communication and navigation transceiver. This configuration combines two-way VHF voice communication, VOR and localizer reception and a glideslope receiver in one cockpit unit. The split digital display presents active and standby communication and navigation frequencies, while the front controls support frequency transfer, channel operation, navigation display modes, identification and timer functions.

The -0101 suffix identifies a 28 V KX 155A configuration with glideslope capability. That suffix must remain part of every quotation, purchase order and maintenance record because the visually similar 069-01032-0201 version is configured without the glideslope receiver. Model name alone is therefore insufficient for interchangeability. Installation approval must also account for rack, connector, antenna, indicator, wiring and modification status.

VHF communication operation

The communication section operates in the civil-aircraft VHF band and provides active and standby frequency selection. For the 25 kHz version represented by this Part Number, the published communication range is 118.000 to 136.975 MHz with 760 selectable channels. The transfer button exchanges active and standby frequencies, and stored-channel functions support frequently used selections. The display also provides transmit and receive status indications.

Installation data specifies a minimum transmitter output of 10 W and a nominal transmit duty cycle of 4.5 minutes receive followed by 0.5 minute transmit. A transmitter time-out circuit protects the unit if the microphone key remains active for approximately 30 seconds. Audio performance depends on the approved microphone, headset or speaker installation, audio-panel interface, antenna, coaxial cable and aircraft grounding.

VOR, localizer and glideslope navigation

The navigation receiver selects VOR and localizer frequencies and supplies guidance information to the approved cockpit indicator. The KX 155A display can present navigation-related information such as course deviation, bearing or radial data when configured with the required external equipment. Localizer reception supports lateral runway-course guidance, while the glideslope section in 069-01032-0101 supplies the vertical guidance signal for a compatible indicator.

A representative chain is communication antenna → KX 155A communication transceiver → aircraft audio system for voice communication, and navigation / glideslope antennas → KX 155A receiver → compatible CDI or HSI for guidance. These related antennas, indicators and audio components are not interchangeable with the transceiver. Their exact models depend on the certified aircraft installation and must be verified from the equipment list and wiring diagram.

Dimensions, power and installation checks

The installation manual lists nominal dimensions of 6.25 in width, 2.00 in height and 10.16 in depth to the connector, equivalent to approximately 158.75 × 50.8 × 258.1 mm. Nominal unit weight for Part Number 069-01032-0101 is 4.2 lb / 1.9 kg, with a mounting rack and hardware weight of 1.1 lb / 0.5 kg. The unit is panel mounted and does not require shock mounting according to the installation data.

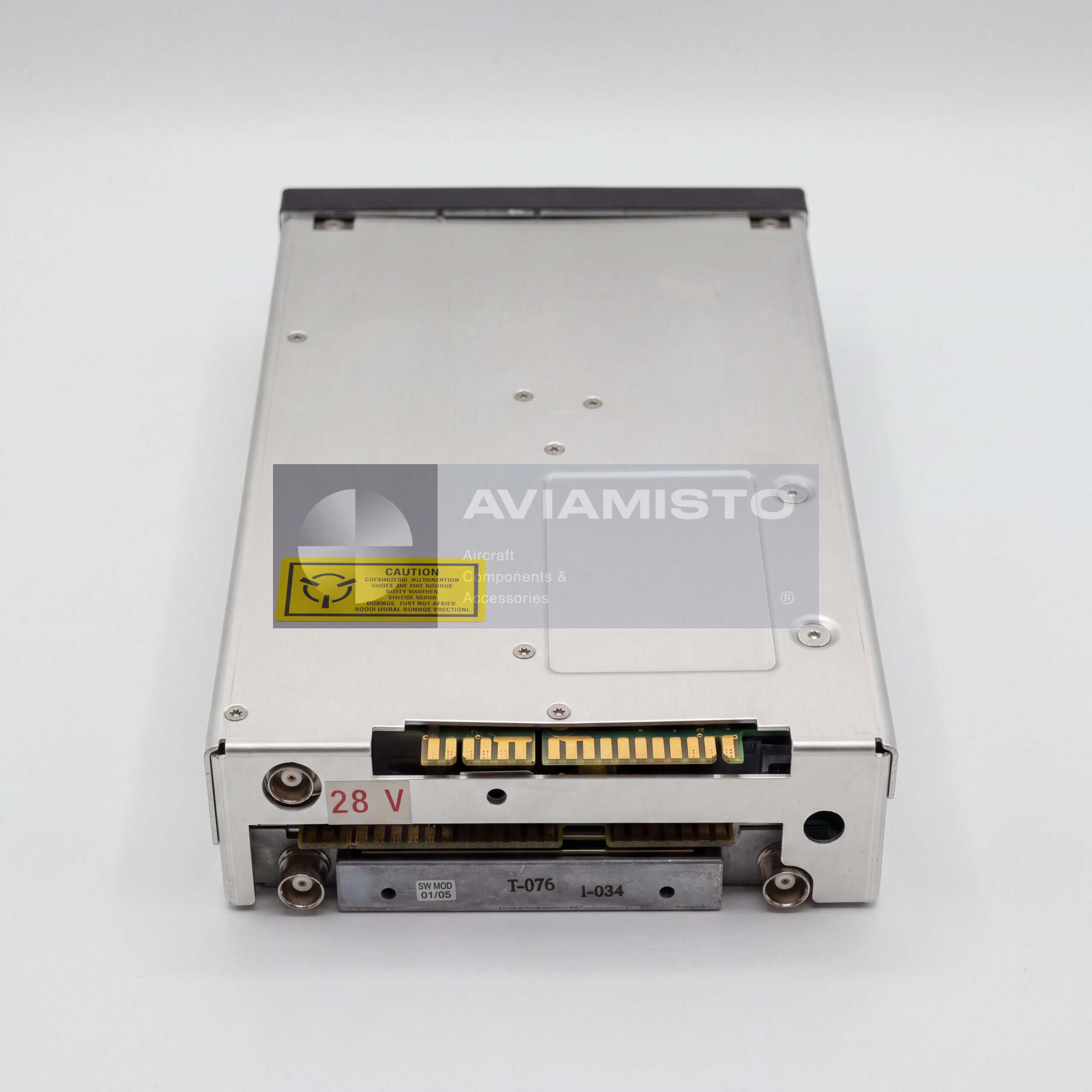

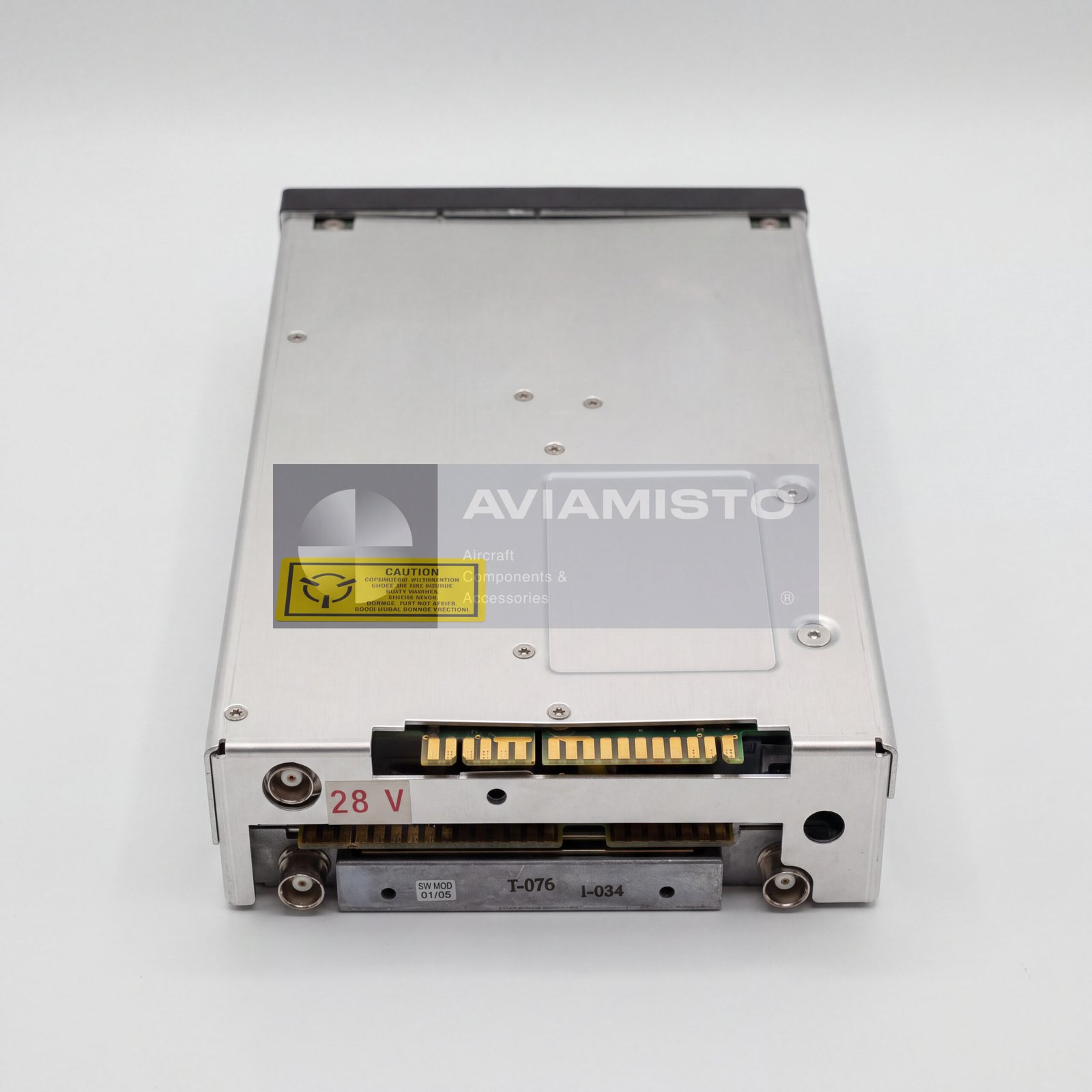

Power is supplied from a 28 V aircraft system. Published current values for this configuration are 0.8 A typical receive, 2.2 A peak and 6.0 A maximum transmit. The specified operating temperature range is -20 °C to +55 °C, with operation to -35 °C and short-time operation at +70 °C; the listed altitude range is -15,000 to 50,000 ft. Before installation, confirm cooling, circuit protection, connector condition, antenna VSWR and applicable modifications.

New / Unused supply and ordering information

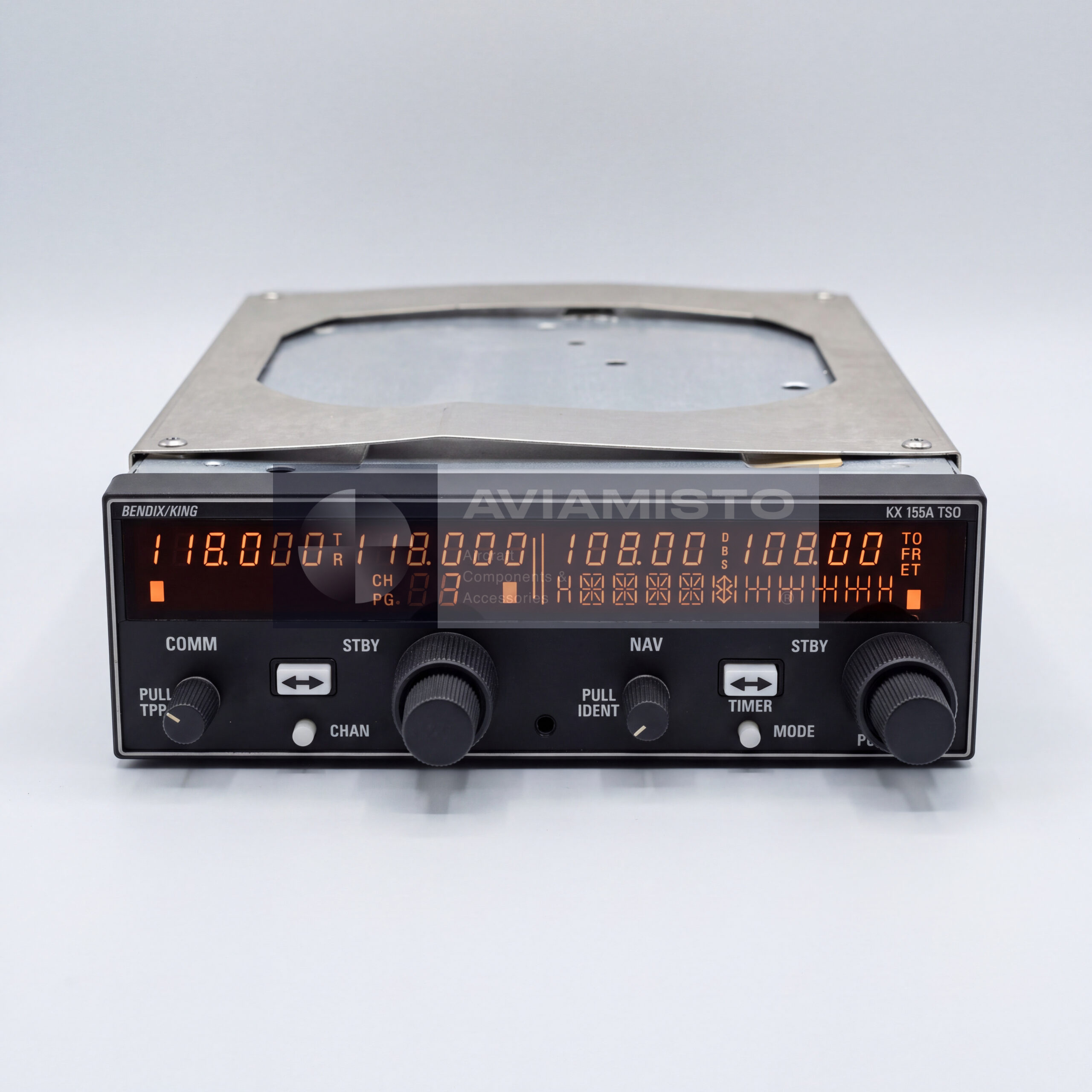

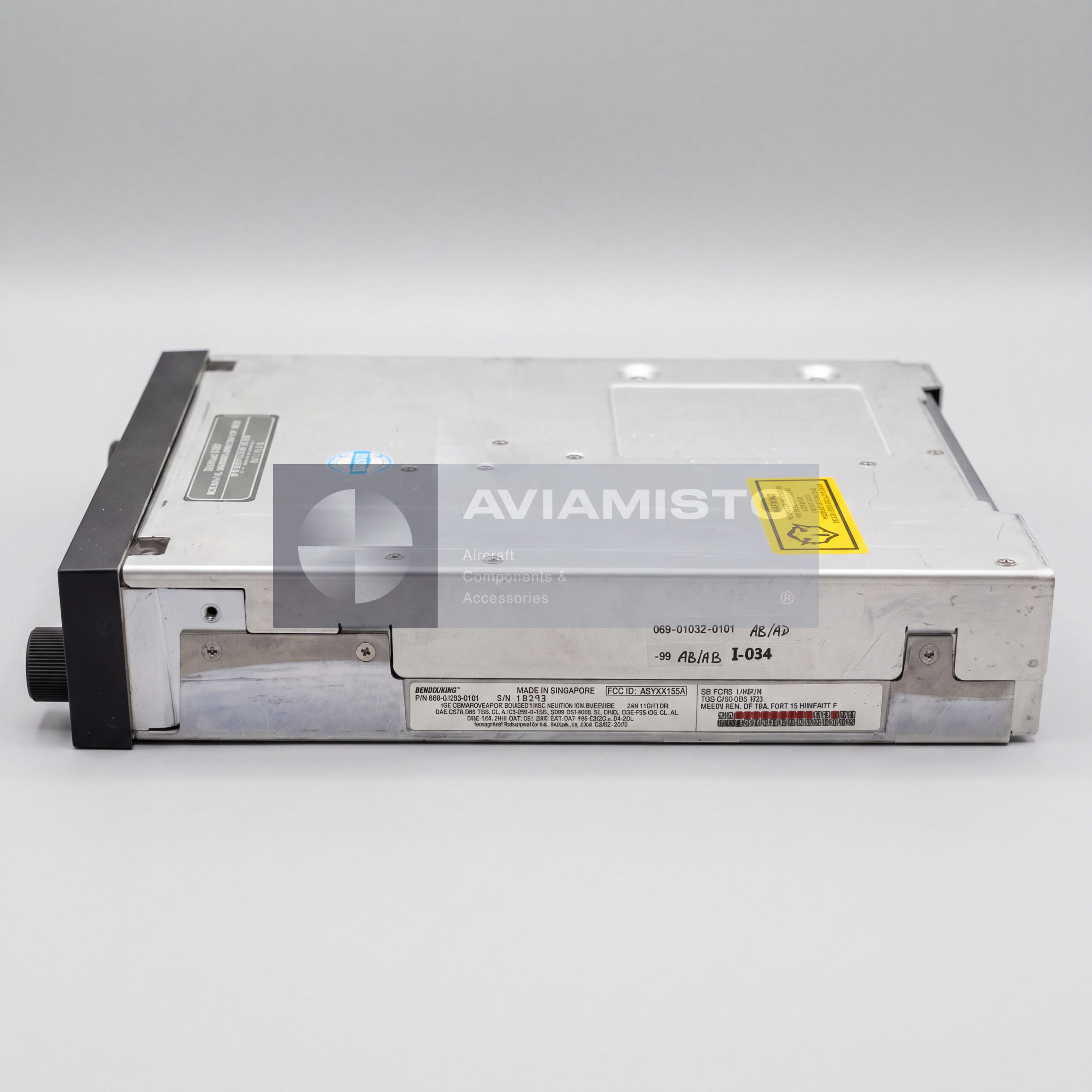

This 069-01032-0101 KX 155A is offered in New / Unused condition from partner stock with a six-month warranty. The authentic side photograph shows the exact Part Number, KX 155A model marking, 28 V configuration and serial number 29614 on the unit. The quotation will identify release documentation, storage and test status and the accessories supplied with the allocated unit.

For an inquiry, specify Part Number 069-01032-0101, model KX 155A, aircraft type, 28 V supply, glideslope requirement, required documentation and quantity. The mounting rack, connector kit, antennas, CDI or HSI and audio-panel equipment are supplied only when expressly included. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Final installation approval must be established from current aircraft and Bendix/King data.

Product Type: VHF NAV/COM transceiver with glideslope receiver

Manufacturer: BendixKing / Honeywell

Model: KX 155A

Designation: 069-01032-0101

Alternative Designations: KX155A; KX-155A; 069010320101; Bendix/King KX 155A

Configuration: 28 V, 25 kHz communication spacing, with glideslope receiver

Main Functions: VHF voice communication, VOR reception, localizer reception and glideslope reception

Communication Frequency Range: 118.000–136.975 MHz

Communication Channels: 760 channels at 25 kHz spacing

Transmitter Output: 10 W minimum

DC Power Supply: 28 VDC

Current Consumption: 0.8 A typical receive; 2.2 A peak; 6.0 A maximum transmit

Operating Temperature: -20 °C to +55 °C; operational to -35 °C; short-time operation at +70 °C

Altitude Range: -15,000 to 50,000 ft / approximately -4,572 to 15,240 m

Dimensions: 6.25 × 2.00 × 10.16 in / approximately 158.75 × 50.8 × 258.1 mm to connector

Unit Weight: 4.2 lb / approximately 1.9 kg

Mounting Rack Weight: 1.1 lb / approximately 0.5 kg

Mounting: Panel mounted; no shock mounting required according to installation data

Associated Equipment: Communication and navigation antennas, aircraft audio system and compatible CDI or HSI

Typical Signal Chain: Antennas → KX 155A → aircraft audio system and navigation indicator

Aircraft Applicability: Confirm from the aircraft equipment list and approved installation data

Interchangeability: Complete suffix, glideslope configuration, voltage, rack, connectors and modifications must match

Condition: New / Unused

Warranty: 6 Months

Technical Documentation: Bendix/King KX 155A / KX 165A Installation Manual 006-10542-0003 and applicable maintenance data
