066-3054-01

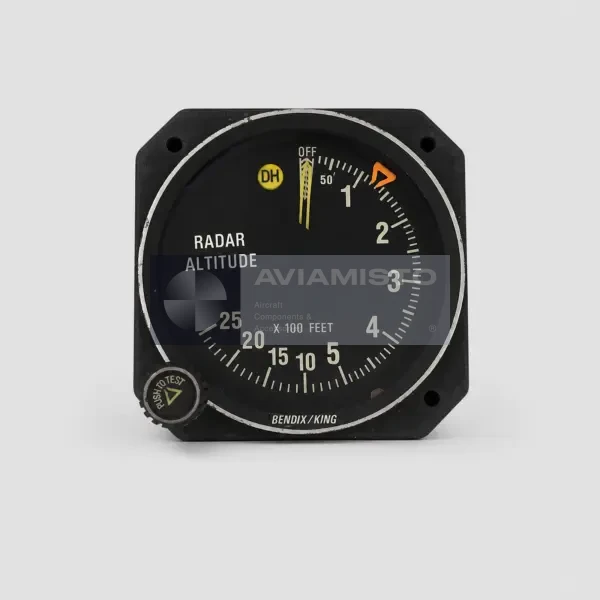

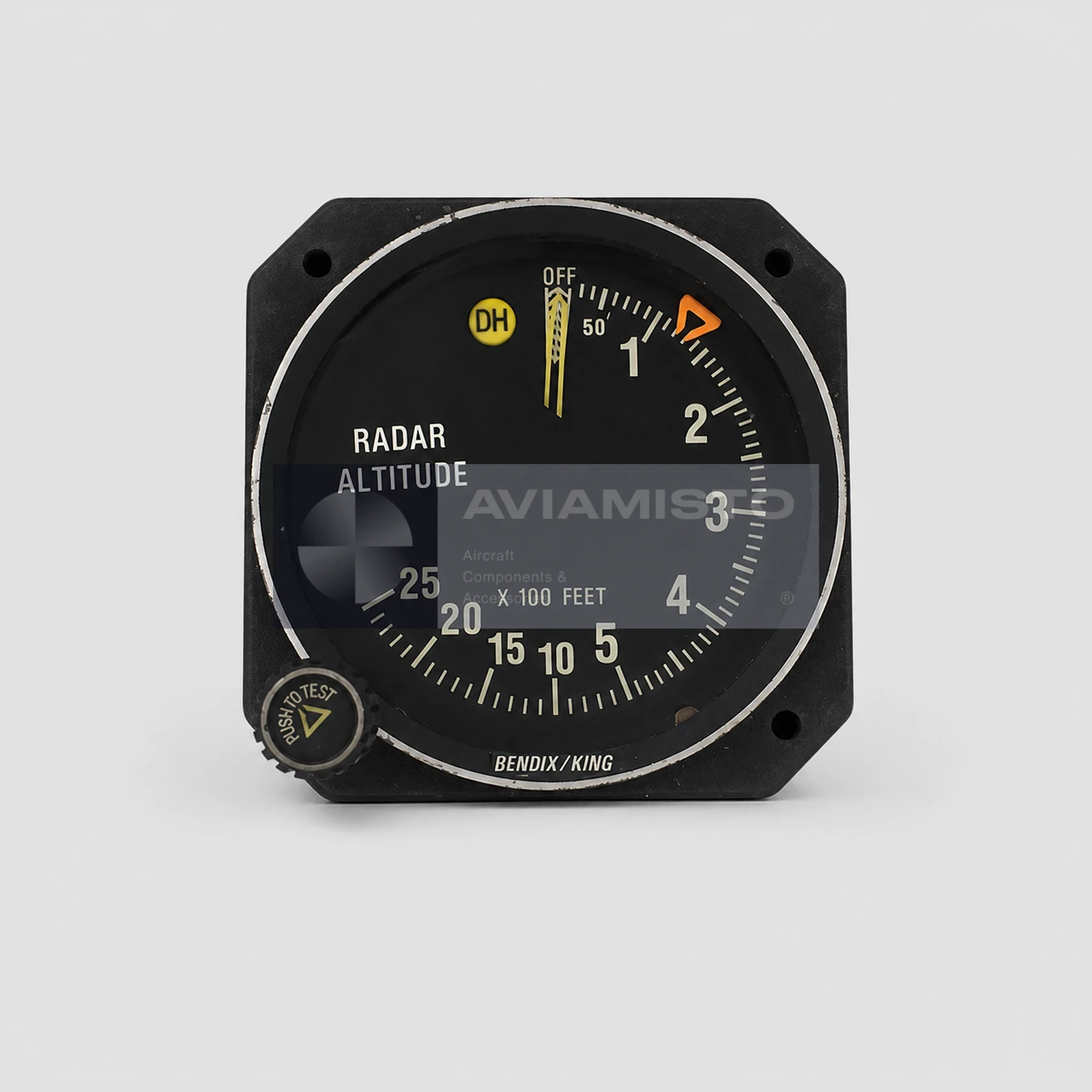

KI 250 radar altitude indicator — 066-3054-01

066-3054-01 identifies this BendixKing / Honeywell KI 250 radar altitude indicator. The unit displays radar altitude information received from a compatible KRA 10A radio-altimeter receiver/transmitter. This card is based on the exact partner inventory record and the complete designation shown above; it is not a generic listing for every visually similar version in the same equipment family.

The partner source describes the item as: Radar Altitude Indicator for KRA 10A – Radio Altimeter R/T Used with KI-250 indicator and KA-131 antenna 14/28VDC TSO’d. The source condition is Overhauled. Technical statements in this listing are limited to the exact functions and characteristics documented for this position. Unknown dimensions, current consumption, pin assignments or aircraft applicability are not inferred from a related model.

Operational role and system function

KI 250 is the cockpit display in the KRA 10A radar-altimeter system. It presents low-altitude information to the crew but does not measure terrain clearance independently of the receiver/transmitter and antenna installation. In normal service, correct operation also depends on the associated antennas, sensors, control heads, displays, power, grounding and wiring that belong to the approved aircraft installation. A fault indication at one component does not by itself prove that the component is the source of the system fault.

The equipment must be evaluated as part of its complete signal chain. Controls, connectors or labels visible in a photograph confirm physical features of the photographed configuration, but they do not prove that optional functions, software features or approvals are enabled in a particular aircraft. Approved technical data remains the controlling reference.

Installation and connected equipment

The documented system connection includes the KRA 10A receiver/transmitter and KA 131 antenna. Approved wiring, power, lighting and panel installation must match the aircraft data. A rack, backplate, connector kit, antenna, coupler, wiring harness or other installation hardware is not assumed to be included unless it is explicitly named in the quotation or Delivery Set.

Before installation, technicians should compare 066-3054-01 with the removed unit, aircraft equipment list, wiring diagram, modification status and applicable manufacturer manual. Panel dimensions, mounting depth, connector keying, pin allocation, circuit protection, lighting, cooling, data format and configuration settings all require confirmation. Similar appearance is not evidence of interchangeability.

Configuration checks for 066-3054-01

The complete designation and suffix are part of the product identity. Hardware revision, modification status, voltage, lighting, software, database, certification and connector configuration can differ between closely related variants. These details should be confirmed against the aircraft records and the specific serial number allocated for supply.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. The inspection should also confirm that shipping protection and supplied accessories agree with the quotation. Functional testing should follow the approved bench procedure for the exact model. Installation and return to service remain the responsibility of appropriately authorized personnel.

Overhauled condition, ordering and support

This 066-3054-01 KI 250 is offered in Overhauled condition from Partner Stock with a six-month warranty. Partner availability can change, so allocation, the available serial number, current test status and release documentation are reconfirmed before order acceptance. Image processing does not alter or upgrade the declared commercial condition.

For an inquiry, specify 066-3054-01, model KI 250, quantity, destination and documentation requirements. Adding the aircraft type, removed-unit Part Number and installation details helps prevent configuration errors. Buyers may also request current photographs of the allocated serial number and clarification of the quoted delivery set before confirming the order. Packaging and transport arrangements are selected for the destination and the physical characteristics of the unit.

Related avionics are available in the Garmin / BendixKing / Honeywell / Collins category. Cross-sell products are related catalog positions, not interchangeable replacements unless approved data explicitly confirms substitution.

Product Type: Radar altitude indicator

Designation: 066-3054-01

Manufacturer: BendixKing / Honeywell

Model: KI 250

Function: Displays radar altitude information received from a compatible kra 10a radio-altimeter receiver/transmitter

Associated Receiver/Transmitter: KRA 10A

Associated Antenna: KA 131

Power Supply Reference: 14/28 V DC system according to the source listing

Certification Reference: TSO-approved according to the source listing

Partner Inventory Serial Reference: 12623

Condition: Overhauled

Warranty: 6 Months

Installation Note: Confirm exact designation, suffix, serial allocation, rack, connectors, wiring, configuration and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
