066-3046-07

BendixKing KI 525A indicator 066-3046-07

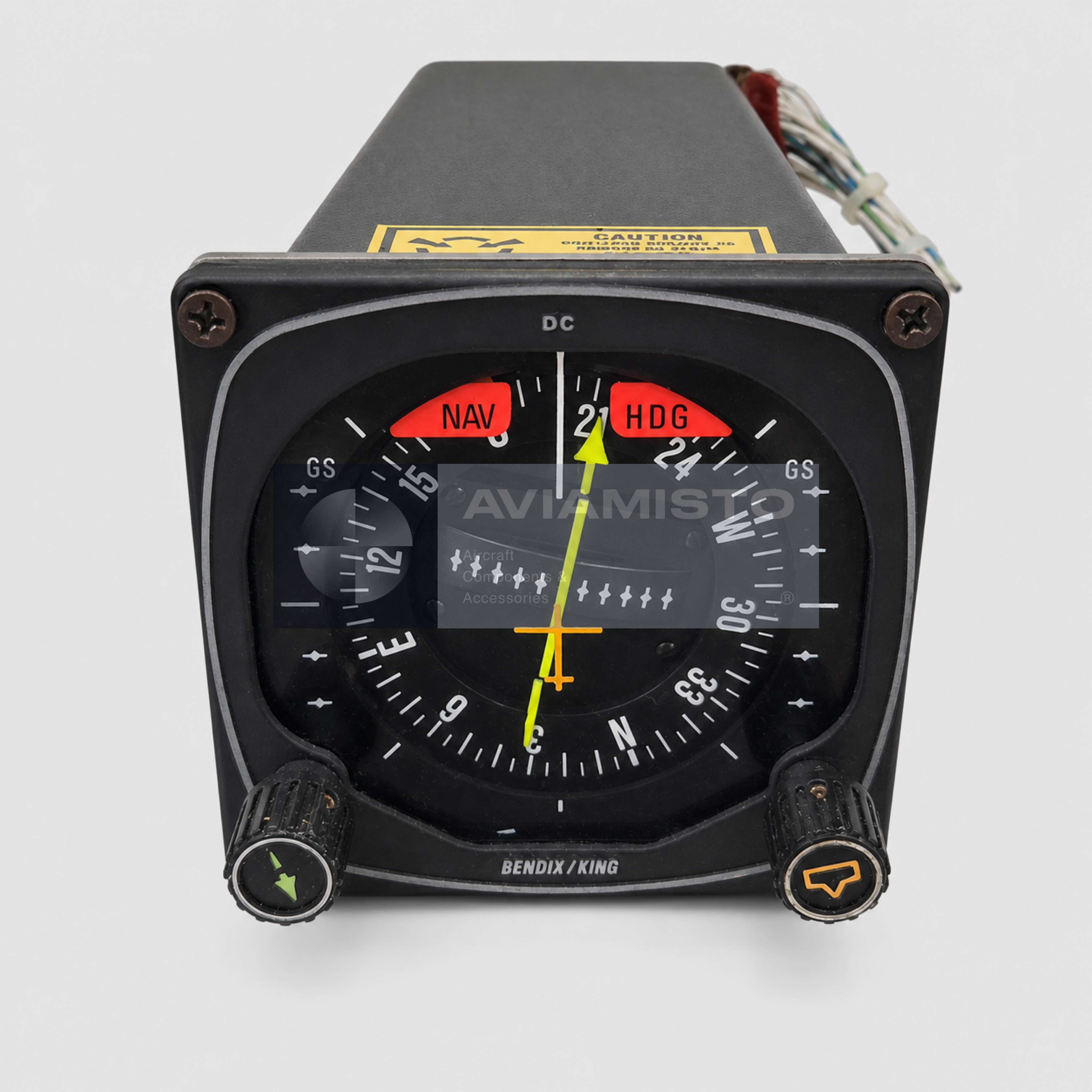

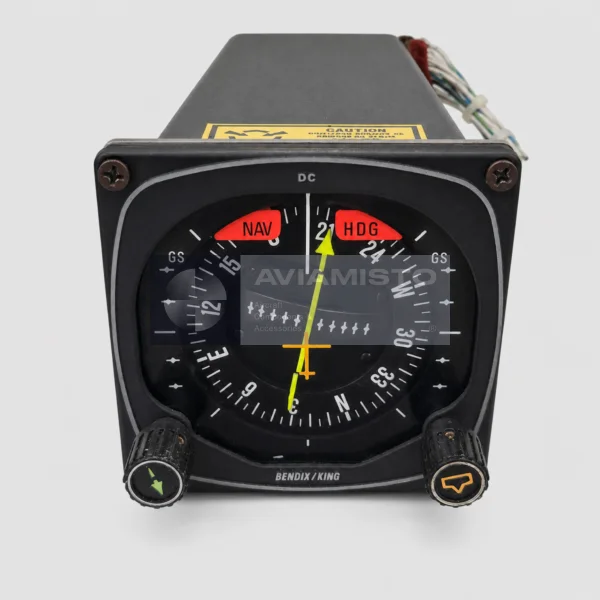

066-3046-07 is the exact Part Number of this BendixKing KI 525A pictorial navigation indicator. Commonly used as the display element of an approved KCS 55A compass-system installation, the instrument combines stabilized heading, selected course, lateral deviation, glideslope deviation, heading-bug reference and navigation-validity flags in one panel presentation. It helps the crew compare aircraft heading and the desired navigation path at a glance.

The KI 525A is not an independent directional gyro, magnetic sensor, VOR receiver or autopilot computer. It requires compatible heading and navigation sources, correct power, wiring and aircraft interfaces. The complete -07 suffix is essential because KI 525A variants can differ in bezel finish, bootstrap output, glideslope damping, lighting or internal configuration while retaining a nearly identical face.

Heading, course and glideslope display

The rotating compass card presents heading from the connected compass system. The course arrow and deviation bar show the selected course and lateral displacement when valid navigation information is available. A separate glideslope pointer supplies vertical-deviation guidance for a compatible approach receiver. NAV and HDG flags warn when the corresponding information is invalid or unavailable, and the heading bug provides a selectable reference for crew use or an approved autopilot interface.

Official product data describes this configuration as a pictorial navigation indicator with 30 Hz or 400 Hz bootstrap capability. The presentation must be interpreted as part of the complete installed system. Pointer centering alone does not prove a valid course: receiver tuning, source selection, warning flags, antenna performance, heading validity and aircraft procedures must all be considered.

KCS 55A compass-system composition

Honeywell service documentation lists the KI 525A in the KCS 55A compass system together with the KG 102A directional gyro, KA 51B slaving accessory and installation-specific autopilot adapters such as the KA 52 or KA 57. A representative heading chain is magnetic-reference equipment and slaving accessory → directional gyro → KI 525A compass card. A representative navigation chain is antenna → compatible VOR/localizer/glideslope receiver → deviation and validity inputs → KI 525A display.

These units are functionally related but are not included automatically and are not interchangeable with the indicator. Aircraft installations can use different receivers, adapters, switches and autopilot interfaces. The exact companion Part Numbers and wiring must be confirmed from the aircraft equipment list and approved KCS 55A installation data.

Exact plate data and configuration control

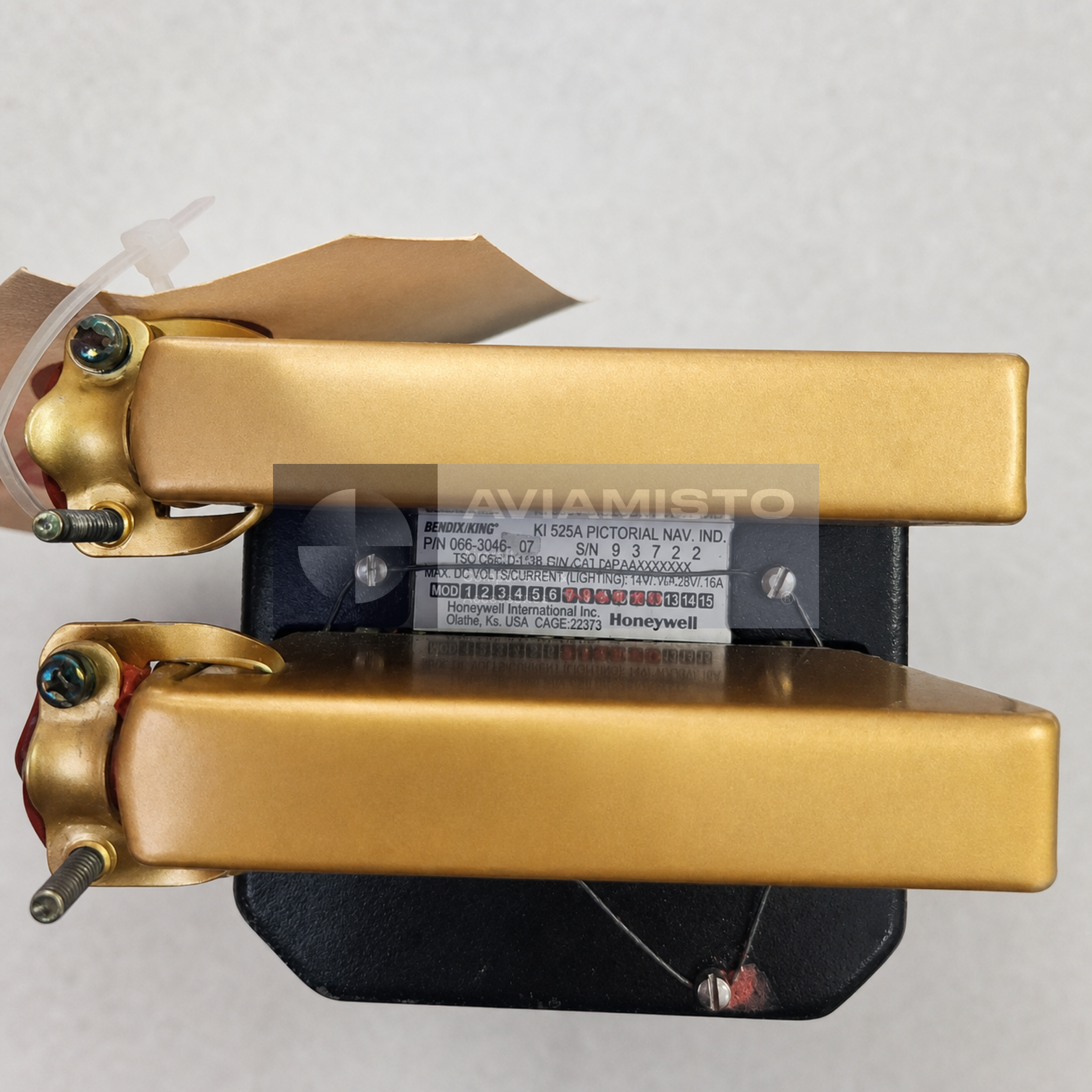

The authentic rear image identifies a Bendix/King KI 525A Pictorial Navigation Indicator, Part Number 066-3046-07 and serial number 93722. The plate identifies Honeywell International, Olathe, Kansas, CAGE 22373, and shows the unit’s modification status. The photographed structure also includes the mounting frame, rear connection area and attached wiring.

Receiving inspection should compare the exact plate, complete suffix, serial and modification marks, bezel, compass card, heading bug, course arrow, deviation bar, glideslope pointer, NAV and HDG flags, controls, connector and mounting points. Bench testing should verify card rotation, bootstrap output where applicable, heading-bug operation, course selection, both deviation channels, flag logic, damping and lighting with approved equipment.

Repairable supply and ordering information

This 066-3046-07 KI 525A is offered in Repairable condition from partner stock with a six-month warranty. Repairable means the unit is supplied for evaluation, repair or overhaul and must not be treated as serviceable for installation until appropriately inspected, repaired, tested and released by an authorized organization. The quotation will identify the allocated serial number, supplied documentation and included accessories.

For an inquiry, specify Part Number 066-3046-07, model KI 525A, aircraft type, KCS 55A and navigator configuration, required bootstrap interface, lighting, certification and quantity. Related products can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Final eligibility and interchangeability must be established from approved aircraft and system data.

A similar-looking KI 525A suffix should never be substituted solely on bezel dimensions or front-panel appearance.

Product Type: Pictorial navigation indicator / horizontal situation display

Manufacturer: BendixKing / Honeywell

Model: KI 525A

Designation: 066-3046-07

Official Long-Form Part Number: 066-03046-0007

Alternative Designations: KI525A; KI-525A; 066304607; Bendix/King KI 525A

Main Function: Integrated display of heading, selected course, lateral deviation, glideslope and validity information

Technical Configuration: 30 Hz or 400 Hz bootstrap

Associated System: Compatible BendixKing KCS 55A compass-system installation

Related KCS 55A Equipment: KG 102A directional gyro; KA 51B slaving accessory; installation-specific autopilot adapter

Typical Navigation Chain: Antenna → navigation receiver → deviation and validity signals → KI 525A

Lighting Rating on Exact Plate: 14 V / 0.16 A or 28 V / 0.16 A

Photographed Serial Number: 93722

Manufacturer Marking: Honeywell International Inc.; Olathe, Kansas; CAGE 22373

Connector and Pin Assignment: Refer to approved KI 525A and KCS 55A installation data

Aircraft Applicability: Confirm from the aircraft equipment list and approved compass-system installation

Interchangeability: Complete suffix, bezel, bootstrap interface, damping, lighting, connector and approval must match

Condition: Repairable

Warranty: 6 Months

Delivery Set: Directional gyro, slaving accessory, adapters, connector and mounting hardware only when expressly included

Technical Documentation: Applicable BendixKing KI 525A and KCS 55A installation and maintenance data
