VOR, localizer and glideslope presentation

For VOR navigation, the OBS knob selects the desired course shown on the compass card, and the vertical deviation bar indicates displacement from that course when valid receiver information is present. TO/FROM information supports correct interpretation of the radial or inbound course. For a localizer approach, the same lateral indication displays displacement from the runway centerline signal according to the receiver and approach sensitivity.

The horizontal pointer supplies glideslope deviation when compatible vertical-guidance information is valid. The GS and NAV flags warn when their associated guidance is unavailable or invalid. The pilot must interpret these displays according to approved operating procedures. A centered pointer is meaningful only when the appropriate validity indications, receiver mode, frequency selection and external system conditions are correct.

Compatible signal sources and system use

A representative signal chain is VOR/localizer/glideslope antenna → approved navigation receiver or navigator → lateral and vertical deviation, validity and TO/FROM signals → KI 206 cockpit indication. Course-selection information from the OBS mechanism is routed through the approved interface as required. Other avionics may receive related deviation data, but the exact path is installation-specific and must be confirmed in the wiring documentation.

Official BendixKing KLN 94 pilot documentation shows a KI 206 CDI as a supported associated indicator in the KLN 94 system arrangement. This is documented functional compatibility for approved configurations, not a blanket approval for every KI 206 suffix or navigator. The connected navigator, annunciation, switching and aircraft approval must all support the exact installation before IFR navigation or approach use.

Identification plate and technical inspection

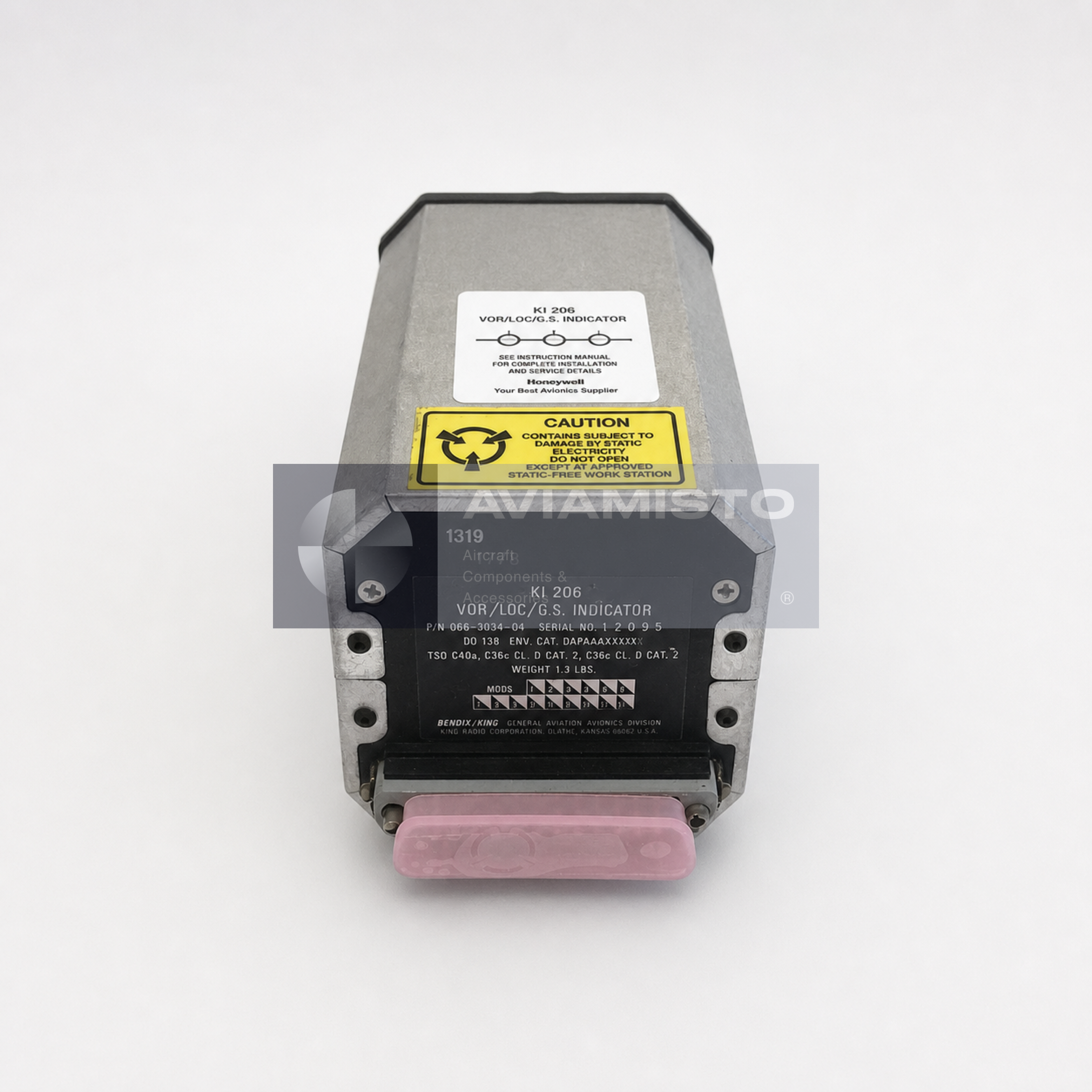

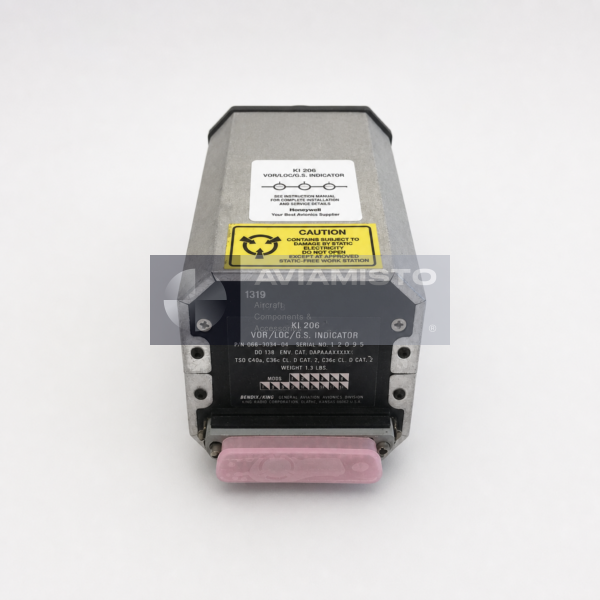

The authentic rear photograph identifies the unit as a Bendix/King KI 206 VOR/LOC/G.S. Indicator, Part Number 066-3034-04. The plate shows serial number 12095, weight 1.3 lb, DO-138 environmental-category information and TSO C40a, C36c Class D Category 2 and C34c Class D Category 2 references. These values belong to the photographed -04 unit and should not be transferred to another suffix without confirmation.

Receiving inspection should compare the complete plate, serial and modification marks, bezel, glass, compass card, OBS control, deviation pointers, TO/FROM display, NAV and GS flags, connector and mounting points. Bench testing should verify smooth course selection, resolver output where applicable, lateral and vertical deviation, centering, damping, flag logic and lighting. Pin assignments, signal levels and excitation must come from the approved KI 206 installation and maintenance data.

Overhauled supply and ordering information

This 066-3034-04 KI 206 is offered in Overhauled condition from partner stock with a six-month warranty. The quotation will identify the allocated serial number, overhaul organization, release documentation, bench-test status and included accessories. The mating connector, mounting hardware, navigator, antenna and switching or annunciation components are included only when expressly stated.

For an inquiry, specify Part Number 066-3034-04, model KI 206, aircraft type, connected navigator or NAV/COM, supply and lighting configuration, required certification and quantity. Related navigation equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category. Final eligibility and interchangeability must be confirmed through the aircraft equipment list and approved installation data.

Purchase records should retain the exact suffix and not substitute a generic KI 206 description, because visually similar versions can carry different technical and approval requirements.
