066-3024-02

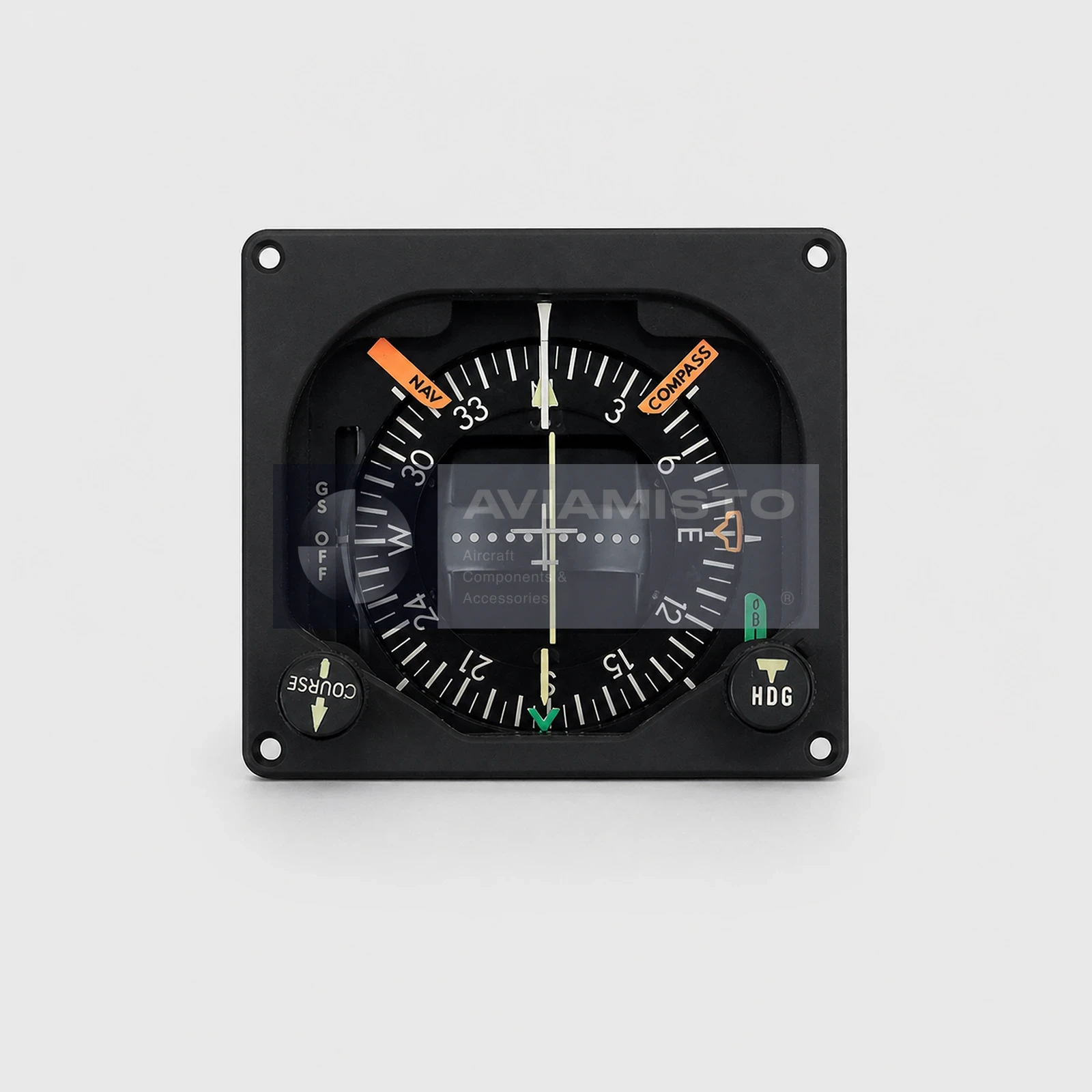

KPI 552 VOR/LOC/RMI/glideslope indicator — 066-3024-02

066-3024-02 identifies this BendixKing / Honeywell KPI 552 VOR/LOC/RMI/glideslope indicator. The unit presents VOR, localizer, glideslope and radio-magnetic bearing information from compatible navigation equipment. This card is based on the exact partner inventory record and the complete designation shown above; it is not a generic listing for every visually similar version in the same equipment family.

The partner source describes the item as: KPI 552 – VOR/LOC/RMI/Glideslope indicator Black faceplate, 5 volt lighting 30 Hz OBS resolver 4 Wire RMI TSO’d. The source condition is Serviceable. Technical statements in this listing are limited to the exact functions and characteristics documented for this position. Unknown dimensions, current consumption, pin assignments or aircraft applicability are not inferred from a related model.

Operational role and system function

KPI 552 combines several navigation presentations in one cockpit instrument. Pointer, deviation and flag information comes from connected receivers and heading sources; the indicator is not a standalone receiver. In normal service, correct operation also depends on the associated antennas, sensors, control heads, displays, power, grounding and wiring that belong to the approved aircraft installation. A fault indication at one component does not by itself prove that the component is the source of the system fault.

The equipment must be evaluated as part of its complete signal chain. Controls, connectors or labels visible in a photograph confirm physical features of the photographed configuration, but they do not prove that optional functions, software features or approvals are enabled in a particular aircraft. Approved technical data remains the controlling reference.

Installation and connected equipment

The exact installation requires compatible VOR/LOC/glideslope and RMI signal sources, approved connector and wiring, panel mounting, power and the documented lighting and resolver interfaces. A rack, backplate, connector kit, antenna, coupler, wiring harness or other installation hardware is not assumed to be included unless it is explicitly named in the quotation or Delivery Set.

Before installation, technicians should compare 066-3024-02 with the removed unit, aircraft equipment list, wiring diagram, modification status and applicable manufacturer manual. Panel dimensions, mounting depth, connector keying, pin allocation, circuit protection, lighting, cooling, data format and configuration settings all require confirmation. Similar appearance is not evidence of interchangeability.

Configuration checks for 066-3024-02

The complete designation and suffix are part of the product identity. Hardware revision, modification status, voltage, lighting, software, database, certification and connector configuration can differ between closely related variants. These details should be confirmed against the aircraft records and the specific serial number allocated for supply.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. The inspection should also confirm that shipping protection and supplied accessories agree with the quotation. Functional testing should follow the approved bench procedure for the exact model. Installation and return to service remain the responsibility of appropriately authorized personnel.

Serviceable condition, ordering and support

This 066-3024-02 KPI 552 is offered in Serviceable condition from Partner Stock with a six-month warranty. Partner availability can change, so allocation, the available serial number, current test status and release documentation are reconfirmed before order acceptance. Image processing does not alter or upgrade the declared commercial condition.

For an inquiry, specify 066-3024-02, model KPI 552, quantity, destination and documentation requirements. Adding the aircraft type, removed-unit Part Number and installation details helps prevent configuration errors. Buyers may also request current photographs of the allocated serial number and clarification of the quoted delivery set before confirming the order. Packaging and transport arrangements are selected for the destination and the physical characteristics of the unit.

Related avionics are available in the Garmin / BendixKing / Honeywell / Collins category. Cross-sell products are related catalog positions, not interchangeable replacements unless approved data explicitly confirms substitution.

Product Type: Vor/loc/rmi/glideslope indicator

Designation: 066-3024-02

Manufacturer: BendixKing / Honeywell

Model: KPI 552

Function: Presents vor, localizer, glideslope and radio-magnetic bearing information from compatible navigation equipment

Functions: VOR, LOC, RMI and glideslope indication

Lighting: 5 V

OBS Resolver: 30 Hz

RMI Interface: 4-wire

Faceplate: Black

Certification Reference: TSO-approved according to the source listing

Partner Inventory Serial Reference: 1494

Condition: Serviceable

Warranty: 6 Months

Installation Note: Confirm exact designation, suffix, serial allocation, rack, connectors, wiring, configuration and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
