066-1071-00

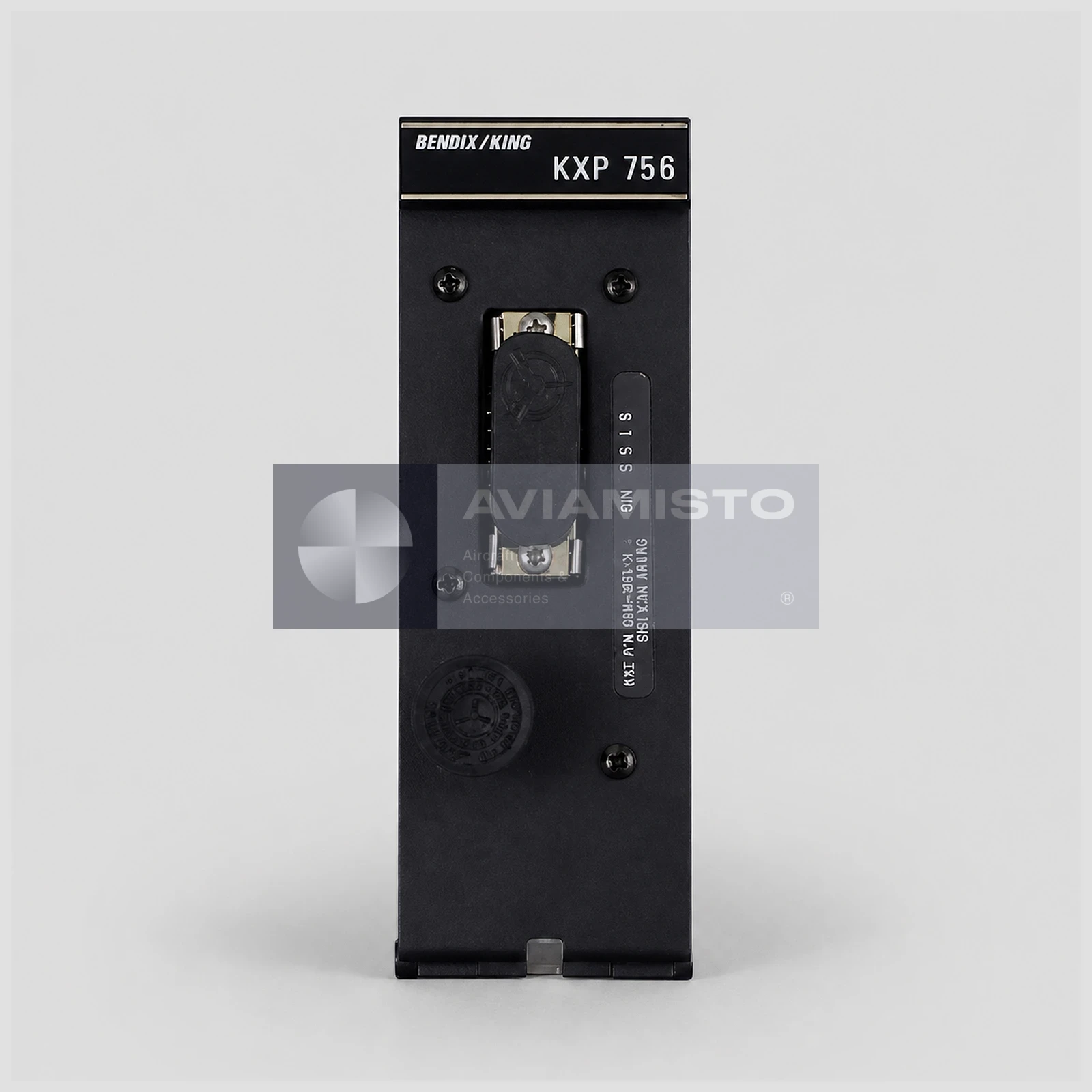

KXP 756 remote ATC transponder — 066-1071-00

066-1071-00 identifies this BendixKing / Honeywell KXP 756 remote ATC transponder. The unit provides coded ATC radar replies and altitude reporting in a compatible aircraft surveillance installation. This card is based on the exact partner inventory record and the complete designation shown above; it is not a generic listing for every visually similar version in the same equipment family.

The partner source describes the item as: . The source condition is Overhauled. Technical statements in this listing are limited to the exact functions and characteristics documented for this position. Unknown dimensions, current consumption, pin assignments or aircraft applicability are not inferred from a related model.

Operational role and system function

KXP 756 is a remote Class 1A, 4096-code transponder controlled by a compatible KFS 576 or KFS 576A. It receives interrogations at 1030 MHz and transmits replies at 1090 MHz. In normal service, correct operation also depends on the associated antennas, sensors, control heads, displays, power, grounding and wiring that belong to the approved aircraft installation. A fault indication at one component does not by itself prove that the component is the source of the system fault.

The equipment must be evaluated as part of its complete signal chain. Controls, connectors or labels visible in a photograph confirm physical features of the photographed configuration, but they do not prove that optional functions, software features or approvals are enabled in a particular aircraft. Approved technical data remains the controlling reference.

Installation and connected equipment

The transponder requires a compatible control head, approved antenna and coaxial cable, altitude encoder or air-data source, suppression wiring, 11–33 V DC power, rack and connectors. A rack, backplate, connector kit, antenna, coupler, wiring harness or other installation hardware is not assumed to be included unless it is explicitly named in the quotation or Delivery Set.

Before installation, technicians should compare 066-1071-00 with the removed unit, aircraft equipment list, wiring diagram, modification status and applicable manufacturer manual. Panel dimensions, mounting depth, connector keying, pin allocation, circuit protection, lighting, cooling, data format and configuration settings all require confirmation. Similar appearance is not evidence of interchangeability.

Configuration checks for 066-1071-00

The complete designation and suffix are part of the product identity. Hardware revision, modification status, voltage, lighting, software, database, certification and connector configuration can differ between closely related variants. These details should be confirmed against the aircraft records and the specific serial number allocated for supply.

Incoming inspection should verify the manufacturer plate, housing, connectors, locking features, controls, display or indicator face, fasteners and evidence of unauthorized modification. The inspection should also confirm that shipping protection and supplied accessories agree with the quotation. Functional testing should follow the approved bench procedure for the exact model. Installation and return to service remain the responsibility of appropriately authorized personnel.

Overhauled condition, ordering and support

This 066-1071-00 KXP 756 is offered in Overhauled condition from Partner Stock with a six-month warranty. Partner availability can change, so allocation, the available serial number, current test status and release documentation are reconfirmed before order acceptance. Image processing does not alter or upgrade the declared commercial condition.

For an inquiry, specify 066-1071-00, model KXP 756, quantity, destination and documentation requirements. Adding the aircraft type, removed-unit Part Number and installation details helps prevent configuration errors. Buyers may also request current photographs of the allocated serial number and clarification of the quoted delivery set before confirming the order. Packaging and transport arrangements are selected for the destination and the physical characteristics of the unit.

Related avionics are available in the Garmin / BendixKing / Honeywell / Collins category. Cross-sell products are related catalog positions, not interchangeable replacements unless approved data explicitly confirms substitution.

Product Type: Remote atc transponder

Designation: 066-1071-00

Manufacturer: BendixKing / Honeywell

Model: KXP 756

Function: Provides coded atc radar replies and altitude reporting in a compatible aircraft surveillance installation

Associated Controls: KFS 576 or KFS 576A

Receiver Frequency: 1030 MHz

Transmitter Frequency: 1090 MHz ±3 MHz

Nominal Output: 250 W

Power Supply: 11–33 V DC; 1.4 A at 27.5 V DC

Operating Temperature: −55 °C to +70 °C

Qualified Altitude: Up to 70,000 ft

Dimensions: 2.00 × 5.275 × 11.750 in

Weight: 3.81 lb / 1.73 kg

Certification Reference: TSO-C74c, Class 1A

Condition: Overhauled

Warranty: 6 Months

Installation Note: Confirm exact designation, suffix, serial allocation, rack, connectors, wiring, configuration and aircraft approval before installation

Technical Documentation: Applicable manufacturer installation and maintenance data plus aircraft wiring and approval documentation
