066-1069-01

BendixKing KDI 572 indicator 066-1069-01

066-1069-01 is the exact Part Number shown on this BendixKing KDI 572 DME indicator. The panel-mounted instrument is a master display and control interface for compatible remote distance-measuring equipment. Its front display presents DME information to the crew while the controls support the approved operating arrangement. The indicator is not a complete DME installation by itself and does not replace the remote transceiver, antenna, wiring or aircraft approval data.

The complete suffix matters when identifying a replacement. Units carrying the KDI 572 model name can look alike from the front while differing in part-number format, lighting, interface or modification status. Match 066-1069-01 against the installed identification plate, equipment list, connector and approved installation documentation before ordering. A zero-padded catalog form may appear as 066-01069-0001, but the supplied unit must be accepted by its exact plate and records.

DME display and crew-control functions

The KDI 572 is designed to display distance, groundspeed and time-to-station information produced by a compatible DME system. These values depend on valid interrogation and reply data from a ground DME station. Groundspeed and time-to-station are derived values and are meaningful when the aircraft is tracking toward or away from the station; they should not be treated as independent airspeed or navigation sensors.

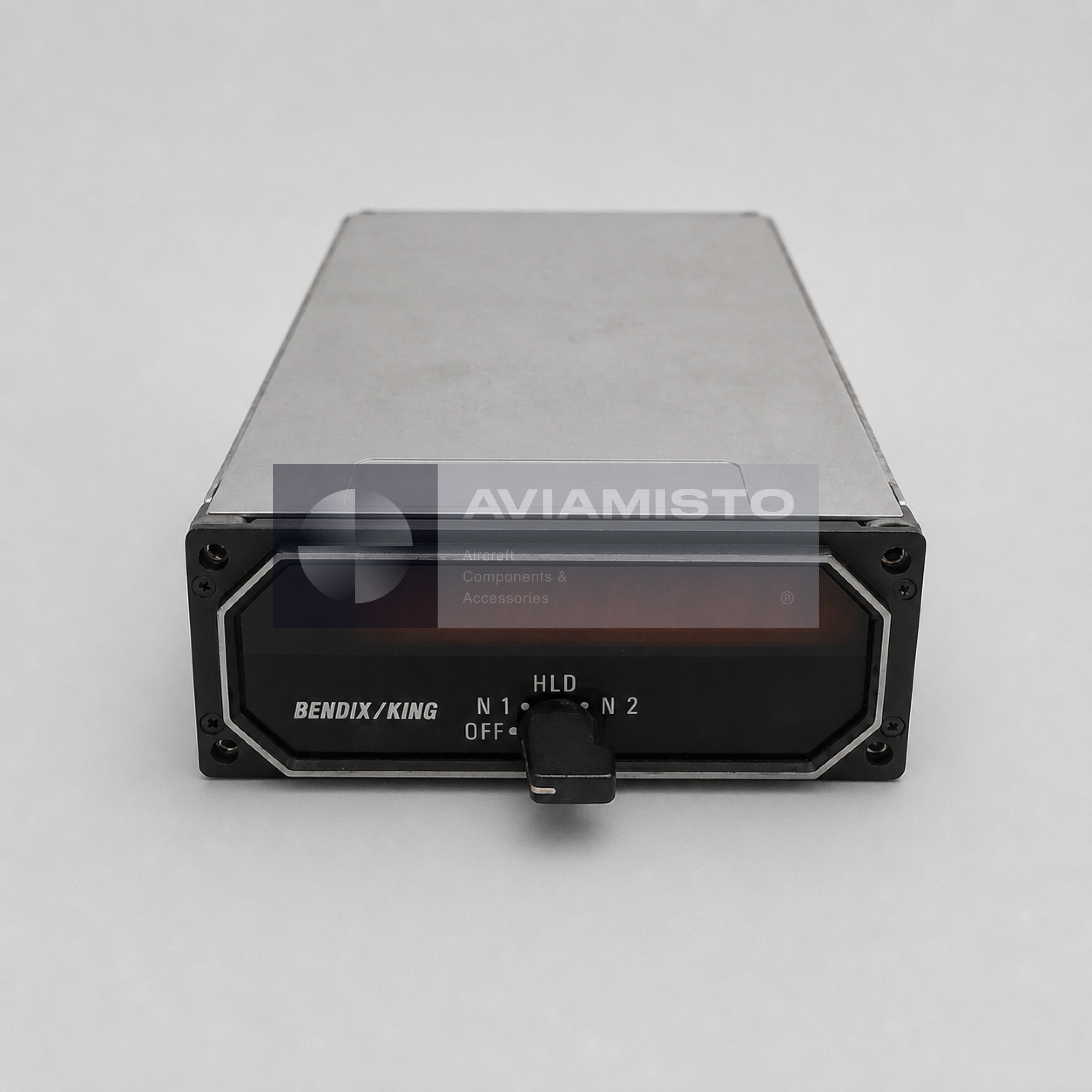

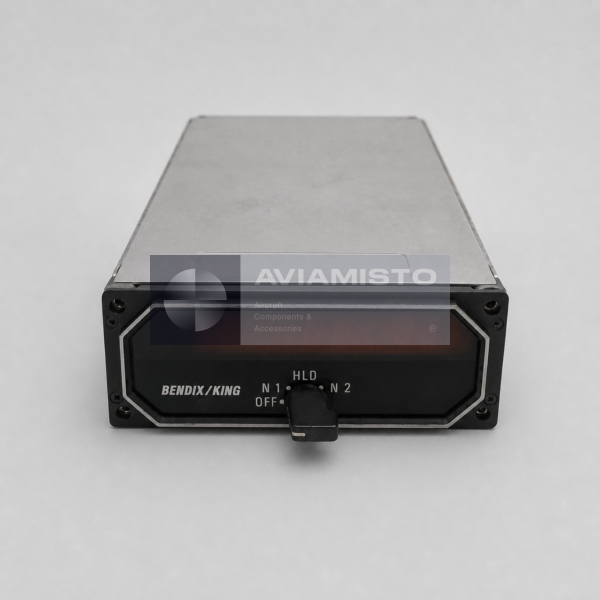

The photographed face includes the N1 and N2 source indications, an HLD annunciation, an OFF marking and a selector control. This arrangement lets the crew select or monitor the configured navigation source and manage the master indicator within the installed system. Exact selector behavior, display format and annunciations depend on the aircraft wiring and companion equipment, so cockpit functions must be checked against the applicable flight and maintenance documentation.

System interaction and signal path

A representative installation path is approved navigation-channel source → KDI 572 selection and control interface → compatible remote DME transceiver → DME antenna and ground-station interrogation → transceiver processing → KDI 572 distance, groundspeed and time display. BendixKing documentation associates the KDI 572 with compatible remote DME equipment such as the KDM 706A where that combination is approved. This relationship does not make every KDI or KDM suffix automatically interchangeable.

The KDI 572 can also be used in an arrangement that supplies display information to a KDI 573 copilot or crew indicator. The KDI 573 is a slaved display, whereas the KDI 572 is the master interface. Before replacing either instrument, confirm the complete Part Number, wiring diagram, data format, source selection, lighting supply and the installed remote transceiver. Related products in the same avionics category are system-associated items, not guaranteed direct replacements.

Identification, installation and inspection

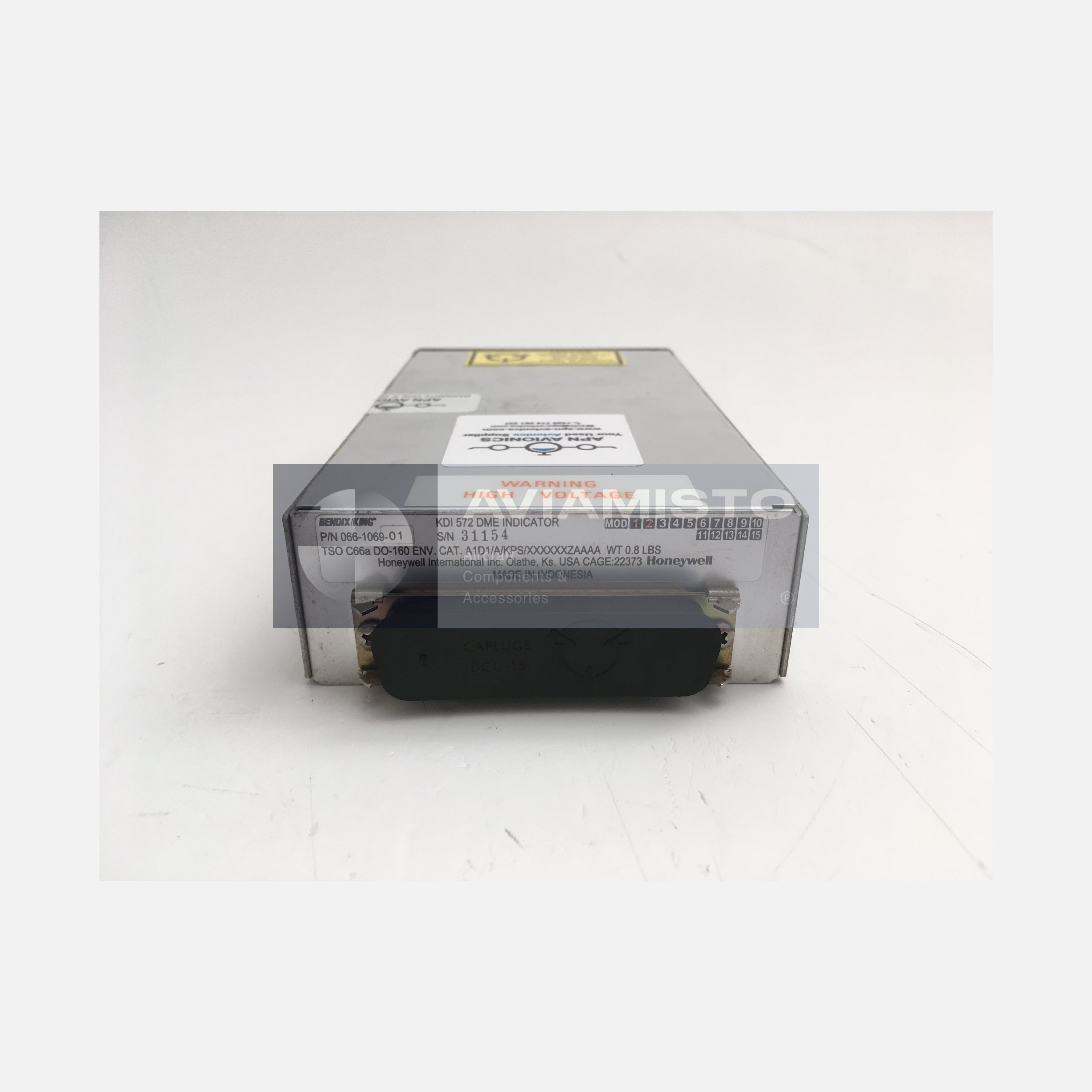

The authentic gallery photograph shows the exact KDI 572 identification plate with Part Number 066-1069-01, serial number 31154, TSO C66a and DO-160 references. The plate states a weight of 0.8 lb, approximately 0.36 kg. No unverified dimensions or power values have been transferred from another KDI suffix. Panel cutout, depth, connector arrangement and supply requirements must be confirmed from the approved data for this configuration.

Receiving inspection should compare the front legend, selector movement, display window, bezel, mounting points, connector condition, plate and serial-numbered release record. Installation testing should verify power-up, display segments, dimming, source selection, hold annunciation, valid distance information and communication with the installed transceiver. Antenna, cable and transceiver faults can also cause missing or unstable DME indications, so troubleshooting should follow the aircraft maintenance procedure rather than replacing the display by assumption.

Serviceable supply and ordering information

This 066-1069-01 KDI 572 is offered in Serviceable condition from partner stock with a six-month warranty. The quotation will identify the allocated serial number, release documentation, test status and any included accessories. A mounting tray, connector, remote DME transceiver, antenna, wiring, installation hardware and manuals are supplied only when expressly stated in the commercial offer.

For an inquiry, specify Part Number 066-1069-01, model KDI 572, aircraft type, installed DME transceiver, companion indicator configuration, supply and lighting requirements, connector arrangement, quantity and required certification. Review other system-associated items in the Garmin / BendixKing / Honeywell / Collins category. Final eligibility and interchangeability remain subject to the aircraft equipment list, approved installation data and authorized maintenance review.

Product Type: Master DME indicator / display and control unit

Manufacturer: BendixKing / Honeywell

Model: KDI 572

Designation: 066-1069-01

Alternative Designations: KDI572; KDI-572; 066106901; 066-01069-0001

Main Function: Displays distance, groundspeed and time-to-station information from compatible DME equipment

Unit Role: Master cockpit indicator and control interface

Visible Controls and Indications: N1, N2, HLD, OFF and selector control

Typical Signal Chain: Navigation source → KDI 572 → compatible remote DME transceiver → antenna and DME ground station → KDI 572 display

Associated Equipment: Compatible remote DME transceiver such as KDM 706A where approved

Companion Display: KDI 573 may serve as a slaved copilot or crew display in an approved configuration

Weight: 0.8 lb / approximately 0.36 kg according to the exact plate

Qualification Markings: TSO C66a and DO-160 according to the exact plate

Photographed Serial Number: 31154

Exact Dimensions: Refer to the approved KDI 572 installation drawing

Power Supply: Verify through approved data for Part Number 066-1069-01

Connector and Pin Assignment: Verify through the applicable KDI 572 wiring data

Aircraft Applicability: Confirm from the aircraft equipment list and approved DME installation documentation

Interchangeability: Complete suffix, interface, lighting, connector and installation approval must match

Condition: Serviceable

Warranty: 6 Months

Delivery Set: Tray, connector, transceiver, antenna and wiring only when expressly included

Technical Documentation: Applicable BendixKing KDI 572 installation, operating and maintenance data
