066-04035-0301

BendixKing KMD 540 display 066-04035-0301

066-04035-0301 is the exact BendixKing Part Number for this KMD 540 multifunction display. The panel-mounted unit combines a color screen with dedicated controls for map, weather, traffic, terrain and auxiliary pages. It serves as the cockpit presentation and control interface for compatible sources; it does not independently sense weather, traffic or terrain without the installed modules, aircraft interfaces and approved databases.

The complete -0301 suffix is important for identification. KMD 540 units can share the same bezel and model legend while differing in installed modules, connector configuration, software or modification status. Ordering and replacement should therefore match Part Number 066-04035-0301, the exact plate, installed module labels, aircraft equipment list and approved installation data.

Display functions and installed KMD modules

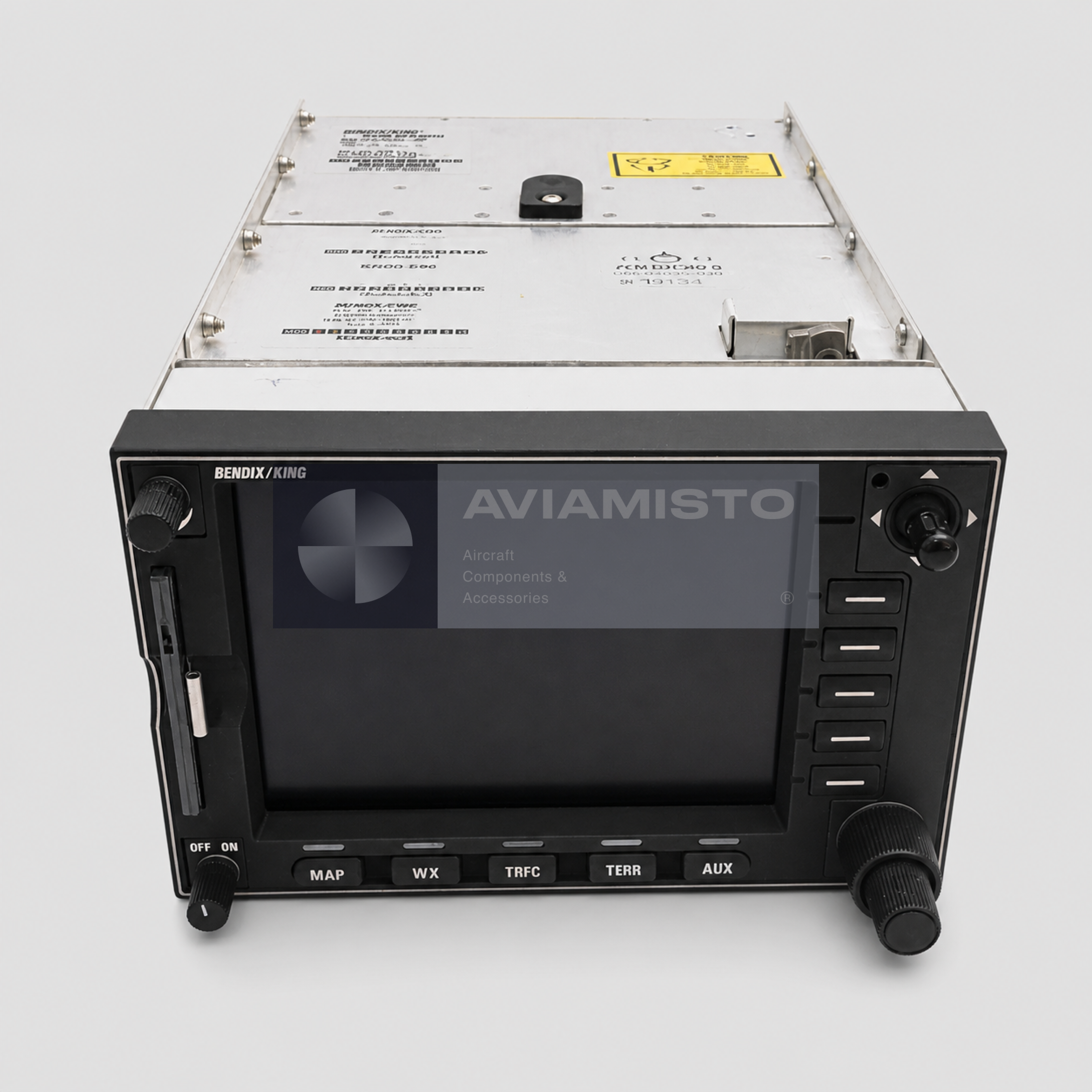

The front panel carries MAP, WX, TRFC, TERR and AUX keys, line-select buttons, range and cursor controls, power and brightness controls, and card slots. These controls let the crew select and manage supported information. Availability of a page depends on the corresponding aircraft source, wiring, configuration and current database rather than the label on the bezel alone.

The authentic gallery view documents three installed modules on this exact unit: KAC 501 Digital Weather Radar Module Part Number 071-00159-0111, KAC 504 Traffic Module Part Number 071-00166-0411 and KAC 502 EGPWS Module Part Number 071-00158-0211. Their labels establish the photographed configuration, but they are not represented as separately supplied loose components.

Exact identification and electrical data

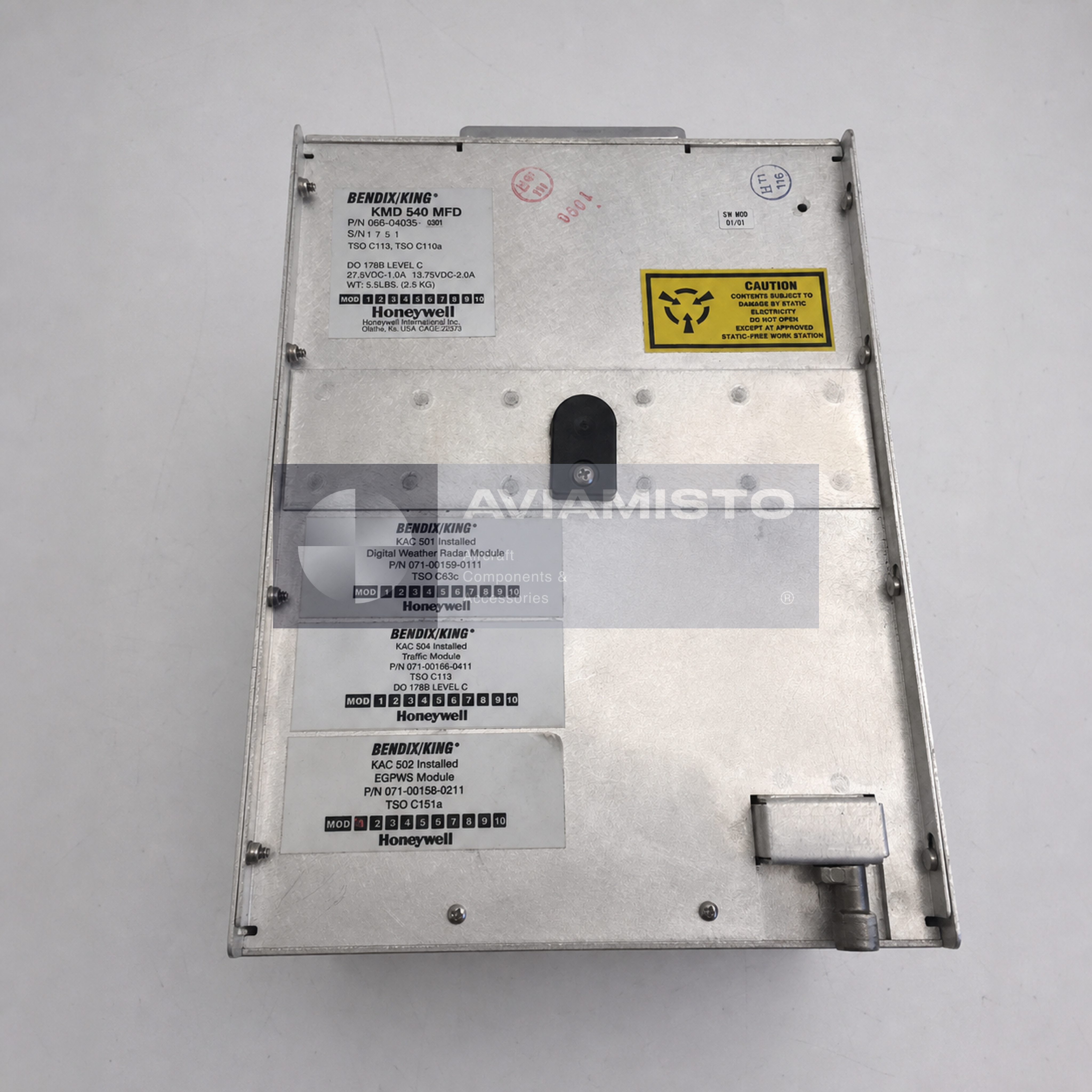

The manufacturer plate identifies a KMD 540 MFD with Part Number 066-04035-0301 and serial number 1751. It lists 27.5 VDC at 1.0 A or 13.75 VDC at 2.0 A and a weight of 5.5 lb, approximately 2.5 kg. TSO C113, TSO C110a and DO-178B Level C appear on the exact plate.

Those values belong to the photographed -0301 display and are not transferred from the -0101 or -1101 suffix. Exact dimensions, rack clearance, connector pin assignment, cooling limits, database-card requirements and supported interface protocols should be confirmed from approved data for 066-04035-0301 before installation.

Signal path, installation and testing

A representative chain is approved navigation, weather-radar, traffic or terrain source → installed KAC module and aircraft interface → KMD 540 processing and display → crew selection through the bezel controls. The exact path varies with aircraft configuration. A missing overlay can originate in a sensor, antenna, module, data bus, database, wiring or configuration rather than in the display itself.

Before installation, verify the complete Part Number, panel and rack dimensions, rear connector, power supply, circuit protection, cooling, installed modules, software, database media and every enabled source interface. Functional testing should include power-up, screen brightness, control response, enabled pages, range selection, valid-data annunciations and failure messages under the applicable maintenance procedure.

The display must not be treated as interchangeable with another KMD suffix because the front panel looks identical. Module composition, software, databases, electrical configuration and aircraft approval all matter. A replacement or exchange should retain traceable records for the serial-numbered unit and document the installed KAC modules actually accepted for the aircraft.

Overhauled supply and ordering information

This 066-04035-0301 KMD 540 is offered in Overhauled condition from partner stock with a six-month warranty. The quotation will confirm the allocated serial, overhaul source, release certificate, screen test, software and database status, and whether any rack, connector, card or installation accessory is included.

For an inquiry, specify Part Number 066-04035-0301, model KMD 540, aircraft type, installed source equipment, required module configuration, software or database requirement, quantity and certification. Antennas, sensors, rack, wiring and loose accessories are included only when expressly listed. Related products can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related equipment is not automatically interchangeable.

Maintenance records should identify the software level and database cycle tested at release, because configuration details can affect the pages available after installation.

Product Type: Multifunction display / MFD

Manufacturer: BendixKing / Honeywell

Model: KMD 540

Designation: 066-04035-0301

Alternative Designations: KMD540; KMD-540; 066040350301; Bendix/King KMD 540 -0301

Main Function: Presents compatible map, weather, traffic, terrain and auxiliary information

Visible Page Controls: MAP, WX, TRFC, TERR and AUX

System Composition: KAC 501 071-00159-0111, KAC 504 071-00166-0411 and KAC 502 071-00158-0211 installed on the photographed unit

Typical Signal Chain: Approved aircraft sources → installed KAC modules and interfaces → KMD 540 display → crew

DC Power Supply: 27.5 V DC / 1.0 A or 13.75 V DC / 2.0 A according to the exact plate

Weight: 5.5 lb / approximately 2.5 kg according to the exact plate

Qualification Markings: TSO C113 and TSO C110a according to the exact plate

Software Reference: DO-178B Level C according to the exact plate

Photographed Serial Number: 1751

Database Requirement: Verify current approved navigation and terrain data for the installed configuration

Exact Dimensions: Refer to the approved KMD 540 installation drawing

Connector and Pin Assignment: Verify through applicable KMD 540 installation and wiring data

Aircraft Applicability: Confirm from the equipment list and approved display-system documentation

Interchangeability: Complete suffix, installed modules, connector, software, database, interfaces and aircraft approval must be verified

Condition: Overhauled

Warranty: 6 Months

Delivery Set: Sensors, antennas, rack, connector, cards and wiring only when expressly included

Technical Documentation: Applicable BendixKing KMD 540 installation, database and maintenance data
