BendixKing KMD 540 display 066-04035-0101

066-04035-0101 is the exact BendixKing Part Number for this KMD 540 multifunction display. The panel-mounted unit provides a central screen and controls for presenting compatible navigation map, weather, traffic, terrain and auxiliary information. It is a display and user interface; the underlying data depends on the sensors, receivers, databases and aircraft interfaces installed with it.

The complete -0101 suffix must be retained in ordering and maintenance records. Other KMD-series displays can use a related bezel style while differing in functions, electrical requirements, software, databases or connector configuration. Selection should therefore match Part Number 066-04035-0101, the aircraft equipment list, exact plate and approved installation documentation.

Map, weather, traffic and terrain pages

The exact front panel carries dedicated MAP, WX, TRFC, TERR and AUX keys, together with range or cursor controls, line-select keys and card slots. These labels show the intended user-interface categories. They do not prove that every source or page is enabled in every aircraft; each function requires the corresponding approved equipment, wiring, software and current database where applicable.

A typical chain is compatible navigation, weather, traffic or terrain source → aircraft data interface → KMD 540 processing and display → crew selection through the bezel controls. The screen can consolidate information from several systems, reducing the need to interpret separate displays. It does not independently detect weather, traffic or terrain without the connected sources and approved databases.

Exact plate data for the -0101 display

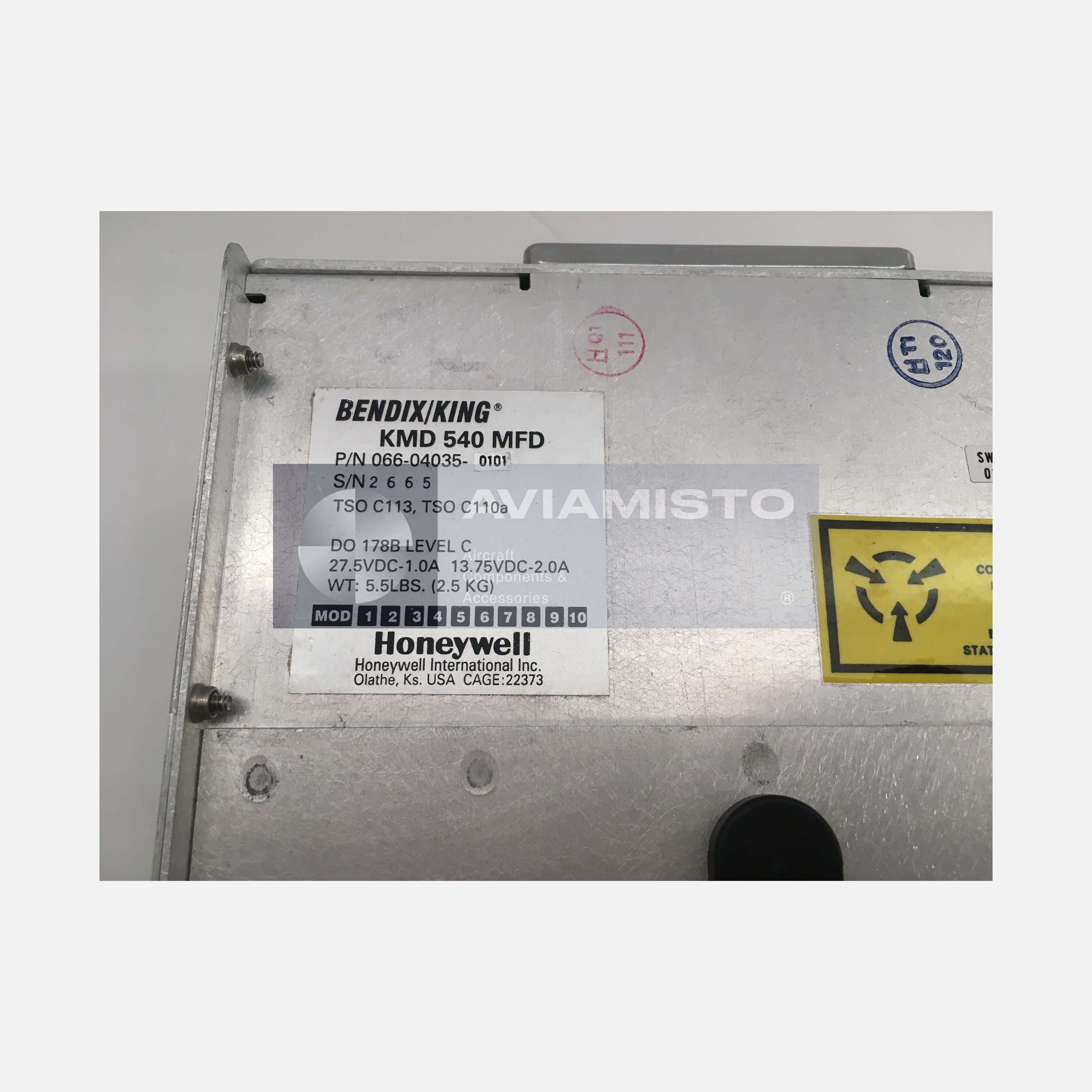

The authentic plate identifies the product as a KMD 540 MFD with Part Number 066-04035-0101 and serial number 2665. It shows TSO C113 and C110a together with DO-178B Level C. These qualification and software references belong to the photographed -0101 unit and should not be transferred to a different KMD 540 suffix.

The same plate states 27.5 VDC at 1.0 A or 13.75 VDC at 2.0 A and gives a weight of 5.5 lb, approximately 2.5 kg. Exact overall dimensions, connector pin assignment, supported data protocols, cooling limits and database-card requirements should be taken from approved installation data for this exact unit. They were not inferred from a KMD 550 or KMD 850.

Installation, databases and functional testing

Before installation, verify the complete Part Number, panel and rack dimensions, rear connector, power supply, circuit protection, cooling, data inputs, installed software, database media and interface with each selected aircraft system. The presence of MAP or TERR keys does not establish database validity. Operators must manage navigation and terrain data in accordance with the approved operating documentation.

Functional testing should cover power-up, screen brightness, control response, each enabled page, range selection, source annunciations, data validity and failure messages. A missing page or blank overlay can originate in the connected receiver, sensor, data bus, database, card, wiring or configuration rather than in the KMD 540 itself. Fault isolation should examine the complete source-to-display chain.

The KMD 540 should not be treated as a direct substitute for another KMD model based only on bezel size. Connector configuration, software, display capability, certification and installation approval can differ. Any replacement, upgrade or database change must follow the specific aircraft approval and retain traceable configuration information for the serial-numbered unit.

Overhauled supply and ordering information

This 066-04035-0101 KMD 540 is offered in Overhauled condition from partner stock with a six-month warranty. The listed price follows the agreed same-condition public comparison rule. The quotation will confirm serial number, overhaul source, release certificate, screen test, software and database status, and any memory card or installation accessory actually included.

For an inquiry, specify Part Number 066-04035-0101, model KMD 540, aircraft type, installed source equipment, software or database requirement, quantity and certification. Navigation, weather, traffic and terrain sensors, antennas, cards, rack, connector and wiring are included only when expressly stated. Related products can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related equipment is not automatically interchangeable.

Product Type: Multifunction display / MFD

Manufacturer: BendixKing / Honeywell

Model: KMD 540

Designation: 066-04035-0101

Alternative Designations: KMD540; KMD-540; 066040350101; Bendix/King KMD 540 -0101

Main Function: Presents compatible map, weather, traffic, terrain and auxiliary information

Visible Page Controls: MAP, WX, TRFC, TERR and AUX

Typical Signal Chain: Approved navigation / weather / traffic / terrain sources → aircraft interfaces → KMD 540 display → crew

DC Power Supply: 27.5 V DC / 1.0 A or 13.75 V DC / 2.0 A according to the exact plate

Weight: 5.5 lb / approximately 2.5 kg according to the exact plate

Qualification Markings: TSO C113 and TSO C110a according to the exact plate

Software Reference: DO-178B Level C according to the exact plate

Photographed Serial Number: 2665

Database Requirement: Verify current approved navigation and terrain data for the installed configuration

Exact Dimensions: Refer to the approved KMD 540 installation drawing

Connector and Pin Assignment: Verify through the applicable KMD 540 installation and wiring data

Aircraft Applicability: Confirm from the equipment list and approved display-system documentation

Interchangeability: Complete suffix, connector, software, database, source interfaces and aircraft approval must be verified

Condition: Overhauled

Warranty: 6 Months

Delivery Set: Sensors, antennas, cards, rack, connector and wiring only when expressly included

Technical Documentation: Applicable BendixKing KMD 540 installation, database and maintenance data
