066-03125-2600

BendixKing ED 462 display 066-03125-2600

066-03125-2600 is the exact BendixKing Part Number for this ED 462 electronic flight display. The unit is a panel-mounted display used in compatible EFS 40/50 electronic flight-instrument configurations. It presents graphical information generated and supplied by the connected symbol generator and approved aircraft sensors; it does not calculate the complete flight solution by itself.

The complete -2600 suffix is essential for identification. Other ED 462 displays may use a similar four-inch bezel and inactive-screen appearance while differing in configuration, modification status or approved interfaces. Maintenance and purchasing decisions should match Part Number 066-03125-2600, the aircraft equipment list, connector data and the exact manufacturer plate.

Display role in EFS 40/50 installations

BendixKing documentation describes EFS 40 as four-inch electronic instrumentation and EFS 50 as the related five-inch system. Depending on the approved system configuration and selected presentation, an ED 462 can display electronic attitude or horizontal-situation information and supported multifunction data. The displayed content is created by the associated symbol generator from valid aircraft inputs.

A typical chain is attitude, heading, navigation, flight-guidance, radio-altitude or weather-radar source → SG 465 symbol generator → ED 462 electronic display → crew. The exact sources and available pages depend on system wiring and software. A dark screen in the product photograph is the expected unpowered condition and must not be interpreted as a serviceability result.

Exact unit identification and construction

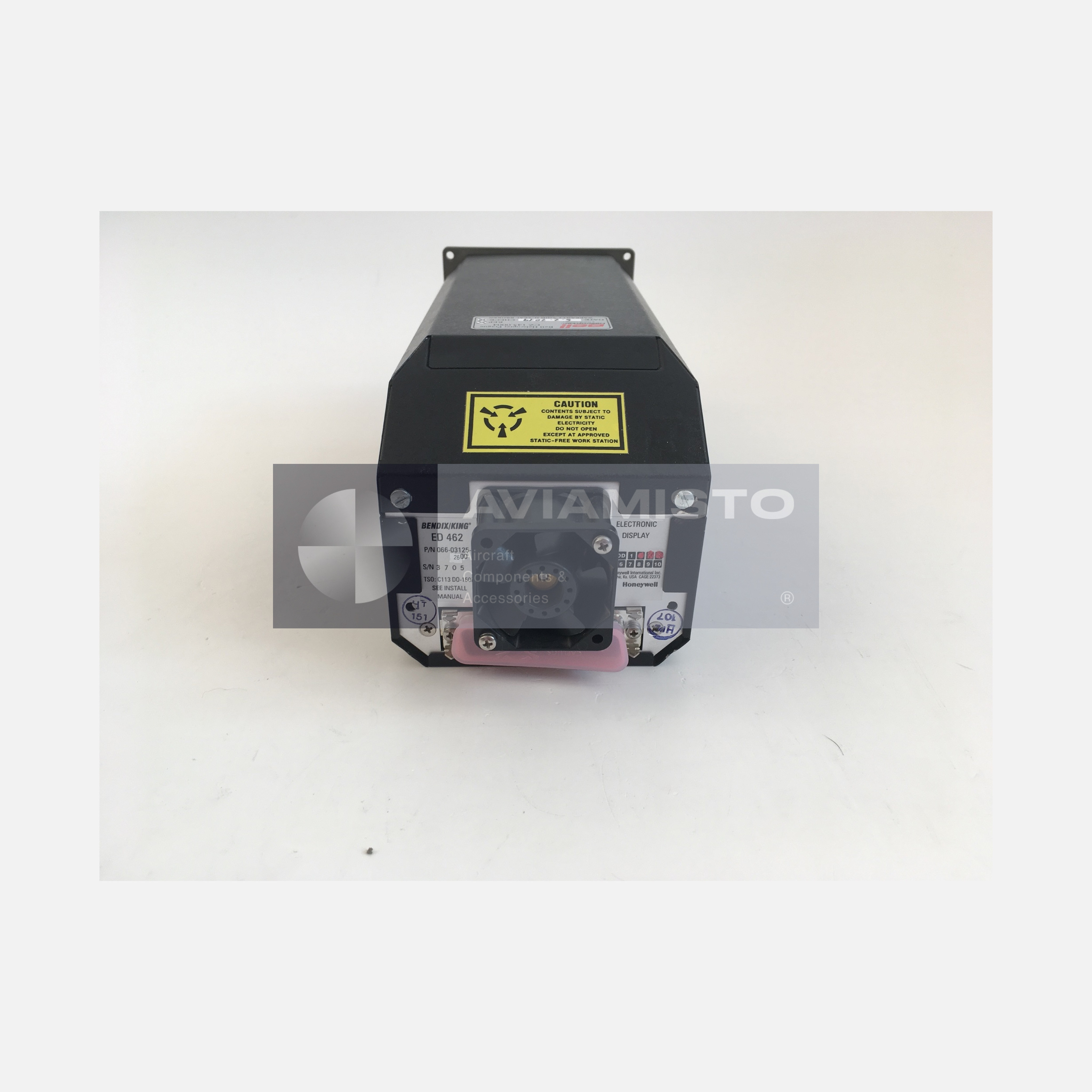

The authentic rear view identifies the product as an ED 462 Electronic Display with Part Number 066-03125-2600 and serial number 3705. TSO C113 is visible on the exact plate. The original chassis, rear connector, cooling fan, static-electricity caution label, mounting flange and four front mounting holes are preserved in the gallery photographs.

Reliable exact values for power consumption, overall dimensions, weight, connector pin assignment and environmental category were not independently confirmed from an authoritative open source for this -2600 suffix. These values should be taken from the approved ED 462 and EFS 40/50 installation data. No specification has been copied from an ED 461, ED 551 or visually similar display.

Cooling, installation and fault isolation

The rear photograph shows an integral fan and ventilation arrangement. Correct cooling is part of the installation and should not be blocked by wiring, insulation or foreign material. Before installation, confirm the panel cutout, mounting hardware, rear clearance, connector keying, power circuits, dimming, cooling airflow, SG 465 compatibility and approved display position for the aircraft.

Functional testing should verify power-up, brightness, color and geometry, mode selection, presentation of valid source data and annunciation of invalid inputs according to the EFS maintenance procedure. Display faults can originate in the ED 462, the SG 465, sensors, data buses, power supply, cooling or aircraft wiring. The complete signal path should be isolated before the display is removed.

The ED 462 must not be treated as interchangeable with another EFS display because the screen size looks similar. Compatibility depends on the complete suffix, symbol-generator software, aircraft wiring, connector, cooling arrangement and installation approval. A replacement or exchange should retain the modification and release information applicable to the serial-numbered unit.

Overhauled supply and ordering information

This 066-03125-2600 ED 462 is offered in Overhauled condition from partner stock with a six-month warranty. The listed price follows the agreed comparison with the exact same-condition public position. The quotation will confirm serial number, overhaul source, current display test, release certificate, modification status and any included connector or mounting accessory.

For an inquiry, specify Part Number 066-03125-2600, model ED 462, aircraft type, installed EFS 40/50 and SG 465 configuration, display position, quantity and required certification. Symbol generator, sensors, control panel, connector, fan ducting and mounting hardware are supplied only when expressly included. Related avionics can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related products are not automatically interchangeable.

Product Type: Electronic flight display / EFIS display unit

Manufacturer: BendixKing / Honeywell

Model: ED 462

Designation: 066-03125-2600

Alternative Designations: ED462; ED-462; 066031252600; Bendix/King ED 462 -2600

Main Function: Presents graphical flight and navigation information supplied by a compatible symbol generator

Associated System Family: Compatible BendixKing EFS 40/50 electronic flight-instrument installations

Documented Associated Unit: SG 465 symbol generator in approved EFS configurations

Typical Signal Chain: Approved aircraft sensors and avionics → SG 465 symbol generator → ED 462 display → crew

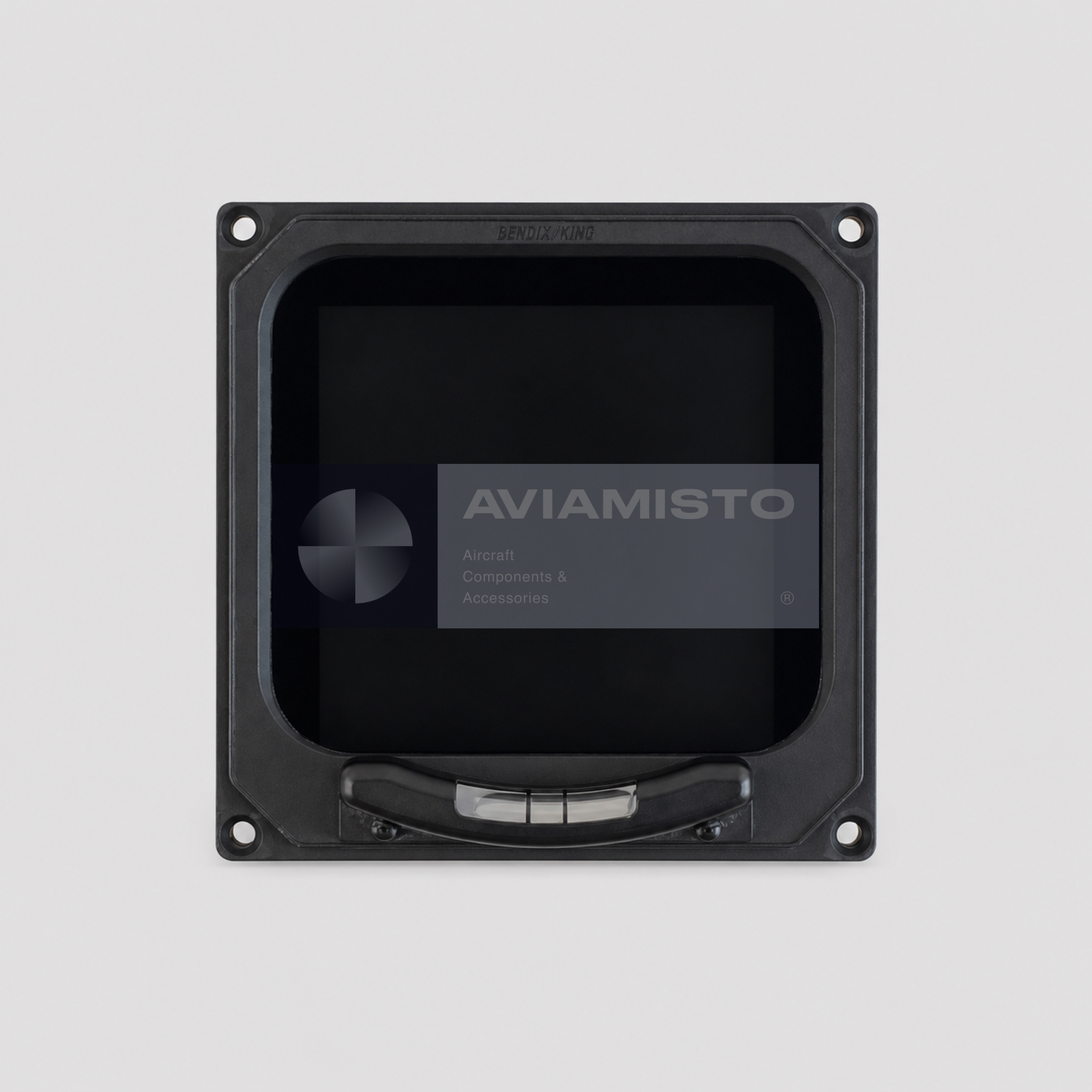

Visible Construction: Four-hole panel flange, inactive display, rear connector and integral cooling fan

Qualification Marking: TSO C113 according to the exact plate

Photographed Serial Number: 3705

Power Supply: Verify from the approved ED 462 installation data for 066-03125-2600

Exact Dimensions and Weight: Refer to the approved ED 462 installation drawing

Connector and Pin Assignment: Verify through the applicable EFS 40/50 installation and wiring data

Cooling Requirement: Maintain the approved fan and airflow arrangement

Interchangeability: Complete suffix, SG software, connector, cooling, wiring and aircraft approval must be verified

Condition: Overhauled

Warranty: 6 Months

Delivery Set: Symbol generator, sensors, control panel, connector and mounting hardware only when expressly included

Technical Documentation: Applicable BendixKing ED 462 and EFS 40/50 installation and maintenance data
