Altitude indication and encoding function

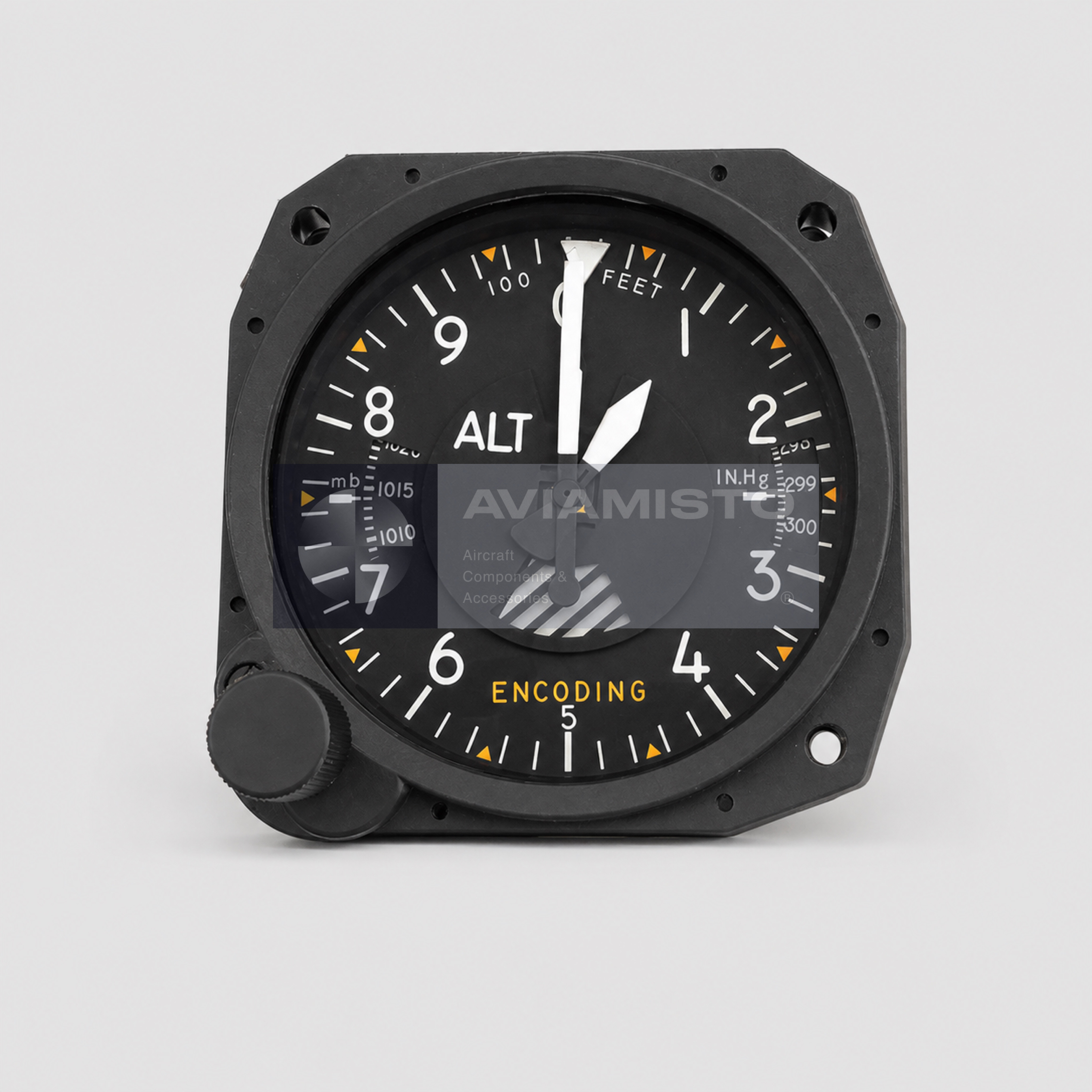

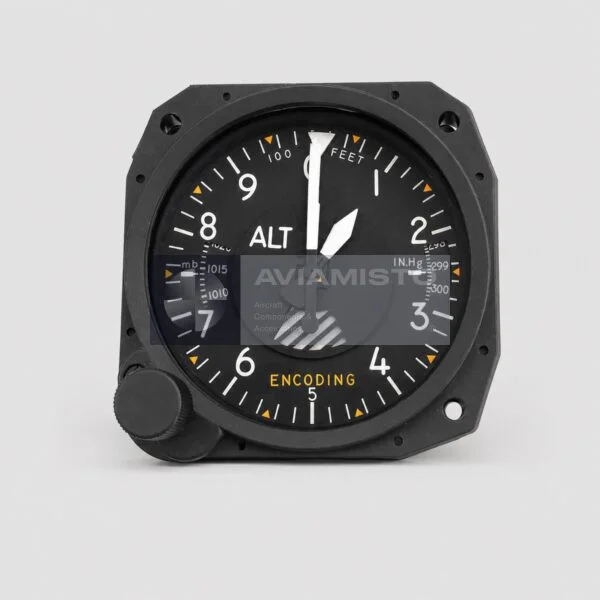

The front dial provides a multi-pointer altitude presentation in feet together with barometric correction windows marked in millibars and inches of mercury. The adjustment knob allows the crew to set the approved reference pressure. The exact pointer positions in the photograph are preserved only as a product view and must not be treated as calibration evidence.

BendixKing flight-control documentation identifies the KEA 130A as an encoding altimeter that can supply altitude and barometric-correction information to a compatible KAS 297B altitude and vertical-speed selector. In another approved installation, encoded altitude may feed compatible surveillance or navigation equipment. The connected use depends on aircraft wiring and certification, so no universal system configuration is assumed.

Exact plate specifications for the -0005 unit

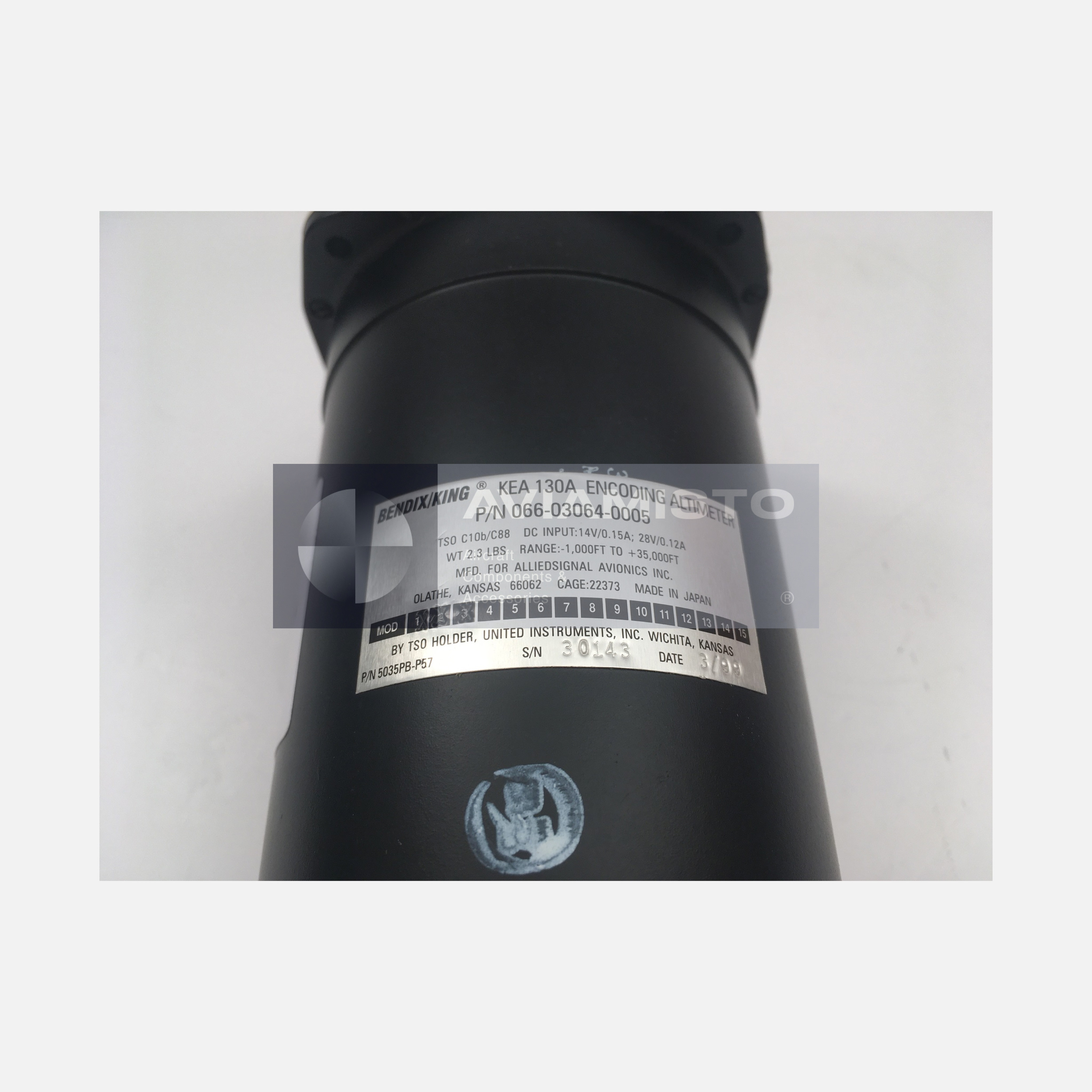

The authentic identification plate states a range from −1,000 ft to +35,000 ft. It lists 14 VDC at 0.15 A or 28 VDC at 0.12 A and gives a weight of 2.3 lb, approximately 1.04 kg. TSO C10b and C88 are shown on the exact plate. These figures have not been transferred from a different KEA 130A suffix.

The same plate identifies serial number 30143, date marking 3/99 and alternate manufacturer reference 5035PB-P57. The date remains an identification detail and is not converted into a separate YOM attribute. Exact overall dimensions, panel-cutout requirements, connector pin assignment and static-port arrangement should be verified through the approved drawing for 066-03064-0005.

Installation, static system and test checks

A typical functional chain is aircraft static-pressure source → KEA 130A pressure mechanism and pointer display → electrical altitude encoding output → compatible preselector, transponder or other approved consumer. The instrument depends on a leak-free static system, correct electrical supply, connector continuity and accurate barometric setting. A fault in any of those areas can produce an altitude or encoding discrepancy.

Before installation, confirm the complete Part Number, static connection, panel cutout, mounting holes, power supply, circuit protection, mating connector, encoded-output format and compatibility with the connected equipment. Similar dial artwork does not establish interchangeability. A post-installation test should cover indication, pressure response, barometric correction, encoder correspondence and system leakage according to the aircraft maintenance procedure.

When an altitude disagreement is reported, technicians should compare the pointer indication, encoded output, reference pressure setting, static source and receiving equipment. Replacement of the altimeter alone will not correct a blocked static line, incorrect wiring or fault in the connected selector or transponder. The exact serial-numbered unit must also have current calibration and release documentation appropriate to the intended operation.

Serviceable supply and ordering information

This 066-03064-0005 KEA 130A is offered in Serviceable condition from partner stock with a six-month warranty. The listed price follows the agreed exact-condition comparison rule. The quotation will confirm serial number, current inspection or calibration status, release documentation and whether a connector, clamp, mounting hardware or pressure fitting is included.

For an inquiry, specify Part Number 066-03064-0005, model KEA 130A, alternate reference 5035PB-P57, aircraft type, installed altitude system, required voltage, quantity and certification. Selectors, transponders, static fittings, connector and mounting hardware are supplied only when expressly listed. Related units can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related products are not automatically interchangeable.
