066-01153-4001

KRA 405B radar altimeter 066-01153-4001

066-01153-4001 is the exact Honeywell Part Number for this KRA 405B radar altimeter receiver/transmitter. The unit is the electronic core of a compatible airborne radio-altimeter system, generating the transmitted signal, processing the terrain return and delivering calculated height-above-ground information to approved cockpit displays, flight-control functions or warning equipment.

The complete -4001 suffix is essential when selecting this position. Similar KRA 405B enclosures can carry different full Part Numbers, production configurations or certification markings. Replacement must therefore be checked against the aircraft equipment list, the exact unit plate, applicable service information and approved installation data rather than accepted on the shared KRA 405B model name alone.

Height measurement and system relationship

Honeywell describes the KRA 405B as a lightweight solid-state airborne radar-altimeter receiver/transmitter operating from 0 to 2,500 ft. It sends radio-frequency energy through the transmit antenna, receives the terrain reflection through the receive antenna and determines the time-related height value. The resulting analog or digital output is then used by the aircraft equipment approved for that installation.

A practical signal chain is KRA 405B transmitter → approved transmit antenna → ground reflection → approved receive antenna → KRA 405B receiver and processor → compatible radar-altitude indicator, flight-control, terrain-warning or other approved consumer. The antennas, coaxial cables, display and system interfaces are separate components. They are not included unless the quotation expressly lists them.

Exact -4001 identification and published data

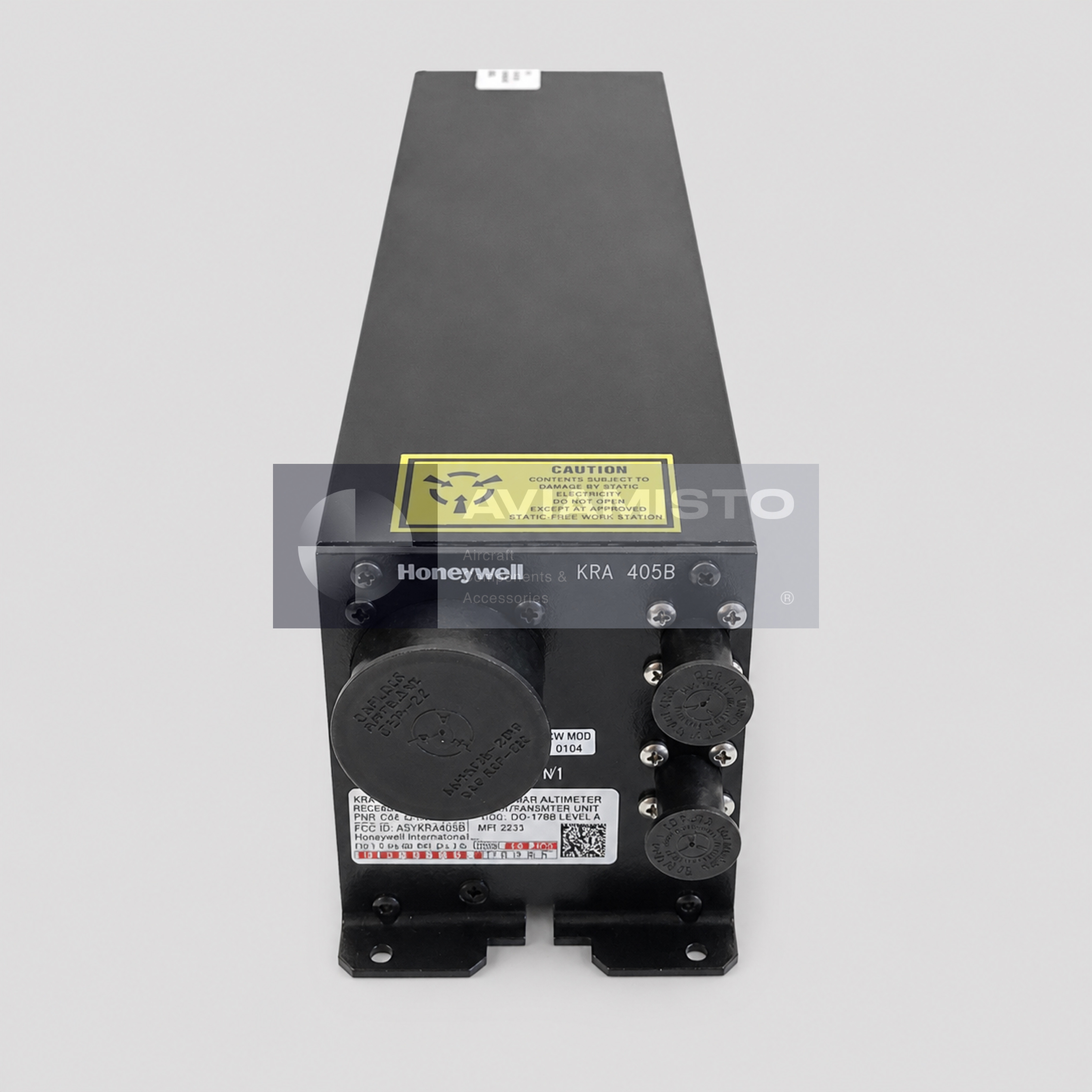

The authentic manufacturer plate identifies Part Number 066-01153-4001 and serial KRA405B-16928. It shows TSO C87, ETSO-2C87, DO-160C, DO-178B Level A and FCC ID ASYKRA405B. The commercial position is identified as New / Unused with Year of Manufacturing 2022. The release document and physical serial will be reconfirmed before allocation to an order.

Current Honeywell KRA 405B family data states 27.5 VDC nominal power with ±20% tolerance, approximately 850 mA nominal current, a 4.2 to 4.4 GHz frequency band centered at 4,300 ±15 MHz, and a maximum weight of 3 lb. Published dimensions are approximately 3 × 3.5 × 11 in, with operation from −55 °C to +70 °C and storage from −55 °C to +85 °C.

Published accuracy is ±3 ft or ±3% below 500 ft and ±5% above 500 ft. A documentation discrepancy should be noted: Honeywell's generic current page lists DO-160B, while the exact -4001 manufacturer plate states DO-160C. The exact plate is the recommended value for this serial-numbered product, and approved installation or release data takes precedence over generic family literature.

Installation and current 5G considerations

Honeywell lists rigid or shock mounting and compatibility with the earlier KRA 405 rack arrangement, subject to approved installation instructions. Verify the -4001 suffix, rack, connector interfaces, RF cables, antenna configuration, power protection, aircraft wiring, output compatibility and required functional tests. Similar housing and connector positions do not by themselves establish electrical or regulatory interchangeability.

Honeywell's current 5G guidance identifies external band-pass filter Part Number 68013467-001 for certain approved compliance paths. This filter is not assumed to be part of the delivery set. Operators must establish whether their aircraft, location and regulatory approval require that filter or another approved action. No modification should be inferred from the product photograph alone.

New / Unused supply and ordering information

This 066-01153-4001 KRA 405B is offered in New / Unused condition, YOM 2022, from partner stock with a six-month warranty. The price follows the agreed exact-condition comparison rule. The quotation will confirm serial KRA405B-16928 or the serial allocated, FAA release documentation, preservation status, test records and any accessories actually included.

For an inquiry, specify Part Number 066-01153-4001, model KRA 405B, aircraft type, existing radar-altimeter configuration, quantity and required certification. Antennas, rack, indicator, mating connectors, wiring and 5G filter are included only when explicitly stated. Related equipment can be reviewed in the Garmin / BendixKing / Honeywell / Collins category; related units must not be treated as direct substitutes without approval.

Product Type: Radar altimeter receiver/transmitter

Manufacturer: BendixKing / Honeywell

Model: KRA 405B

Designation: 066-01153-4001

Alternative Designations: KRA405B; KRA-405B; 066011534001; Honeywell KRA 405B -4001

Main Function: Transmits and receives radar-altimeter signals and provides calculated height-above-ground outputs

Measuring Range: 0 to 2,500 ft according to current Honeywell KRA 405B family data

Accuracy: ±3 ft or ±3% below 500 ft; ±5% above 500 ft according to current Honeywell family data

Frequency: 4.2 to 4.4 GHz; center frequency 4,300 ±15 MHz

DC Power Supply: 27.5 V DC nominal, ±20%

Nominal Current: Approximately 850 mA

Operating Temperature: −55 °C to +70 °C

Storage Temperature: −55 °C to +85 °C

Dimensions: Approximately 3 × 3.5 × 11 in according to current Honeywell family data

Maximum Weight: 3 lb / approximately 1.36 kg

Outputs: Analog and digital radar-altitude outputs according to Honeywell family data

Typical Signal Chain: Transmit antenna → terrain reflection → receive antenna → KRA 405B → compatible indicator or aircraft system

Exact Plate Qualification: TSO C87, ETSO-2C87, DO-160C and DO-178B Level A

Generic Source Discrepancy: Current Honeywell family page lists DO-160B; exact photographed -4001 plate lists DO-160C

FCC ID: ASYKRA405B according to the exact plate

Photographed Serial Number: KRA405B-16928

Year of Manufacturing: 2022

5G Mitigation Note: External Honeywell filter 68013467-001 may be required only under the applicable approved configuration or AMOC

Condition: New / Unused

Warranty: 6 Months

Delivery Set: Antennas, rack, indicator, wiring and external filter only when expressly included

Technical Documentation: Applicable Honeywell KRA 405B installation, maintenance and approved 5G guidance
